If you’re working on a project that involves stainless steel pipes, it’s crucial to ensure that you select the appropriate pipe for the job. One of the key factors to consider is the pressure rating of the pipe, which refers to its ability to withstand internal pressure without leaking or bursting. To determine the pressure rating of a 316 stainless steel pipe, you need to consult a pressure rating chart.
In this article, we’ll provide you with a comprehensive guide to understanding and using a 316 stainless steel pipe pressure rating chart to select the right pipe for your project.
Key Takeaways:
- Understanding the pressure rating of stainless steel pipes is crucial for ensuring the safety and success of any project.
- A 316 stainless steel pipe pressure rating chart provides valuable information on the pressure rating of different pipes based on various factors such as temperature, diameter, and wall thickness.
- Knowing how to read and interpret a pressure rating chart is essential for selecting the appropriate pipe that can handle the required pressure and temperature for your project.
Understanding 316 Stainless Steel
When it comes to selecting the right material for a project, understanding the properties and characteristics of each option available is crucial. One popular choice for various applications is 316 stainless steel.
316 stainless steel is a type of austenitic stainless steel that contains molybdenum, which increases its resistance to corrosion and high-temperature applications. Compared to other stainless steel grades, 316 stainless steel has superior durability, strength, and longevity.
Notably, 316 stainless steel is highly resistant to chemicals, making it a preferred choice for applications in harsh environments. Additionally, it has a lower carbon content than other grades, which allows it to resist sensitivity to intergranular corrosion caused by welding or heating to high temperatures.
Due to its unique properties, 316 stainless steel is commonly used in a wide range of industries, including marine, pharmaceutical, chemical, and food processing, as well as medical devices and structural applications.
Importance of Pressure Rating
The pressure rating of a stainless steel pipe is a critical factor in ensuring the safety and success of any project. It determines how much pressure the pipe can withstand without rupturing or failing, and therefore, plays a crucial role in preventing accidents, leaks, and other hazards.
Without proper understanding of pressure rating, selecting a stainless steel pipe for a project can be risky and result in costly and damaging consequences. For instance, a pipe with a low pressure rating may not be able to handle the required pressure, leading to leaks and other damages. Similarly, a pipe with a high pressure rating may be unnecessarily expensive and not required for the project, leading to additional costs.
Factors Affecting Pressure Rating
There are several factors that can impact the pressure rating of 316 stainless steel pipes. The most important among these are:
- Temperature: Higher temperatures can significantly affect the pressure capacity of stainless steel pipes. As temperatures increase, the pipe material becomes weaker and more prone to failure, leading to a decrease in the pressure rating. It is crucial to take into account the operating temperature when selecting a pipe for a specific application.
- Diameter: The diameter of the pipe is another critical factor that affects the pressure rating. In general, the larger the diameter of the pipe, the lower the pressure it can withstand. This is primarily due to the increase in surface area, which results in higher stress levels on the material.
- Wall thickness: The thickness of the pipe wall is directly proportional to the pressure rating. Pipes with thicker walls can handle higher pressures than those with thinner walls. It is essential to select a pipe with the appropriate wall thickness to ensure safe and proper operation.
- Corrosive environment: The exposure of pipes to a corrosive environment can significantly reduce their pressure rating. Corrosion can weaken the material and lead to premature failure. Therefore, the choice of the appropriate material to withstand the corrosive environment is key to ensuring the safety and success of a project.
- Type of fluid: The type of fluid flowing through the pipe can also impact the pressure rating. Liquids and gases that are more viscous or abrasive can cause more significant stress on the material, leading to a lower pressure rating. It is necessary to consider the properties of the fluid while selecting the pipe material.
Summary
It is essential to consider these factors when selecting a 316 stainless steel pipe for a specific application, as they can significantly impact the pressure rating. Understanding these factors can help ensure that the selected pipe can safely handle the required pressure, leading to a successful and long-lasting project.

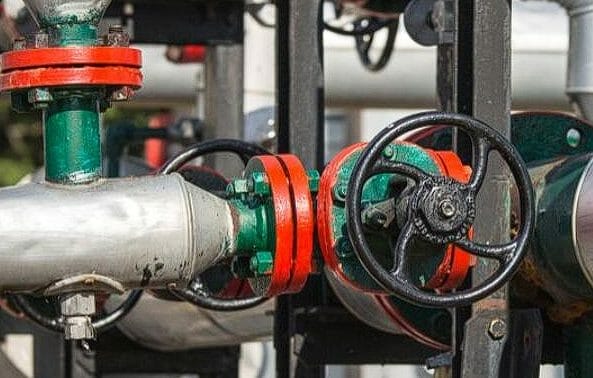

Types of Pressure Ratings
There are two main types of pressure ratings commonly used for stainless steel pipes: the maximum allowable working pressure (MAWP) and the burst pressure. The MAWP is the maximum pressure that the pipe can handle continuously without causing any damage or permanent deformation. The burst pressure, on the other hand, is the pressure at which the pipe will fail catastrophically, leading to a rupture or explosion.
It is important to note that the MAWP is the primary rating used for selecting the appropriate pipe for a specific project, as it ensures the safety and longevity of the system. The burst pressure is typically used as a secondary rating to provide an additional level of safety margin.
Understanding the Chart
Before using a 316 stainless steel pipe pressure rating chart, it is important to understand how to read and interpret the data. The chart typically includes several columns, such as nominal pipe size, wall thickness, maximum allowable working pressure (MAWP), and temperature range.
Understanding the chart involves taking note of each column and what it represents. The nominal pipe size refers to the size of the pipe, while the wall thickness indicates the thickness of the pipe’s wall. The MAWP column indicates the maximum allowable pressure for the pipe, and the temperature range shows the temperature range that the pipe can safely handle.
Columns in a Typical 316 Stainless Steel Pipe Pressure Rating Chart
| Nominal Pipe Size | Wall Thickness | MAWP | Temperature Range |
|---|---|---|---|
| 1/4″ | 0.065″ | 7100 | -20°F to 100°F |
| 3/8″ | 0.065″ | 6100 | -20°F to 100°F |
| 1/2″ | 0.083″ | 5500 | -20°F to 100°F |
When using the chart, it is important to select the appropriate column that corresponds to the specific project requirements. For instance, if the project involves high pressure, then the maximum allowable working pressure (MAWP) column would be crucial. Similarly, if the project involves high temperatures, the temperature range column would be the most important.
Overall, understanding the chart is a critical aspect of selecting the right 316 stainless steel pipe for any project. It not only ensures the safety of the project but also guarantees the success and longevity of the installation.
Using the Chart for Selection
Now that you understand the different factors affecting pressure rating and how to read the 316 stainless steel pipe pressure rating chart, it’s time to put your knowledge into action. The chart can be a valuable tool for selecting the appropriate pipe for your project’s specific requirements.
Start by looking at the maximum allowable working pressure (MAWP) column in the chart and finding the pressure that matches your project’s needs. Then, consider the temperature and pipe size columns to ensure the selected pipe can withstand the conditions it will be exposed to. Remember to also factor in any additional stress or pressure that may occur during the project.
It’s important to note that while the chart provides a useful guide, it’s still crucial to consult with a professional engineer or industry expert to ensure the selection is appropriate for the project’s unique needs.
Application Examples
Understanding the 316 stainless steel pipe pressure rating chart is crucial for selecting the appropriate pipe for any project. Here are a few examples of how the chart can be applied in real-life scenarios:
| Project | Requirements | Selected Pipe |
|---|---|---|
| Chemical Processing Plant | Transporting Highly Corrosive Chemicals at High Temperature and Pressure | 316L Schedule 80 Pipe with a Maximum Allowable Working Pressure of 600 PSI |
| Oil Refinery | Transporting Crude Oil at High Temperature and Pressure | 316L Schedule 40 Pipe with a Maximum Allowable Working Pressure of 290 PSI |
| Food and Beverage Industry | Transporting Potable Water at Room Temperature | 316L Schedule 10 Pipe with a Maximum Allowable Working Pressure of 230 PSI |
As seen in the above examples, the appropriate pipe for a project can vary greatly depending on the specific requirements. By utilizing the 316 stainless steel pipe pressure rating chart, industry professionals can confidently select the most suitable pipe for their application, ensuring the safety and success of their project.

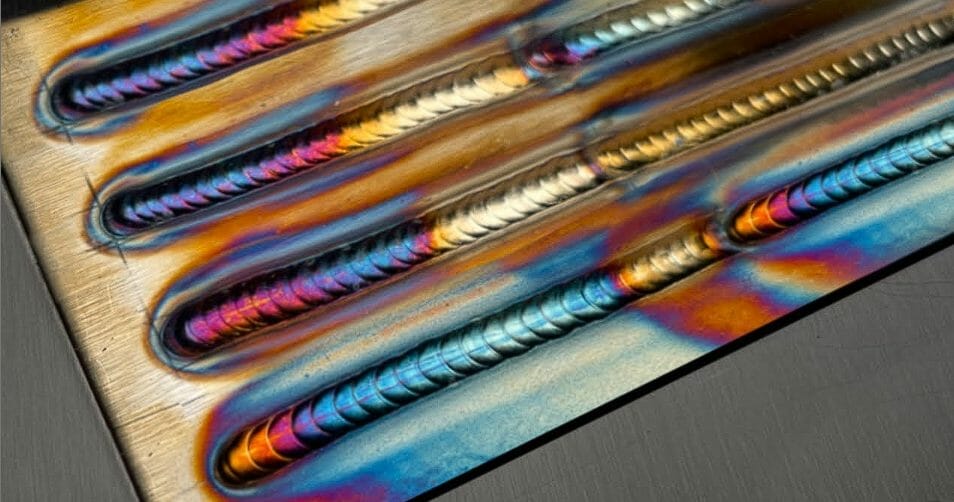

Weld Color Chart for Stainless Steel
When working with stainless steel pipes, the color of the weld is an important factor to consider. The color of the weld can indicate the quality and integrity of the weld, as well as provide insight into the temperature and conditions of the welding process.
The weld color chart for stainless steel provides a useful tool for interpreting the colors of the weld and identifying any issues that may arise. The chart typically includes a range of colors from light straw to dark blue, each indicating a different temperature range during the welding process.
For example, a light straw color may indicate a temperature range of 200-400°C, while a dark blue color may indicate a range of 600-800°C. By understanding the weld color chart and the corresponding temperature ranges, welders can ensure that the welding process is safe and effective.
It is important to note that the weld color chart is not a substitute for proper training and experience in welding stainless steel. Accurate interpretation of the colors requires knowledge of the specific alloy and welding conditions, as well as adherence to industry standards and best practices.
To learn more about the weld color chart for stainless steel and to see examples of different colors and temperature ranges, check out our comprehensive guide (include anchor text with the link to the resource).
Maintenance and Safety Tips
Proper maintenance and safety measures are crucial for ensuring the longevity and functionality of 316 stainless steel pipes. Here are some tips to keep in mind:
- Regular Inspection: Schedule routine inspections to check for any signs of damage, corrosion, or leaks. Early detection can help prevent more significant issues from developing.
- Proper Handling: Take care when handling 316 stainless steel pipes, as they can be heavy and have sharp edges. Always use appropriate lifting equipment and protective gear.
- Adherence to Standards: Follow the relevant industry standards and guidelines for using and maintaining stainless-steel pipes.
- Preventative Maintenance: Implement a preventative maintenance plan to address potential issues before they become major problems. This can include regular cleaning, lubrication, and replacement of worn parts.
- Safety Precautions: Proper safety measures should be in place when working with 316 stainless steel pipes. This can include using appropriate personal protective equipment, implementing lockout/tagout procedures, and providing adequate training to workers.
By following these simple maintenance and safety tips, you can ensure the proper functioning and longevity of your 316 stainless steel pipes.
Conclusion
Using a 316 stainless steel pipe pressure rating chart is essential for selecting the appropriate pipe for any project. As we have seen, factors such as temperature, pressure, and pipe size can greatly impact a pipe’s pressure rating and safety. With the help of the chart, users can ensure that they are selecting a pipe that meets their project requirements and adheres to relevant industry standards.
Don’t Risk It
Ignoring pressure ratings and using the wrong pipe can have serious consequences, including leaks, pipe failure, and even personal injury. Don’t risk it – take the time to understand and use a 316 stainless steel pipe pressure rating chart.
Stay Safe and Successful
Proper maintenance and adherence to industry standards are also crucial for the success and safety of any project. Regular inspection, proper handling, and following relevant safety guidelines can help ensure the longevity and durability of 316 stainless steel pipes.
Remember to bookmark our guide to 316 stainless steel pipe pressure rating chart for your reference, and always prioritize safety and quality for your projects.
