Are you looking for corrosion-resistant and strong pipes for your projects? If yes, 316 stainless steel pipes might be the perfect choice for you. In this comprehensive guide, we will delve into the specifications of 316 stainless steel pipes. By understanding the key features and properties of this material, you will be able to make informed decisions for your projects.
Key Takeaways:
- 316 stainless steel pipes are highly durable and corrosion-resistant.
- They offer superior resistance to pitting and crevice corrosion due to their higher molybdenum content.
- These pipes have a minimum tensile strength of 515 MPa and a minimum yield strength of 205 MPa.
- They are commonly used in plumbing, oil and gas processing, food processing equipment, pharmaceuticals, and chemical transportation systems.
- 316 stainless steel pipes are available in seamless and welded forms and can range from 1/8″ to 36″ in diameter.
What is 316 Stainless Steel?
In this section, we will provide an overview of what 316 stainless steel is and why it is a popular choice for various applications. As mentioned earlier, 316 stainless steel is a grade of stainless steel known for its exceptional corrosion resistance, high tensile strength, and good formability.
What sets 316 stainless steel apart from other grades of stainless steel is its unique chemical composition. It contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. This composition gives it superior resistance to various corrosive environments, including those containing chlorides, acids, and alkaline solutions.
Furthermore, 316 stainless steel exhibits excellent welding properties, making it easy to form and fabricate into different shapes and sizes. Its high-temperature tolerance and low maintenance requirements make it ideal for use in demanding environments such as the chemical processing, oil and gas, and pharmaceutical industries.
Overall, the combination of its chemical composition, mechanical and physical properties, and ease of fabrication make 316 stainless steel a versatile and reliable material for various applications.

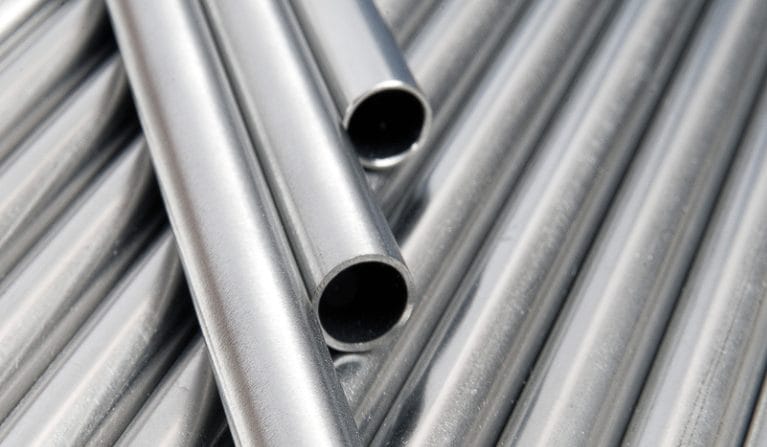

Chemical Composition of 316 Stainless Steel
When it comes to understanding the specifications for 316 stainless steel pipes, the chemical composition of this material plays a crucial role. The combination of chromium, nickel, and molybdenum provides this alloy with exceptional resistance to corrosion, making it a popular choice for demanding applications.
| Element | Percentage (%) |
|---|---|
| Chromium (Cr) | 16-18 |
| Nickel (Ni) | 10-14 |
| Molybdenum (Mo) | 2-3 |
The higher molybdenum content of 316 stainless steel compared to other grades provides it with superior resistance to pitting and crevice corrosion in chloride environments. Nickel enhances resistance to chloride-induced stress corrosion cracking, which can be particularly problematic in applications such as marine environments.
Other elements that may be present in smaller amounts include carbon, manganese, silicon, phosphorus, sulfur, and nitrogen. The precise chemical composition of 316 stainless steel pipes can vary depending on the specific application and industry standards.

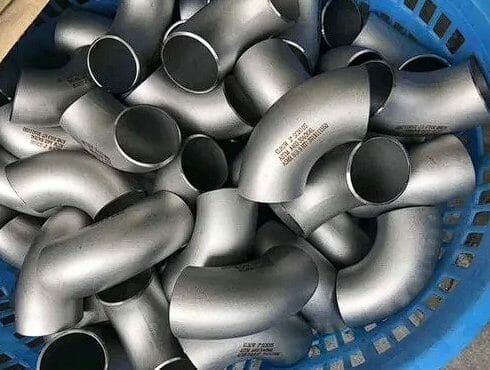

Physical Properties of 316 Stainless Steel
When selecting the right 316 stainless steel pipe for your application, it is essential to consider the physical properties of this material.
With a density of approximately 8 g/cm³ and a melting point of around 1400-1450°C, 316 stainless steel exhibits excellent toughness, high strength at elevated temperatures, and good thermal conductivity. In addition, this material has a specific heat capacity of 500 J/kg·K and a thermal expansion coefficient of 16.5 µm/m·K.
It is important to note that the physical properties of 316 stainless steel may vary depending on the manufacturing process and the specific application requirements.
Physical Properties of 316 Stainless Steel at Room Temperature
| Property | Value |
|---|---|
| Density | 8 g/cm³ |
| Melting Point | 1400-1450°C |
| Specific Heat Capacity | 500 J/kg·K |
| Thermal Expansion Coefficient | 16.5 µm/m·K |
By understanding the physical properties of 316 stainless steel, you can ensure that you choose the right pipe for your application that can withstand the intended environmental conditions.

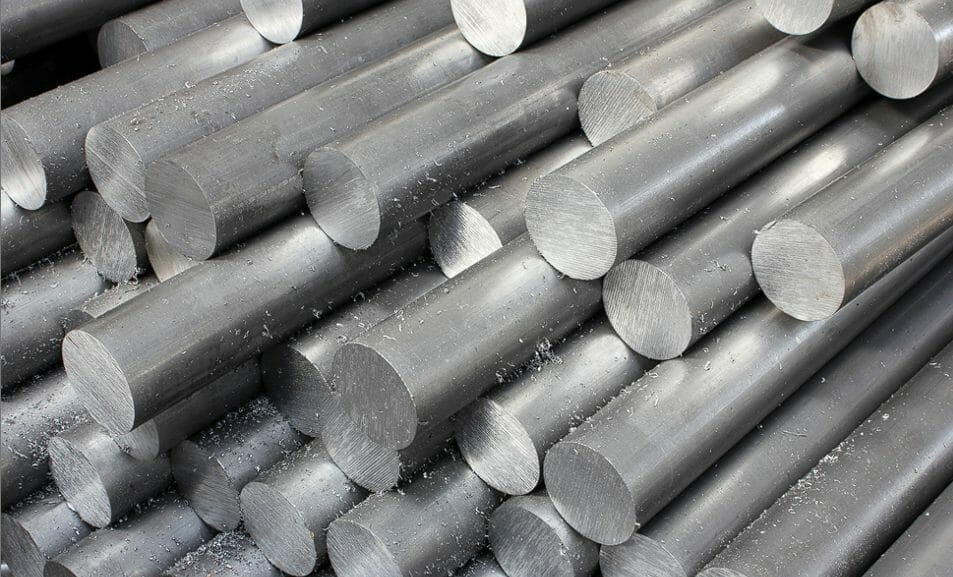

Mechanical Properties of 316 Stainless Steel
The mechanical properties of 316 stainless steel contribute to its wide range of applications in various industries. This grade offers a minimum tensile strength of 515 MPa, a minimum yield strength of 205 MPa, and elongation of 40%.
Moreover, the material exhibits excellent toughness, making it ideal for harsh working environments. Its high strength at elevated temperatures, coupled with good thermal conductivity, makes it suitable for applications in the chemical processing and pharmaceutical industries.
The combination of high ductility and creep strength makes 316 stainless steel pipes an excellent choice for demanding applications.
Common Applications of 316 Stainless Steel Pipes
Due to its exceptional corrosion resistance and durability, 316 stainless steel pipes find applications in a wide range of industries. Its compatibility with various corrosive substances makes it a popular choice in demanding environments. Some common uses of 316 stainless steel pipes include:
- Plumbing systems in residential, commercial, and industrial buildings
- Oil and gas processing equipment, including pipelines and storage tanks
- Food processing equipment, such as heat exchangers, tanks, and conveyors
- Pharmaceutical manufacturing systems, including piping, tanks, and reactors
- Chemical transportation systems, such as pipelines and shipping containers
These industries require materials that can withstand harsh conditions, resist corrosion, and maintain their structural integrity over time. 316 stainless steel pipes are an excellent choice for such applications due to their strength, durability, and resistance to corrosion.

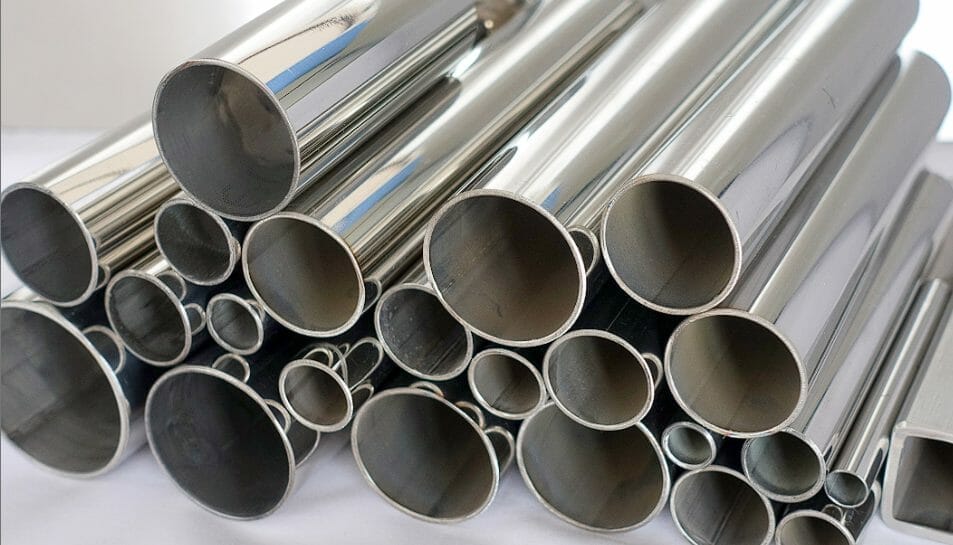

316 Stainless Steel Pipe Specifications
When it comes to selecting the right pipe for your project, understanding the specifications of 316 stainless steel pipes is crucial. These pipes offer exceptional corrosion resistance, making them ideal for use in demanding environments such as marine, chemical processing, and pharmaceuticals. Here are some key specifications you need to know:
| Available Forms | Sizes | Standards |
|---|---|---|
| Seamless and Welded | 1/8″ to 36″ in diameter | ASTM A312/A358/A269/A213/A376 |
The chemical composition of 316 stainless steel plays a vital role in determining its performance. It contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which provide enhanced resistance to various corrosive environments. The higher molybdenum content compared to other stainless steel grades gives 316 stainless steel superior resistance to pitting and crevice corrosion. Additionally, the presence of nickel provides improved resistance to chloride-induced stress corrosion cracking.
Understanding the physical and mechanical properties of 316 stainless steel is also essential when selecting the right pipe for your application. With a high toughness, excellent strength at elevated temperatures, and good thermal conductivity, 316 stainless steel is a reliable material for a wide range of projects. It offers a minimum tensile strength of 515 MPa, a minimum yield strength of 205 MPa, and elongation of 40%.
In accordance with industry standards, 316 stainless steel pipes are commonly available in seamless and welded forms, with sizes ranging from 1/8″ to 36″ in diameter. They are typically manufactured to meet ASTM A312/A358/A269/A213/A376 specifications to ensure quality and performance.
Opting for 316 stainless steel pipes offers several advantages to your projects. Apart from their corrosion resistance and strength, these pipes offer excellent heat resistance, making them suitable for high-temperature applications. Furthermore, their low maintenance requirements and long lifespan contribute to cost-effectiveness in the long run.
To access more detailed information about stainless steel pipe specifications, you can refer to industry resources and technical documents available in PDF format. These resources provide in-depth insights into dimensions, tolerances, pressure ratings, and other critical parameters for different types of stainless steel pipes.
By considering the chemical composition, physical and mechanical properties, and industry standards, you can confidently select the right 316 stainless steel pipe to meet your specific requirements. Remember to consult reliable resources and seek expert advice when necessary.

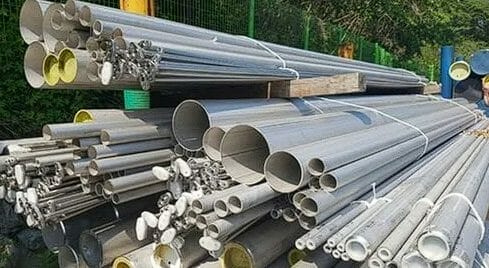

Advantages of Using 316 Stainless Steel Pipes
When it comes to selecting materials for your projects, choosing 316 stainless steel pipes can provide you with several benefits. These pipes are well-suited for use in demanding environments that require excellent corrosion resistance and strength. Below are some of the advantages of 316 stainless steel pipes:
| Advantages | Description |
|---|---|
| Corrosion Resistance | 316 stainless steel offers superior resistance to various corrosive substances such as acidic and alkaline solutions, chloride-induced stress corrosion cracking, and pitting and crevice corrosion. This makes it ideal for use in marine and chemical processing applications. |
| High Strength and Durability | With a minimum tensile strength of 515 MPa and a minimum yield strength of 205 MPa, 316 stainless steel pipes can withstand heavy loads and stresses. Additionally, they offer excellent durability and a long lifespan, making them a cost-effective option in the long run. |
| Heat Resistance | 316 stainless steel pipes exhibit excellent heat resistance, making them suitable for use in high-temperature applications. They can withstand temperatures of up to 1700°F (927°C) without experiencing any significant changes in their properties. |
| Low Maintenance Requirements | Due to their superior resistance to corrosion and durability, 316 stainless steel pipes require minimal maintenance. This can reduce downtime and operating costs, making them an excellent choice for various industries. |
By opting for 316 stainless steel pipes, you can ensure that your projects are durable, corrosion-resistant, and cost-effective. These pipes are available in a variety of sizes and specifications to suit your specific requirements.
Stainless Steel Pipe Specifications PDF Resources
Looking for more detailed information on stainless steel pipe specifications? Industry resources and technical documents available in PDF format can provide in-depth insights into dimensions, tolerances, pressure ratings, and other critical parameters for different types of stainless steel pipes. Here are some resources you may find useful:
ASTM International
ASTM International, formerly known as the American Society for Testing and Materials, is a globally recognized leader in developing and publishing technical standards for materials, products, systems, and services. Their website offers access to a wide range of ASTM standards for stainless steel pipes, including ASTM A312/A358/A269/A213/A376. These standards cover various aspects, such as chemical composition, mechanical properties, and testing requirements.
The Stainless Steel Tube Experts
The Stainless Steel Tube Experts (UKF Stainless Ltd) is a leading supplier and manufacturer of stainless steel tubes and components. Their website provides a range of resources on stainless steel piping, including a comprehensive guide to tube and pipe specifications. This guide covers various topics, such as sizing and tolerancing, surface finish, and pressure ratings, and is available for download in PDF format.
Online Metals
Online Metals is a supplier of metals and plastics, including stainless steel pipes, and offers access to technical data sheets for various products. These data sheets provide detailed information on the specifications, properties, and performance of stainless steel pipes, such as their chemical composition, dimensional tolerances, and pressure rating. They are available for download in PDF format.
Stainless Steel World
Stainless Steel World is a leading international publication that focuses on the use and application of stainless steels. Their website offers access to a range of technical articles, whitepapers, and case studies on stainless steel pipes and related products. These resources cover various topics, such as material selection, corrosion resistance, and welding, and are available for download in PDF format.
By consulting these resources and other reliable publications, you can gain a better understanding of the specifications and requirements for different types of stainless steel pipes. This knowledge can help you make informed decisions when selecting the right pipe for your next project.
Read More : Get Your Stainless Steel Pipe Specifications PDF Today!
Conclusion
As we have seen in this guide, 316 stainless steel pipes are a popular choice for various industries due to their exceptional corrosion resistance, strength, and durability. By understanding the chemical composition, physical and mechanical properties, and industry standards of this material, you can confidently select the right pipe for your project.
In addition to their high-performance capabilities, 316 stainless steel pipes also offer excellent heat resistance and low maintenance requirements, making them a cost-effective solution in the long run. Whether you are working on plumbing, oil and gas processing, food processing equipment, pharmaceuticals, or chemical transportation systems, 316 stainless steel pipes provide the reliability and performance you need.
Remember to consult reliable resources and seek expert advice when necessary to ensure that you are using the right specifications for your specific application. By taking the time to consider these factors, you can ensure the success of your project and enjoy the benefits of 316 stainless steel pipe specifications for years to come.
Stainless Steel Pipe Specifications PDF Resources
If you are looking for more detailed information about stainless steel pipe specifications, you can refer to the industry resources and technical documents available in PDF format. These resources provide in-depth insights into dimensions, tolerances, pressure ratings, and other critical parameters for different types of stainless steel pipes. By accessing these resources, you can ensure that you are making well-informed decisions for your project.
Is Tungsten the Best Option for Welding 316 Stainless Steel?
When it comes to using tungsten for stainless steel welding, many experts consider it to be the best option for welding 316 stainless steel. Tungsten electrodes provide exceptional arc stability, resulting in precise welds with excellent quality. Additionally, tungsten’s high melting point ensures it can withstand the intense heat required for stainless steel welding, making it a reliable choice for professionals.
What Are the Specifications of 316 Stainless Steel Pipe?
The ultimate stainless steel stove pipe choices are 316 stainless steel pipes. These pipes are known for their high resistance to corrosion and heat, making them perfect for use in stove systems. With excellent durability and outstanding performance, 316 stainless steel pipes meet the specifications required for a reliable and long-lasting stove pipe.
FAQ
Q: What is 316 stainless steel?
A: 316 stainless steel is a grade known for its excellent corrosion resistance, high tensile strength, and good formability. It contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum.
Q: What are the chemical composition of 316 stainless steel?
A: 316 stainless steel has a higher molybdenum content compared to other grades, providing superior resistance to pitting and crevice corrosion. It also contains nickel, which enhances its resistance to chloride-induced stress corrosion cracking.
Q: What are the physical properties of 316 stainless steel?
A: 316 stainless steel has a density of approximately 8 g/cm³ and a melting point of around 1400-1450°C. It exhibits excellent toughness, high strength at elevated temperatures, and good thermal conductivity.
Q: What are the mechanical properties of 316 stainless steel?
A: 316 stainless steel offers a minimum tensile strength of 515 MPa, a minimum yield strength of 205 MPa, and elongation of 40%. These properties make it suitable for use in demanding environments and industries.
Q: What are the common applications of 316 stainless steel pipes?
A: 316 stainless steel pipes are commonly used in plumbing, oil and gas processing, food processing equipment, pharmaceuticals, and chemical transportation systems. They are popular due to their corrosion resistance and durability.
Q: What are the specifications of 316 stainless steel pipes?
A: 316 stainless steel pipes are available in seamless and welded forms, with sizes ranging from 1/8″ to 36″ in diameter. They are manufactured in accordance with ASTM A312/A358/A269/A213/A376 standards.
Q: What are the advantages of using 316 stainless steel pipes?
A: 316 stainless steel pipes offer corrosion resistance, strength, heat resistance, and low maintenance requirements. They have a long lifespan, making them cost-effective in the long run.
Q: Where can I find stainless steel pipe specifications PDF resources?
A: You can refer to industry resources and technical documents available in PDF format for more detailed information on stainless steel pipe specifications.
Q: Why is it important to understand the specifications of 316 stainless steel pipes?
A: Understanding the specifications helps in making informed decisions for your projects, considering factors such as chemical composition, physical and mechanical properties, and industry standards.
