Welcome to our informative guide on the comparison between 416 and 316 stainless steel. Both types of steel have unique properties that make them suitable for different applications. In this section, we’ll provide an overview of their individual features, including their corrosion resistance, strength, and machinability. By the end of this article, you’ll have a better understanding of which type may be superior for your specific needs. Let’s dive in and explore the differences and similarities between 416 and 316 stainless steel.
Understanding 416 Stainless Steel
416 stainless steel is a popular type of martensitic stainless steel. It contains about 12-13% chromium, which provides excellent corrosion resistance. This type of steel is known for its machinability, making it a common choice for industries such as aerospace, firearms, and automotive manufacturing.
Compared to other stainless steel types, 416 is relatively low in carbon content and has moderate strength and hardness. It is magnetic and can be hardened through heat treatment.
Characteristics and Composition
One of the unique properties of 416 stainless steel is its sulfur content. It contains a minimum of 0.15% sulfur, which enhances its machinability. However, this sulfur content can also decrease its corrosion resistance, making it more prone to pitting and crevice corrosion in certain environments.
416 stainless steel also contains small amounts of phosphorus, manganese, and silicon. These elements aid in the steel’s machinability and help to maintain its microstructure during heat treatment.
Applications
Due to its high machinability, 416 stainless steel is commonly used in industries that require precise and intricate machining. It is often used for manufacturing components such as bolts, screws, and gears. Its excellent corrosion resistance also makes it suitable for use in marine environments.
416 stainless steel is also commonly used for manufacturing firearms. Its hardness and strength make it ideal for components such as barrels and receivers.
Exploring 316 Stainless Steel
316 stainless steel is a highly versatile and corrosion-resistant alloy that is commonly used in a variety of applications. It is an austenitic stainless steel that contains high levels of nickel and chromium, which give it its unique properties.
One of the most notable characteristics of 316 stainless steel is its exceptional corrosion resistance. It is highly resistant to both acidic and alkaline environments, making it ideal for use in marine and chemical processing industries. Additionally, 316 stainless steel offers excellent creep and tensile strength, making it suitable for use in high-temperature environments.
In terms of its chemical composition, 316 stainless steel contains approximately 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. These elements work together to enhance the alloy’s corrosion resistance and overall durability.
316 stainless steel is also widely used in medical and surgical applications due to its biocompatibility and low susceptibility to pitting and crevice corrosion. It is often used for implants, dental fixtures, and medical instruments.
Other applications for 316 stainless steel include the production of food and beverage equipment, automotive parts, and architectural components. Its unique characteristics make it an indispensable alloy for numerous industries.

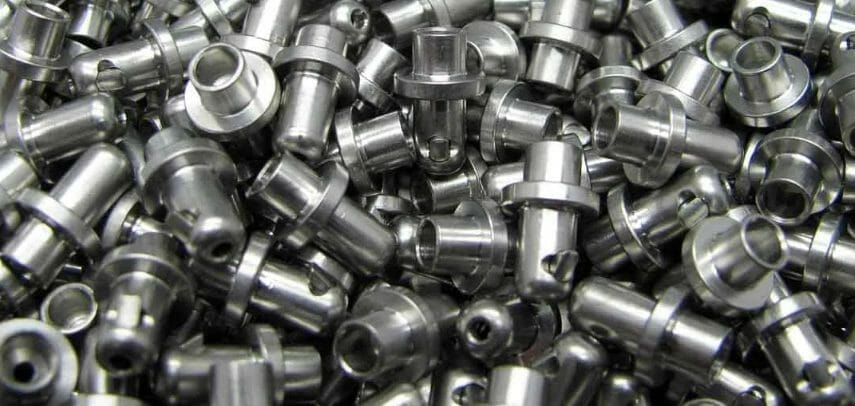

Corrosion Resistance: 416 vs 316 Stainless Steel
One of the most important factors to consider when comparing 416 and 316 stainless steel is their corrosion resistance.
316 stainless steel is known for its excellent corrosion resistance, particularly in harsh marine and chemical environments. It contains molybdenum, which enhances its resistance to pitting and crevice corrosion. Additionally, 316 stainless steel has a higher nickel content than 416, which increases its overall resistance to corrosion.
On the other hand, 416 stainless steel has a lower overall corrosion resistance compared to 316 stainless steel. It is more susceptible to corrosion in acidic and chloride-rich environments. However, 416 stainless steel has the advantage of being highly resistant to atmospheric corrosion.
Corrosion Resistance Tests
Different tests can be performed to compare the corrosion resistance of metals under different conditions. One such test is the salt spray test, which involves exposing metal samples to a salt mist to simulate harsh environments.
| Material | Test Duration | Result |
|---|---|---|
| 316 Stainless Steel | 1000 hours | No corrosion |
| 416 Stainless Steel | 1000 hours | Surface pitting and corrosion |
As seen in the table above, 316 stainless steel performed significantly better than 416 stainless steel in the salt spray test.
It is important to note that the performance of both materials in terms of corrosion resistance can vary depending on the specific environment and conditions they are exposed to. Therefore, it is important to consider the intended application and environment when selecting the appropriate material for a project.
Strength and Durability: 416 vs 316 Stainless Steel
When it comes to strength and durability, both 416 and 316 stainless steel have unique properties that make them suitable for different applications.
416 stainless steel is a free-machining martensitic steel that has great hardness and excellent corrosion resistance. Its tensile strength is around 760 MPa, making it a strong and robust material for various industrial applications. Thanks to its high machinability and affordability, it is commonly used for bolts, nuts, and other fasteners.
On the other hand, 316 stainless steel is an austenitic steel that has a higher corrosion resistance than 416. It has a tensile strength of around 580 MPa, and its melting point is higher than 416 steel. Due to its superior strength, 316 stainless steel is frequently used in marine environments, as well as medical and food processing industries.
Both 416 and 316 stainless steel are highly durable materials, able to withstand harsh environments and resist corrosion. However, choosing the right one for your specific application will depend on factors such as strength requirements, corrosion resistance, and cost.
Machinability: 416 vs 316 Stainless Steel
Machinability is an important factor to consider when choosing between 416 and 316 stainless steel. It refers to how easily a material can be cut, shaped, and fabricated.
When it comes to machinability, 416 stainless steel is considered one of the easiest materials to work with. It has excellent machinability ratings, thanks to its sulfur content that acts as a lubricant during the machining process. This allows for faster cutting speeds, lower tool wear, and higher machining rates.
316 stainless steel, on the other hand, has lower machinability ratings due to its high hardness and strength. It requires special machining tools and techniques, which can increase production time and costs.
Overall, if machinability is a top priority, 416 stainless steel may be the better choice. However, for applications where strength and corrosion resistance are more important, 316 stainless steel may be the better option.

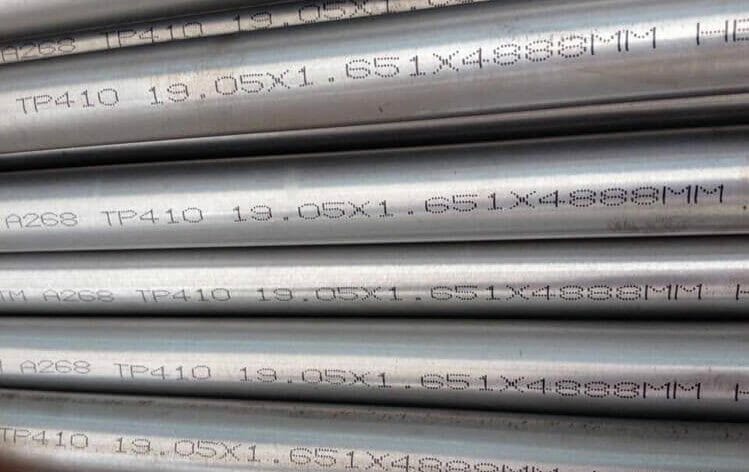

Applications: 416 vs 316 Stainless Steel
Both 416 and 316 stainless steel have unique properties that make them suitable for a variety of applications in different industries. Let’s take a closer look at their individual strengths.
| 416 Stainless Steel | 316 Stainless Steel |
|---|---|
| Excellent machinability | Strong corrosion resistance in harsh environments |
| High strength and hardness | Non-reactive to food and beverages |
| Suitable for use in manufacturing bolts, nuts, and gears | Used in marine and coastal applications |
| Commonly used for pump shafts and valve components | Widely used in the medical industry |
As seen in the table above, 416 stainless steel is commonly used in the manufacturing of bolts, nuts, gears, pump shafts, and valve components. Its excellent machinability makes it ideal for use in applications requiring intricate shapes and designs. On the other hand, 316 stainless steel is often used in marine and coastal applications due to its strong corrosion resistance in harsh environments. It is also widely used in the medical industry due to its non-reactive nature to food and beverages, making it suitable for implants and medical devices.
Both types of stainless steel have also found use in the automotive and aerospace industries, where their strength and durability are highly valued. Ultimately, the choice between 416 and 316 stainless steel will depend on the specific requirements of the application at hand.
Cost Comparison: 416 vs 316 Stainless Steel
If you’re deciding between 416 and 316 stainless steel, it’s important to consider the cost implications. Here, we’ll break down the factors that affect the cost of each type of steel.
| Factor | 416 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Initial Cost | 416 stainless steel generally has a lower initial cost than 316 stainless steel. This is because it requires less processing and is easier to manufacture. | 316 stainless steel is more expensive to produce due to its higher nickel content and the process required to create it. |
| Maintenance Cost | 416 stainless steel requires more maintenance than 316 stainless steel, as it is more susceptible to corrosion. This means that it may require more frequent cleaning, repairs, or replacements. | 316 stainless steel is known for its excellent corrosion resistance, so it generally requires less maintenance over time. |
| Long-Term Value | Although 416 stainless steel has a lower initial cost, its higher maintenance requirements may mean that it has a lower long-term value compared to 316 stainless steel. If you’re looking for a material that will last a long time without requiring frequent repairs or replacements, 316 stainless steel may be the better choice. | Despite its higher initial cost, 316 stainless steel may have a higher long-term value due to its superior corrosion resistance and durability. |
Ultimately, the choice between 416 and 316 stainless steel will depend on your budget, the specific application you have in mind, and whether you prioritize initial cost savings or long-term durability and value.

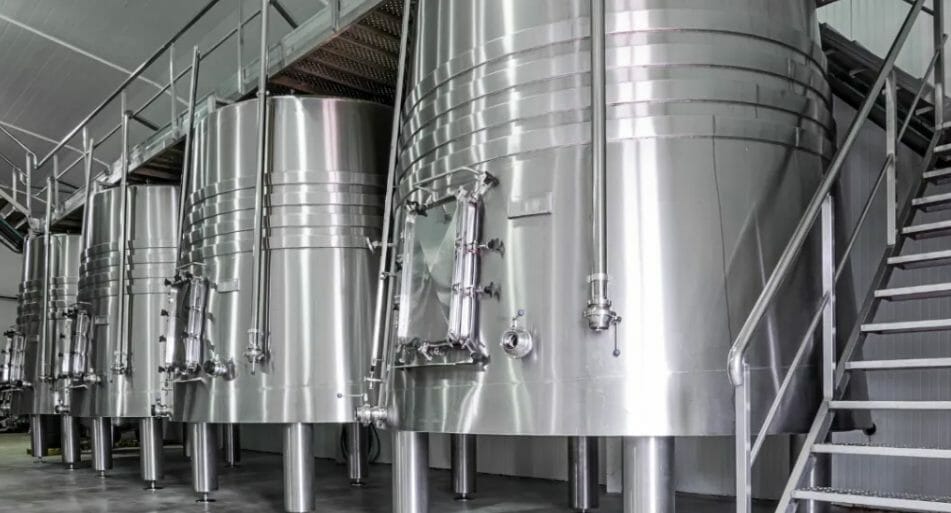

Future Trends and Innovations in Stainless Steel
Stainless steel has come a long way since it was first discovered in the early 1900s. Today, it is one of the most versatile materials in the manufacturing industry, with applications ranging from household appliances to aerospace engineering.
Advancements in Alloy Compositions
One of the most significant trends in stainless steel manufacturing is the development of new alloy compositions. Manufacturers are experimenting with different combinations of elements to create alloys that are more resistant to corrosion, more durable, and easier to work with.
For example, the addition of molybdenum to stainless steel alloys can significantly improve their resistance to corrosion in harsh environments, such as those with high levels of salt or sulfur. Similarly, adding nitrogen can improve the strength and hardness of stainless steel, making it useful in high-stress applications.
Surface Treatments
Another area of innovation in stainless steel manufacturing is surface treatments. Surface treatments can improve the performance of stainless steel in a wide range of applications, from medical devices to industrial equipment.
One common surface treatment is passivation, which involves soaking stainless steel in a solution of nitric acid and water. This process removes any free iron on the surface of the metal and creates a passive layer that enhances its corrosion resistance.
Potential Breakthroughs
As technology continues to advance and push the boundaries of what is possible, there is always the potential for breakthroughs in stainless steel manufacturing. One such breakthrough is the use of nanotechnology to create stainless steel alloys that are stronger, more durable, and more corrosion-resistant than anything currently available.
Researchers are also exploring the use of additive manufacturing, such as 3D printing, to produce complex shapes and structures that would be difficult or impossible to create using traditional manufacturing methods.
Conclusion
The future of stainless steel manufacturing is bright, with ongoing innovations in alloy compositions, surface treatments, and manufacturing methods. As these advancements continue, we can expect to see new and exciting applications for stainless steel, as well as improvements in performance, durability, and cost-effectiveness.
Read More : Choosing Between 17-4 Stainless Steel and 316: Which One is Best?
Which Type of Steel is Stronger for Taping Knives: Blue Steel or Stainless Steel?
When it comes to taping knives, the debate of blue steel vs stainless steel taping knife arises. Both types have their strengths. Blue steel offers higher hardness and durability, making it ideal for heavy-duty tasks. On the other hand, stainless steel taping knives are corrosion-resistant, making them suitable for moist environments. Ultimately, the decision between blue steel and stainless steel depends on your specific needs and preferences.
Frequently Asked Questions about 416 vs 316 Stainless Steel
As you continue to learn about the differences between 416 and 316 stainless steel, you may have some questions. To help clarify any confusion, we’ve gathered some frequently asked questions and provided straightforward answers.
What are the main differences between 416 and 316 stainless steel?
The main differences between 416 and 316 stainless steel lie in their composition, corrosion resistance, and suitability for different applications. 416 stainless steel contains added sulfur for improved machinability, but is less corrosion-resistant than 316 stainless steel, which contains additional alloying elements such as molybdenum and nickel.
Which type of stainless steel is more corrosion-resistant?
316 stainless steel is generally more corrosion-resistant than 416 stainless steel due to its higher content of molybdenum and nickel. However, the exact level of corrosion resistance also depends on the specific environment and conditions the stainless steel will be exposed to.
Which type of stainless steel is stronger?
In terms of strength, 316 stainless steel is generally stronger than 416 stainless steel. However, the exact strength of each type also depends on the heat treatment and conditioning it has undergone.
Is 416 stainless steel suitable for marine environments?
While 416 stainless steel does offer some corrosion resistance, it is generally not suitable for marine environments due to its lower level of corrosion resistance compared to 316 stainless steel. Other types of stainless steel, such as 316L or 17-4 stainless steel, may be more appropriate for marine applications.
What applications are suitable for 416 stainless steel?
416 stainless steel is often used in applications where machinability is important, such as in automotive components, valves, and pump shafts. It can also be found in certain firearm components and surgical instruments.
What applications are suitable for 316 stainless steel?
Due to its corrosion resistance and strength, 316 stainless steel is commonly used in marine environments, chemical processing facilities, and medical equipment. It can also be found in architectural and structural applications.
Which type of stainless steel is more expensive?
The cost of each type of stainless steel can vary based on a number of factors, including availability, demand, and specific grade. In general, 316 stainless steel tends to be more expensive than 416 stainless steel due to its increased corrosion resistance and additional alloying elements. However, the specific cost difference may vary based on the supplier and region.
Are there any emerging trends or innovations in stainless steel manufacturing?
Yes, the stainless steel industry is constantly evolving and advancing. Some current trends and innovations include the development of high-performance alloys, surface treatments for improved corrosion resistance, and increased use of recycled materials in manufacturing.
We hope these answers have helped to clarify any questions you may have had. If you have additional inquiries or would like more information, don’t hesitate to seek out expert advice.
