When it comes to choosing the right type of stainless steel for your project, the options can be overwhelming. With so many grades and varieties available, it can be challenging to determine which one to use.
In this article, we will walk you through a comparison of two popular stainless steel grades: 420 stainless steel and 304 stainless steel. By understanding their key differences and properties, you can make an informed decision on which one is the superior choice for your specific needs.
Key Takeaways:
- There are many different types of stainless steel available, including 420 stainless steel and 304 stainless steel.
- Understanding the composition, properties, and applications of each material is essential in deciding which one is the right fit for your project.
- Factors like strength, corrosion resistance, heat resistance, and weldability should be considered when comparing the two grades.
Understanding Stainless Steel Grades
Before comparing 420 stainless steel vs 304 stainless steel, it is essential to understand the basics of stainless steel grades. Stainless steel is a metal alloy made up of iron, chromium, nickel, carbon, and other elements. The addition of chromium is what makes stainless steel highly resistant to corrosion and staining.
The American Iron and Steel Institute (AISI) classifies stainless steel grades based on their composition:
- Austenitic: Contains high levels of nickel and chromium, making it highly resistant to corrosion. Examples include 304 and 316 stainless steel.
- Ferritic: Contains high levels of chromium but low levels of nickel, making it less resistant to corrosion than austenitic grades. Examples include 430 and 434 stainless steel.
- Martensitic: Contains higher levels of carbon and lower levels of nickel than austenitic grades, making it harder and more brittle. Examples include 410 and 420 stainless steel.
Welding 304 Stainless Steel
Austenitic grades, such as 304 stainless steel, are known for their excellent welding properties. They can be easily welded using various methods like TIG, MIG, and resistance welding. However, it is important to note that the high thermal conductivity of 304 stainless steel can cause distortion and warping during welding.

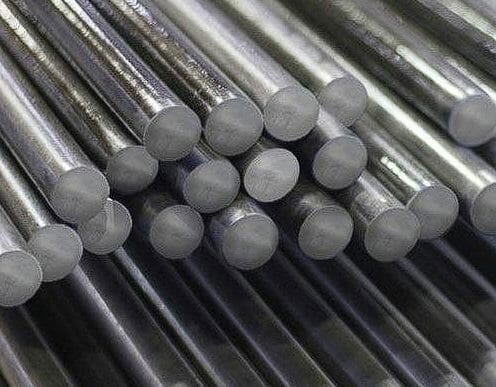

Composition and Properties of 420 Stainless Steel
420 stainless steel is a martensitic alloy that contains 12% chromium, making it highly corrosion-resistant. It also has a high carbon content, which contributes to its strength and hardness. The addition of manganese improves its toughness and resistance to wear, while silicon helps with machining and welding.
The material has a maximum hardness of 50HRc, making it suitable for applications that require high wear resistance such as cutting tools, surgical instruments, and dental equipment. However, it has lower corrosion resistance compared to other stainless steel grades such as 304.
| Element | Percentage (%) |
|---|---|
| Carbon (C) | 0.15-0.36 |
| Chromium (Cr) | 12.0-14.0 |
| Manganese (Mn) | 1.0 |
| Silicon (Si) | 1.0 |
420 stainless steel is an excellent choice for applications that require high strength, hardness, and wear resistance, but not necessarily high corrosion resistance. It is commonly used in the manufacturing of knives, scissors, and other cutting tools, as well as in the aerospace and automotive industries.

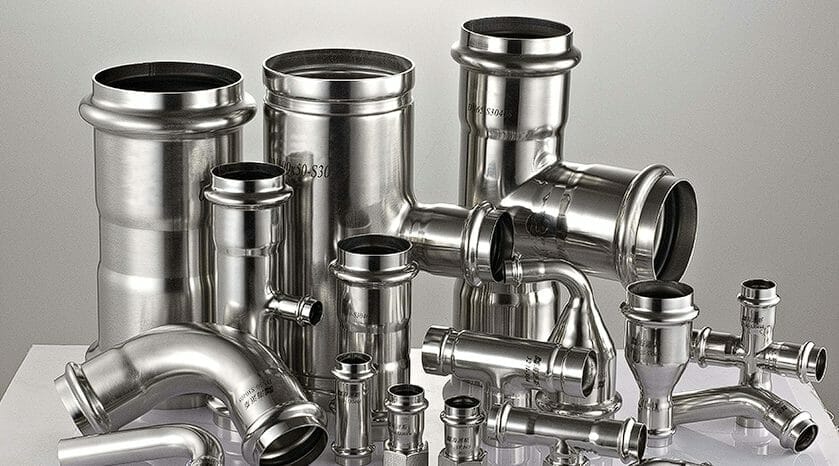

Composition and Properties of 304 Stainless Steel
304 stainless steel is a versatile and widely used austenitic stainless steel. It is composed of iron, 18% chromium, and 8% nickel with a maximum carbon content of 0.08%. The high percentage of chromium and nickel makes 304 stainless steel highly corrosion resistant and able to withstand high temperatures.
The presence of nickel in 304 stainless steel also makes it non-magnetic and increases its ductility, making it easier to form and weld. However, the high nickel content also makes it more expensive than other grades of stainless steel.
| Composition of 304 Stainless Steel | Properties of 304 Stainless Steel |
|---|---|
| Iron (Fe): balance | High corrosion resistance |
| Chromium (Cr): 18% | Non-magnetic |
| Nickel (Ni): 8% | High ductility and formability |
| Carbon (C): max 0.08% | High-temperature resistance |
304 stainless steel is commonly used in applications that require excellent corrosion resistance, such as food processing equipment, countertops, and chemical processing equipment. It is also used in construction, automotive, and aerospace industries due to its durability and versatility.
Key Differences between 420 Stainless Steel and 304 Stainless Steel
When it comes to comparing 420 stainless steel vs 304 stainless steel, there are some significant differences to consider. Here’s an overview:
| Property | 420 Stainless Steel | 304 Stainless Steel |
|---|---|---|
| Strength | 420 stainless steel is harder and more durable, making it the preferred choice for knives and cutting tools. | 304 stainless steel has lower strength but is more flexible and easier to shape, making it a popular choice for cookware and kitchen appliances. |
| Corrosion Resistance | 420 stainless steel has poor corrosion resistance, making it unsuitable for use in harsh environments or in contact with acidic substances. | 304 stainless steel has excellent corrosion resistance, making it ideal for use in corrosive environments or for applications that require frequent washing, such as medical or food processing equipment. |
| Heat Resistance | 420 stainless steel has poor heat resistance and can become brittle at high temperatures, limiting its use in high-temperature applications. | 304 stainless steel has excellent heat resistance and can withstand high temperatures without losing its shape or strength, making it an ideal choice for applications that involve heat exposure, such as exhaust systems or heating elements. |
| Weldability | 420 stainless steel is difficult to weld due to its high carbon content and low ductility, making it a less favorable choice for welding applications. | 304 stainless steel is easier to weld due to its low carbon content and high ductility, making it a popular choice for welding applications. |
Based on these factors, it’s clear that the choice between 420 stainless steel vs 304 stainless steel largely depends on the specific application and environmental conditions. For applications requiring high strength and hardness, 420 stainless steel may be the better choice. For applications requiring excellent corrosion resistance and heat resistance, 304 stainless steel is the way to go.

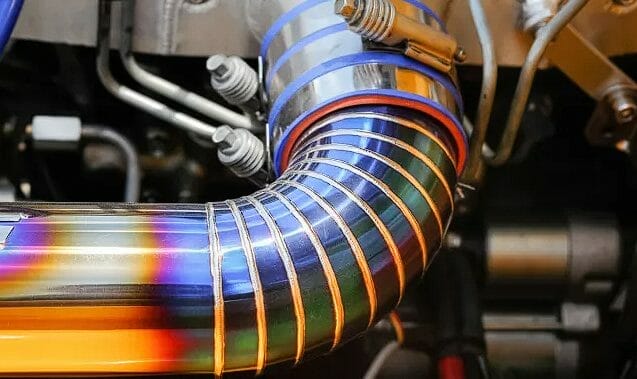

Welding 304 Stainless Steel
When it comes to welding, 304 stainless steel is known for its ease of use and versatility. This grade can be welded using most standard welding methods, including TIG, MIG, and stick welding. However, it is important to note that 304 stainless steel has a low thermal conductivity, which means it can be more challenging to dissipate heat during welding and may require preheating to prevent cracking or distortion.
Another factor to consider when welding 304 stainless steel is the potential for intergranular corrosion, which can occur due to the excessive heat input during the welding process. To avoid this issue, it is recommended to use low carbon content filler metal, or to perform a post-weld heat treatment to reverse the sensitization effect.
Overall, with its strong resistance to corrosion and oxidation, combined with its excellent welding properties, 304 stainless steel is a popular choice in many industries, including food and beverage, pharmaceutical, and chemical processing.
Comparing Cost and Availability
When choosing between 420 stainless steel and 304 stainless steel, cost and availability are important considerations to keep in mind. Let’s take a closer look at the price differences and availability for each of these materials.
| Material | Price | Availability |
|---|---|---|
| 420 Stainless Steel | Relatively inexpensive compared to other stainless steel grades. | Widely available in a variety of forms, including sheet, plate, bar, and tubing. |
| 304 Stainless Steel | Generally more expensive than 420 stainless steel. | Available in a wide range of sizes and forms, but may be more difficult to find in certain locations. |
Overall, the cost and availability of these materials will depend on factors such as quantity, size, and location. It’s essential to research and compare prices from different suppliers to ensure that you are getting the best deal for your specific project.
Applications and Best Uses for 420 Stainless Steel and 304 Stainless Steel
Both 420 stainless steel and 304 stainless steel have a wide range of applications in different industries due to their unique properties.
420 stainless steel: This grade is often used to manufacture knives, surgical equipment, and molds for plastics and rubber. Its high hardness and corrosion resistance make it an excellent choice for applications where durability and wear resistance are crucial.
304 stainless steel: This grade is highly versatile and can be found in a variety of industries, including food and beverage, petrochemical, and architecture. Its excellent corrosion resistance and high-temperature strength make it an ideal material for applications such as food processing equipment, chemical tanks, and heat exchangers.
When choosing between the two grades, it is important to consider the specific requirements of your application. If you need a material that can withstand high wear and tear, 420 stainless steel may be the better choice. On the other hand, if you need a material that can resist corrosion and high temperatures, 304 stainless steel is likely the way to go.
Conclusion
When it comes to choosing between 420 stainless steel and 304 stainless steel, both materials have their advantages and disadvantages that must be considered.
420 stainless steel offers higher strength and hardness than 304 stainless steel and is often used in applications that require high wear resistance, such as cutting tools and surgical instruments. However, it lacks the corrosion resistance and weldability of 304 stainless steel, making it less suitable for certain applications.
On the other hand, 304 stainless steel is a versatile and widely used material that offers good corrosion resistance, weldability, and durability. It is commonly used in the food and beverage industry, medical equipment, and various other applications where corrosion resistance is essential. However, it may not be as hard or wear-resistant as 420 stainless steel.
Our Recommendation
Based on our analysis, we recommend 420 stainless steel for applications that require high wear resistance, hardness, and strength, such as cutlery, surgical instruments, and industrial blades. However, for applications where corrosion resistance and weldability are critical, such as food processing equipment and medical devices, 304 stainless steel is the superior choice.
Ultimately, the decision between 420 stainless steel and 304 stainless steel depends on your specific needs and project requirements. We hope this comparison has provided you with valuable information to make an informed decision.
Read More : 410 Stainless Steel vs 304: Comparing Properties & Uses
What are the Pros and Cons of Coated and Uncoated Stainless Steel?
When considering stainless steel options, understanding the pros and cons of coated and uncoated varieties is crucial for making the right choice for stainless steel. Coated stainless steel offers enhanced durability and resistance to scratches, corrosion, and fingerprints, but it may have limited color options. On the other hand, uncoated stainless steel provides a sleek, natural appearance but is more susceptible to stains and marks.
FAQ
Q: What are the key differences between 420 stainless steel and 304 stainless steel?
A: 420 stainless steel is a higher carbon martensitic stainless steel known for its hardness and corrosion resistance, while 304 stainless steel is an austenitic stainless steel with lower carbon content and excellent corrosion resistance.
Q: What are the common applications of 420 stainless steel and 304 stainless steel?
A: 420 stainless steel is commonly used in applications requiring high strength and hardness, such as surgical instruments, cutlery, and industrial blades. 304 stainless steel is widely used in various industries, including food processing, chemical processing, and medical equipment, due to its corrosion resistance and versatility.
Q: Can 304 stainless steel be welded?
A: Yes, 304 stainless steel can be welded using various methods such as TIG, MIG, and spot welding. However, it is important to use appropriate filler materials and maintain proper heat control to prevent issues like carbide precipitation and loss of corrosion resistance.
Q: What are the cost and availability differences between 420 stainless steel and 304 stainless steel?
A: Generally, 420 stainless steel is more affordable and readily available compared to 304 stainless steel. However, pricing and availability can vary depending on factors such as location, quantity, and specific requirements.
Q: Which grade is better for my specific needs?
A: The choice between 420 stainless steel and 304 stainless steel depends on your specific application requirements. If you need high hardness and corrosion resistance, 420 stainless steel may be more suitable. However, if excellent corrosion resistance and versatility are important, 304 stainless steel is a better option.
