Arc Weld Stainless Steel Ultimate Guide for Perfect Welding

Are you looking to learn how to arc weld stainless steel? Look no further than this comprehensive guide, designed to help you achieve the perfect weld every time. Welding stainless steel requires specific techniques and equipment, and we’ve got you covered with everything you need to know.

Understanding Arc Welding

Before diving into the specifics of arc welding stainless steel, it is important to first understand the process of arc welding itself. In simple terms, arc welding involves creating an electrical arc between an electrode and the base material being welded.

The heat generated by the arc melts the base material and the electrode, causing them to fuse together and create a weld joint. This process is commonly used in industries such as construction, manufacturing, and automotive repair.

Types of Arc Welding Techniques

There are several different types of arc welding techniques, each with its own unique advantages and disadvantages. The most commonly used arc welding techniques include:

  • Shielded Metal Arc Welding (SMAW) – also known as stick welding
  • Gas Metal Arc Welding (GMAW) – also known as MIG welding
  • Gas Tungsten Arc Welding (GTAW) – also known as TIG welding

SMAW is often preferred for welding thicker materials, while GMAW and GTAW are better suited for thin sheets of metal. Each technique also requires specific equipment and materials, which should be carefully selected based on the type of welding being performed.

Understanding the different types of arc welding techniques is crucial for achieving high-quality welds, especially when arc welding stainless steel.

Types of Stainless Steel

Stainless steel is a versatile metal alloy used in a variety of applications due to its durability, corrosion resistance, and aesthetic appeal. The grade of stainless steel used will depend on the intended use and the environment it will be exposed to.

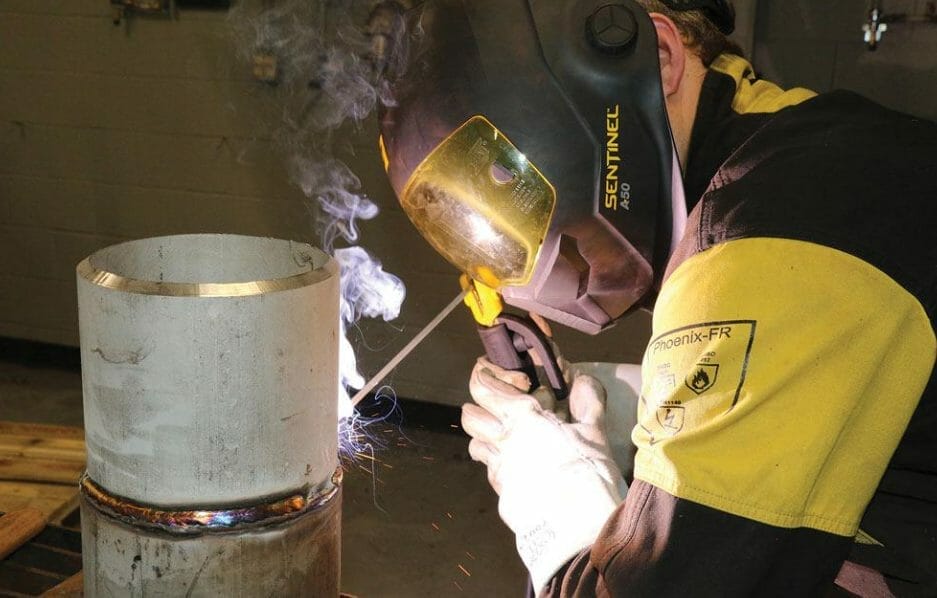

Types of Stainless Steel

There are five main types of stainless steel:

Austenitic stainless steelNon-magnetic, highly corrosion resistant, and can withstand high temperatures.
Ferritic stainless steelMagnetic, corrosion resistant, and has higher carbon content than austenitic stainless steel.
Duplex stainless steelCombines the benefits of both austenitic and ferritic stainless steel, making it ideal for use in harsh environments.
Martensitic stainless steelStrong and hard, but less corrosion resistant than other types of stainless steel.
Precipitation hardening stainless steelHigh strength and excellent corrosion resistance, but can be difficult to weld.

It is important to select the appropriate type and grade of stainless steel for the specific application and welding process. This will ensure a high-quality and durable weld.

Preparing Stainless Steel for Welding

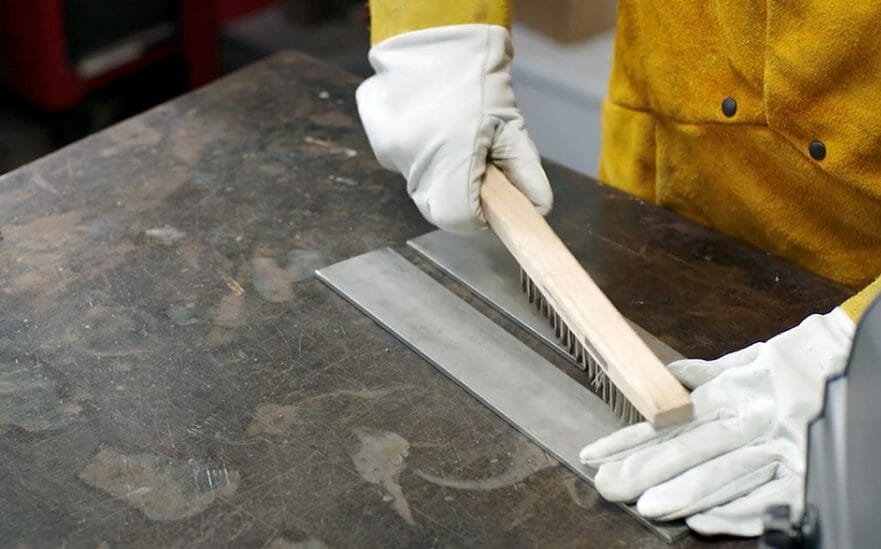

Preparing Stainless Steel for Welding

Before starting the welding process, it is crucial to properly prepare the stainless steel surface. Failing to do so may result in weak and faulty welds that can compromise the strength and durability of the finished product. Follow these steps to prepare stainless steel for welding:

  1. Clean the surface: Use a stainless steel brush or solvent to remove any dirt, oil, grease, or other contaminants from the surface that may affect the weld quality. Wipe the surface with acetone or alcohol to remove any residue.
  2. Remove scale and corrosion: Use a grinder or wire brush to remove any rust, scale, or corrosion from the surface. This will help ensure a clean and smooth weld.
  3. Ensure proper fit-up: Proper fit-up is crucial for achieving strong and durable welds. Ensure that the edges of the surface to be welded are aligned and the gap is consistent. Use clamps or tack welds to hold the pieces together and maintain proper alignment.

Special Considerations for Welding Thin Stainless Steel

When welding thin stainless steel, special considerations are required to avoid warping, burn-through, and distortion. Follow these additional steps:

  1. Use a lower amperage: When welding thin stainless steel, use a lower amperage than what is needed for thicker steel. This will help prevent overheating and warping.
  2. Use filler metal: Fill any gaps or holes with filler metal to prevent burn-through and distortion.
  3. Move quickly: Move the welding torch quickly to avoid overheating and burning through the metal.

Properly preparing the stainless steel surface is the crucial first step in achieving high-quality welds. Take the time to ensure that the surface is clean, free of contaminants, and properly fit-up, and you will be well on your way to creating strong and durable welds.

Choosing the Right Welding Equipment

Choosing the right welding equipment is crucial for arc welding stainless steel. Here are some factors to consider:

Arc welding machineSelect an arc welding machine with a high duty cycle to handle the demands of stainless steel welding. A machine with at least 200 amps of output is recommended.
ElectrodesUse an electrode specifically designed for stainless steel welding, such as E308L, E309L, or E316L. These electrodes provide excellent performance and produce high-quality welds.
Protective gearWelding stainless steel produces harmful fumes and ultraviolet radiation that can cause skin and eye damage. Always wear protective gear, including a welding helmet, leather gloves, and a welding jacket.

Investing in high-quality equipment will not only produce better welds but also ensure a safer welding environment.

Setting Up the Welding Environment

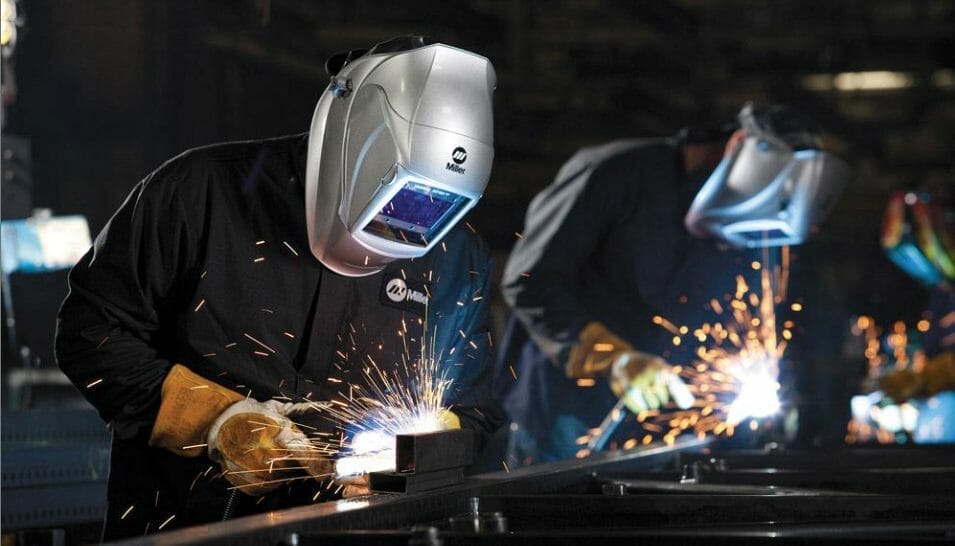

Setting Up the Welding Environment

Arc welding stainless steel requires a safe and efficient environment to ensure the best possible results. When preparing to weld, make sure to follow these steps:


Adequate ventilation is essential when welding stainless steel. Welding fumes can be hazardous, so it’s important to have proper ventilation to avoid inhaling toxic gases. You can ensure good ventilation by welding in a well-ventilated area or using local exhaust ventilation (LEV) equipment to suck fumes away from your work area.

Shielding Gas Selection

Choosing the right shielding gas is crucial when arc welding stainless steel. Argon and helium are common choices for shielding gas, but argon is more commonly used. Argon is particularly effective for TIG welding and MIG welding, whereas helium is best suited for stick welding.

Safety Precautions

Before welding, make sure you wear personal protective gear (PPE), which includes gloves, safety glasses, and flame-resistant clothing. Never weld in damp conditions, as it increases the risk of electrocution. You should also avoid working in confined spaces and ensure that all equipment is properly grounded.

Equipment Maintenance

Regularly maintaining your welding equipment is necessary to ensure it functions properly and safely. Clean your welding machine and replace any parts that show signs of wear and tear. Check all cables and connections before you start welding to ensure there are no loose connections.

Arc Welding Techniques for Stainless Steel

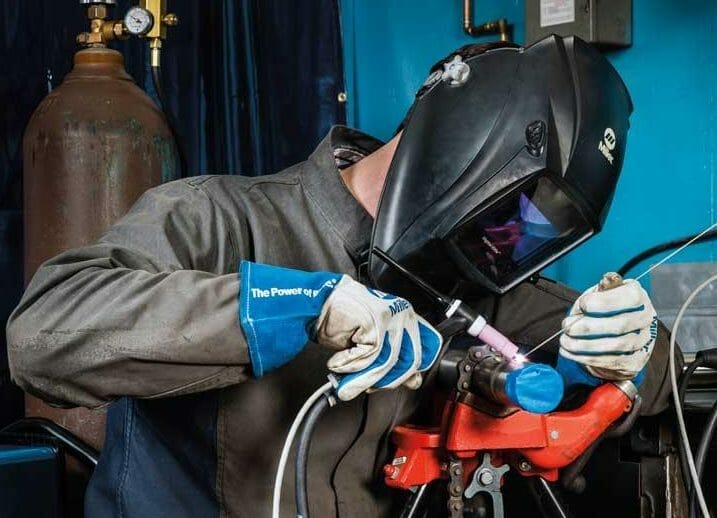

Arc Welding Techniques for Stainless Steel

When welding stainless steel using the arc welding process, there are various techniques you can use to achieve high-quality welds. Here are some of the main arc welding techniques used for stainless steel welding:

TIG Welding

Tungsten Inert Gas (TIG) welding is a popular welding technique for stainless steel. It uses a non-consumable tungsten electrode to produce the weld and is ideal for creating precise, clean welds. TIG welding can be used for both thin and thick stainless steel sheets, and it produces minimal spatter and fumes. This technique requires a steady hand and precise control of the welding torch and filler rod.

MIG Welding

Metal Inert Gas (MIG) welding is a versatile and efficient welding technique suitable for welding stainless steel. It uses a consumable wire electrode and produces minimal spatter and fumes. MIG welding is ideal for welding thicker stainless steel sheets and for welding in tight spaces. This technique requires a good understanding of the welding parameters and equipment settings to produce a good weld.

Stick Welding

Stick welding, also known as Shielded Metal Arc Welding (SMAW), is a commonly used welding technique for stainless steel. It uses a consumable stick electrode coated in flux to produce the weld. Stick welding is ideal for welding thicker stainless steel sheets and for outdoor welding. However, it produces more spatter and fumes compared to TIG or MIG welding.

Whichever arc welding technique you choose for welding stainless steel, there are some general tips and tricks you can follow to achieve perfect welds. These include:

  • Ensuring proper fit-up and joint preparation
  • Controlling the heat input and maintaining a consistent arc length
  • Using the correct filler material for the type of stainless steel being welded
  • Shielding the weld area with the appropriate shielding gas

By following these tips and practicing your welding skills, you can become proficient in arc welding stainless steel and produce high-quality welds for your desired application.

Read More : Premium ESAB Stainless Steel Welding Wire: High-Quality

Troubleshooting Common Welding Issues

Even when you follow all the guidelines, it is normal to encounter issues when welding stainless steel. However, with some knowledge and practice, you can overcome most welding problems. Here are some common welding issues and their solutions when arc welding stainless steel:

PorosityPresence of contaminants like rust, water, paint, grease, or oil on the surface of the material.Clean the surface thoroughly before welding. Use the right shielding gas. Adjust the voltage, current, and gas flow rate.
CrackingHigh thermal stresses on the metal. Can be caused by rapid cooling or overheating.Control the cooling rate during and after welding. Avoid overheating the joint. Preheat the metal to reduce thermal stresses.
DistortionWelding heat causes expansion and contraction of the metal, leading to warping and twisting of the material.Clamp and tack the joint correctly. Use a filler metal to balance the cooling rate of the joint. Weld from both ends towards the center.

Always inspect the weld after finishing to identify any defects and take corrective steps where necessary. Practice consistently and keep improving your welding technique to overcome common welding issues and achieve high-quality results.

Welding Stainless Steel in Different Positions

Welding stainless steel in different positions requires careful consideration of the weld’s orientation and the type of joint being welded. The two primary positions for welding stainless steel are horizontal and vertical, but it can also be welded in flat and overhead positions.

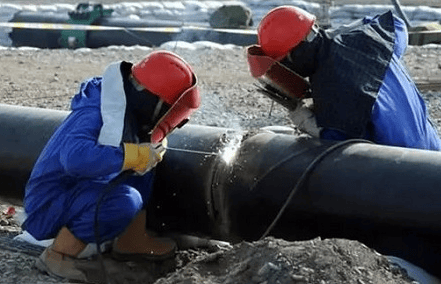

Welding Stainless Steel in Different Positions

Flat Position

The flat position is the most common position for welding stainless steel. The welder can see the weld clearly, and gravity has no effect on the weld. Welding in the flat position is relatively easy and requires minimal preparation, making it an ideal choice for beginners.

Horizontal Position

Welding in the horizontal position can be more challenging than welding in the flat position. The welder must adjust the angle of the electrode to accommodate the force of gravity, making the weld pool more difficult to control.

Vertical Position

The vertical position is where the weld axis is perpendicular to the horizon. The welder must deposit the weld metal uphill, against the force of gravity, which increases the difficulty of welding in this position. Welding in the vertical position requires the welder to adjust the travel speed and electrode angle to prevent undercutting and achieve proper penetration.

Overhead Position

Welding in the overhead position is the most challenging position for welding stainless steel. Welding overhead requires the welder to deposit the weld metal uphill against gravity, making it easy for the molten metal to fall out of the joint. Welders must take extra precautions to prevent accidents and ensure proper weld quality.

Regardless of the position, the key to successful stainless steel welding is practice and preparation. Welders should carefully review the joint design and ensure that they have selected the correct electrode and shielding gas before starting.

Finishing and Post-Weld Treatment

Finishing and Post-Weld Treatment

Welding stainless steel is only the first step in achieving a high-quality, long-lasting joint. Proper finishing and post-weld treatment are essential to ensure the weld is protected from corrosion, contamination, and other environmental factors. Here are some important steps to take after welding stainless steel:

CleaningRemove any residual slag, spatter, or other debris from the weld area using a wire brush or grinder. Use a solvent to wipe down the area and remove any oils, greases, or other contaminants that could affect the weld quality.
GrindingUse a grinder to smooth out any rough edges or uneven surfaces on the weld. This will improve the appearance of the finished product and help prevent corrosion.
PolishingIf desired, use a polishing wheel or abrasive pad to achieve a highly reflective finish on the weld surface. This is often necessary for aesthetic reasons or for applications where a smooth surface is required for hygienic purposes.
Protective CoatingsApply a protective coating, such as a lacquer, wax, or oil, to the weld area to protect it from environmental factors such as moisture, salt, and UV radiation. This is especially important for outdoor applications or areas with high humidity or salt exposure.

It’s also important to consider post-weld distortion when finishing and treating the weld. Distortion can cause the weld area to become misaligned or uneven, making it difficult to achieve a polished finish. To minimize distortion, use the smallest weld bead possible, clamp the workpiece securely, and apply heat evenly throughout the welding process.

By following these steps, you can achieve a high-quality, long-lasting weld on stainless steel that is protected from corrosion and other environmental factors.

Safety Tips for Arc Welding Stainless Steel

Arc welding stainless steel can be a hazardous task if proper safety precautions are not taken. Before you begin, make sure you are familiar with the following safety tips:

Protective Gear

Welding can expose you to harmful UV radiation, sparks, and debris. Protect yourself with appropriate personal protective equipment (PPE) including:

  • Safety glasses or helmet with a dark lens shade
  • Flame-resistant clothing, such as a welder’s jacket and pants
  • Welding gloves
  • Respirator or dust mask to protect against fumes and dust
  • Earplugs or earmuffs to protect against loud noises

Work Environment

It’s important to create a clean and safe work environment to avoid accidents. Follow these guidelines:

  • Clear the area of any flammable materials or objects
  • Ensure proper ventilation to remove fumes, smoke, and gases
  • Use a welding curtain or screen to separate the welding process from other workers or bystanders
  • Keep a fire extinguisher nearby in case of an emergency

Welding Techniques

Using the appropriate welding technique is essential for safety and achieving high-quality welds. Follow these tips:

  • Hold the welding torch or electrode holder in a comfortable position to avoid muscle strain or fatigue
  • Avoid welding in a confined space or overhead positions without appropriate equipment or safety measures in place
  • Allow the material to cool before touching or moving it, to avoid burns or injury

Maintenance and Inspection

To ensure your equipment remains safe and functional, perform regular maintenance and inspections. Follow these tips:

  • Regularly check welding cables, connections, and ground clamps for damage or wear and replace as necessary
  • Clean and inspect the welding torch, electrode holder, and other equipment to ensure proper function
  • Always follow your equipment manufacturer’s instructions for proper use, maintenance, and storage

“Safety is no accident. Take the necessary precautions to protect yourself and others while welding stainless steel.”

What are the Benefits of Arc Welding Stainless Steel?

Arc welding stainless steel using tungsten for welding stainless steel offers several benefits. The tungsten electrode provides excellent heat resistance, ensuring precise and clean welds. It also offers high melting point, reducing the risk of electrode contamination. With accurate control over the arc, this method ensures strong and durable welds on stainless steel, making it a preferred choice for various applications.

Frequently Asked Questions (FAQs)

Here are some of the most frequently asked questions about arc welding stainless steel:

Q: What is the best welding technique for stainless steel?

A: The best welding technique for stainless steel depends on the application and the specific grade of stainless steel. TIG welding is most commonly used for thinner materials and produces high-quality welds, while MIG welding is typically used for thicker materials and higher production rates. Stick welding is often used for heavy-duty applications and outdoor welding.

Q: How do I choose the right electrode for welding stainless steel?

A: Choosing the right electrode depends on the type of stainless steel being welded and the welding technique being used. Generally, a low carbon content electrode is recommended for welding stainless steel. Consult the manufacturer’s recommendations and refer to the American Welding Society (AWS) standards for guidance.

Q: Can I weld dissimilar metals to stainless steel?

A: While it is possible to weld dissimilar metals to stainless steel, it can be challenging and requires careful consideration of the properties of each metal. Consult with a welding expert to determine the appropriate welding technique, filler metal, and preparation methods.

Q: How do I prevent distortion when welding stainless steel?

A: Distortion in stainless steel can occur due to the high heat input and thermal expansion during welding. To prevent distortion, use a lower heat input and tack weld sections together before completing the full weld. Additionally, consider using clamps or a fixture to hold the workpiece in place during welding.

Q: Do I need to remove the oxide layer on stainless steel before welding?

A: Yes, it is essential to remove the oxide layer on stainless steel before welding to ensure a high-quality weld. Use a stainless steel wire brush or a solvent degreaser to clean the surface and avoid contamination with oil or grease.

Q: What is the maximum thickness of stainless steel that can be welded with arc welding?

A: The maximum thickness of stainless steel that can be welded with arc welding depends on the welding technique and equipment used. With TIG welding, thicknesses up to 6mm can be welded, while MIG and stick welding can handle thicker materials up to 25mm.

We hope this guide has provided useful information for arc welding stainless steel. For more information, refer to the manufacturer’s recommendations and consult with a welding expert if needed.
