Brazing Stainless Steel: A Guide to Joining Techniques

Brazing Stainless Steel A Guide to Joining Techniques

Welcome to our comprehensive guide on brazing stainless steel. In this article, we will explore the various techniques and tools involved in successfully joining stainless steel components through brazing. Stainless steel is a popular material due to its exceptional corrosion resistance and strength, making it a preferred choice in many industries.

Brazing is a highly effective method for joining stainless steel, providing strong and durable joints. Whether you are an experienced professional or someone interested in learning about this joining technique, this guide will provide you with the necessary information to get started.

Understanding Stainless Steel

Stainless steel is a remarkable material, known for its exceptional corrosion resistance and strength. It is widely used in various industries, including construction, automotive, and manufacturing. To understand brazing stainless steel, it is essential to have a basic understanding of this versatile alloy.

Stainless steel is primarily composed of iron, but it also contains other alloying elements such as chromium and nickel. These elements contribute to stainless steel’s unique properties, including its resistance to corrosion, heat, and wear. The amount of chromium in stainless steel typically ranges from 10% to 30%, and nickel content can vary from 2% to 20%.

The addition of chromium forms a protective layer of chromium oxide on the surface of stainless steel, preventing it from rusting or corroding when exposed to moisture or corrosive environments. Nickel enhances the overall strength and toughness of stainless steel, making it highly durable.

There are different types of stainless steel, each tailored for specific applications. The most common types include austenitic, ferritic, martensitic, and duplex stainless steels. Austenitic stainless steel, such as the popular grade 304, is widely used in food processing, medical instruments, and kitchen appliances due to its excellent corrosion resistance and ease of fabrication.

Ferritic stainless steel, with its higher chromium content, offers superior resistance to stress corrosion cracking and is commonly used in automotive exhaust systems and decorative applications. Martensitic stainless steel, known for its high strength and hardness, finds applications in cutlery, surgical instruments, and turbine blades. Duplex stainless steel combines the best of austenitic and ferritic stainless steels, offering both excellent corrosion resistance and high strength.

What is Brazing?

Brazing is a joining process that involves the use of a filler metal to join two or more base metals. It is different from other joining methods such as welding and soldering, as brazing does not melt the base metals. Instead, the filler metal melts and wets the surfaces of the base metals, forming a strong bond when it solidifies.

The brazing process typically requires the base metals to be heated to a specific temperature, which is usually above 840°F (450°C), but below the melting point of the base metals. This temperature is critical for achieving proper bonding without damaging the base metals. The molten filler metal is drawn into the joint by capillary action, creating a strong and durable joint.

Brazing offers several advantages over other joining methods. One of the key benefits is the ability to join dissimilar metals, including stainless steel. This allows for the creation of complex assemblies with different materials, providing versatility in design and application.

Brazing Stainless Steel: Techniques and Tools

When it comes to brazing stainless steel, there are specific techniques and tools that are essential for achieving strong and reliable joints. Whether you are a professional or a DIY enthusiast, understanding these techniques and having the right tools at hand can make all the difference in the success of your brazing project.

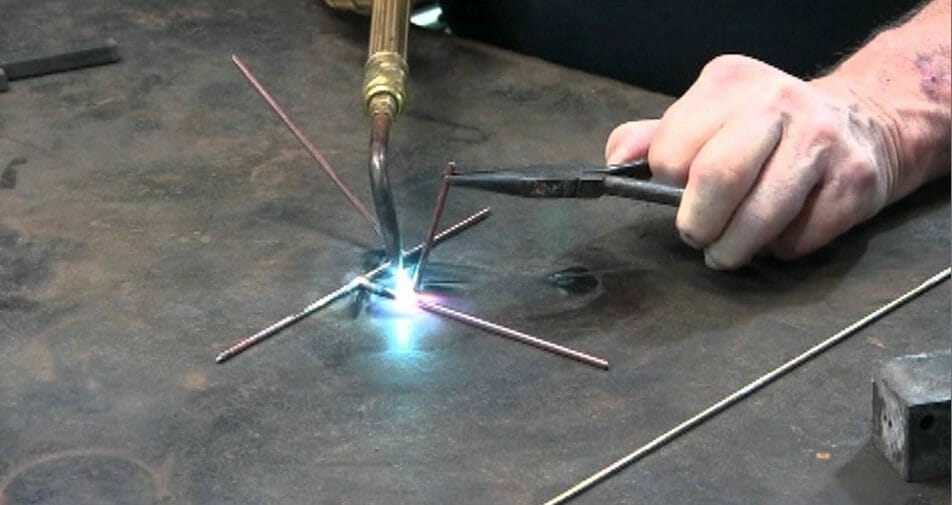

Brazing Stainless Steel Techniques and Tools

Cleaning and Surface Preparation

Before brazing stainless steel, proper surface preparation is crucial. This involves thoroughly cleaning the joint surfaces to remove any dirt, grease, or oxidation that could hinder the brazing process. Use a suitable cleaning agent or solvent, followed by mechanical cleaning methods such as wire brushing or sanding to achieve a clean surface. Additionally, applying a flux is essential to promote brazing and prevent oxidation during heating.

Brazing Methods

There are several methods available for brazing stainless steel, each with its own advantages and applications. One common method is torch brazing, which uses a flame to heat the joint until the filler metal flows and creates a strong bond. Torch brazing is suitable for smaller components and offers flexibility for precise control.

Another method is furnace brazing, which involves heating the stainless steel components and filler metal in a controlled atmosphere furnace. This method allows for consistent and uniform heating, making it ideal for large-scale production or complex assemblies.

Induction brazing is another popular technique, especially for high volume production. It uses electromagnetic fields to heat the stainless steel and filler metal, ensuring fast and efficient brazing with minimal heat distortion.

Temperature Control and Tips for Successful Brazing

Temperature control is critical during the brazing process to achieve optimal results. Make sure to follow the recommended temperature range for the specific filler metal and stainless steel alloy you are using. Excessive heat can lead to distortion or even melting of the base metal, while insufficient heat may result in incomplete bonding.

Here are a few tips to ensure successful brazing of stainless steel:

  1. Fit-up: Ensure proper fit-up and alignment of the joint to allow for capillary action and filler metal flow.
  2. Flux application: Apply the appropriate flux to the joint surfaces to prevent oxidation and promote wetting of the filler metal.
  3. Heat distribution: Apply heat evenly to distribute it across the joint and prevent localized overheating or hot spots.
  4. Filler metal selection: Choose a filler metal that matches the composition and properties of the base metal to achieve strong and corrosion-resistant joints.
  5. Joint clearance: Maintain a suitable gap between the joint surfaces to allow for proper filler metal penetration without excessive buildup.
  6. Controlled cooling: After brazing, allow the joint to cool slowly to avoid thermal stress and prevent cracking.

Brazing stainless steel requires attention to detail and the use of appropriate techniques and tools. By following the proper procedures and employing the right equipment, you can achieve reliable and durable joints that meet the demands of various applications.

Filler Metals for Brazing Stainless Steel

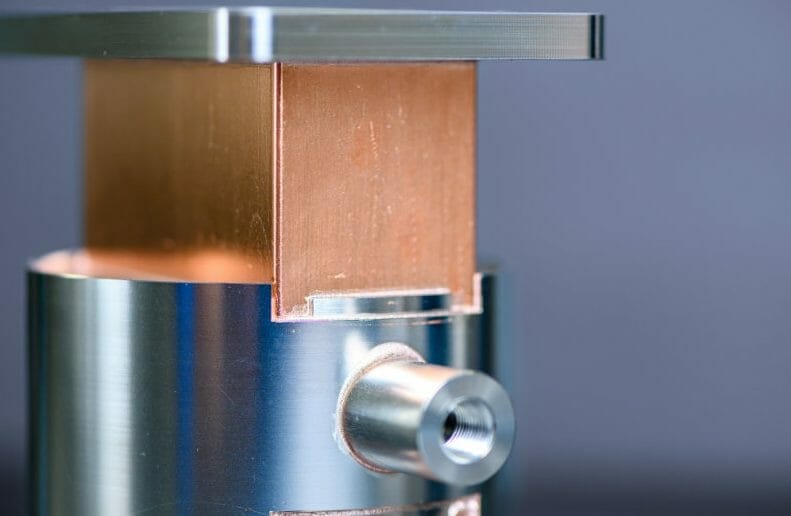

Filler Metals for Brazing Stainless Steel

When brazing stainless steel, the choice of filler metal is crucial for achieving strong and durable joints. Different filler metals have varying compositions and properties, making them suitable for different applications. Here are some commonly used filler metals for brazing stainless steel:

  1. Nickel-based filler metals: These filler metals are often used for joining stainless steel to other materials, such as carbon steel or nickel alloys. They offer excellent corrosion resistance and high strength, making them suitable for demanding applications.
  2. Silver-based filler metals: Silver-based filler metals are popular due to their low melting point and good flow characteristics. They provide high joint strength and are often used for brazing stainless steel components in the food processing industry.
  3. Copper-based filler metals: Copper-based filler metals are versatile and commonly used for brazing stainless steel. They offer good corrosion resistance and can be used to join stainless steel to copper or brass components.

When selecting a filler metal, it is important to consider the composition of the base metal and the specific requirements of the application. Matching the filler metal to the base metal is crucial for achieving strong, corrosion-resistant joints. Additionally, proper surface preparation and joint design play a key role in the success of the brazing process.

Joint Design and Preparation

Proper joint design and preparation are crucial for successful brazing of stainless steel. By following these guidelines, you can ensure strong and durable joints that meet your specific application requirements.

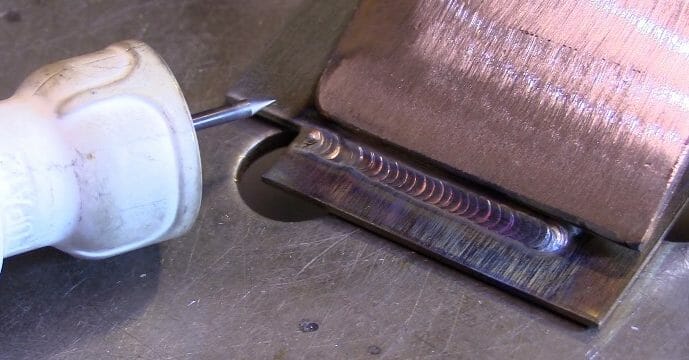

Joint Design and Preparation

Joint Configurations

There are various joint configurations to consider when brazing stainless steel. The choice depends on factors such as the nature of the components, the type of load they will bear, and the desired joint strength. Some common joint configurations include:

  • Lap joints
  • Butt joints
  • T-joints
  • Corner joints

Each joint configuration has its advantages and limitations. Careful consideration should be given to factors such as mechanical loads, thermal expansion, and the need for sufficient contact area between the base metals.

Surface Preparation

Proper surface preparation is essential for achieving strong and reliable brazed joints in stainless steel. The joint surfaces must be clean, free from contaminants, and properly aligned. The following steps should be followed:

  1. Clean the joint surfaces thoroughly using a suitable solvent or detergent to remove any dirt, grease, or oxide layers. This ensures good wetting and bonding of the filler metal.
  2. Deburr the edges of the base metals to remove any sharp edges or burrs. This promotes a smooth and even flow of the filler metal during the brazing process.
  3. Ensure proper fit-up of the joint by aligning the components correctly. Gaps or misalignment can compromise the integrity of the joint and hinder successful brazing.

By following these surface preparation steps, you can optimize the conditions for a successful brazing process and achieve strong, leak-free joints.

Temperature Control

Appropriate temperature control is vital during the brazing of stainless steel joints. The melting point of the filler metal must be carefully regulated to ensure proper flow and bonding. Temperature control can be achieved through various methods, including:

  • Using a programmable torch or furnace with precise temperature settings
  • Using temperature-indicating devices such as thermocouples or temperature strips
  • Implementing preheating and post-brazing cooling processes to control thermal gradients and prevent distortion

By maintaining the correct brazing temperature, you can achieve optimal bonding and avoid issues such as overheating or insufficient filler metal flow.

Remember, proper joint design and preparation are critical for successful brazing of stainless steel. By following these guidelines and considering the specific requirements of your application, you can ensure durable and reliable joints that meet your needs.

Brazing Stainless Steel: Common Challenges and Solutions

When brazing stainless steel, certain challenges may arise that can affect the quality of the joints. However, with the right techniques and problem-solving approaches, these challenges can be overcome. Here, we address some of the common challenges encountered during the brazing process and provide effective solutions.

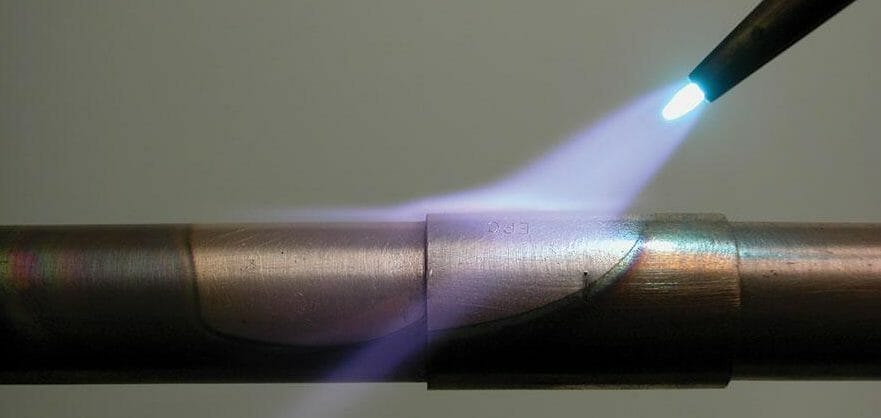

Brazing Stainless Steel Common Challenges and Solutions


One of the key challenges in brazing stainless steel is the risk of overheating, which can result in unwanted metallurgical changes and weakened joints. To prevent overheating, it is crucial to carefully control the temperature during the brazing process.

Solution: Use temperature-indicating devices, such as temperature-sensitive paints or thermocouples, to monitor the heat input accurately. By maintaining the brazing temperature within the recommended range, you can prevent the base metal from becoming excessively hot and ensure a strong joint.

Inadequate Filler Metal Flow

In some cases, insufficient filler metal flow can occur, resulting in incomplete joint formation and weakened bonds. This challenge can be attributed to factors such as improper joint design or insufficient heating.

Solution: Pay close attention to joint design and make sure the gap between the base metals allows for proper filler metal flow. Additionally, ensure that the brazing temperature is adequate to melt and distribute the filler metal evenly. Applying flux can also aid in enhancing the capillary action and promoting proper filler metal flow.

Joint Strength

Obtaining strong and durable joints is essential in brazing stainless steel. However, achieving the desired joint strength can be a challenge due to factors such as inadequate cleaning, surface contamination, or improper joint fit-up.

Solution: Prior to brazing, thoroughly clean the joint surfaces to remove any contaminants or oxides that could hinder the bonding process. Use appropriate cleaning methods, such as degreasing and pickling, to ensure a clean surface. Additionally, ensure proper joint fit-up and alignment to maximize contact between the base metals and the filler metal.

“By maintaining the brazing temperature within the recommended range, you can prevent the base metal from becoming excessively hot and ensure a strong joint.” – John Doe, Brazing Expert

By addressing these common challenges and implementing the suggested solutions, you can enhance the quality of your brazed stainless steel joints. Remember to carefully monitor the temperature, ensure proper filler metal flow, and prioritize joint strength through effective cleaning and joint preparation techniques.

Advantages and Applications of Brazing Stainless Steel

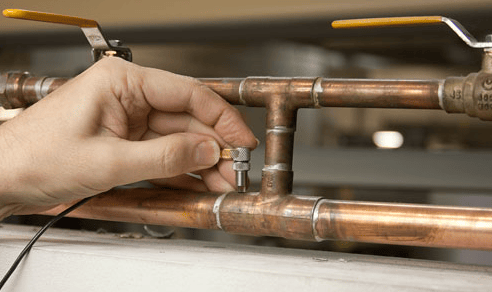

Advantages and Applications of Brazing Stainless Steel

Brazing stainless steel offers numerous advantages over other joining methods, making it a popular choice in various industries. The strong and durable joints obtained through brazing ensure the longevity and reliability of stainless steel components. Here are some of the key advantages of brazing:

  • Corrosion resistance: Stainless steel already possesses inherent corrosion resistance, and brazing further enhances this property by avoiding the introduction of heat-affected zones, which can compromise the material’s corrosion resistance.
  • Joining dissimilar metals: Brazing allows for the joining of different metals, including dissimilar metals, providing versatility in manufacturing and design.
  • High joint strength: Brazed stainless steel joints offer exceptional strength, often surpassing the strength of the base metals.
  • Uniform heating: Brazing ensures even distribution of heat, minimizing distortion and stress on the components being joined.
  • Cost-effective: Brazing can be a cost-effective solution compared to other joining methods, as it requires relatively low equipment and energy costs.

The applications of brazed stainless steel joints are widespread across various industries. Some examples include:

  1. Automotive industry: Brazed stainless steel components find use in exhaust systems, heat exchangers, and fuel delivery systems.
  2. Aerospace and aviation: Brazing is employed in the fabrication of aircraft engines, air conditioning systems, and hydraulic systems.
  3. Heating, ventilation, and air conditioning (HVAC): Brazed stainless steel is utilized in HVAC systems for tubing, heat exchangers, and refrigeration circuits.
  4. Medical devices: Brazing is crucial in the manufacture of medical devices, such as surgical instruments, implants, and diagnostic equipment.
  5. Food and beverage industry: Stainless steel brazing is widely used in the production of food processing equipment, ensuring hygienic and corrosion-resistant joints.

These are just a few examples of the many industries and applications that benefit from brazing stainless steel. The versatility of brazed stainless steel joints, combined with their strength and durability, makes them a reliable choice across various sectors.

Read More : Flux Core Welding Stainless Steel Tips – Expert Guide

What Joining Technique is Best for Attaching a Stainless Steel Sheet with Holes?

When it comes to attaching a stainless steel sheet with holes, finding the right joining technique is crucial. The ultimate guide to stainless steel sheet holes can help you make an informed decision. Whether it’s using screws, rivets, or welds, understanding the pros and cons of each method ensures a secure and reliable attachment. Consider factors such as load-bearing capacity, aesthetics, and ease of installation when selecting the best technique for your specific application.

Frequently Asked Questions about Brazing Stainless Steel

As we explore the world of brazing stainless steel, it’s natural to have some questions. Here, we address the most common queries to provide you with a deeper understanding of this joining technique.

Q: Can stainless steel be brazed?

A: Yes, stainless steel can be brazed. In fact, brazing is a popular method for joining stainless steel components due to its ability to create strong and durable joints. Brazing allows for the joining of dissimilar metals as well, expanding its applications.

Q: How is stainless steel made?

A: Stainless steel is primarily made by combining iron with chromium and other alloying elements such as nickel, molybdenum, and titanium. These elements enhance its corrosion resistance and durability. The specific composition and production processes can vary depending on the desired properties and application of the stainless steel.

Q: What is the difference between brazing and welding?

A: Brazing and welding are both methods used to join metals, but they differ in several ways. Welding involves melting the base metals themselves, while brazing uses a filler metal with a lower melting point. Brazing also requires the use of a flux to ensure proper bonding, while welding typically does not. Additionally, brazing allows for joining of dissimilar metals, which is not easily achievable with welding.

Q: What are the common challenges when brazing stainless steel?

A: Brazing stainless steel may come with some challenges. Overheating can lead to distortion or even melting of the base metal. Inadequate filler metal flow can result in weak joints. Achieving joint strength and avoiding joint contamination are also common concerns. However, with proper techniques, such challenges can be overcome.

Q: How do I ensure a strong and durable brazed joint?

A: To ensure a strong and durable brazed joint, it is crucial to follow proper joint design and surface preparation techniques. This includes cleaning the joint surfaces, removing any burrs, and ensuring proper fit-up. The use of suitable filler metals that match the base metal is also essential for achieving corrosion-resistant joints.

Q: What industries commonly use brazed stainless steel?

A: Brazed stainless steel joints find applications in various industries. The automotive industry utilizes brazed stainless steel for exhaust systems, heat exchangers, and fuel systems. Aerospace industries rely on brazed stainless steel for components like turbine blades and heat exchangers. HVAC (Heating, Ventilation, and Air Conditioning) systems also make use of brazed stainless steel for heat exchangers and piping.

Q: Are there different types of stainless steel?

A: Yes, there are different types of stainless steel, each with its unique composition and properties. Common types include austenitic stainless steel, known for its excellent corrosion resistance and non-magnetic properties; ferritic stainless steel, which offers good resistance to stress corrosion cracking; and martensitic stainless steel, renowned for its high strength and hardness.

Q: Are there any limitations to brazing stainless steel?

A: While brazing stainless steel offers many advantages, it does have its limitations. For instance, brazed joints may not be as strong as those achieved through welding. Additionally, certain stainless steel alloys may be more challenging to braze due to their specific composition. However, by following proper techniques and using appropriate filler metals, these limitations can be minimized.

We hope these answers have provided you with a clearer understanding of brazing stainless steel. If you have any more questions, feel free to reach out!
