If you’re wondering whether you can solder copper to stainless steel, the short answer is yes! But there are important factors to consider before attempting this process, such as understanding the properties and differences between copper and stainless steel, as well as the techniques and safety precautions necessary for successful soldering.
In this article, we’ll explore the ins and outs of soldering copper to stainless steel, including the factors that affect solderability, the techniques used for soldering, and the safety precautions you should take. We’ll also look at the benefits and applications of soldering copper to stainless steel, as well as expert tips and recommendations to help you achieve the best results.
Understanding the Difference Between Copper and Stainless Steel
Before attempting to solder copper to stainless steel, it is important to understand the key differences in properties between these two metals. While both copper and stainless steel are widely used in various applications, they have distinct characteristics that can affect the soldering process.
Copper is a highly conductive metal, making it a popular choice for electrical applications. It has a low melting point of around 1,984°F (1,084°C), which makes it relatively easy to solder. Copper is also highly ductile, meaning it can be easily shaped or formed without breaking. However, copper is susceptible to corrosion and tarnishing.
Stainless steel, on the other hand, is a corrosion-resistant alloy that contains at least 10.5% chromium. It has a high melting point of around 2,550°F (1,400°C), which can make it difficult to solder. Stainless steel is also less ductile than copper, making it more brittle and prone to cracking or breaking.
These differences in properties mean that special care must be taken when soldering copper to stainless steel. The choice of solder alloy and technique will depend on the specific application and desired outcome.

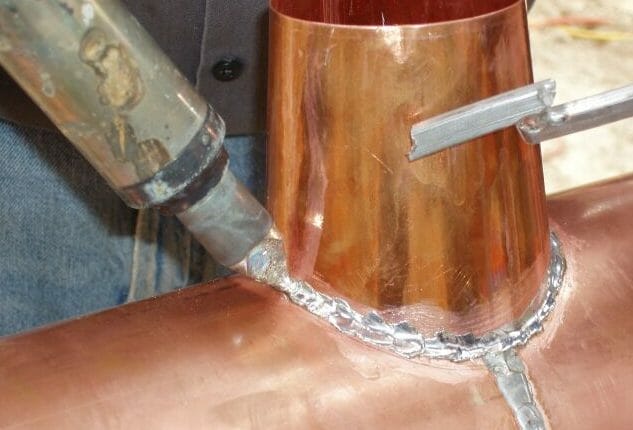

Factors Affecting Solderability of Copper and Stainless Steel
In order to solder copper to stainless steel successfully, it’s important to understand the factors that affect their solderability. These factors include surface cleanliness, oxide layers, and the compatibility of solder alloys with the base metals.
| Factors | Explanation |
|---|---|
| Surface cleanliness | The surface of both copper and stainless steel should be clean and free of any contaminants such as dirt, oil, or grease. Any residue left on the surface can affect the adhesion of the solder. |
| Oxide layers | Both copper and stainless steel develop oxide layers on their surfaces over time, which can interfere with the soldering process. To remove these layers, a flux can be applied. |
| Compatibility of solder alloys with the base metals | The solder alloy used should be compatible with both copper and stainless steel. It’s important to choose the right solder alloy to ensure a strong and durable joint. |
By addressing these factors, you can ensure a successful solder joint between copper and stainless steel.
Surface Cleanliness
As mentioned, surface cleanliness is a crucial factor when it comes to soldering copper to stainless steel. Make sure to clean both surfaces thoroughly before attempting to solder. This can be done using solvents or specific metal cleaners. Once the surfaces are clean, avoid touching them with your bare hands as this can transfer oils and dirt to the surfaces. Use gloves or handle the surfaces with clean cloth or tissue.
Oxide Layers
Oxide layers can interfere with the soldering process by preventing the solder from adhering to the surface of the metal. To remove these layers, a flux can be used. A flux is a chemical solution that removes any oxide layers and helps the solder flow smoothly. Apply the flux to the surfaces before soldering. Be sure to choose a flux that is compatible with both copper and stainless steel.
Compatibility of Solder Alloys with the Base Metals
The type of solder alloy used also plays an important role in the success of the solder joint. Ideally, the alloy should be compatible with both copper and stainless steel. For example, silver solder is a popular choice for soldering copper to stainless steel as it creates a strong and durable joint. However, it’s important to choose the right solder alloy depending on the application.
By understanding these factors, you can ensure a successful solder joint between copper and stainless steel.

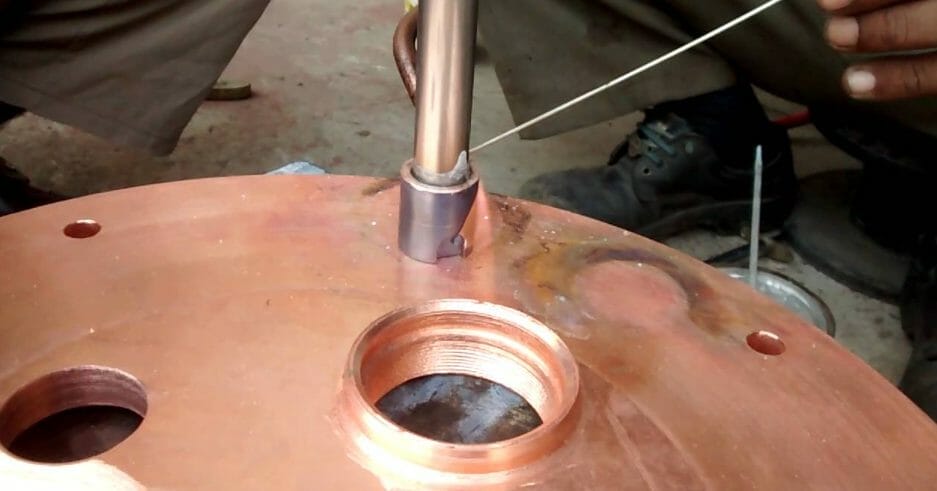

Techniques for Soldering Copper to Stainless Steel
Soldering copper to stainless steel can be a challenging task due to the differences in their melting points and reactivity. However, with the right techniques, it is possible to create a strong and long-lasting joint. Below are some techniques that can be used:
Mechanical Fastening
This involves connecting the copper and stainless steel using mechanical means such as screws, bolts, or rivets. Mechanical fastening is useful when strength is a high priority. However, it is not suitable for connections that need to be airtight or watertight.
Brazing
Brazing is a technique that uses a filler metal with a lower melting point than the base metals to create a strong bond. This technique requires a torch and a brazing rod. The brazing rod melts and bonds the copper and stainless steel together. It is important to choose a brazing rod that is compatible with both metals.
Specialized Soldering Fluxes
Using specialized soldering fluxes can help to improve adhesion and create a strong bond between copper and stainless steel. The flux helps to remove any oxide layers present on the metal surfaces, allowing the solder to wet the metals and form a strong bond. The flux should be compatible with copper and stainless steel.
When soldering copper to stainless steel, it is crucial to ensure that the metals are clean, free from any corrosion or oil residue and that the heat is evenly distributed to prevent overheating and warping. Choose the technique that works best for your specific application and ensure you follow the manufacturer’s instructions for the tools and materials you use.
Safety Precautions for Soldering Copper to Stainless Steel
When working with soldering tools and materials, safety should always be a top priority. Here are some essential safety precautions to keep in mind:
- Wear protective gear: Always wear safety glasses and gloves to protect your eyes and hands from heat and flying debris. Consider wearing a respirator or face mask to avoid inhaling fumes.
- Work in a well-ventilated area: Soldering produces fumes that can be harmful to breathe in, so make sure you work in a well-ventilated area. If possible, use a fume extractor or work near an open window or door.
- Handle hot materials with care: The materials involved in soldering, such as the soldering iron and metal pieces, can get extremely hot. Always use caution when handling them and avoid touching them directly with your bare skin.
- Keep flammable materials away: Soldering involves the use of an open flame, so make sure to keep flammable materials, such as paper and cloth, away from your work area.
- Use the right tools for the job: Make sure you have the necessary tools and equipment for soldering copper to stainless steel, such as a soldering iron, flux, and solder alloy. Using the wrong tools can be dangerous and can result in poor-quality joints.
Remember, while soldering can be a great way to join copper and stainless steel together, it can also be dangerous if not done safely and correctly. Always follow these safety precautions and any others recommended by the manufacturers of your tools and materials.

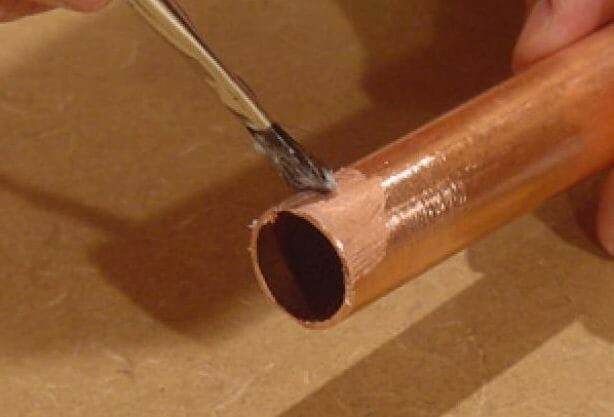

Common Challenges and Troubleshooting Tips
While soldering copper to stainless steel is generally a straightforward process, various issues can arise that may affect the quality and strength of the final joint. Below are some common challenges you may encounter and troubleshooting tips to help you overcome them.
Poor Adhesion
If the solder does not adhere well to the copper or stainless steel surface, the joint may be weak or break easily. One common cause of poor adhesion is inadequate cleaning before soldering. Make sure you remove any dirt, oil, or other contaminants from the surface by using a wire brush or sandpaper. Additionally, make sure to use a cleaning agent like acetone to wipe the surface clean before applying the solder.
Joint Strength
If the joint strength is not up to your expectations, it may be due to a lack of heat or improper solder application. Make sure to heat the joint evenly and apply enough flux to ensure a strong bond. You can also try using a higher temperature solder or adjusting the flame temperature of your torch to achieve a stronger joint.
Cracks or Porosity
If you notice cracks or porosity in your soldered joint, it may be due to overheating or using an improper solder alloy. Make sure to check the melting point of your solder before using it and avoid overheating the joint by regulating the flame temperature and keeping the heat focused on the joint. If you still notice porosity, you can try using a specialized flux designed to prevent this issue.
By being aware of these common challenges and utilizing the appropriate troubleshooting tips, you can ensure a successful soldering job when working with copper and stainless steel surfaces.
Best Solder Alloys for Copper-Stainless Steel Joints
Soldering copper to stainless steel requires careful consideration of the solder alloys used for the joint. The right solder alloy will ensure a strong, reliable joint and minimize the risk of failure.
There are several solder alloys that are suitable for soldering copper to stainless steel:
| Solder Alloy | Melting Point | Features |
|---|---|---|
| 45% Silver Brazing Alloy | 645 °C | This alloy is ideal for high-stress applications and provides excellent corrosion resistance. |
| 56% Silver Brazing Alloy | 710 °C | This alloy is recommended for low-stress applications and provides good joint strength and corrosion resistance. |
| 50/50 Tin-Lead Solder | 183-215 °C | This alloy is easy to work with and provides a low melting point, making it a good option for delicate work. |
| Silver Bearing Solder | 315-371 °C | This alloy is lead-free and provides a high strength joint with good corrosion resistance. |
It is important to note that lead-based alloys should be used with caution and in accordance with local regulations due to their potentially harmful effects on health and the environment.
Expert Recommendations for Choosing Solder Alloys
When choosing a solder alloy for copper-stainless steel joints, consider the application and environmental factors that the joint will be exposed to. For example, if the joint will be subjected to high stress, a stronger alloy such as a silver brazing alloy may be necessary. Alternatively, for intricate work, it may be preferable to use an alloy with a lower melting point, such as 50/50 tin-lead solder.
Another important consideration is the compatibility of the solder alloy with the base metals. Copper and stainless steel have different properties, and some alloys may not adhere well to both metals. If in doubt, consult with a professional or carry out a small-scale test before proceeding with the full joint.
Applications and Benefits of Soldering Copper to Stainless Steel
Soldering copper to stainless steel is a popular technique in various industries, from plumbing to jewelry making. By fusing these two metals together, we can create strong, durable joints that are resistant to corrosion and wear. Here are some of the most common applications and benefits of soldering copper to stainless steel.
Plumbing
One of the most common applications of soldering copper to stainless steel is in plumbing. Copper pipes are often used for water supply lines, while stainless steel fittings are used for joining pipes. By soldering copper to stainless steel, we can create leak-proof connections that are strong and long-lasting. This method is also preferred over traditional welding, which can weaken the pipes or fittings due to the high heat involved.
Electrical Connections
Soldering copper to stainless steel is also commonly used in electrical connections, such as grounding wires or bonding straps. The joint between the copper wire and the stainless steel part must be strong and conductive to ensure proper grounding or bonding. Soldering is a reliable and efficient way to achieve this, as it creates a low-resistance joint that is durable and resistant to corrosion.
Jewelry Making
Soldering copper to stainless steel is also an essential technique in jewelry making. Copper is a popular metal for jewelry, but it is relatively soft and prone to wear. By combining it with stainless steel, we can create stronger, more durable pieces that can withstand daily wear and tear. Soldering also allows for intricate designs and details that would be difficult to achieve with other methods.
Benefits
One of the key benefits of soldering copper to stainless steel is increased joint strength. The resulting joint is often stronger than the base metals themselves, ensuring a long-lasting connection. Soldered joints are also more flexible than welded or brazed joints, which can be especially important in applications where the joint may experience stress or vibration. Additionally, soldering is a relatively low-heat process, which reduces the risk of distortion or damage to the metals.
Expert Tips and Recommendations
If you’re looking to successfully solder copper to stainless steel, here are some expert tips and recommendations to keep in mind:
Choose the Right Flux
The proper flux is crucial for ensuring a strong and reliable joint. Use a flux that is specifically designed for copper-stainless steel joints, and make sure it is compatible with your chosen solder alloy. Apply the flux sparingly to prevent excess residue and ensure a clean joint.
Properly Clean the Surfaces
Before soldering, be sure to clean both the copper and stainless steel surfaces thoroughly. This will help remove any oils, dirt, or other contaminants that could interfere with the soldering process. Use a degreaser or a specialized cleaning solution for the best results, and make sure the surfaces are completely dry before proceeding.
Control the Heat
Controlling the heat is critical for achieving a successful joint. Use a temperature-controlled soldering iron or torch to ensure the correct temperature range for your chosen solder alloy. Avoid overheating the joint, which can result in weakened or brittle connections.
Use Mechanical Fasteners as Needed
If additional strength or support is needed for your joint, consider using mechanical fasteners in addition to soldering. This can help reinforce the joint and prevent it from breaking or separating under stress.
Practice and Patience
Soldering copper to stainless steel requires skill and practice, so be patient and don’t rush the process. Take your time, and make sure each step is completed properly before moving on. With practice and attention to detail, you can achieve strong and reliable copper-stainless steel joints every time.
Read More : Is it Possible to Solder to Stainless Steel? Find Out Now!
What Techniques Can I Use to Patina Copper Stainless Steel?
Patina techniques explored for stainless steel involve various methods to achieve a vintage or aged look. Chemical applications, such as using liver of sulfur, ammonia fuming, or household products like vinegar, salt, and ammonia, can create distinctive patina finishes. Mechanical techniques like sanding, scratching, or hammering can also be employed to give stainless steel a weathered appearance. Proper care and experimentation are essential to master these techniques effectively.
FAQ – Frequently Asked Questions
Here are some frequently asked questions related to soldering copper to stainless steel:
What type of solder should I use?
For soldering copper to stainless steel, it is recommended to use a silver-based solder alloy that is specifically designed for these metals. These solders have a lower melting point than traditional brazing alloys and can create strong, durable joints between copper and stainless steel.
Can I use a soldering iron for this process?
Soldering irons are not recommended for soldering copper to stainless steel. The high melting point of stainless steel requires a torch or brazing equipment to create a strong joint. If you do not have access to brazing equipment, you can use a mechanical fastening method instead.
How strong are copper-stainless steel joints?
Copper-stainless steel joints can be very strong when properly soldered. The joint strength will depend on several factors, such as the type of solder used, the surface preparation of the metals, and the soldering technique employed. When done correctly, these joints can provide a durable and long-lasting connection between copper and stainless steel.
What safety precautions should I take when soldering copper to stainless steel?
It is important to wear appropriate personal protective equipment when soldering, including gloves, eye protection, and respiratory protection if working in a poorly ventilated area. Ensure the area is well ventilated to prevent inhalation of fumes. Keep a fire extinguisher nearby in case of accidental fires and avoid working near flammable materials.
What are some common challenges in soldering copper to stainless steel?
Common challenges include poor adhesion, joint strength, and difficulty in achieving a uniform temperature across the joint area. These issues can be addressed by proper surface preparation, using the right type of flux, and controlling the heat during the soldering process.
Should I clean the metals before soldering?
Yes, it is essential to clean both the copper and stainless steel surfaces thoroughly before soldering. Any contamination on the surfaces can hinder the soldering process and lead to poor joint strength. Use a degreaser or rubbing alcohol to remove dirt, oil, or other residues from the surfaces. It is also beneficial to use a specialized cleaner for cleaning copper and stainless steel surfaces.
