Welding stainless steel to carbon steel may seem like a daunting task, but it is possible with the proper techniques and preparation. In this article, we will dive into the challenges and best practices of welding these two materials together. We will explore the differences between stainless steel and carbon steel, discuss the welding process, and provide tips on selecting the appropriate welding method. We will also address common questions and troubleshooting tips to ensure a successful weld.
Understanding Stainless Steel and Carbon Steel
Before we dive into whether it’s possible to weld stainless steel to carbon steel, let’s first understand the two materials’ characteristics.
Differences in Composition
Stainless steel is an alloy consisting of iron, carbon, and a minimum of 10.5% chromium. This composition gives stainless steel its corrosion-resistant properties and unique appearance. On the other hand, carbon steel is primarily composed of iron and carbon, with small amounts of other elements.
Differences in Strength
While both materials are durable, stainless steel generally has a higher tensile strength than carbon steel. This means it can withstand more stress before deforming or breaking.
Differences in Corrosion Resistance
One of the most significant differences between the two materials is their corrosion resistance. Stainless steel’s high chromium content makes it highly resistant to rust and corrosion, while carbon steel is more prone to oxidation and rust formation.
Other Properties
Stainless steel also has a higher melting point than carbon steel and is non-magnetic, making it ideal for certain applications. Carbon steel, on the other hand, is highly conductive and magnetic.

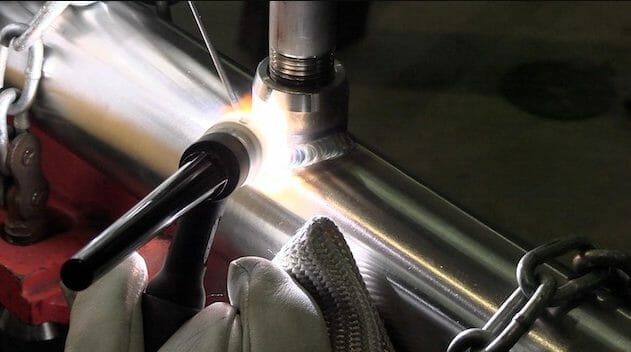

Welding Stainless Steel to Carbon Steel
Welding stainless steel to carbon steel can be a challenging process due to the differences in their physical and chemical properties. The primary challenge is the difference in melting points, as carbon steel has a melting point lower than that of stainless steel.
During welding, the carbon steel may heat up and expand faster than the stainless steel, leading to potential distortion or even cracks in the weld. Additionally, stainless steel is prone to heat discoloration, which can cause aesthetic issues with the finished weld.
There are several techniques used to overcome these challenges, including the use of interlayers, preheating, and proper material selection for filler metals. It is important to maintain proper heat control during the welding process and ensure proper joint fit-up.
In general, TIG welding and stick welding are suitable for welding stainless steel to carbon steel due to their ability to control heat input. However, MIG welding can be more challenging due to the potential for wire feed issues and the difficulty in controlling heat input.
Overall, welding stainless steel to carbon steel requires careful preparation, execution, and post-weld cleanup to achieve a strong and durable bond. With the right techniques and best practices, it is possible to successfully weld these two materials together.
Preparing Stainless Steel and Carbon Steel for Welding
Proper preparation of materials is critical for a strong and durable weld. Before beginning the welding process, it is essential to clean and prepare both stainless steel and carbon steel surfaces to ensure successful bonding.
Here are some tips for preparing stainless steel for welding:
- Remove any contaminants, such as dust, dirt, oil, or grease, from the surface of the stainless steel.
- Use a stainless steel wire brush or grind wheel to remove any surface oxide layers, ensuring a clean and shiny surface.
- Use acetone or a suitable solvent to clean the surface of the stainless steel and remove any remaining contaminants.
Similarly, here are some tips for preparing carbon steel for welding:
- Remove any rust, scale, or dirt from the surface of the carbon steel using a wire brush, grinder, or sandpaper.
- Clean the surface of the carbon steel using a degreaser to remove any grease, oil, or other contaminants.
- Ensure that the edges of the carbon steel are properly beveled for efficient metal fusion during the welding process.
Once the surfaces are clean and free of contaminants, it is crucial to prevent any re-contamination. Be sure to handle the materials with clean gloves and avoid touching the surface of the steel with bare fingers.
Proper surface preparation is necessary not only for achieving an effective weld but also for ensuring optimal corrosion resistance and longevity of the welded joint.
Welding Methods for Stainless Steel and Carbon Steel
When it comes to welding stainless steel to carbon steel, there are several methods to choose from. Each technique has its advantages and disadvantages, and the right choice will depend on factors such as the thickness of the materials, the welding position, and the required weld quality.
TIG Welding
TIG welding, or tungsten inert gas welding, is a popular technique for joining stainless steel and carbon steel. This method uses a non-consumable tungsten electrode to create the arc, which produces a clean and precise weld. TIG welding allows for excellent control over the heat input, making it suitable for thin materials or welding in tight spaces. However, TIG welding is a slower process than other methods, and it requires a high skill level to achieve high-quality welds.
MIG Welding
MIG welding, or metal inert gas welding, is a fast and efficient technique for welding stainless steel to carbon steel. In this method, a wire electrode is fed into the weld pool, which melts and joins the two materials. MIG welding is ideal for thicker materials and is suitable for welding in various positions. However, MIG welding can produce a less precise weld than TIG welding, and it requires careful control of the heat input to avoid distortion.
Stick Welding
Stick welding, also known as shielded metal arc welding (SMAW), is a versatile technique suitable for welding stainless steel to carbon steel. This method uses a consumable electrode coated in flux to produce the arc, which melts the base material and the electrode, joining the two materials. Stick welding is a reliable method that can be used in a variety of environments, including outdoor and windy conditions. However, it produces a less precise weld than TIG or MIG welding, and it requires more post-weld cleanup.
Ultimately, the choice of welding method will depend on the specific project’s requirements and the welder’s expertise. Regardless of the technique used, it’s essential to follow proper safety precautions and best practices to achieve a strong and durable weld.
Read More : Premium ESAB Stainless Steel Welding Wire: High-Quality
Welding Stainless Steel to Carbon Steel: Best Practices
Welding stainless steel to carbon steel is a challenging process that requires careful planning, preparation, and execution. To ensure a successful weld, follow these best practices:
Maintain Proper Heat Control
The key to welding stainless steel to carbon steel is to maintain proper heat control. If the heat is too low, the weld won’t penetrate the material, resulting in a weak joint. On the other hand, excessive heat can cause warping, distortion, and even cracking. To prevent these issues, maintain a consistent temperature throughout the welding process.
Select Compatible Filler Metals
Choosing the right filler metal for welding stainless steel to carbon steel is crucial. The filler metal should have properties that complement both materials, as well as the welding method being used. Consult with a welding expert to determine the best filler material for your specific application.
Ensure Proper Joint Fit-Up
The joint fit-up is also critical to the success of the weld. The two pieces should be aligned closely and securely to ensure proper penetration and fusion. Any gaps or misalignment can cause weak spots in the weld, compromising its strength. Use clamps, jigs, or other devices to hold the pieces in place during welding.
Use the Appropriate Welding Technique
There are several welding techniques suitable for joining stainless steel to carbon steel, including TIG welding, MIG welding, and stick welding. Each technique has its advantages and disadvantages and is suitable for different applications. Consult with a welding expert to determine the best technique for your specific project.
Perform Post-Weld Heat Treatment
Post-weld heat treatment is often necessary when welding stainless steel to carbon steel. This process involves heating the welded joint to a specific temperature and then cooling it slowly to relieve internal stresses and ensure maximum strength. Consult with a welding expert to determine the appropriate post-weld heat treatment for your project.
Can You Weld Stainless to Carbon Steel at Home?
If you’re looking to take on a welding project involving stainless steel and carbon steel, you may be wondering if it’s possible to do it yourself at home. While welding these two materials together can be challenging, it is possible to achieve a strong and durable weld with the right equipment and techniques.
Before attempting to weld stainless steel to carbon steel at home, it’s important to have a basic understanding of the welding process and the materials involved. You’ll need to invest in a high-quality welding machine, appropriate safety gear, and compatible filler metals.
It’s also crucial to properly prepare both materials for welding. Thoroughly clean and prepare the surfaces to ensure a strong bond and avoid any contamination that could weaken the weld.
While welding stainless steel to carbon steel at home can be done, it’s essential to take proper safety precautions. Welding produces a significant amount of heat and can potentially be hazardous, so ensure you have the necessary safety gear, such as welding gloves and a welding helmet, and work in a well-ventilated area.
Beginners may want to start with smaller projects to build their skills and confidence before tackling larger or more complex welding projects.
Overall, welding stainless steel to carbon steel at home is possible with the right equipment, techniques, and safety precautions. Keep in mind that this process can be challenging, so it’s important to take your time, follow proper procedures, and seek professional help if needed.
Tips for Ensuring a Successful Weld
Joining stainless steel to carbon steel can be a challenging process, but with the right techniques and preparation, you can achieve a successful and durable weld. Here are some tips to help you troubleshoot common issues and ensure a high-quality weld:
1. Maintain Proper Heat Control
Controlling heat is critical when welding stainless steel to carbon steel. Because these metals have different melting points, the weld area may become weakened or distorted if the heat is not controlled properly. Use the lowest heat setting possible to prevent damage to the joint and ensure a strong bond.
2. Select Compatible Filler Metals
Choosing the right filler metal is essential for achieving a successful weld. Use filler metals that are compatible with both stainless steel and carbon steel to ensure a strong bond. Low carbon or 300 series stainless steel wires are suitable choices for this type of welding.
3. Ensure Proper Joint Fit-Up
Proper joint fit-up is critical for achieving a successful weld. Misaligned joints or gaps between the metals can result in weakened welds and potential failure. Ensure the joint edges are clean, smooth, and fit precisely together.
4. Monitor Weld Pool Size and Shape
Monitoring the size and shape of the weld pool can help prevent issues such as burn-through or improper penetration. Proper manipulation of the weld pool can ensure a strong and consistent weld. Use the correct welding technique for the materials you are welding to maintain control of the pool.
5. Perform Post-Weld Cleaning and Inspection
After welding, it is essential to perform a thorough post-weld cleaning and inspection. Clean the weld area to remove any debris or contamination, and inspect the weld for any defects or inconsistencies. Address any issues immediately to ensure the quality and longevity of the weld.
By following these tips, you can successfully weld stainless steel to carbon steel and create strong and durable bonds. However, if you encounter any issues, explore the troubleshooting tips in the next section to help address common welding problems.
Applications and Limitations of Welding Stainless to Carbon Steel
The welding of stainless steel to carbon steel has practical applications in various industries. Common applications include the manufacturing of pressure vessels, pipelines, and automotive components. One significant benefit of this welding process is the cost reduction achieved by using carbon steel in combination with the corrosion-resistant properties of stainless steel. However, there are some limitations to consider when welding these two materials together.
One limitation is the potential for performance issues due to the dissimilar properties of the materials. The differences in thermal expansion rates and melting points may result in cracking, insufficient joint penetration, or distortion. These issues can be mitigated by selecting proper welding techniques and materials, as discussed in previous sections.
Another limitation is the selection of alternative welding methods. In some instances, it may be more appropriate to use other welding processes, such as brazing or soldering, to join stainless steel and carbon steel. Additionally, the use of cladding or surface modification techniques may provide an alternative means to achieve corrosion resistance.
It is essential to consider the specific requirements of the project and consult with welding professionals to determine the most suitable welding method for joining stainless steel and carbon steel.
Conclusion:
Welding stainless steel to carbon steel is possible, but it requires proper preparation, technique, and equipment. Understanding the properties and differences between these two materials is crucial to achieve a successful and durable weld. By following our recommended best practices and troubleshooting tips, you can ensure a high-quality bond.
Is It Possible to Weld Mild Steel to Stainless Steel?
When it comes to welding stainless steel and mild steel, it is possible to join these two materials, but it can be challenging. The key is to use the appropriate welding technique and filler metal to ensure a strong bond. Careful consideration of the different properties and composition of each material is crucial in achieving a successful weld.
Frequently Asked Questions
What equipment do I need to weld stainless steel to carbon steel?
To weld stainless steel to carbon steel, you will need a welding machine, a suitable welding technique (such as TIG or MIG), compatible filler metals, and appropriate safety equipment such as gloves, helmets, and protective clothing.
What safety precautions should I take when welding stainless steel to carbon steel?
Welding stainless steel to carbon steel can create harmful fumes and debris, so it is important to wear proper protective gear such as a welding helmet, gloves, and heavy-duty clothing. Adequate ventilation is also critical, and the welding area should be free of flammable materials. Always follow the manufacturer’s instructions for your equipment and consult with a professional if you have any doubts.
What are some common issues I may encounter when welding stainless steel to carbon steel?
Some common issues when welding stainless steel to carbon steel include weld cracking, distortion, and insufficient penetration. These issues can be caused by differences in melting points, thermal expansion rates, and other factors. Proper equipment, technique, and joint preparation are crucial to overcome these challenges and achieve a successful weld.
Can I weld stainless steel to carbon steel without using a filler metal?
Welding stainless steel to carbon steel without using a filler metal is possible but can result in a weaker bond. Using a compatible filler metal helps ensure a strong and durable weld. Consult with a professional or refer to your equipment’s manufacturer guidelines for specific recommendations for your application.
Are there any limitations to welding stainless steel to carbon steel?
While welding stainless steel to carbon steel can have practical applications, there are limitations to consider. Performance issues such as corrosion and degradation can occur at the welded joint, and alternative welding methods may be necessary in certain situations. Be sure to weigh the benefits and limitations before deciding if this welding process is right for your needs.
Can I weld stainless steel to carbon steel using a stick welder?
Yes, it is possible to weld stainless steel to carbon steel using a stick welder. However, stick welding may not be the most suitable technique for this type of welding, as it can be challenging to achieve proper heat control and adequate penetration. Other techniques such as TIG or MIG welding may be better suited for this application.
