Are you planning to TIG weld stainless steel? One important factor to consider is the color of tungsten you use. Using the wrong color of tungsten can lead to issues such as contamination and poor weld quality. In this article, we will provide tips and tricks for choosing the right color tungsten for TIG welding stainless steel.
Let’s dive into the different types of tungsten available and their respective suitability for TIG welding stainless steel.

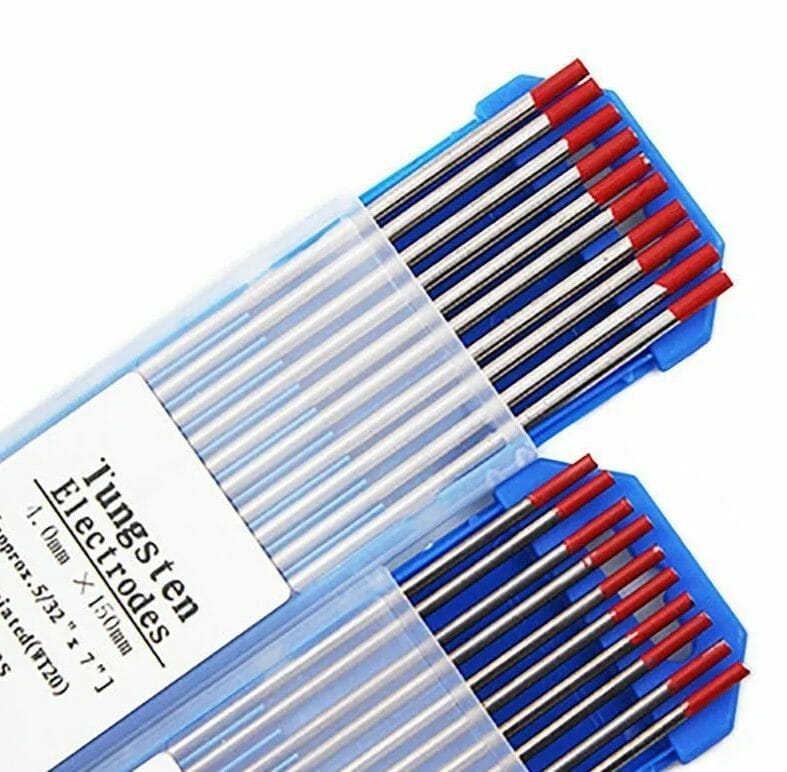

Types of Tungsten Available for TIG Welding Stainless Steel
When it comes to TIG welding stainless steel, choosing the right type of tungsten is crucial. There are four main types of tungsten to choose from: thoriated, ceriated, lanthanated, and pure tungsten. Each type has its own unique characteristics and suitability for different applications.
| Tungsten Type | Advantages | Disadvantages |
|---|---|---|
| Thoriated | Good for high-amperage applications, maintains sharp point, affordable | Contains radioactive material, can cause contamination if not handled properly |
| Ceriated | Maintains consistent arc, good for low-amperage applications, long-lasting | Not ideal for high-amperage applications, can be more expensive |
| Lanthanated | Maintains stable arc, good for both AC and DC welding, long-lasting | Not ideal for low-amperage applications, can be more expensive |
| Pure | Good for welding thinner materials, relatively low cost | Not ideal for high-amperage applications, can easily form a ball on the end if not properly maintained |
Note: Thoriated tungsten is not recommended for use in Europe due to concerns about its radioactive content. If you’re in Europe, you’ll need to choose an alternative type of tungsten for TIG welding stainless steel.

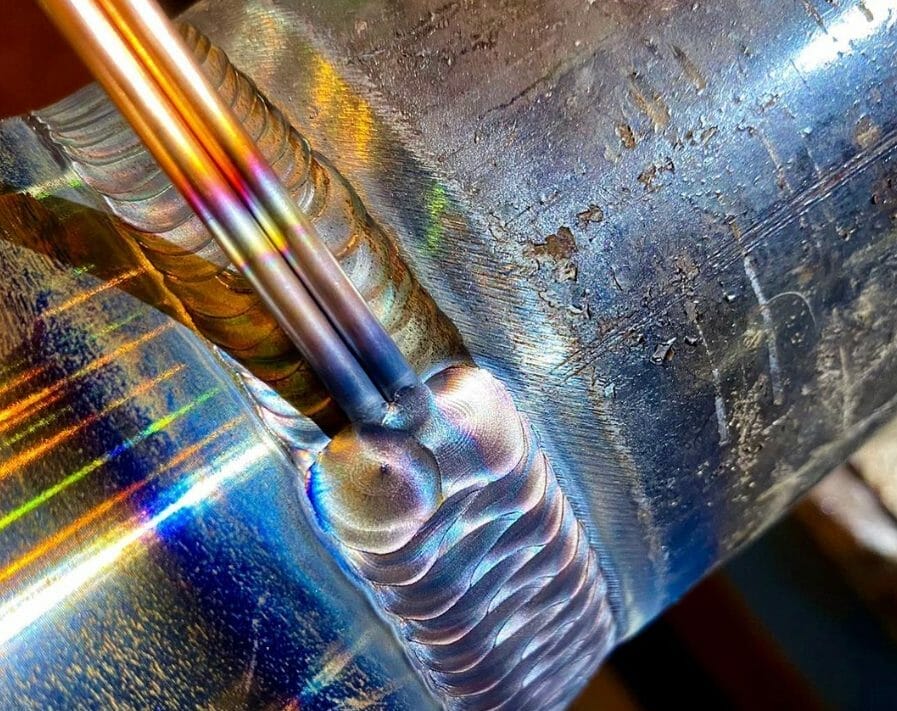

Thoriated Tungsten for TIG Welding Stainless Steel
Thoriated tungsten is a popular choice for TIG welding stainless steel due to its ability to maintain a stable arc and produce high-quality welds with excellent penetration. This type of tungsten is composed of 97.3% tungsten and 2.7% thorium, a radioactive metal that emits alpha particles. The addition of thorium to tungsten improves its electron emission and helps to maintain a sharp and stable arc, making it ideal for TIG welding.
One of the main benefits of using thoriated tungsten for TIG welding stainless steel is its ability to handle high amperage levels. It can withstand currents of up to 240 amps, making it ideal for welding thicker pieces of stainless steel. Additionally, thoriated tungsten has a long lifespan and can be used for extended periods without needing to be replaced.
However, it’s important to note that thoriated tungsten is mildly radioactive, and therefore requires proper handling and disposal. Exposure to alpha particles emitted by thorium can lead to various health issues, including skin irritation, lung damage, and an increased risk of cancer. Therefore, it’s crucial to wear appropriate personal protective equipment when handling thoriated tungsten, and to dispose of it properly.
Overall, thoriated tungsten is an excellent choice for TIG welding stainless steel due to its ability to maintain a stable arc and produce high-quality welds. However, it’s essential to take proper safety precautions when using and disposing of this type of tungsten.
Ceriated Tungsten for TIG Welding Stainless Steel
Ceriated tungsten is another popular choice for TIG welding stainless steel. It is known for its excellent arc stability, high current-carrying capacity and longer service life. Ceriated tungsten is particularly suitable for welding thin stainless steel sheets and pipes because it produces a stable arc, which results in a smooth and consistent weld pool.
Ceriated tungsten is identified by a grey band at the end of the welding rod, which makes it easy to distinguish from other types of tungsten. It can be used with both AC and DC welding machines and is compatible with most types of stainless steel.
One of the main advantages of ceriated tungsten is that it produces less tungsten dust than thoriated tungsten, making it a safer option for welders and reducing the risk of contamination. However, some users may find it difficult to maintain a consistent arc because ceriated tungsten tends to ball up at the tip, which can affect the accuracy of the weld.
Safety Considerations
Like all types of tungsten, ceriated tungsten can pose a health risk if not handled properly. When welding with ceriated tungsten, it is important to wear appropriate personal protective equipment, including gloves, protective clothing and a respirator. Ceriated tungsten should also be stored in a dry, cool place away from direct sunlight and humidity.
| Advantages | Disadvantages |
|---|---|
| Produces a stable arc | May ball up at the tip |
| Less tungsten dust | |
| Can be used for both AC and DC welding |
Lanthanated Tungsten for TIG Welding Stainless Steel
Lanthanated tungsten, also known as gold tungsten, is another popular choice for TIG welding stainless steel. This type of tungsten is known for its excellent arc stability and long-lasting performance. It has a slightly different composition compared to thoriated and ceriated tungsten, containing a small amount of lanthanum oxide.
One of the key benefits of lanthanated tungsten is its ability to maintain an arc at lower amperages, making it a great option for welding thinner stainless steel materials. It also has a lower risk of tungsten contamination compared to thoriated tungsten.
| Advantages | Disadvantages |
|---|---|
| Excellent arc stability | Higher cost compared to other types of tungsten |
| Long-lasting performance | In some cases, may not work as well for higher amperages |
| Lower risk of tungsten contamination | Not suitable for DC welding |
When choosing the right color tungsten for TIG welding stainless steel, lanthanated tungsten is a great option for those working with thinner materials and requiring excellent arc stability. However, it may not be the best choice for higher amperage applications or DC welding.
Pure Tungsten for TIG Welding Stainless Steel
Pure tungsten is the most commonly used tungsten for TIG welding stainless steel. It is also the oldest type of tungsten used in TIG welding. Pure tungsten is not mixed with any other elements, making it an excellent choice for welding stainless steel.
While pure tungsten is versatile and can be used with most stainless steel applications, it is not the best choice for all situations. Pure tungsten is more prone to contamination and wear than other types of tungsten. It is also not recommended for use with AC welding, as it can cause instability in the arc.
When choosing pure tungsten for TIG welding stainless steel, it is important to consider the specific application and welding conditions. In general, pure tungsten is best suited for thin gauge stainless steel welding, as well as for applications where a clean weld surface is critical.
Benefits of Pure Tungsten for TIG Welding Stainless Steel
Pure tungsten offers several benefits for TIG welding stainless steel, including:
- Good arc ignition
- Excellent arc stability
- Low burn-off rate
- Ability to produce clean welds
Drawbacks of Pure Tungsten for TIG Welding Stainless Steel
While pure tungsten offers several benefits, it also has a few drawbacks for TIG welding stainless steel, including:
- Poor tolerance for contamination
- Prone to wear and damage
- Not suitable for AC welding
When using pure tungsten for TIG welding stainless steel, it is important to take the necessary precautions to avoid contamination and wear. This includes properly cleaning and maintaining the tungsten electrode, as well as using the appropriate welding technique.
Overall, pure tungsten is a reliable and versatile option for TIG welding stainless steel, but it may not be the best choice for all applications. Consider the specific welding conditions and application requirements to determine if pure tungsten is the right choice for your project.
Choosing the Right Color Tungsten for TIG Welding Stainless Steel
Choosing the right color tungsten for TIG welding stainless steel is crucial to achieving a high-quality weld. Each type of tungsten has its own advantages and disadvantages, making it important to understand the differences and how they relate to your specific application.
| Type of Tungsten | Advantages | Disadvantages |
|---|---|---|
| Thoriated | High current carrying capacity | Radioactive material may pose health risks |
| Ceriated | Excellent arc stability | May be prone to contamination |
| Lanthanated | Long lifespan | May require higher amperage |
| Pure | Can be used for a variety of metals | Not as durable as other types |
Thoriated tungsten is a popular choice for welding stainless steel due to its high current carrying capacity. However, it contains a radioactive material that may pose health risks, making it important to take appropriate safety precautions.
Ceriated tungsten is known for its excellent arc stability, making it a good choice for welding stainless steel. However, it may be prone to contamination, which can diminish weld quality.
Lanthanated tungsten has a long lifespan and is suitable for high-temperature applications. However, it may require higher amperage than other types of tungsten.
Pure tungsten can be used for a variety of metals, including stainless steel. However, it is not as durable as other types of tungsten and may not be suitable for high-amperage applications.
Choosing the Right Color Tungsten for Your Application
The right color tungsten for your TIG welding application will depend on a variety of factors, including the type of stainless steel you are welding, the thickness of the material, and the amperage you are using. It is important to consider all of these factors when choosing your tungsten to ensure the best possible weld quality.
Consult with a reputable welding supplier or an experienced professional to determine the best type of tungsten for your specific application. Taking the time to make the right choice can help you achieve a high-quality weld and avoid potential issues such as contamination or poor weld quality.
TIG Welding Copper to Stainless Steel
When it comes to TIG welding copper to stainless steel, there are a few things to keep in mind to ensure a successful weld. One of the most important considerations is choosing the right color tungsten.
First and foremost, it is important to select a tungsten with a higher amperage rating, as welding copper requires more heat than welding stainless steel. Typically, a 2% thoriated or lanthanated tungsten is a good choice for this application.
In addition, it is recommended to use a copper-based filler metal, such as copper-silicon or copper-zinc, to ensure a strong bond between the two metals. It is also important to clean and prepare the surfaces of both metals before beginning the weld.
Overall, with the proper tungsten and filler metal selection, along with appropriate surface preparation, TIG welding copper to stainless steel can be a successful and efficient process.
Read More : Tig Welding Copper to Stainless Steel: Tips and Techniques
What Are the Steps to TIG Welding Stainless Steel at Home?
To weld stainless steel step-by-step at home, begin by preparing the material, cleaning it thoroughly to eliminate any contamination. Next, set up the TIG welder with the appropriate settings for stainless steel, ensuring gas flow and electrode positioning are accurate. When ready, strike an arc and start welding, moving the torch steadily along the joint with controlled filler metal deposition. Lastly, remember to let the welded stainless steel cool gradually to prevent cracking.
FAQ: Common Questions About Choosing the Right Color Tungsten for TIG Welding Stainless Steel
Q: What is the best color tungsten for TIG welding stainless steel?
A: The best color tungsten for TIG welding stainless steel depends on the specific application and welding conditions. Every type of tungsten has its own unique benefits and drawbacks, so it’s important to consider factors such as current, voltage, and amperage before making a decision.
Q: Are there any safety considerations when using tungsten for TIG welding stainless steel?
A: Yes, safety is always a concern when working with tungsten. Be sure to wear appropriate protective gear, such as welding gloves and eye protection. Additionally, tungsten can be toxic if ingested or inhaled, so be sure to handle it with care and dispose of it properly.
Q: Can I use the same tungsten for welding different types of stainless steel?
A: It is generally recommended to use a different tungsten for each type of stainless steel you are welding. This is because different types of stainless steel have different compositions and require different welding techniques. Using the wrong tungsten can result in contamination and poor weld quality.
Q: How do I choose the right tungsten for TIG welding copper to stainless steel?
A: When TIG welding copper to stainless steel, it is recommended to use a pure tungsten electrode. Additionally, you will need to select a filler metal that is appropriate for both copper and stainless steel.
Q: Can I use thoriated tungsten for TIG welding stainless steel?
A: Yes, thoriated tungsten is suitable for TIG welding stainless steel. However, it is important to note that thoriated tungsten is radioactive and can be toxic if ingested or inhaled. If you choose to use thoriated tungsten, be sure to handle it with care and dispose of it properly.
