If you’re working on a project that involves welding duplex stainless steel, you’ll need to ensure that you have the right skills and knowledge to do it successfully. Duplex stainless steel has a combination of both austenitic and ferritic stainless steels, providing excellent corrosion resistance, high strength, and good weldability. However, it’s known to be sensitive to heat and prone to cracking, which can impact its properties. In this section, we’ll provide you with expert tips to help you succeed in your duplex stainless steel welding projects. By following these tips, you can ensure a high-quality result that meets your expectations.
Key Takeaways:
- Understanding the properties of duplex stainless steel is essential for successful welding.
- Proper pre-welding preparation, including cleaning and selecting the appropriate filler material, is crucial for successful welding.
- Controlling heat input and selecting the right shielding gas are also important factors for successful welding.
- Various welding techniques can be used for duplex stainless steel welding, and the choice should be based on factors like joint configuration and material thickness.
- Post-welding treatment and quality control measures are essential to optimize the properties of the weld joint.
- Common welding issues like hot cracking, porosity, and lack of fusion or penetration can be overcome with troubleshooting techniques and preventive measures.
- Duplex stainless steel welding offers cost-effectiveness, improved strength, and resistance to stress corrosion cracking, making it suitable for various applications.
Understanding Duplex Stainless Steel
Before embarking on your duplex stainless steel welding project, it is crucial to have a thorough understanding of this material’s properties. Duplex stainless steel is a combination of austenitic and ferritic stainless steels, providing exceptional corrosion resistance, high strength, and good weldability.
The material comprises a microstructure consisting of roughly equal parts of ferrite and austenite phases. The balance of these phases is responsible for its unique properties. It is essential to note that duplex stainless steel comes in various grades with different compositions and properties.
| Grade | Chemical Composition (%) | Benefits |
|---|---|---|
| Duplex 2205 | 22% chromium, 5% nickel, 3.2% molybdenum | Excellent corrosion resistance, high strength, and good weldability. |
| Duplex 2304 | 23% chromium, 4% nickel, 0.1% nitrogen | Lower nickel content makes it more cost-effective while maintaining good corrosion resistance and weldability. |
| Duplex 2507 | 25% chromium, 7% nickel, 4% molybdenum | Higher corrosion resistance and strength, allowing for use in more demanding applications. |
The microstructure of duplex stainless steel makes it susceptible to certain challenges during welding, which will be discussed in later sections. However, with a thorough understanding of the material properties, you can optimize your welding process and achieve high-quality results.
Pre-Welding Preparation
Before starting with the welding process, it’s important to prepare the material and the surrounding environment to achieve high-quality welds.
Cleaning: The first step is to thoroughly clean the surfaces that will be welded with a suitable solvent to remove any oil, grease, or other contaminants. This is important as any foreign materials can cause defects in the welds and compromise their integrity.
Joint fit-up: The joint fit-up should be precise, with minimal gaps and proper alignment. This can be achieved by using clamps, jigs, or tack welding. Proper joint fit-up ensures that the welding process will proceed smoothly and that the resulting welds will be strong and reliable.
Removing oxide layers: Duplex stainless steel plates can develop oxide layers due to exposure to air or high temperatures. These layers can reduce the quality of the welds by causing porosity or lack of fusion. To remove the oxide layer, it is recommended to use mechanical methods such as grinding or by using chemical passivation.
Filler material and welding consumables: It’s essential to choose the appropriate filler material and welding consumables for duplex stainless steel. The material selection should be based on the composition of the base material and the desired mechanical properties of the weld. The welding consumables should be matched to the base material and the welding technique used.
Heat Input Control

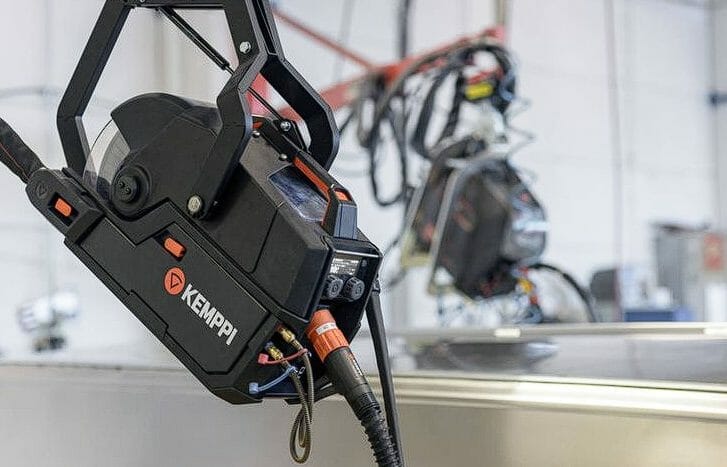

Duplex stainless steel welding requires careful heat input control to minimize the risk of hot cracking and distortion. As the material is sensitive to heat input, excessive heat affected zone (HAZ) and intermetallic phase formation can occur, which can lead to a compromised weld joint.
Several techniques can be employed to control heat input during welding, such as pulse welding and low heat input processes. Pulse welding is a useful method to reduce the heat input while maintaining good weld penetration and control.
Low heat input processes like gas tungsten arc welding (GTAW) or gas metal arc welding (GMAW) can also be used to minimize the risk of hot cracking and ensure a good quality weld. In GTAW, it’s essential to use a low amperage and a smaller diameter tungsten electrode to reduce the heat input and control the arc size.
Preheating can also be used to control the heat input and minimize the risk of hot cracking. However, it’s essential to ensure that the preheating temperature is not too high as this can lead to carbide precipitation and intermetallic phase formation.
Post-Welding Treatment
Heat treatment processes like solution annealing and stress relieving can be used to optimize the properties of the duplex stainless steel welds. Solution annealing involves heating the weld to a high temperature followed by rapid cooling to promote homogenization of the microstructure. Stress relieving is a method of reducing residual stresses that can arise from the welding process.
It’s important to follow the recommended procedures and temperature ranges during post-welding treatment to achieve the desired results. Improper heat treatment can lead to reduced corrosion resistance and mechanical properties of the weld joint.
Shielding Gas Selection

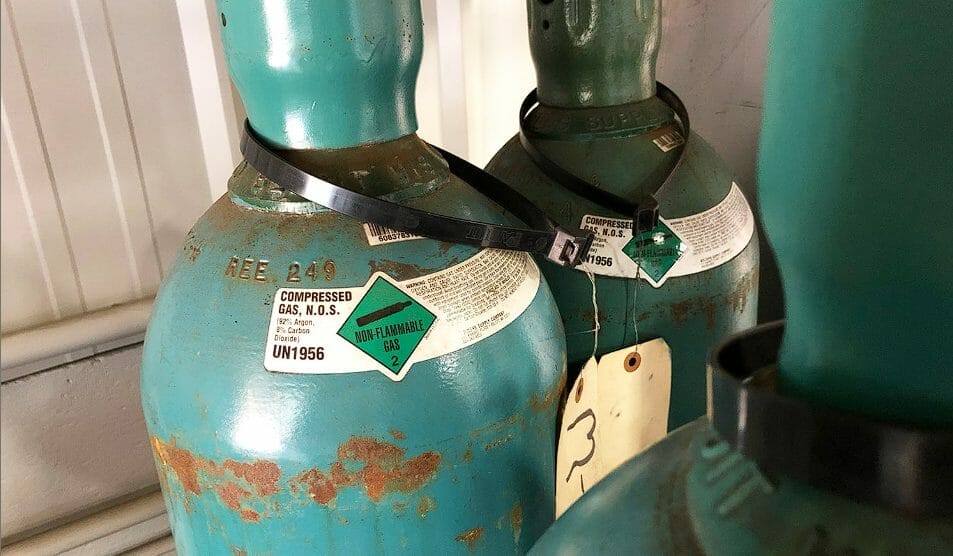

Choosing the right shielding gas is crucial for successful duplex stainless steel welding. The primary function of the shielding gas is to protect the weld pool and prevent the formation of undesirable phases. Nitrogen-based shielding gases, such as argon and helium, are commonly used for welding duplex stainless steel. The high solubility of nitrogen in the metal helps to stabilize the austenite phase and prevent the formation of harmful intermetallic phases.
In addition to nitrogen, argon gas can also be added to the shielding gas mixtures. Argon improves arc stability and reduces porosity in the weld. It also lowers the thermal conductivity of the gas mixture, reducing heat input. However, it is crucial to consult the material specifications and welding procedure guidelines for the recommended shielding gas composition. Deviation from the recommended gas composition may lead to issues like porosity and reduced corrosion resistance.
Selection Criteria for Shielding Gas
The selection of shielding gas for duplex stainless steel welding is based on various factors, like welding process, material thickness, and joint configuration. Gas tungsten arc welding (GTAW) and gas metal arc welding (GMAW) commonly use a mixture of argon and nitrogen in different proportions. On the other hand, flux-cored arc welding (FCAW) usually requires a higher percentage of argon in the shielding gas mix.
Expert Tip: Consult with the welding consumables supplier or manufacturer to ensure that the recommended shielding gas composition is used. This will enhance the quality of the welds and help avoid potential welding issues.
Welding Techniques
Duplex stainless steel welding can be accomplished through a variety of welding techniques. The most common techniques include gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), and flux-cored arc welding (FCAW).
GTAW is a precise and controlled welding process that uses a non-consumable tungsten electrode to create the arc. This technique is ideal for thin materials and critical applications that require a high-quality finish. GMAW, on the other hand, is a faster and more economical process that uses a consumable wire electrode to feed the weld pool.
FCAW is a semi-automatic process that uses a tubular wire electrode filled with flux to shield the arc. This technique is particularly suitable for thicker materials and outdoor welding applications. The choice of welding technique should be based on the joint configuration, material thickness, and desired welding speed.
Regardless of the chosen welding technique, it’s essential to maintain proper arc control and manipulate the welding parameters to achieve optimal results. Experienced welders can adjust the current, voltage, and travel speed to ensure complete fusion and penetration while minimizing heat input.
Post-Welding Treatment

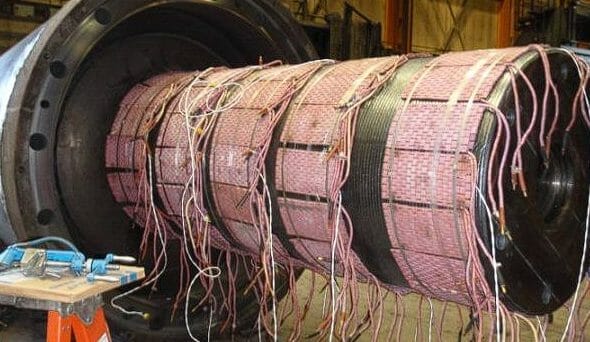

Post-welding treatment is an important step in optimizing the properties of duplex stainless steel welds. Two common heat treatment processes that can be used for duplex stainless steel are solution annealing and stress relieving.
Solution annealing involves heating the weld joint to a high temperature, then cooling it rapidly. This process removes any chromium carbides that may have formed during welding, which can improve the corrosion resistance of the weld. The recommended temperature range for solution annealing is between 1900-2050°F (1038-1121°C).
Stress relieving involves heating the weld joint to a moderate temperature range, then cooling it gradually. This process removes any residual stresses that may have formed during welding, which can improve the toughness and ductility of the weld. The recommended temperature range for stress relieving is between 750-1025°F (399-552°C).
It’s important to follow the recommended temperature ranges and cooling rates for each heat treatment process to achieve the desired results.
Quality Control and Inspection
Ensuring high-quality welds for duplex stainless steel requires strict control and inspection measures. Non-destructive testing methods like visual inspection, dye penetrant testing, and radiographic examination should be employed to detect any defects or discontinuities. Following a well-defined quality control plan will help maintain the integrity of the welds.
Visual Inspection
Visual inspection is the most common and straightforward method to detect any visible defects in the weld joint. The inspector must have a keen eye for detail, looking for indications of porosity, lack of fusion, undercut, or surface cracks. A proper lighting arrangement and the use of a magnifying glass can aid in identifying any small defects.
Dye Penetrant Testing
Dye penetrant testing involves applying a penetrant liquid onto the surface of the weld joint and then wiping it off after a brief period. The penetrant seeps into any surface openings or cracks on the material’s surface and, when exposed to a developer, highlights these openings, making them visible for inspection. This non-destructive testing technique can detect surface cracks, porosity, and lack of fusion.
Radiographic Examination
Radiographic examination is a more sophisticated method of inspection, involving the use of x-rays or gamma rays to penetrate the weld joint and produce an image on a film or digital detector. Radiographic examination can detect internal defects that are not visible to the naked eye, such as porosity, lack of fusion, and incomplete penetration. This technique requires specialized equipment and trained personnel to carry out the inspection.
By incorporating these testing methods into a quality control plan, welders can ensure that their duplex stainless steel welds meet the necessary requirements and are free from defects.
Troubleshooting Common Welding Issues
Despite taking all necessary precautions, duplex stainless steel welding issues can still occur during the process. This section discusses common problems that arise in duplex stainless steel welds and provides troubleshooting techniques and preventive measures to overcome them effectively.
Hot Cracking
Hot cracking is a common issue that occurs during duplex stainless steel welding due to the material’s sensitivity to heat input. This can be caused by high levels of residual stress or an improper filler material selection. To prevent hot cracking, it’s essential to maintain proper heat input control and select a suitable filler metal. Additionally, using preheating or post-weld heat treatment can relieve residual stresses and minimize the risk of hot cracking.
Porosity
Porosity is another common problem that can affect the quality of duplex stainless steel welds. It is caused by the entrapment of gas pockets during the welding process. To avoid porosity, it’s important to select the correct shielding gas, maintain proper shielding gas flow rates, and ensure the surfaces to be welded are clean and free from any contaminants. Additionally, using appropriate welding techniques, such as pulse welding, can help reduce the risk of porosity.
Lack of Fusion or Penetration
A lack of fusion or penetration in duplex stainless steel welds can cause the joint to be weak and prone to failure. This problem can be caused by an inadequate welding current or an incorrect electrode angle. To overcome this issue, it’s essential to select the appropriate welding technique and parameter settings. Additionally, ensuring proper electrode orientation and manipulation during welding can help avoid a lack of fusion or penetration.
By understanding the common issues that arise during duplex stainless steel welding, you can take the necessary preventive measures, troubleshoot effectively, and achieve high-quality welds.
Applications and Advantages of Duplex Stainless Steel Welding
Duplex stainless steel welding offers a range of advantages that have made it increasingly popular in various industrial sectors. The unique combination of properties of this alloy makes it an excellent choice for applications in offshore and marine environments, chemical processing plants, and the oil and gas industry.
Duplex stainless steel plate is widely used in the construction of pipelines, pressure vessels, and storage tanks, where resistance to corrosion, high strength, and good weldability are critical requirements. The material is also used in architectural and structural applications due to its aesthetic appeal and durability.
Benefits of Duplex Stainless Steel Welding
Duplex stainless steel welding has several advantages over other types of welding. One significant advantage is its cost-effectiveness, as it offers a lower cost per unit of strength compared to other alloys. This makes it an ideal choice for applications that require high strength and corrosion resistance while maintaining cost efficiency.
Duplex stainless steel welding also offers improved strength and durability, making it an ideal choice for applications that require resistance to stress corrosion cracking. The material has excellent resistance to pitting and crevice corrosion, making it suitable for use in harsh environments.
Applications of Duplex Stainless Steel Welding
Duplex stainless steel welding has found use in a variety of applications across industries. One of the most common applications is in offshore and marine environments, where the material’s corrosion resistance and high strength make it ideal for use in subsea pipelines, risers, and pressure vessels.
The material also finds extensive use in chemical processing plants, where it is used to construct process equipment like heat exchangers and reactors. Additionally, duplex stainless steel welding is widely used in the oil and gas industry for applications like wellhead and subsea systems, umbilicals, and flowlines.
In Conclusion
Duplex stainless steel welding has numerous advantages and applications across various industries. With its unique combination of properties, it is an excellent choice for applications that require high strength, corrosion resistance, and good weldability. By understanding the properties of the material and following expert welding tips, you can achieve high-quality welds in your duplex stainless steel projects, ensuring optimal performance in the most challenging environments.
Conclusion
Duplex stainless steel welding can be a daunting task, but with the proper techniques and knowledge, it can be mastered. By following the expert tips outlined in this article, you can successfully weld duplex stainless steel and achieve high-quality results in your projects. Remember to have a thorough understanding of the material properties, prepare adequately before welding, control heat input, select appropriate shielding gas, utilize proper welding techniques, conduct post-welding treatment, and maintain quality control and inspection.
With its unique properties, duplex stainless steel is gaining popularity in various industries, and mastering the welding technique can give you an edge in your career. Its cost-effectiveness, high strength, and resistance to stress corrosion cracking make it an excellent choice for offshore and marine environments, chemical processing plants, and oil and gas industries.
Don’t let welding issues discourage you. Utilize the troubleshooting techniques discussed in this article, and remember to follow a well-defined quality control plan for weld integrity. With practice and persistence, you can become a proficient duplex stainless steel welder.
