Welcome to our expert guide on flux core welding stainless steel. If you’re looking for tips and tricks to improve your welding skills and create high-quality stainless steel welds, you’ve come to the right place. In this comprehensive guide, we’ll cover everything from understanding the basics of flux core welding stainless steel, to choosing the right wire and equipment, to troubleshooting common problems and post-welding clean-up.
Whether you’re a seasoned professional or just starting out, we’re here to help you achieve your welding goals. So let’s dive in and explore the world of flux core welding stainless steel!
Understanding Flux Core Welding Stainless Steel
Flux core welding stainless steel is a highly versatile welding process commonly used in various industrial applications. This welding process involves a special type of electrode wire, known as flux-cored wire, which is filled with flux materials that release shielding gas when heated. The shielding gas prevents the base metal from being exposed to atmospheric contaminants and oxidizing agents.
There are several benefits to using flux core welding stainless steel, including the ability to weld thicker materials, the capability to weld outdoors without the need for shielding gas, and a higher deposition rate than other welding processes.
However, it’s crucial to understand the welding parameters, techniques, and equipment required before attempting to flux core weld stainless steel. Without this knowledge, welding quality can suffer, and problems like weld spatter, excessive porosity, and incomplete fusion can occur.
Understanding the Welding Parameters
The welding parameters are crucial for the success of flux core welding stainless steel. These parameters include voltage, current, wire feed speed, travel speed, and gas flow rate. These values must be optimized to obtain the desired weld quality, penetration, and deposition rate.
However, the welding parameters must be adjusted based on several factors, including the base metal thickness, joint geometry, welding position, and filler metal type. Therefore, it’s crucial to refer to the welding procedure specification (WPS) provided by the manufacturer or conduct a weld procedure qualification test (WPQ) to determine the appropriate welding parameters.
Understanding the Welding Techniques
The welding technique used in flux core welding stainless steel is critical to achieving a quality weld. Two primary techniques are used in this process: drag technique and push technique. In the drag technique, the torch is dragged along the joint, and in the push technique, the torch is pushed ahead of the weld puddle.
The choice of the welding technique depends on the welding position, joint geometry, and personal preference. However, whichever technique is used, it’s crucial to maintain a consistent travel speed, maintain a consistent stick-out length, and hold the torch at a comfortable angle.
Understanding the Welding Equipment
Flux core welding stainless steel requires specific equipment to ensure high-quality welds. The welding machine should have a DC power source with a constant voltage output and a wire feeder unit capable of feeding the flux-cored electrode wire smoothly.
Additionally, it’s crucial to use a welding gun that can handle the high amperage required for flux core welding stainless steel. A gun with a high amperage rating and a long cable length is ideal. Using a gun with a short cable length can cause voltage drop, negatively affecting the weld quality.

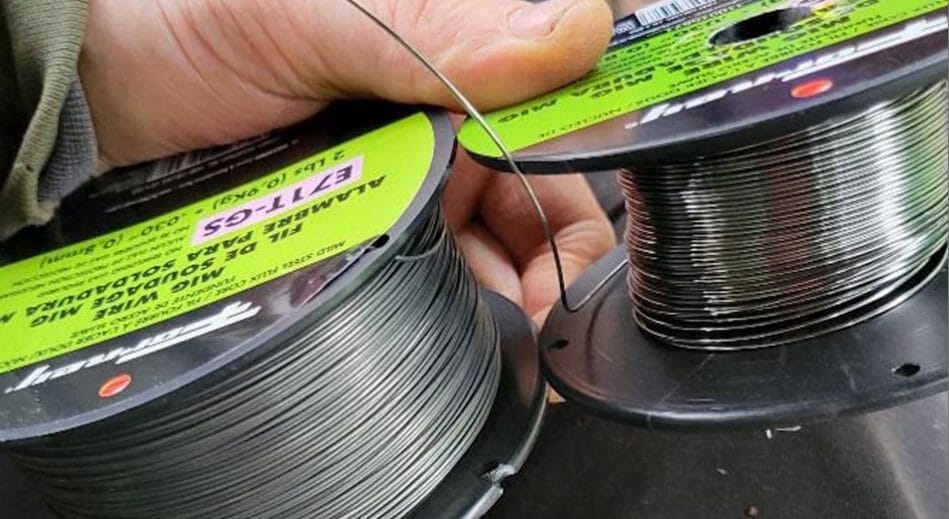

Choosing the Right Flux Core Wire
Choosing the right flux core wire is crucial for achieving a high-quality weld. There are many different types of flux core wires available, each with their unique properties. Here are some factors to consider when selecting a flux core wire for your stainless steel welding project:
| Factor | Considerations |
|---|---|
| Diameter | The diameter of the wire will affect the amperage and heat input required for the weld. Generally, a thinner wire is suited for thinner stainless steel, while a thicker wire is better for thicker stainless steel. |
| Flux Type | The type of flux used in the wire will affect the weld penetration, spatter, and slag. For stainless steel welding, a gas-shielded flux core wire is recommended. |
| Alloy Composition | The alloy composition of the wire should match the stainless steel being welded. For example, if welding 304 stainless steel, a flux core wire with a matching composition, such as E308LT-1, would be appropriate. |
| Brand | Opting for a reputable brand with a proven track record for quality is a wise decision. A high-quality flux core wire will produce consistent results and minimize the risk of defects. |
Consulting with a welding supplier or professional may also help determine the best flux core wire for your specific project needs.

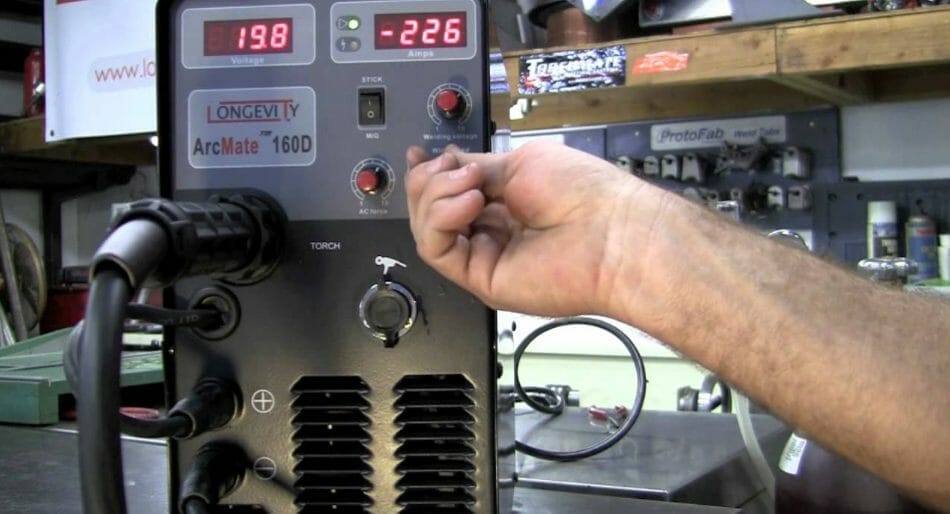

Setting up the Welding Equipment
Before welding, it is essential to ensure that your equipment is set up correctly. Proper setup ensures the best results and minimizes the possibility of defects or weld failure. Here is a step-by-step guide to help you set up your welding equipment:
Step 1: Choose the Right Welding Machine
The first step to setting up your welding equipment is selecting the right welding machine. Some machines come with a flux core setting, while others require a separate flux core kit. Make sure you read the manufacturer’s manual or get expert advice to determine the appropriate welding machine for the job.
Step 2: Select the Appropriate Flux Core Wire
Choosing the right flux core wire is essential for a successful welding project. The diameter of the wire is crucial, as it affects the quality of the weld. A smaller diameter wire is ideal for thin metal sheets, while a larger diameter wire is ideal for thicker sheets.
| Wire Diameter | Metal thickness |
|---|---|
| .030 inches | 16 ga – 3/16 inches |
| .035 inches | 3/16 inches – 1/4 inches |
| .045 inches | 1/4 inches – 5/16 inches |
| .052 inches | 5/16 inches – 3/8 inches |
Step 3: Attach the Wire Spool
Attach the flux core wire spool to the wire feed system. Read the manufacturer’s manual to determine the correct speed and tension settings for the wire.
Step 4: Install the Contact Tip and Nozzle
Install the contact tip and nozzle on the welding gun. Ensure that they are the correct size for the wire you are using. The contact tip should be recessed 1/8 inch from the end of the nozzle.
Step 5: Adjust the Voltage and Amperage
Adjust the voltage and amperage settings on the welding machine according to the manufacturer’s instructions. The correct settings depend on the thickness of the metal you are welding and the diameter of the wire.
By following these steps, you can set up your welding equipment correctly for flux core welding stainless steel. Good equipment setup is essential for achieving high-quality welds and avoiding defects that can compromise the strength and integrity of the weld.
Preparing the Stainless Steel for Welding
Before beginning the welding process, it’s crucial to properly prepare the surface of the stainless steel. Below are the steps to follow:
- Clean the surface: The stainless steel surface must be free of any contaminants, such as oil, grease, or dirt. Use a degreaser and a clean cloth to wipe the surface clean.
- Remove the oxide layer: Stainless steel forms an oxide layer when exposed to air, which can interfere with the welding process. Use a stainless steel weld cleaning solution and a stainless steel brush to remove the oxide layer.
- Grind the surface: Use a grinder to remove any remaining oxide layer and to create a clean surface for the weld.
It’s essential to take care of these steps to ensure a strong and durable weld. Failure to properly prepare the surface can result in weak welds and potential failure of the finished product.
Read More : Expert Tips for Spot Welding Stainless Steel like a Pro
Tips for Cleaning Stainless Steel
Some additional tips to keep in mind when cleaning stainless steel for welding:
| Tip | Details |
|---|---|
| Use the right cleaning solution | Make sure to use a cleaning solution specifically designed for stainless steel. Avoid using abrasive cleaners that could damage the surface. |
| Clean in the direction of the grain | Stainless steel has a grain direction. Always clean in the direction of the grain to avoid leaving scratches or marks on the surface. |
| Dry the surface thoroughly | After cleaning, use a clean, dry cloth to thoroughly dry the surface before proceeding with the weld. Moisture can interfere with the welding process and weaken the weld. |

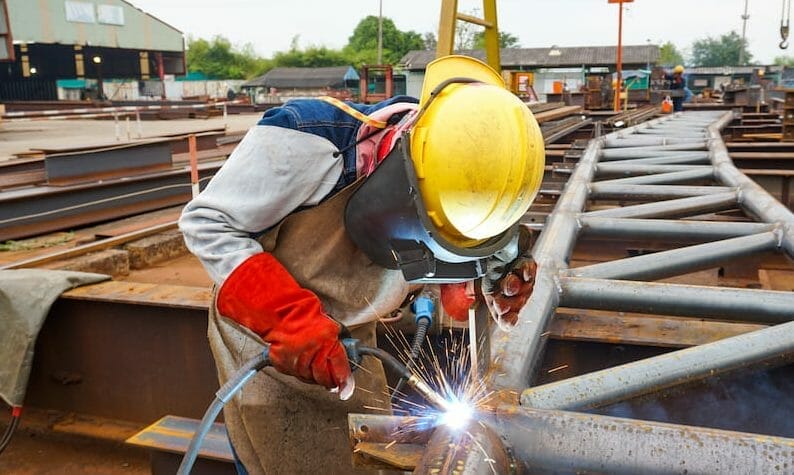

Welding Techniques for Flux Core Welding Stainless Steel
Flux core welding is a popular technique used for welding stainless steel because of its ease of use and cost-effectiveness compared to other welding techniques. In this section, we will discuss the welding techniques for flux core welding stainless steel.
1. Positioning
Proper positioning is important while flux core welding stainless steel to ensure the best results. It is recommended to position the workpiece flat on a work table. This ensures that the welds are easy to inspect and are of consistent quality.
2. Welding Speed
Welding speed is a key factor in flux core welding stainless steel. A welding speed that is too fast can lead to poor weld quality, while a speed that is too slow can result in burn-throughs and distortion. The recommended welding speed is around 4-8 inches per minute.
3. Arc Length
Arc length is the distance between the electrode and the workpiece. Maintaining the proper arc length is key in obtaining a quality weld. For flux core welding stainless steel, maintain a distance of around ½ inch between the electrode and the workpiece.
4. Angle of Torch and Electrode
The angle of the torch and electrode is crucial to achieving a quality weld. For best results, hold the torch at a 90-degree angle to the workpiece. The electrode should be held at a 12-degree angle from the vertical.
In conclusion, flux core welding stainless steel requires proper positioning, correct welding speed, the right arc length, and maintaining the right angle of both the torch and electrode. With these welding techniques, you can achieve quality welds while using this convenient and cost-effective welding method.

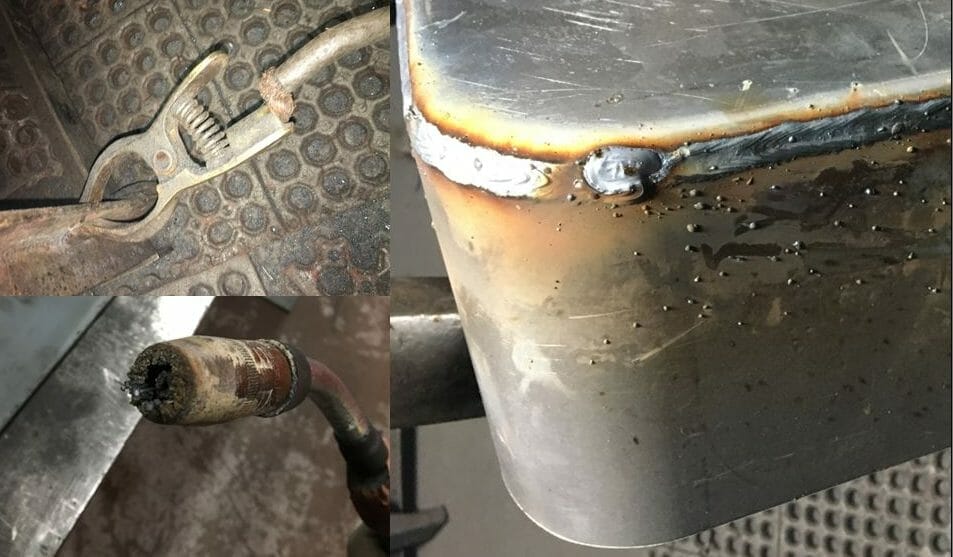

Troubleshooting Common Welding Problems
Flux core welding stainless steel can present some challenges, even for experienced welders. Here are some of the most common welding problems and how to troubleshoot them:
Problem: Porosity
If you notice small, crater-like holes in the weld, this is a sign of porosity. This can be caused by a variety of factors, such as a dirty surface, contaminated shielding gas, or incorrect welding technique.
Solution: Make sure that the workpiece is clean and any oil, grease, or debris has been removed. Check the gas supply to ensure it is clean and free of contaminants. Adjust the welding technique to avoid overheating the weld and causing gas bubbles.
Problem: Burn Through
Burn through occurs when the heat of the weld is too high and melts through the workpiece. This can also be caused by incorrect weld settings or selecting the wrong flux core wire.
Solution: Adjust the voltage and wire speed to reduce the heat of the weld. Choose a flux core wire with a smaller diameter to avoid overheating the workpiece.
Problem: Warping
Warping occurs when the metal warps or bends due to the heat from the welding process. This is common when welding thicker pieces of stainless steel.
Solution: Use clamps or fixtures to hold the workpiece in place to prevent warping. Weld in small sections and allow the metal to cool between sections.
Problem: Rough Weld Bead
A rough weld bead can be caused by poor welding technique, incorrect weld settings, or using the wrong flux core wire.
Solution: Make sure that the welding technique is correct, and adjust the settings to suit the thickness of the workpiece. Choose a flux core wire with the appropriate diameter and chemical composition for the type of stainless steel you are welding.
By troubleshooting these common welding problems, you can ensure high-quality welds when flux core welding stainless steel.

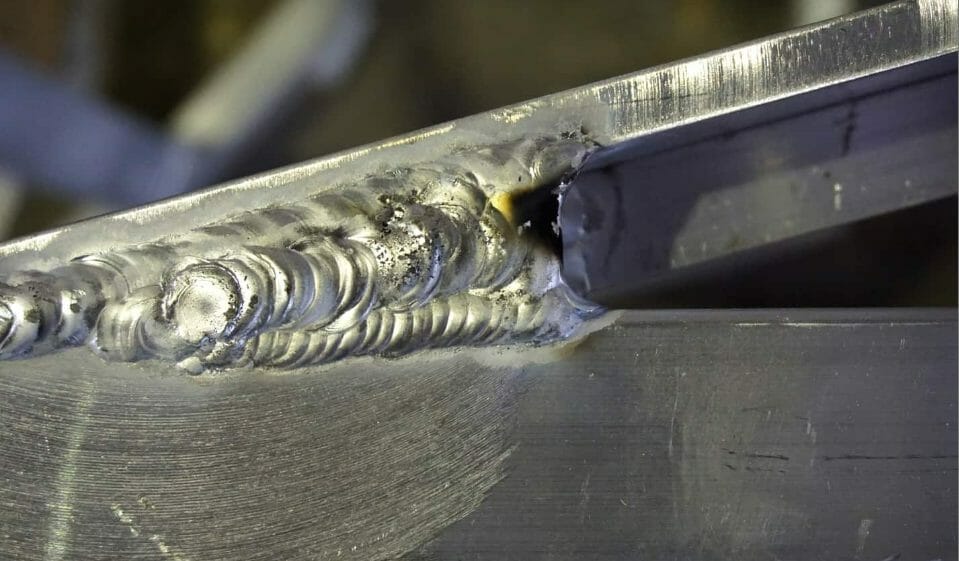

Post-Welding Clean-Up
After completing your flux core welding project on stainless steel, you’ll want to clean up any excess debris or residue left on the surface. This will not only help your project look its best, but also improve its overall longevity.
Here are some tips for effective post-welding clean-up:
| Step | Instructions |
|---|---|
| Step 1 | Use a wire brush or abrasive pad to remove any surface slag or spatter left over from welding. This will also help to remove any debris or contaminants that may have accumulated during the welding process. |
| Step 2 | Apply a stainless steel cleaner to the surface. This will help remove any heat tint or discoloration caused by the welding process. Follow the instructions on the cleaner to ensure effective use. |
| Step 3 | Rinse the surface with clean water to remove any remaining cleaner residue. |
| Step 4 | Dry the surface with a clean cloth or towel. Ensure the surface is completely dry to prevent any residue from remaining on the surface. |
By following these steps, you can ensure that your flux core welded stainless steel project looks great and maintains its durability. It’s important to note that each project may require different cleaning measures, so it’s always best to consult with a professional or manufacturer for specific recommendations.
Is Stick Welding or Flux Core Welding Better for Stainless Steel?
When it comes to welding stainless steel, many often wonder which method is superior: stick welding or flux core welding. To answer this question, it’s important to consult a comprehensive guide to stick welding stainless steel. This guide will offer valuable insights and techniques for achieving optimal results, ensuring a successful welding process that meets your specific stainless steel welding needs.
What are Some Expert Tips for Flux Core Welding Stainless Steel?
When looking to weld stainless steel with flux core, there are a few expert tips to keep in mind. Firstly, ensure that the stainless steel is clean and free from any contaminants. Secondly, use a shielding gas like argon or a mix of argon and CO2 to help protect the weld. Lastly, adjust the welding parameters such as voltage and wire speed according to the specific stainless steel being used. Following these expert tips will help you achieve high-quality welds when using flux core to weld stainless steel.
Frequently Asked Questions
Here are some of the most frequently asked questions about flux core welding stainless steel:
Q: Can I use flux core welding stainless steel for outdoor applications?
A: Absolutely! Flux core welding stainless steel is corrosion-resistant and can withstand harsh outdoor environments.
Q: Do I need to use a shielding gas with flux core welding stainless steel?
A: No, flux core welding stainless steel does not require a shielding gas. However, it is important to choose the right flux core wire and to properly clean and prepare the stainless steel before welding.
Q: What type of stainless steel can I weld with flux core welding?
A: Flux core welding stainless steel is suitable for welding most types of austenitic stainless steels, including 304, 308, 309, and 316. However, it is important to choose the appropriate flux core wire for the specific type of stainless steel being welded.
Q: Can I weld stainless steel to carbon steel using flux core welding?
A: Yes, flux core welding can be used to weld stainless steel to carbon steel. However, it is important to choose the appropriate flux core wire for the specific materials being welded and to properly clean and prepare the surfaces before welding.
Q: Why is it important to clean and prepare the stainless steel before welding?
A: Properly cleaning and preparing the stainless steel helps to remove any contaminants that could cause the weld to fail or create defects in the finished product. It also helps to ensure that the flux core wire can bond properly with the stainless steel.
Q: Can I use flux core welding stainless steel for thin materials?
A: Yes, flux core welding can be used for thin materials. However, it is important to select the appropriate flux core wire for the material being welded and to use the correct welding technique to avoid burn-through or warping.
Q: Can I use flux core welding stainless steel for welding pipes?
A: Yes, flux core welding can be used to weld stainless steel pipes. However, it is important to choose the appropriate flux core wire and to properly clean and prepare the pipe before welding.
