Friction stir welding (FSW) is an innovative method for joining metals, including stainless steel. This technique offers several advantages over traditional welding methods, including superior weld quality, increased efficiency, and reduced distortion.
However, achieving successful FSW of stainless steel requires extensive knowledge and expertise. In this article, we provide expert guidance and tips to help you master FSW of stainless steel. From understanding the fundamentals of FSW to troubleshooting common issues, we cover everything you need to know to ensure a successful weld.
Key Takeaways:
- Friction stir welding is an innovative method for joining metals, including stainless steel.
- FSW offers several advantages over traditional welding methods, including superior weld quality, increased efficiency, and reduced distortion.
- Successful FSW of stainless steel requires extensive knowledge and expertise.
- This article provides expert guidance and tips to help you master FSW of stainless steel.

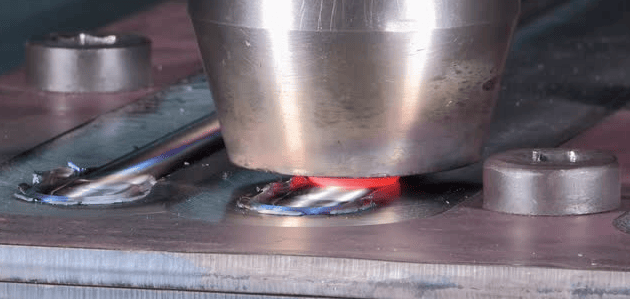

Understanding Friction Stir Welding
Friction stir welding is a solid-state joining process that produces high-quality welds without the need for filler material or shielding gases. In this process, a non-consumable rotating tool is inserted between the two metal pieces that are to be joined. The tool generates heat from friction, which softens the metal without melting it. The softened metal then flows and consolidates to create a solid-state bond.
One of the key advantages of friction stir welding over traditional welding methods for stainless steel is its ability to produce high-strength joints with minimal distortion and a narrow heat-affected zone. Additionally, because it is a solid-state process, it eliminates the risk of cracking and porosity that can occur with other techniques using filler material.

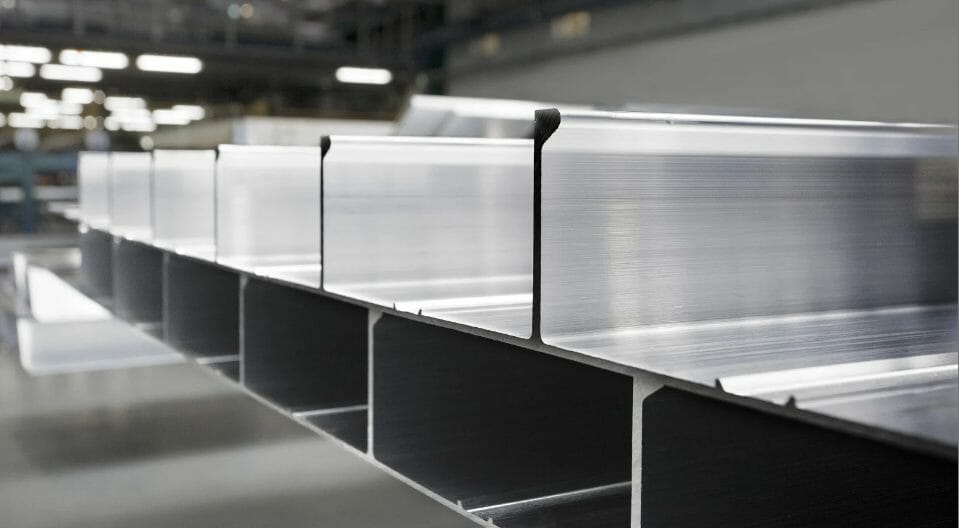

Suitable Stainless Steel Grades for Friction Stir Welding
When it comes to friction stir welding stainless steel, selecting the right grade of stainless steel is crucial for achieving successful welds. Here are some suitable stainless steel grades for friction stir welding:
| Stainless Steel Grade | Properties | Applications |
|---|---|---|
| 304 | Excellent corrosion resistance, high ductility | Food processing equipment, chemical processing equipment, architectural trim and molding |
| 316 | Excellent corrosion resistance, high temperature resistance | Chemical processing equipment, pharmaceutical equipment, marine hardware |
| 409 | Good corrosion resistance, high-temperature oxidation resistance | Automotive exhaust systems, industrial furnaces, catalytic converters |
| 430 | Good corrosion resistance, good formability | Kitchen utensils, automotive trim, washing machine drums |
It’s important to note that other grades of stainless steel may also be suitable for friction stir welding. Always consult with a materials expert to choose the best stainless steel grade for your specific project requirements.

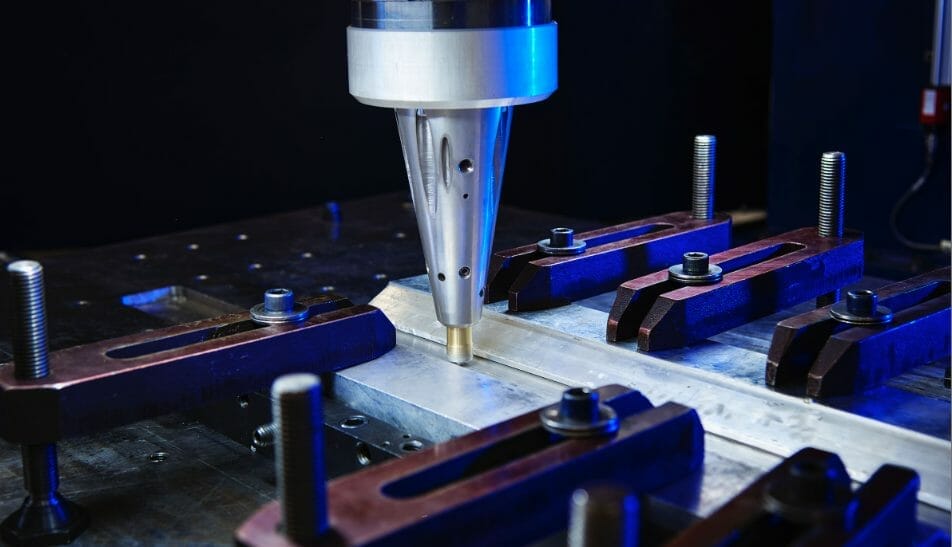

Preparing Stainless Steel for Friction Stir Welding
Before beginning the friction stir welding process, it is essential to properly prepare the stainless steel. Failure to do so may result in a poor quality weld or even complete failure of the joint. Follow the steps below to ensure successful preparation.
Cleaning
The first step in preparing the stainless steel is to clean it thoroughly. Any contaminants, such as oil, grease, or dirt, can negatively impact the quality of the weld. Use a degreaser to remove any oils or greases from the surface of the stainless steel.
Surface Preparation
After cleaning, the surface of the stainless steel must be adequately prepared for welding. This process involves removing any oxide layer on the surface of the stainless steel. An oxide layer can negatively impact the quality of the weld and reduce the overall strength of the joint.
To remove the oxide layer, use a stainless steel wire brush or a chemical etch. Be sure to follow the guidelines provided by the manufacturer for the specific etch solution used. After etching, thoroughly rinse the stainless steel with clean water to remove any residual etch solution.
It is important to note that the surface preparation process for stainless steel differs from that of other metals due to its unique chemical properties.
Fixturing
After cleaning and surface preparation, the stainless steel must be fixtured properly to ensure a successful weld. Fixturing involves securely clamping the workpiece to a fixture to prevent movement during welding. Proper fixturing is crucial for maintaining the correct alignment of the workpiece during welding, as any movement can result in a poor quality weld.
When fixturing stainless steel, it is important to use clamps or fixtures made of the same material as the workpiece to prevent contamination. It is also important to ensure that the clamps or fixtures are secured firmly to prevent movement or vibration during welding.

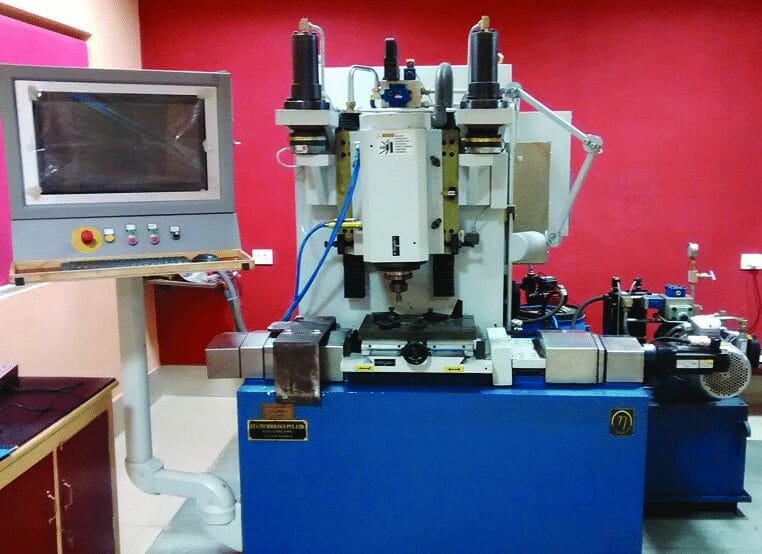

Friction Stir Welding Equipment and Tools
Friction stir welding of stainless steel requires specific equipment and tools to ensure a successful weld. Here’s what you’ll need:
| Equipment/Tool | Description |
|---|---|
| Welding machine | A robust machine with precise control over speed, torque, and pressure is essential for high-quality welds. |
| Fixture | Fixtures hold the workpiece in place during the welding process and provide support for the welding tool. |
| Welding tool | A specially designed tool with a rotating pin and shoulder. The tool must be made from materials resistant to high temperatures and wear. |
| Consumables | Consumables, including the tool pin, shoulder, and backing strip, should be made from materials compatible with stainless steel to minimize contamination. |
When selecting equipment and tools, look for high-quality products with proven performance for friction stir welding stainless steel. Consult with manufacturers and suppliers to ensure you have the right tools for your specific needs.

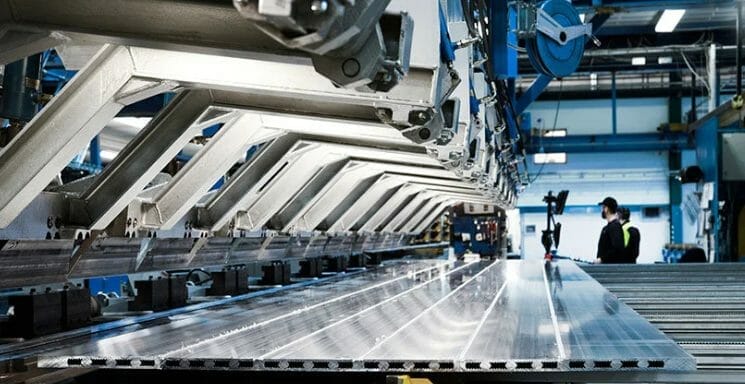

Best Practices for Friction Stir Welding Stainless Steel
Friction stir welding of stainless steel requires attention to detail and adherence to best practices to achieve optimal results. Here are some expert tips to follow:
- Choose the right tool material: Select a tool material that matches the grade of stainless steel being welded. For instance, use a tool material with higher wear resistance for high-strength stainless steel.
- Optimize tool geometry: Adjust the tool pin and shoulder geometry to achieve the desired weld quality and avoid defects such as cracks and voids.
- Control welding parameters: Fine-tune parameters such as rotational speed, axial force, and traverse speed to maintain a consistent, high-quality weld bead.
- Control the welding environment: Ensure the welding area is free from contaminants such as oils, grease, and dirt that can affect the quality of the weld.
- Avoid excessive heat input: Keep the heat input low to minimize distortion and prevent metallurgical changes that can affect the weld strength.
- Ensure proper clamping: Establish proper clamping and fixturing of the workpiece to prevent excessive movement or vibration during welding.
- Implement a quality control plan: Regularly inspect the weld bead and other critical parameters to ensure consistent quality and identify any issues early.
By following these best practices, you can improve your chances of achieving successful friction stir welding of stainless steel.
Troubleshooting Common Friction Stir Welding Issues
Friction stir welding stainless steel can sometimes present challenges that need to be addressed to ensure a successful weld. Here are some common issues you might encounter, and tips on how to troubleshoot them:
| Issue | Troubleshooting Tips |
|---|---|
| Defects, such as porosity or cracking | Ensure proper cleaning and preparation of the material. Adjust welding parameters to reduce heat input or increase travel speed. Consider using a different welding tool or fixture design. |
| Distortion or warping | Use a rigid fixture to hold the material securely during welding. Reduce the heat input or increase the travel speed. Consider using a preheat technique to minimize thermal stresses. |
| Quality control issues, such as inconsistent weld strength or appearance | Monitor the welding parameters closely and adjust as needed. Use a consistent technique for plunging and stirring. Check the surface finish and cleanliness of the material before welding. |
It’s important to take the time to troubleshoot any issues that arise during friction stir welding stainless steel. By identifying and addressing these problems early on, you can ensure a strong, high-quality weld that meets your specifications.
Latest Developments and Innovations in Friction Stir Welding Stainless Steel
Friction stir welding continues to evolve as a fast, efficient, and versatile method for joining stainless steel. Recent advancements have focused on refining the process and expanding its range of applications.
Innovative Materials
Researchers have explored the use of new materials for friction stir welding, including dissimilar metals and composites. Some of the most promising developments involve welding stainless steel to aluminum and other light alloys. This could have significant implications for industries such as aerospace and transportation.
New Techniques
One of the most exciting innovations in friction stir welding is the development of new techniques that enable welding in previously difficult or impossible situations. For example, some researchers have used high-speed cameras and advanced algorithms to control the welding process more precisely, resulting in stronger and more consistent welds.
Automation
As with many other industrial processes, automation is becoming increasingly important in friction stir welding. Advances in robotics and artificial intelligence are making it possible to weld more complex geometries with greater speed and accuracy. This is especially useful for large-scale production where human operators may be limited by the physical demands of the welding process.
Improved Quality Control
Quality control is always a key concern in any welding process, and friction stir welding is no exception. Recent developments in nondestructive testing methods such as ultrasonic and x-ray inspection have made it easier to detect and quantify defects in welds. This allows for faster and more accurate identification of potential issues, reducing the risk of failure and improving overall quality.
In conclusion, as friction stir welding continues to gain popularity for joining stainless steel, we can expect to see further advancements in material science, process refinement, and automation. Staying up-to-date with the latest developments and innovations in this field is essential for achieving successful and high-quality welds.
Conclusion
Friction stir welding is a highly effective technique for joining stainless steel, offering numerous advantages over traditional welding methods. By following our expert guide and best practices, you can achieve successful results and produce high-quality welds that meet even the most demanding standards.
Remember to carefully select the appropriate grade of stainless steel for your project, and to thoroughly prepare the material before welding. Choose the right equipment and tools for the job, and pay close attention to welding parameters and travel speed.
If you encounter any issues during the welding process, don’t panic. Use our troubleshooting tips to address common problems and ensure that your welds meet your quality standards.
Keep Learning
As with any field of engineering, friction stir welding technology is constantly evolving. Stay up to date with the latest developments and innovations by regularly attending industry events, reading technical papers and publications, and engaging with other professionals in the field.
By following these tips and continuing to expand your knowledge and skills, you can achieve great success in friction stir welding stainless steel and take your career to the next level.
