When it comes to choosing the right material for your industrial or commercial needs, there are many factors to consider. Two materials that often come up in the conversation are hastelloy and stainless steel. Both materials are widely used in various industries for their strength and durability, but they have distinct properties that set them apart from each other.
In this in-depth comparison guide, we will explore the differences between hastelloy and stainless steel, their compositions and alloys, strengths and weaknesses, and applications. By the end of this guide, you will have a better understanding of which material is best suited for your specific needs.
What is Hastelloy?
Hastelloy is a nickel-based alloy that is known for its exceptional performance in harsh environments. It was originally developed for use in the chemical processing industry, but is now used in a wide range of industries, including aerospace and marine engineering.
The composition of Hastelloy varies depending on the specific alloy, but it typically includes high levels of nickel and molybdenum, along with other elements such as cobalt, chromium, and iron. This unique composition gives Hastelloy its superior resistance to corrosion, oxidation, and high temperatures.
Hastelloy is available in several different grades, each with its own specific properties and applications. Some of the most common grades include Hastelloy C-276, Hastelloy X, and Hastelloy B-2.
What is Stainless Steel?
Stainless steel is a type of alloy made up of iron, carbon, and at least 10.5% chromium. It is known for its corrosion resistance and durability in various environments, making it a popular choice in many industries. In addition to chromium, stainless steel may also contain other elements such as nickel, molybdenum, and titanium, which contribute to its strength and versatility.
There are different types and grades of stainless steel, each with unique properties and uses. Some of the most commonly used types include:
| Type | Composition | Uses |
|---|---|---|
| Austenitic | 18% chromium, 8% nickel | Food processing, pharmaceuticals, medical equipment |
| Martensitic | 12-18% chromium, 0.1-1.2% carbon | Cutlery, knives, scissors, valves |
| Ferritic | 11-28% chromium, low carbon content | Housing equipment, automotive parts, industrial equipment |
| Duplex | 22-26% chromium, 5-8% nickel, 3-5% molybdenum | Chemical processing, oil and gas, marine applications |
The specific type and grade of stainless steel used will depend on the intended application and environmental conditions. For example, austenitic stainless steel is often used in the food industry due to its resistance to corrosion and easy cleaning, while duplex stainless steel is preferred in marine environments due to its high strength and resistance to chloride-induced stress corrosion cracking.
Composition and Alloys of Hastelloy
Hastelloy is a superalloy that contains several types of metals, such as nickel, molybdenum, and chromium, in varying proportions to create different alloys with unique characteristics. The most common types of hastelloy alloys are:
| Alloy | Composition | Applications |
|---|---|---|
| Hastelloy B | Ni 65%, Mo 28%, Fe 5% | Chemical processing, pulp and paper production |
| Hastelloy C-276 | Ni 57%, Mo 16%, Cr 16%, Fe 5% | Chemical processing, pollution control, petrochemicals |
| Hastelloy X | Ni 47.5%, Cr 22%, Fe 18.5%, Mo 9% | Aerospace, gas turbine engines, industrial furnace components |
Hastelloy alloys are known for their exceptional resistance to corrosion, high-temperature strength, and excellent fabricability. They are commonly used in harsh chemical environments and extreme temperature conditions where other materials, such as stainless steel, would fail.
Advantages of Hastelloy Alloys
The advantages of hastelloy alloys over stainless steel can be attributed to their superior properties, including:
- Corrosion resistance: Hastelloy alloys have excellent resistance to corrosion in harsh chemical environments, making them ideal for chemical processing applications where exposure to corrosive chemicals is common.
- Strength: Hastelloy alloys offer high-temperature strength and resistance, which makes them suitable for use in high-temperature environments.
- Flexibility: Hastelloy alloys are highly flexible and easy to fabricate, making them ideal for a wide range of applications.
Due to their unique properties, hastelloy alloys are often the preferred material in challenging industrial applications where other materials may not suffice.
Composition and Alloys of Stainless Steel
Stainless steel is a widely used steel alloy that contains a minimum of 10.5% chromium by mass. This composition gives stainless steel its unique properties, including resistance to corrosion and staining, high strength, and a shiny appearance that doesn’t easily fade over time.
There are different types of stainless steel, each with varying compositions and properties. Austenitic stainless steel, which contains high levels of nickel and manganese, is the most common type and is often used in kitchen utensils and appliances. Ferritic stainless steel contains less nickel and is used in automotive parts, while martensitic stainless steel has a higher carbon content and is often used in knives and other cutting tools.
| Type | Composition | Properties |
|---|---|---|
| Austenitic | 18-20% chromium 8-10.5% nickel 0.3-0.5% carbon | Corrosion resistant Non-magnetic Easy to weld and form |
| Ferritic | 10-30% chromium Less than 0.1% carbon | Corrosion resistant Magnetic Good ductility and formability |
| Martensitic | 11.5-18% chromium Up to 1.2% carbon | High strength and hardness Poor corrosion resistance Magnetic |
In addition to these types, there are also duplex and precipitation hardening stainless steels, which are characterized by their high strength and resistance to corrosion.
In the words of famed architect Frank Gehry, “For me, stainless steel is the perfect material because it is strong, resistant to corrosion, and infinitely recyclable.”
Stainless steel’s composition and alloys allow it to be used in a variety of applications, from household items like utensils and appliances to heavy machinery in industries such as construction and transportation. Its strength, durability, and corrosion resistance make it a popular choice for applications where reliability and longevity are essential.
Strengths of Hastelloy
Hastelloy is known for its exceptional strength and durability, making it a popular choice for a variety of industries. Here are some of the key strengths of hastelloy:
| Strengths | Benefits |
|---|---|
| Excellent Corrosion Resistance | Hastelloy can withstand high temperatures and corrosive environments, making it ideal for chemical processing and oil and gas industries. |
| High Heat Resistance | Hastelloy can maintain its strength and integrity at high temperatures, making it suitable for use in aerospace and gas turbine industries. |
| Strong and Durable | Hastelloy has high tensile strength and is resistant to cracking and deformation, ensuring its longevity and reliability in demanding applications. |
| Wide Range of Alloys | There are many different hastelloy alloys available, each with unique properties and uses, allowing for flexibility and customization in various applications. |
Overall, hastelloy’s strengths make it an excellent choice for industries where durability, corrosion resistance, and high heat tolerance are essential.
Strengths of Stainless Steel
Stainless steel is a highly versatile material that offers a wide range of benefits. Here are some of its key strengths:
- Durable: Stainless steel is highly resistant to corrosion, making it great for use in harsh environments. It’s also heat and fire-resistant, making it great for use in high-temperature applications.
- Hygienic: Stainless steel is easy to clean and sterilize, making it ideal for use in the medical and food industries. It also does not rust or stain, ensuring a clean and polished appearance.
- Aesthetically pleasing: Stainless steel has a modern and sleek appearance, making it a popular choice for architectural and decorative applications. It also comes in various finishes, such as brushed, polished, or matte, to suit different aesthetic preferences.
- High strength: Stainless steel is a strong and robust material that can withstand high pressure and tension. It’s also resistant to deformation and bending, making it great for use in structural applications.
- Cost-effective: Stainless steel offers a good balance between cost and performance. It’s more affordable than some exotic metals like hastelloy, while still offering good strength and durability.
In summary, stainless steel is an excellent choice for a wide range of applications where durability, hygiene, and aesthetic appeal are important.
Applications of Hastelloy
Hastelloy is a high-performance alloy that finds extensive use in various industries. Its unique combination of properties makes it an ideal choice for applications ranging from chemical processing to aerospace.
| Industry | Application |
|---|---|
| Chemical Processing | Reactors, heat exchangers, and piping systems due to its resistance to corrosion in harsh chemical environments. |
| Aerospace | Critical engine components such as blades, discs, and combustion chambers due to its high strength and resistance to heat and corrosion. |
| Oil and Gas | Drilling equipment, valves, and pumps due to its resistance to sulfurous environments and high temperatures. |
| Power Generation | Gas turbines, heat exchangers, and boilers due to its high strength and resistance to oxidation and corrosion at high temperatures. |
Other applications include marine engineering, pollution control, and pharmaceuticals, where hastelloy’s durability, strength, and resistance to corrosion make it a reliable choice.
Benefits of Hastelloy for Different Industries
The benefits of hastelloy for different industries include:
- Resistant to corrosion and degradation from harsh chemicals and gases, making it ideal for chemical processing, aerospace, and oil and gas industries.
- High strength and resistance to heat, making it useful in power generation and aerospace industries.
- Reliable in harsh environments, making it suitable for marine engineering, pollution control, and pharmaceuticals.
Overall, hastelloy’s unique properties make it a valuable material across various industries, offering durability, strength, and resistance to chemical corrosion and oxidation.

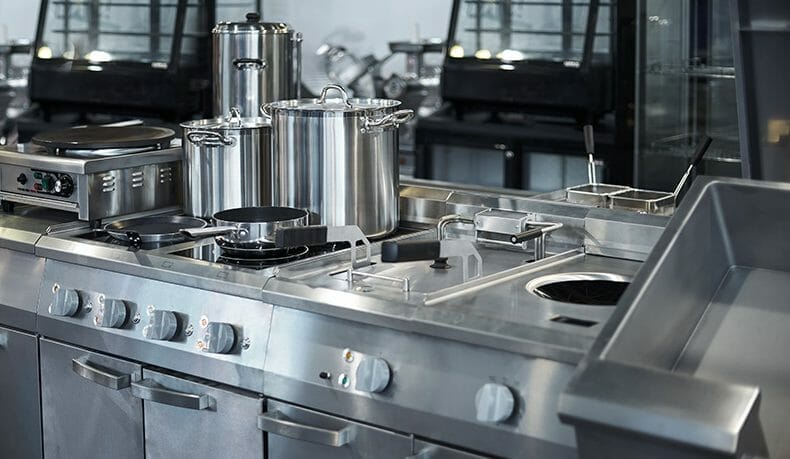

Applications of Stainless Steel
Stainless steel is a highly versatile material that is used in various industries and applications. Here are some common examples:
| Industry | Application |
|---|---|
| Construction | Building facades, bridges, roofing, reinforcement bars, and structural components. |
| Food Processing | Food handling and storage equipment, preparation tables, sinks, and ovens. |
| Medical | Surgical instruments, implants, MRI scanners, and dental equipment. |
| Automotive | Exhaust systems, grilles, trim, and wheels. |
| Aerospace | Jet engines, landing gear, and structural components for aircraft. |
Stainless steel’s resistance to corrosion, heat, and wear makes it an ideal choice for applications in harsh environments. Its strength and durability also make it a cost-effective option for long-lasting products.
Fun fact: The Gateway Arch in St. Louis, Missouri is made of stainless steel, making it one of the most recognized landmarks in the United States!
Choosing the Best Material for Your Needs
When deciding between hastelloy and stainless steel for a particular application, there are several factors to consider. Both materials have unique characteristics that make them suitable for different environments and industries. Here are some key points to keep in mind when making your choice:
Corrosion Resistance
Hastelloy is renowned for its exceptional resistance to corrosion, particularly in aggressive chemical environments. If your application involves exposure to highly corrosive chemicals, hastelloy may be the optimal choice. However, stainless steel is also highly resistant to corrosion and may be a better option in less extreme environments.
Temperature Range
Hastelloy can withstand extremely high temperatures and retain its strength and integrity, making it an excellent choice for high-temperature applications. Stainless steel, on the other hand, has a more limited temperature range and may not be suitable for applications that involve sustained exposure to high temperatures.
Strength and Durability
Hastelloy is an extremely strong and durable material that can withstand a lot of wear and tear. It is also highly resistant to cracking and corrosion, which makes it an ideal choice for applications that involve exposure to harsh chemicals and environments. Stainless steel is also a durable material, but it may not be as resilient as hastelloy in certain extreme conditions.
Cost
Cost is an important factor to consider when choosing between hastelloy and stainless steel. Hastelloy is generally more expensive than stainless steel due to its unique properties and composition. If cost is a major consideration in your application, stainless steel may be a more cost-effective option.
Application-Specific Requirements
Ultimately, the choice between hastelloy and stainless steel will depend on your specific application and the requirements of the environment in which it will be used. Consider the nature of the chemicals or materials with which the material will come into contact, the temperature range of the application, the required strength and durability, and the budget for the project. By taking these factors into account, you can make an informed decision and choose the material that is best suited to your needs.
Read More : Blue Steel vs Stainless Steel Taping Knife
What are the Key Differences in Durability Between Stainless Steel and Brass?
When it comes to the stainless steel vs brass durability comparison, there are notable differences. Stainless steel offers excellent resistance against corrosion, making it highly durable and suitable for applications in harsh environments. On the other hand, brass may tarnish over time and is less resistant to rust. Therefore, stainless steel generally has a longer lifespan and better overall durability.
What Are the Main Differences Between Hastelloy and Stainless Steel?
Hastelloy and stainless steel are two widely used materials with distinct characteristics. In the cerakote vs stainless steel comparison, Hastelloy offers superior corrosion resistance, making it suitable for harsh environments, such as chemical processing plants. Stainless steel, on the other hand, excels in terms of strength, making it ideal for structural applications. Both materials have their advantages and applications, depending on the specific requirements.
FAQ
Here are some answers to frequently asked questions regarding the comparison between hastelloy and stainless steel:
What are the main differences between hastelloy and stainless steel?
Hastelloy and stainless steel differ in their composition and properties. Hastelloy contains a higher amount of nickel, chromium, and molybdenum, making it more resistant to corrosion and high temperatures. Stainless steel contains less nickel and molybdenum, making it less expensive but not as resistant to harsh environments.
Which material is better for chemical processing?
Hastelloy is the preferred material for chemical processing due to its superior resistance to corrosion and chemical attack.
What are some common applications of stainless steel?
Stainless steel is commonly used in construction, food processing, and medical equipment due to its strength, durability, and hygienic properties.
Can hastelloy be used in aerospace applications?
Yes, hastelloy is often used in aerospace applications due to its high strength-to-weight ratio and resistance to high temperatures and corrosion.
Which material is more expensive?
Hastelloy is generally more expensive than stainless steel due to its higher nickel and molybdenum content.
How do I determine which material is best for my needs?
The choice between hastelloy and stainless steel depends on the specific application and the environment in which it will be used. Consult with a materials expert or engineer to determine which material is best for your needs.
