If you’re looking for a welding process that can produce high-quality, strong welds on stainless steel, stick welding may be the answer. But welding stainless steel presents its own unique challenges, and it’s important to use the right equipment, take the necessary safety precautions, and follow expert tips to achieve the best results.
In this article, we’ll provide a comprehensive guide to stick welding stainless steel, covering everything from understanding the properties of stainless steel to troubleshooting common issues. Whether you’re a beginner looking to learn the basics or a seasoned welder looking to refine your skills, we’ve got you covered.
Key Takeaways
- Stick welding can be an effective process for welding stainless steel
- The properties of stainless steel can affect the welding process
- Proper preparation and electrode selection are crucial for achieving strong welds
- Safety precautions such as wearing protective gear and ensuring proper ventilation are essential
Understanding Stainless Steel
If you’re going to stick weld stainless steel, it’s important to understand the properties of this versatile and corrosion-resistant metal. Stainless steel is an iron-based alloy that contains at least 10.5% chromium, which gives it its unique properties. The chromium creates an oxide layer on the surface of the metal that prevents it from rusting or corroding.
There are several types of stainless steel, each with its unique properties, such as:
- Austenitic stainless steels – These are the most common types of stainless steel and are often used for kitchen equipment, piping systems, and automotive applications. They are non-magnetic and highly corrosion-resistant.
- Ferritic stainless steels – These steels are magnetic and less corrosion-resistant than austenitic stainless steels, but they have better thermal conductivity.
- Martensitic stainless steels – These are the least corrosion-resistant and contain higher amounts of carbon, making them harder and more brittle. They are commonly used for cutlery and specialty tools.
It’s important to note that not all types of stainless steel are weldable. For example, duplex stainless steels contain a mix of austenite and ferrite and require specialized welding techniques. It’s essential to choose the right type of stainless steel for your project and ensure that it’s compatible with stick welding.
When welding stainless steel, it’s critical to maintain the integrity of the oxide layer. If the oxide layer is damaged, the metal can become susceptible to rust and corrosion. Proper cleaning and preparation of the metal are essential before any welding takes place.
Preparing for Stick Welding Stainless Steel
Proper preparation is essential for achieving high-quality stick welds on stainless steel. Here are some tips to make sure you get the best results:
- Clean the surface: Stainless steel is highly reactive to contaminants like dirt, oil, and grease, which can cause weld defects. Thoroughly clean the surfaces to be welded using a wire brush, grinder, or solvent cleaner.
- Remove contaminants: After cleaning, make sure the surface is free of any remaining contaminants. Acetone or alcohol wipes can be used to remove any residual oil or grease.
- Ensure a good fit-up: Proper fit-up is essential for creating strong welds. Check that the pieces being welded fit together tightly and have no gaps or misalignments.

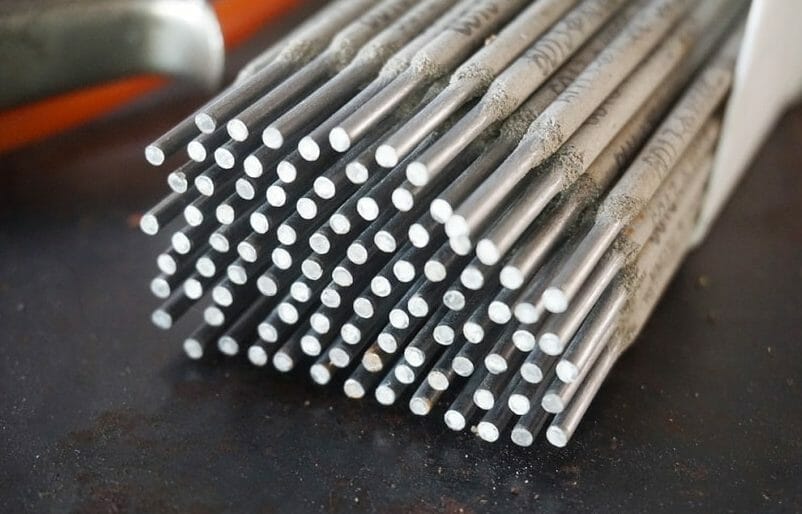

Choosing the Right Electrode for Stainless Steel
Choosing the right electrode is crucial for successfully stick welding stainless steel. The type of electrode you select will depend on the specific properties of the stainless steel you are working with, as well as the desired weld characteristics.
Here are some general guidelines to follow when selecting stick welding electrodes for stainless steel:
| Electrode Type | Recommended Application |
|---|---|
| 308L | Suitable for welding 304L and other common grades of stainless steel. Provides good corrosion resistance. |
| 309L | Ideal for welding dissimilar metals, such as stainless steel to mild steel. Provides excellent temperature resistance. |
| 316L | Best for welding Type 316 stainless steel. Provides excellent pitting corrosion resistance. |
It is also important to consider the size of the electrode. Thicker electrodes typically provide more current and can help achieve deeper weld penetration, while thinner electrodes are better suited for welding thinner materials.
Remember to always carefully read the manufacturer’s recommendations and consult with an expert if you are unsure which electrode to use for your project.

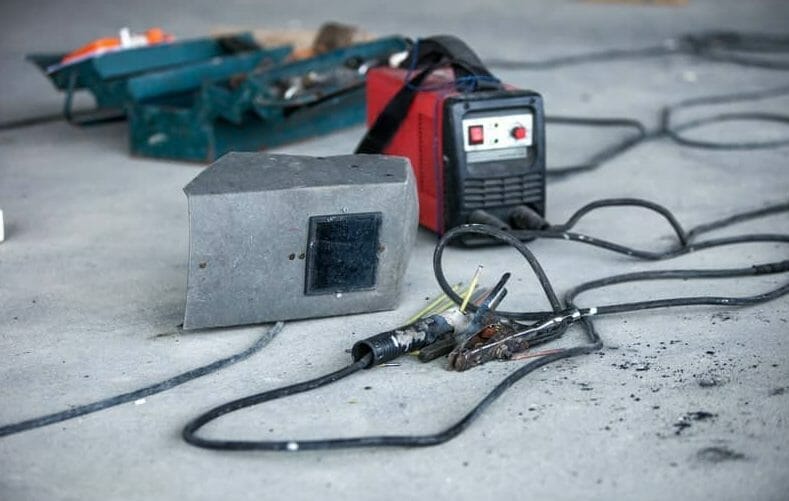

Setting Up Your Stick Welding Machine
Before you begin stick welding stainless steel, it’s important to properly set up your welding machine. Here’s a step-by-step guide:
- Set the amperage: Adjust the amperage to the recommended range for the electrode you’re using. Refer to the electrode packaging or consult the manufacturer’s guidelines for the appropriate amperage range.
- Choose the correct polarity: For stick welding stainless steel, use DC reverse polarity (DCEN), which means the electrode is connected to the negative terminal of the welding machine. This will provide better penetration and arc stability.
- Select the right electrode diameter: The recommended size of electrode diameter is typically determined by the thickness of the steel being welded. Refer to the electrode packaging or manufacturer’s guidelines for the correct diameter.
- Set the electrode angle: Hold the electrode at a 10 to 15-degree angle from vertical with the tip pointing in the direction of travel. This will help you achieve the proper arc length and penetration.
- Set the travel speed: Maintain a consistent travel speed during welding. Travel too fast and you may end up with a weak, incomplete weld, while traveling too slowly can cause the weld to be wider than necessary and lead to burn through.
- Adjust the arc length: Maintain a consistent arc length of about 3/32″. Too little arc length can cause the electrode to stick to the base metal and result in a poor-quality weld. Too much arc length can reduce the welding speed and weaken the weld.
- Double-check your settings: Finally, double-check all your machine settings before starting to weld to ensure proper setup.
Following these steps will help you set up your stick welding machine correctly for welding stainless steel, and ensure that you achieve a strong and high-quality weld.

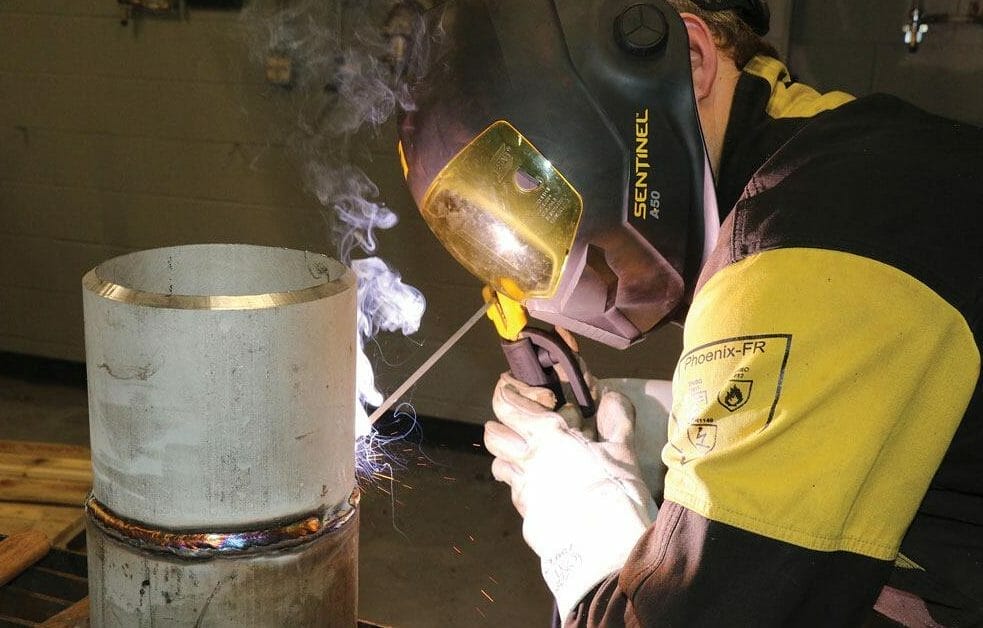

Proper Electrode Techniques for Stick Welding Stainless Steel
Stick welding stainless steel requires a different approach than welding other metals. For starters, you need to select the right electrode for the job. Once you have the right electrode, the right technique is key to achieving a strong, clean weld.
Electrode Angle
It’s essential to maintain a consistent electrode angle while stick welding stainless steel. Use a drag or backhand technique with a slight forward tilt. The electrode should be pointed in the direction of travel, with the rod angled at 10-15 degrees from vertical.
Arc Length and Travel Speed
Arc length is the distance between the electrode and the work surface. For stick welding stainless steel, maintain a short arc length of about 1/8-inch. This prevents the electrode from sticking and promotes a stable arc. Control the travel speed to ensure consistent penetration and proper bead shape.
Bead Placement
The placement of the bead is critical when welding stainless steel. Begin each weld at the joint’s tack weld and alternate both sides of the joint to prevent warping. It’s essential to maintain a consistent travel speed to avoid overheating the metal and distorting the bead.
Remember to practice good technique and pay attention to the electrode angle, arc length, and travel speed for consistent, high-quality welds.
Troubleshooting Common Stick Welding Stainless Steel Issues
Stick welding stainless steel can present unique challenges, and even experienced welders may encounter issues from time to time. Here are some common problems and troubleshooting tips to help you overcome them:
Porosity
Porosity, or the presence of small holes or voids in the weld, can weaken its strength and durability. To prevent porosity, try the following:
- Ensure the electrode is dry and in good condition before use
- Reduce the welding current to avoid overheating the weld
- Clean the surface thoroughly to remove any oil, grease, or other contaminants
Lack of Fusion
If the weld does not fuse properly with the base metal, it can lead to structural weakness. Try these tips to improve fusion:
- Ensure proper fit-up of the joint before welding
- Use the correct electrode size and type for the job
- Make sure the welding current is sufficient to melt both the electrode and base metal
Distortion
Distortion occurs when the metal warps or twists during welding, leading to misalignment and potential structural issues. Here’s how to minimize distortion:
- Use a proper welding sequence, welding from the center outwards
- Minimize the heat input by using shorter welds or a lower current
- Ensure proper fit-up and clamping to prevent movement during welding
Remember, practice and patience are key to becoming a proficient stick welder of stainless steel. If you encounter issues, take the time to troubleshoot and learn from your mistakes.

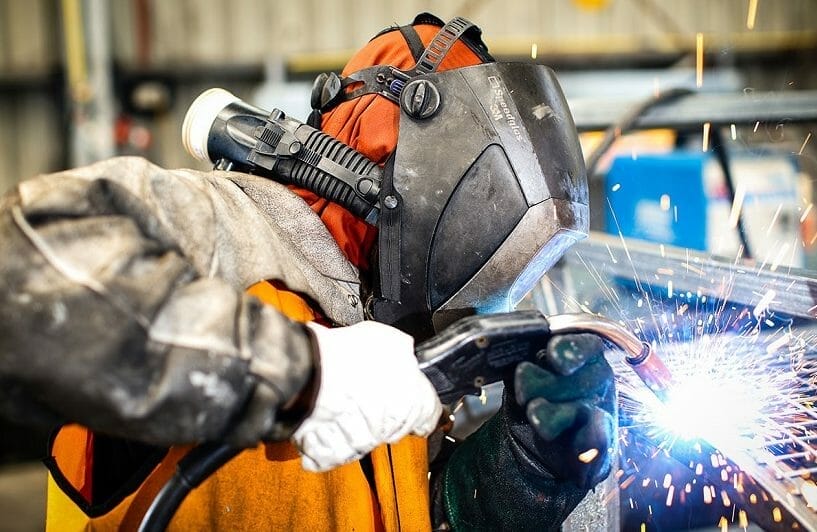

Safety Precautions for Stick Welding Stainless Steel
Stick welding stainless steel can be a hazardous process, so it’s important to take the necessary safety precautions to protect yourself and those around you. Here are some expert tips to keep in mind:
- Wear protective gear: Always wear appropriate protective gear, including a welding helmet with a proper shade, welding gloves, and protective clothing.
- Ensure proper ventilation: Welding stainless steel produces fumes that can be toxic if inhaled. Make sure you have adequate ventilation or use a respirator to avoid breathing in these fumes.
- Prevent fires: Welding sparks and slag can easily start a fire, so keep a fire extinguisher nearby and clear any flammable materials from your work area.
- Be cautious of electricity: Stick welding machines use high voltage, which can be dangerous if mishandled. Never touch the electrode or workpiece with bare hands while the machine is in operation.
By following these safety precautions, you can minimize the risks associated with stick welding stainless steel and focus on achieving high-quality welds.
Practice Exercises for Stick Welding Stainless Steel at Home
If you want to improve your stick welding skills on stainless steel at home, there are a few practice exercises you can do:
- Welding different joint configurations: Practice welding a variety of joint configurations, such as tee joints, lap joints, and butt joints. This will help you develop your technique and get comfortable with different welding positions.
- Experimenting with different electrode techniques: Try out different electrode angles and travel speeds to see how they affect your welds. Pay attention to how the arc behaves and how the weld pool forms.
Remember to use proper safety equipment and follow all safety precautions when practicing your stick welding skills at home.

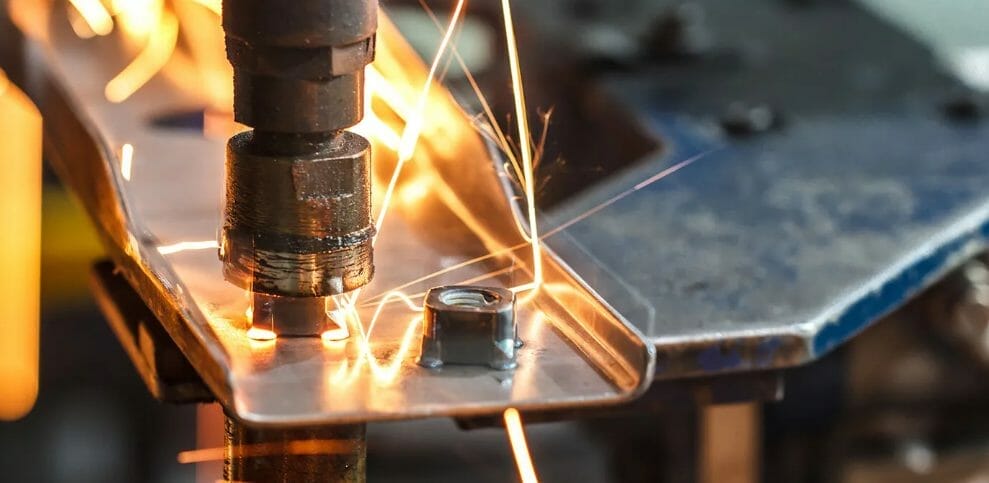

Tips for Achieving Strong, Corrosion-Resistant Welds
When stick welding stainless steel, it’s crucial to achieve strong and corrosion-resistant welds that can withstand harsh environments. Here are a few expert tips to help you achieve the best results:
Control the Heat
One of the most critical factors in achieving strong, corrosion-resistant welds on stainless steel is heat control. To avoid overheating the metal, it’s essential to use the right amperage and maintain the appropriate arc length. Too much heat can cause the metal to warp or lose its corrosion-resistant properties, while not enough heat can result in a lack of fusion.
Clean Thoroughly
Before welding, make sure to clean the stainless steel surface thoroughly to remove any contaminants such as oil, grease, or dirt. Even small amounts of contaminants can cause porosity and affect the quality of the weld. Use a stainless steel wire brush to scrub the surface and remove any rust or scale.
Post-Weld Cleaning
After welding, it’s crucial to clean the weld thoroughly to remove any residual slag or other contaminants. Use a stainless steel wire brush or grinding wheel to remove any discoloration or rough areas. For maximum corrosion resistance, passivate the weld by using a citric acid or nitric acid bath to remove any iron from the surface.
Consider Dissimilar Metals
If you’re welding stainless steel to another type of metal, it’s essential to consider the potential for galvanic corrosion. This occurs when two dissimilar metals are in contact, and an electrolyte such as water is present. To prevent this type of corrosion, use a higher nickel alloy electrode or a barrier coating between the two metals.
Avoid Overlapping Welds
Overlapping welds can create areas of stress concentration that can lead to cracking or corrosion. Instead, make sure to plan the weld sequence carefully and avoid overlapping welds whenever possible. Use a backstepping technique to create a continuous weld without overlap.
By following these expert tips, you can achieve strong, corrosion-resistant welds when stick welding stainless steel. Remember to always prioritize safety and proper technique to ensure the best results.
Best Practices for Maintaining Stainless Steel Welds
After completing a stainless steel weld, it is important to properly clean and maintain it to ensure its longevity and functionality. Here are some best practices for maintaining stainless steel welds:
| Practice | Description |
|---|---|
| Inspect welds regularly | Regular inspection of welds can help detect any signs of damage or corrosion early on, allowing for prompt repairs and maintenance. |
| Use proper cleaning methods | Cleaning stainless steel welds using abrasive materials or tools can damage the surface and make the weld more susceptible to corrosion. Use non-abrasive cleaning solutions and soft cloths. |
| Avoid exposure to environmental factors | Stainless steel welds can be affected by exposure to elements such as salt, acids, or extreme heat or cold. Take necessary precautions to protect the weld from environmental factors, especially in outdoor settings. |
| Passivate the weld | Passivation is the process of treating stainless steel with an acid solution to remove any impurities and create a corrosion-resistant surface. Consider passivating the weld to improve its resistance to corrosion. |
By following these best practices, you can ensure that your stainless steel welds remain strong, corrosion-resistant, and functional for years to come.
Conclusion
Stick welding stainless steel can be a challenging task, but with the right equipment and techniques, it can be mastered. Throughout this article, we have covered important aspects of stick welding stainless steel, from understanding the properties of stainless steel to selecting the appropriate electrode and setting up the welding machine.
We have also discussed the correct electrode techniques for stick welding stainless steel, troubleshooting common issues that may arise, and the importance of safety precautions. It is crucial to follow these expert tips and tricks to achieve strong, corrosion-resistant welds on stainless steel.
By practicing the exercises provided in this article and adopting the best practices for maintaining stainless steel welds, you can improve your stick welding skills and prolong the lifespan of your welds. Always remember to prioritize safety when stick welding stainless steel and wear appropriate protective gear.
Stick welding stainless steel may seem daunting, but with dedication and practice, you can achieve great results. Happy welding!
Read More : What Toxic Substance Released When Welding Stainless Steel?
FAQ
Q: What is stick welding?
A: Stick welding, also known as shielded metal arc welding (SMAW), is a welding process that uses a flux-coated electrode to create an electric arc between the electrode and the base metal. This arc melts the electrode and the base metal, creating a weld.
Q: Can you stick weld stainless steel?
A: Yes, stainless steel can be stick welded. However, it requires specific techniques and equipment to ensure a successful and high-quality weld.
Q: What are the benefits of stick welding stainless steel?
A: Stick welding stainless steel offers several benefits, including its versatility, ability to produce strong welds, and its suitability for outdoor and remote welding applications.
Q: What are the challenges of stick welding stainless steel?
A: Stick welding stainless steel can be challenging due to its high thermal conductivity, susceptibility to heat distortion, and the potential for corrosion if proper precautions are not taken.
Q: What equipment do I need for stick welding stainless steel?
A: To stick weld stainless steel, you will need a welding machine capable of producing both AC and DC currents, stainless steel electrodes, welding gloves, welding helmet, and other appropriate safety equipment.
Q: How do I prepare stainless steel before stick welding?
A: Before stick welding stainless steel, it is important to clean the surface thoroughly, remove any contaminants, and ensure a good fit-up between the metal pieces being welded.
Q: How do I choose the right electrode for stick welding stainless steel?
A: When selecting electrodes for stick welding stainless steel, consider factors such as the electrode type (e.g., E308, E309, E316), electrode size, and the specific application requirements.
Q: How do I set up a stick welding machine for stainless steel?
A: To set up a stick welding machine for stainless steel, adjust the amperage, select the appropriate polarity (DC electrode positive or negative), and set other relevant machine settings based on the specific requirements of the stainless steel being welded.
Q: What are the proper electrode techniques for stick welding stainless steel?
A: Proper electrode techniques for stick welding stainless steel include maintaining the correct electrode angle, controlling the arc length, managing travel speed, and ensuring proper bead placement.
Q: How do I troubleshoot common issues in stick welding stainless steel?
A: Common issues in stick welding stainless steel, such as porosity, lack of fusion, and distortion, can be addressed by troubleshooting techniques such as adjusting the machine settings, improving electrode techniques, and ensuring proper preparation.
Q: What safety precautions should I take when stick welding stainless steel?
A: When stick welding stainless steel, it is important to wear appropriate protective gear, ensure proper ventilation, use fire prevention measures, and follow all relevant safety guidelines to protect yourself and others.
Q: Are there any practice exercises I can do to improve my stick welding skills on stainless steel?
A: Yes, you can practice stick welding stainless steel at home by welding different joint configurations, experimenting with electrode techniques, and gradually increasing the difficulty level to improve your skills.
Q: What are some tips for achieving strong and corrosion-resistant welds on stainless steel?
A: Tips for achieving strong and corrosion-resistant welds on stainless steel include proper heat control, post-weld cleaning, and considerations for dissimilar metals to prevent galvanic corrosion.
Q: How can I properly maintain stainless steel welds?
A: To maintain stainless steel welds, regularly inspect them for any signs of damage or corrosion, use the appropriate cleaning methods, and protect the welds from environmental factors that could degrade their performance.
