Welcome to our comprehensive guide on how to weld stainless steel with a MIG welder. Stainless steel is a popular material in various industries due to its strength, durability, and corrosion resistance. However, welding it can be challenging, especially for beginners. In this article, we will provide expert guidance on the process of welding stainless steel using a MIG welder. We will cover the essential techniques, equipment, and safety precautions required to achieve strong and clean welds on stainless steel consistently.
Key Takeaways:
- Welding stainless steel requires specific techniques and equipment to achieve quality welds.
- Proper preparation of the stainless steel surface is crucial to ensure optimal welding results.
- Choosing the appropriate MIG welder and equipment for welding stainless steel is essential.
- Safety precautions should always be followed when working with welding equipment.
Understanding Stainless Steel and MIG Welding
Before diving into the process of welding stainless steel with a MIG welder, it’s essential to have a basic understanding of the material and the welding process.
Stainless steel is a type of steel alloy containing a minimum of 10.5% chromium. This element gives stainless steel its unique properties, including corrosion resistance and the ability to withstand high temperatures. Additionally, stainless steel can be categorized into different grades based on its chemical composition, such as 304 and 316.
Metal Inert Gas (MIG) welding, also known as Gas Metal Arc Welding (GMAW), is a popular welding process that uses a consumable wire electrode and a shielding gas to join two metal pieces together. MIG welding is a versatile and efficient process that can be used for a variety of materials, including stainless steel.
MIG welding is a suitable method for welding stainless steel for several reasons. Firstly, MIG welding offers excellent control over heat input, which helps to prevent distortion of the metal. Secondly, the shielding gas used in MIG welding protects the weld from atmospheric contamination, which can cause defects in the finished weld.

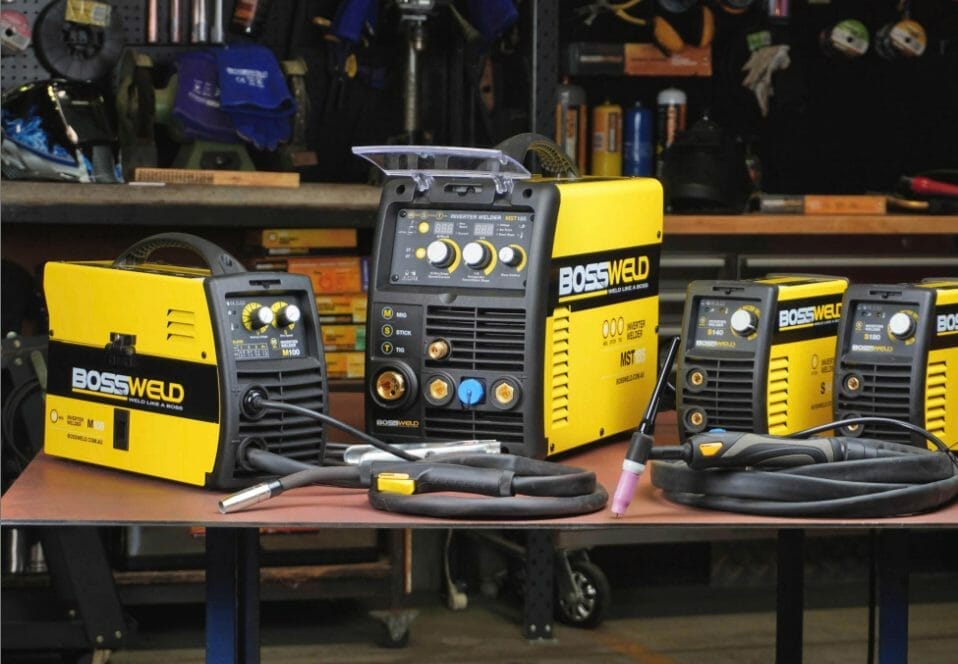

Choosing the Right MIG Welder and Equipment
Choosing the appropriate MIG welder and equipment is crucial for achieving quality welds on stainless steel. Here are some factors to consider:
Machine Settings
Make sure your MIG welder has a variable voltage and wire speed control, as well as a timer for the shielding gas. This will allow you to fine-tune the settings for optimal performance.
Wire Types
For welding stainless steel, use a wire with a high silicon content such as ER308LSi or ER309LSi. These wires will ensure a stable and spatter-free welding arc.
Shielding Gases
Typically, a mixture of 90% helium and 10% argon is suitable for welding stainless steel. However, you may also use pure argon or a mixture of 98% argon and 2% carbon dioxide.
Remember to check the manufacturer’s recommendations for the appropriate shielding gas for your MIG welder.
Preparing the Stainless Steel Surface
Before starting to weld stainless steel, it is essential to ensure that the metal surface is clean and free of contaminants. Failure to clean the surface adequately can lead to weakened welds, porosity, or even weld failure.
Here are the steps involved in preparing the stainless steel surface:
- Remove any rust, paint, or other coatings: Use a wire brush or grinder to remove any rust, paint, or other coatings that may be present on the surface of the metal.
- Clean the surface: Use a degreaser to remove any oil, grease, or other contaminants that may be present on the metal surface.
- Dry the surface: Once the surface is clean, dry it with a clean cloth or compressed air. Any moisture on the surface can cause porosity and other welding defects.
By following these steps, you can ensure that the surface of the stainless steel is clean and ready for welding.

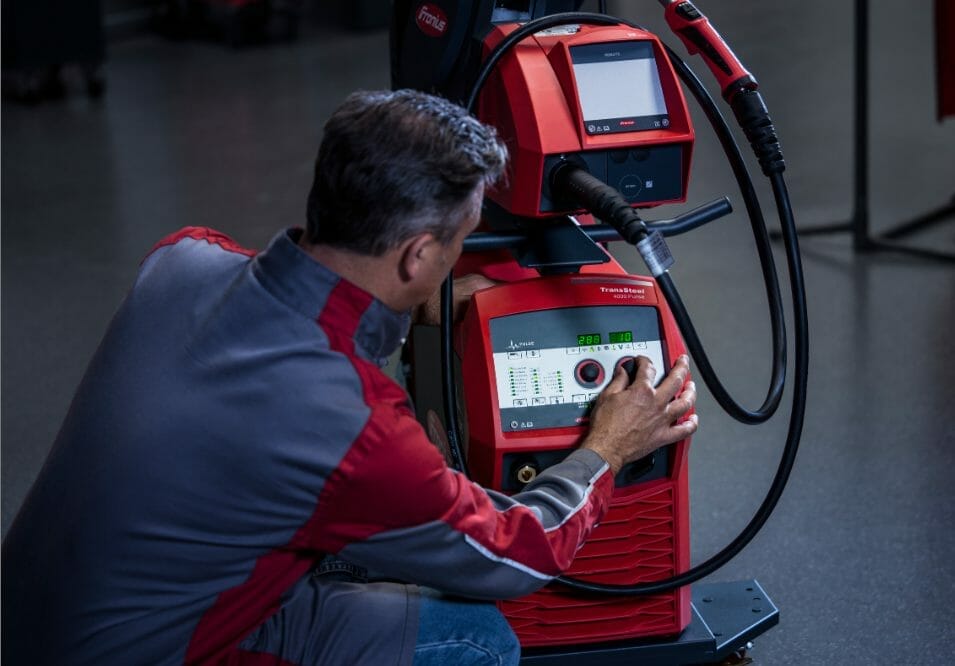

Setting Up the MIG Welder for Stainless Steel
Once you have selected the appropriate MIG welder and equipment for welding stainless steel, it’s time to set up the machine specifically for this task. Here are the important steps to follow:
- Choose the Correct Wire Size: When welding stainless steel with a MIG welder, it’s important to select the right wire thickness depending on the thickness of the metal you’re welding. For thinner stainless steel sheets, a wire size of 0.023 inches is recommended, while thicker sheets require a wire size of 0.035 inches or higher.
- Select the Appropriate Gas: Shielding gas is crucial for preventing oxidation and achieving a clean weld. When welding stainless steel, a mixture of 98% Argon and 2% CO2 is the most recommended gas as it provides excellent penetration, smooth arc, and produces little to no spatter.
- Adjust Wire Speed: Based on the thickness of the metal, you should adjust the wire speed to get the right penetration and bead size. Higher wire speed is required for thinner sheets of stainless steel, whereas lower wire speed is most effective for thicker sheets.
- Adjust Voltage: It’s important to maintain a balance between the wire speed and voltage to get the best results. Higher voltage works well for thicker sheets, while lower voltage works well for thinner sheets.
- Test Weld Settings: Before beginning the welding process, it’s essential to test the settings on a sample piece of stainless steel to ensure that the welder is producing the desired results. Make adjustments as necessary to achieve optimal results.
Correct Nozzle Positioning
Positioning the nozzle of the MIG welder is crucial to a successful weld outcome. The nozzle should be angled between 5 and 15 degrees towards the direction of travel to ensure proper shielding gas coverage. This ensures a smooth and aesthetically pleasing weld without any splatters or discontinuities.
Technique and Welding Tips for Stainless Steel
Welding stainless steel requires specific techniques to ensure strong and aesthetically pleasing welds. Below are some expert tips to help you achieve optimal results:
Positioning
Positioning is crucial when welding stainless steel. To ensure heat dispersion and prevent warping, start by welding in a flat position. If the weld must be done in a vertical position, use a slight uphill angle to avoid the molten metal flowing back onto the weld.
Travel speed
Travel speed is essential when welding stainless steel. Moving too slowly can cause the weld to sag, while moving too quickly can create a weak bond. Aim for a steady travel speed that allows you to maintain a consistent arc length and deposition rate.
Bead size
The size of the weld bead should be consistent and suitable for the application. Take care not to overfill the joint, as doing so can lead to cracking or distortion. Aim for a clean and even weld bead that blends seamlessly with the surrounding metal.
Heat control
Controlling heat is crucial when welding stainless steel. Use the lowest voltage necessary to achieve penetration, and adjust wire speed and gas flow rates as needed. Take regular breaks to avoid overheating the metal, and use a heat sink to disperse heat in critical areas.
Cleanliness
Stainless steel surfaces must be free of all contaminants before welding. Use a wire brush or grinder to remove surface impurities, and clean with acetone or alcohol. Protect the surface from further contamination during welding by covering it in aluminum foil or using a back purge.
Gas flow
Shielding gas is critical in MIG welding, as it protects the weld from oxidation and other contaminants. Use a gas flow rate of 20-30 cubic feet per hour to optimize shielding and prevent porosity.
By applying these expert tips and techniques, you can achieve clean and strong welds when working with stainless steel and a MIG welder.
Troubleshooting and Common Challenges
Welding stainless steel with a MIG welder can come with its fair share of challenges, even for experienced welders. Here are some of the most common issues you may encounter and tips on how to overcome them:
Burn-Through
Burn-through occurs when the heat input is too high, causing the metal to melt and creating a hole in the material. To prevent burn-through, use a lower voltage or current settings and make multiple passes with minimal wire feed speed.
Porosity
Porosity refers to the tiny holes or bubbles that can form in a weld, weakening its strength. To avoid porosity, make sure the surface is clean and free of oil, grease, or other contaminants. It’s also important to use the correct shielding gas and wire type for the specific grade of stainless steel being welded.
Warping
Warping is a common issue in welding stainless steel, especially with thin materials. To minimize warping, use a lower heat input and distribute welds evenly across the metal surface, using clamps or other support structures as needed to hold the piece in place.
Cracking
Cracking can occur in the welding process due to a number of factors such as improper cooling, high heat input, or rapid cooling. To avoid cracking, use a lower heat input and allow the weld to cool slowly.
By being aware of these common challenges and taking the necessary precautions, you can successfully weld stainless steel with a MIG welder and produce high-quality welds.
Safety Precautions for Welding Stainless Steel
Welding stainless steel with a MIG welder can be a safe and rewarding process, but it’s important to take proper safety precautions. Welding involves high temperatures, bright light, and the emission of UV rays and fumes that can be harmful to your health.
Here are some safety tips to follow when welding stainless steel:
- Protective gear: Wear a welding helmet with a suitable shade lens to protect your eyes from UV light and sparks. Wear a long-sleeved shirt and pants to protect your skin from sparks and hot metal. Wear gloves and boots made of flame-resistant materials to protect your hands and feet from burns.
- Ventilation: Make sure your workspace is well-ventilated to prevent inhaling hazardous fumes. Use an exhaust hood or fan to direct fumes away from your face and lungs.
- Fire safety: Keep a fire extinguisher nearby in case of fire and keep your workspace free of flammable materials.
- Machine safety: Read the instructions manual of your MIG welder and familiarize yourself with its features. Get professional help in case of any problem.
- Workpiece safety: Make sure the stainless steel workpiece is stable and properly secured to avoid slips and falls. Ensure your welding area is clean and clutter-free to avoid tripping hazards.
By following these safety precautions, you can enjoy a safe and successful experience welding stainless steel with a MIG welder.
Conclusion
Welding stainless steel with a MIG welder can seem daunting at first, but with the right equipment, preparation, and technique, anyone can achieve quality results. By understanding the properties of stainless steel and selecting the appropriate equipment, you can ensure consistent and reliable welds.
Proper preparation of the stainless steel surface is critical to achieving optimal results. Taking the time to clean and remove any impurities will prevent weld defects and ensure a strong bond.
When setting up your MIG welder, pay close attention to the wire speed, voltage, and gas flow rates. These settings will vary depending on the thickness of the metal, so it is essential to make adjustments accordingly.
Technique is crucial when welding stainless steel. The correct welding position and travel speed can affect the quality of your bead and overall strength of the weld. Be sure to practice with scrap metal to refine your skills and gain confidence.
As with any welding process, safety should always be a top priority. Be sure to wear appropriate safety gear and take precautions to prevent injury.
By following the expert tips and guidance provided in this article, you can become proficient in welding stainless steel with a MIG welder. With patience and practice, you can achieve strong and aesthetically pleasing welds consistently.
Read More : Expert Tips for Stainless Steel MIG Welding
When working with hard drawn copper tubes for welding, it’s essential to follow expert tips for optimal results. Firstly, ensure clean and carefully deburred tube ends to prevent contamination during the welding process. Secondly, maintain the appropriate amperage and speed to avoid overheating the tube and compromising its shape. Lastly, use a quality flux for improved welding performance and durability. By adhering to these expert tips for hard drawn copper tube welding, you can achieve superior results.
FAQ
Q: Can I use a MIG welder to weld stainless steel?
A: Yes, MIG welding is a suitable method for welding stainless steel.
Q: What is the best MIG welder for stainless steel?
A: The best MIG welder for stainless steel depends on factors such as machine settings, wire types, and shielding gases.
Q: How do I prepare the surface of stainless steel for welding?
A: Properly cleaning and preparing the stainless steel surface is crucial for optimal welding results.
Q: What are the recommended settings for MIG welding stainless steel?
A: The recommended settings for MIG welding stainless steel include wire speed, voltage, and gas flow rates.
Q: Are there any specific techniques for welding stainless steel?
A: Yes, achieving quality welds on stainless steel requires specific techniques such as controlling heat and bead size.
Q: What are common challenges in welding stainless steel?
A: Welding stainless steel can present unique challenges, but troubleshooting tips can help overcome common issues.
Q: What safety precautions should I take when welding stainless steel?
A: Safety is important, so follow precautions such as wearing proper protective gear and working in a well-ventilated area.
