Welcome to our comprehensive guide on mastering MIG welding stainless steel settings. MIG welding stainless steel can be challenging, but with the right settings and techniques, you can achieve quality welds that meet industry standards. In this article, we will explore the key factors that impact MIG welding stainless steel and offer expert advice on how to optimize your settings for flawless welds.
Key Takeaways:
- Mastering MIG welding stainless steel settings is crucial for achieving quality welds that meet industry standards.
- Understanding the characteristics of stainless steel, selecting the appropriate shielding gas, determining wire size, and setting voltage and amperage are essential for successful welds.
- Proper preparation of the stainless steel, as well as use of protective gear and adherence to safety precautions, are critical for creating a safe working environment.
Understanding Stainless Steel for MIG Welding
Before you begin MIG welding stainless steel, it is essential to understand the characteristics of this material. Stainless steel is an alloy that contains a minimum of 10.5% chromium, which gives it its corrosion-resistant properties. The addition of other elements, such as nickel and molybdenum, can further enhance its strength and durability.
MIG welding is a popular method for welding stainless steel due to its speed and ease of use. However, there are different grades of stainless steel, and not all are suitable for MIG welding. The most commonly used grades for welding are 304, 308, 316, and 316L.
Grade | Description | Applications |
---|---|---|
304 | Contains 18% chromium and 8% nickel, making it the most versatile and widely used stainless steel. | Food processing equipment, kitchen appliances, and chemical storage tanks. |
308 | Contains 20% chromium and 10% nickel, providing high resistance to corrosion and oxidation at high temperatures. | Aircraft and aerospace applications, heat exchangers, and chemical processing equipment. |
316 | Contains 16% chromium, 10% nickel, and 2% molybdenum, providing excellent resistance to corrosion, particularly in chloride environments. | Marine equipment, chemical processing equipment, and pharmaceutical machinery. |
316L | A low-carbon version of 316, providing better corrosion resistance than welded 316. | Medical devices, chemical and petrochemical processing equipment, and heat exchangers. |
When selecting the appropriate grade of stainless steel for MIG welding, consider the intended use of the final product and the desired mechanical properties. Thinner materials may require a lower grade, while thicker materials may require a higher one.
Conclusion
Understanding the characteristics of stainless steel and its different grades is essential for successful MIG welding. In the next section, we will discuss the importance of selecting the right shielding gas for MIG welding stainless steel.

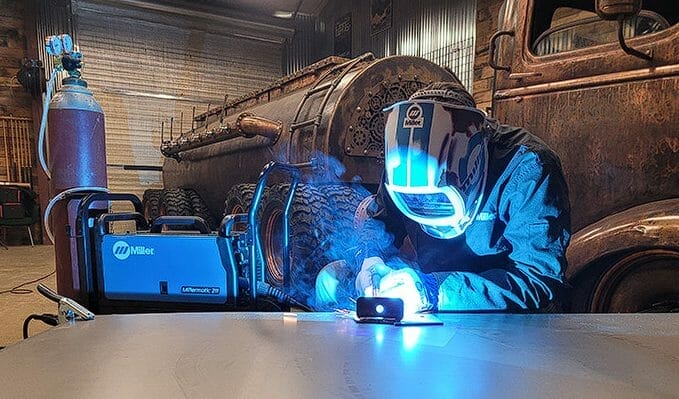

Choosing the Right Gas for MIG Welding Stainless Steel
When it comes to MIG welding stainless steel, choosing the right shielding gas is crucial to achieve the desired results. The gas you choose impacts the weld puddle’s stability, bead appearance, and overall quality of the weld.
There are different types of gases used for MIG welding stainless steel. The most common ones are argon, helium, and a mixture of both. Argon is the most widely used shielding gas for MIG welding stainless steel. It provides good arc stability, bead appearance, and penetration. Helium is often used in combination with argon to increase heat input and productivity. However, it can be more challenging to control the weld pool with pure helium. A mixture of helium and argon can provide the best of both worlds, delivering better penetration and bead appearance than pure argon.
Gas | Composition | Advantages |
---|---|---|
Argon | Pure argon | Good arc stability, penetration, and bead appearance |
Helium | Pure helium | Increased heat input and productivity |
Argon-Helium mix | Mixture of argon and helium | Better penetration and bead appearance than pure argon |
Choosing the right gas for MIG welding stainless steel depends on several factors such as the material thickness, joint design, and personal preference. The recommended gas flow rate ranges from 20 to 25 cubic feet per hour (cfh) for argon and 50 to 60 cfh for a helium-argon mix. Using the correct flow rate helps to prevent contamination and ensure proper shielding of the weld puddle.
By selecting the appropriate shielding gas, you can optimize your MIG welding stainless steel settings and achieve high-quality welds with minimal defects.
Determining the Correct Wire Size for MIG Welding Stainless Steel
Choosing the right wire size is crucial for successful MIG welding of stainless steel. The wire diameter affects the welding results, including the appearance, penetration, and travel speed.
For thinner materials, a smaller wire diameter is recommended to prevent burning through the metal. Ideally, a 0.023- or 0.030-inch wire is suitable for welding materials up to 3/16-inch thick. For thicker materials, a larger wire diameter is required to provide sufficient heat input and penetration.
Material thickness | Wire diameter |
---|---|
Up to 3/16 inch | 0.023-0.030 inch |
3/16 inch to 1/4 inch | 0.030-0.035 inch |
1/4 inch to 1/2 inch | 0.035-0.045 inch |
Over 1/2 inch | 0.045-0.062 inch |
It is worth noting that selecting a wire size that is too small can lead to difficulty in feeding the wire through the gun, resulting in inconsistent welds. On the other hand, using a wire size too large can cause excessive splatter and an uneven bead appearance.
Tips for Choosing the Right Wire Size for MIG Welding Stainless Steel
- Determine the material thickness and recommended wire sizes based on the manufacturer’s specifications.
- Adjust the wire size based on the desired welding outcome, such as penetration and appearance.
- Conduct test welds using different wire sizes to determine the optimal choice for your specific welding project.
By selecting the appropriate wire diameter, you can achieve high-quality MIG welds on stainless steel materials.

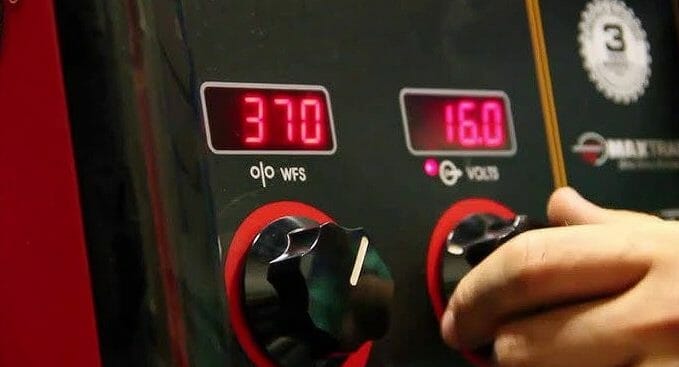

Setting the Voltage and Amperage for MIG Welding Stainless Steel
Now that you have selected the appropriate shielding gas and wire size for your MIG welding project, it’s time to adjust the voltage and amperage settings. These parameters are crucial in achieving the desired welding outcome, as they determine the heat input and the penetration depth.
Understanding Voltage and Amperage
Voltage refers to the electrical potential difference between the welding gun and the workpiece, while amperage measures the amount of electrical current flowing through the welding wire. Together, they determine the overall power output of the MIG welder.
For MIG welding stainless steel, it’s recommended to use a lower voltage range of 15-24 volts and a higher amperage range of 130-180 amps. This is because stainless steel has a lower thermal conductivity and a higher electrical resistance compared to other metals, requiring more heat input.
Choosing the Right Settings
The appropriate voltage and amperage settings depend on several factors, including the material thickness, joint design, and welding position. The thicker the material, the higher the settings should be, while horizontal and overhead positions require lower settings to prevent excessive heat buildup.
It’s important to start with the manufacturer’s recommended settings and make small adjustments as needed to achieve the desired result. Keep in mind that too high or too low voltage or amperage can lead to issues such as lack of penetration, burn-through, or distortion.
Troubleshooting Voltage and Amperage Issues
If you encounter issues with the voltage and amperage settings, such as inconsistent welds or spatter, consider the following troubleshooting steps:
- Check the wire feed speed and adjust it accordingly
- Clean the workpiece surface to ensure proper electrical contact
- Inspect the contact tip for damage or wear and replace if necessary
- Ensure the grounding clamp is securely attached to the workpiece
By mastering the voltage and amperage settings for MIG welding stainless steel, you can achieve precise and high-quality welds that meet your project requirements.

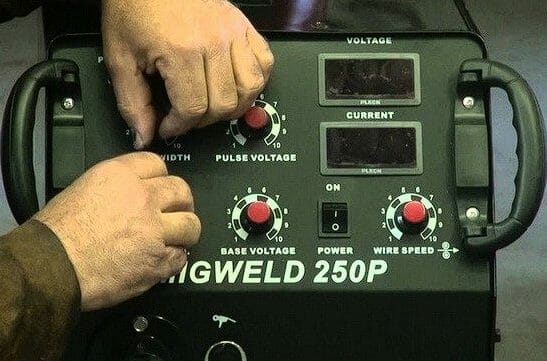

Adjusting the Wire Feed Speed for Optimal MIG Welding Results
Wire feed speed is a critical setting for achieving high-quality MIG welds on stainless steel. It determines the rate at which the filler metal is deposited into the joint. Ideally, the wire feed speed should be adjusted to match the welding current and voltage, ensuring consistent and even welds.
Here are some tips for finding the correct wire feed speed:
- Start with a lower wire feed speed and increase gradually until you achieve a stable arc.
- Ensure that the wire is feeding smoothly without any sudden stops or starts.
- Listen to the welding sound – a steady hissing sound indicates good wire feed speed.
- Check the appearance of the weld – a consistent and even bead indicates that the wire feed speed is correct.
If you notice any issues with the wire feed speed, such as excessive spatter, inconsistent bead appearance, or wire burnback, try adjusting the speed slightly and test again. Keep in mind that other settings, such as voltage and amperage, can also affect wire feed speed, so it’s essential to adjust them in conjunction with wire feed speed.
By adjusting the wire feed speed appropriately, you can ensure that the filler metal is deposited evenly and consistently, resulting in high-quality MIG welds on stainless steel.

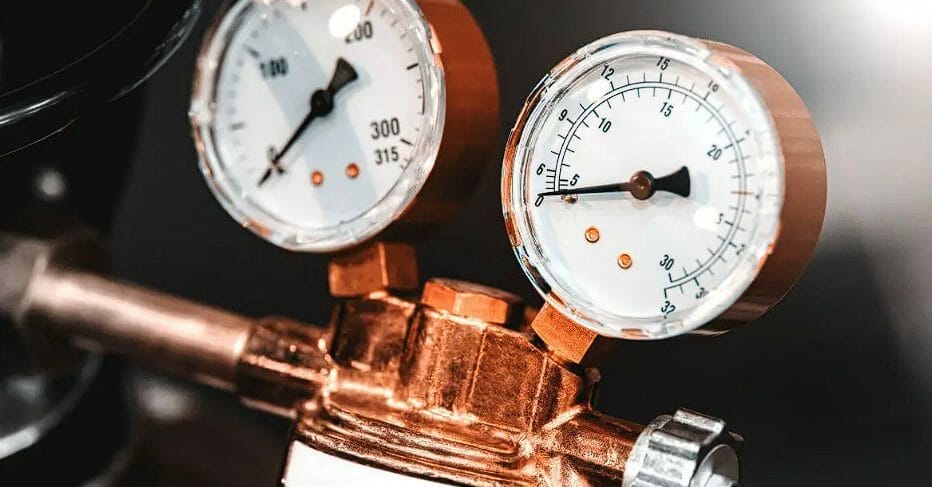

Shielding Gas Flow Rate and Other Important Settings
When it comes to MIG welding stainless steel, the right shielding gas flow rate is crucial to achieving excellent results. Shielding gas protects the weld zone from atmospheric contamination, improving the quality of the final weld.
For stainless steel MIG welding settings, a flow rate of 20-30 cubic feet per hour (CFH) is recommended. This allows for adequate gas coverage while preventing excessive turbulence that can lead to porosity.
In addition to shielding gas flow rate, other settings such as travel speed and stick-out length can impact welding quality. It is essential to ensure that these settings are optimized for the specific welding task.
Parameter | Effect on Weld Quality | Recommended Settings |
---|---|---|
Travel Speed | Too slow or too fast can result in poor fusion and/or burn-through | 1-3 inches per second for thin materials, 3-10 inches per second for thicker materials |
Stick-out Length | Too long or short can lead to inconsistent arc length, affecting penetration and/or heat input | 3/4 inch to 1 inch for thinner materials, up to 1-1/2 inches for thicker materials |
By optimizing shielding gas flow rate and other important settings, you can achieve high-quality MIG welds on stainless steel that are free from defects such as porosity, undercutting, and distortion.
Preparing the Stainless Steel for MIG Welding
Before beginning a MIG welding project on stainless steel, it is essential to properly prepare the material for welding. This process involves cleaning, surface preparation, and joint design considerations to ensure successful welds.
Cleaning Methods
The first step in preparing stainless steel for MIG welding is to clean the material thoroughly. Any contaminants, such as oil, grease, or dirt, can negatively impact the weld quality. Use a degreaser or solvent to remove any impurities on the surface of the material.
After cleaning, be sure to remove any residual cleaning agents by rinsing the material with water and drying it completely. Any remaining moisture can cause porosity in the welds.
Surface Preparation
The next step is to prepare the surface of the material for welding. This involves removing any oxide layers or other impurities on the material surface. Use a stainless steel wire brush or grinder to remove any rust or oxide layers on the material’s surface.
After removing the oxide layer, use a clean, lint-free cloth to wipe the material surface free of debris or dust.
Joint Design Considerations
The final step in preparing stainless steel for MIG welding is to consider the joint design. Proper joint design can improve weld quality and reduce the likelihood of weld defects.
When designing the joint, ensure that there is enough clearance between the two pieces of material to allow for proper weld penetration. Additionally, make sure that the joint edges are smooth and free of any burrs, which can interfere with the welding process.
By following these preparation steps, you can achieve consistent, high-quality MIG welds on stainless steel.

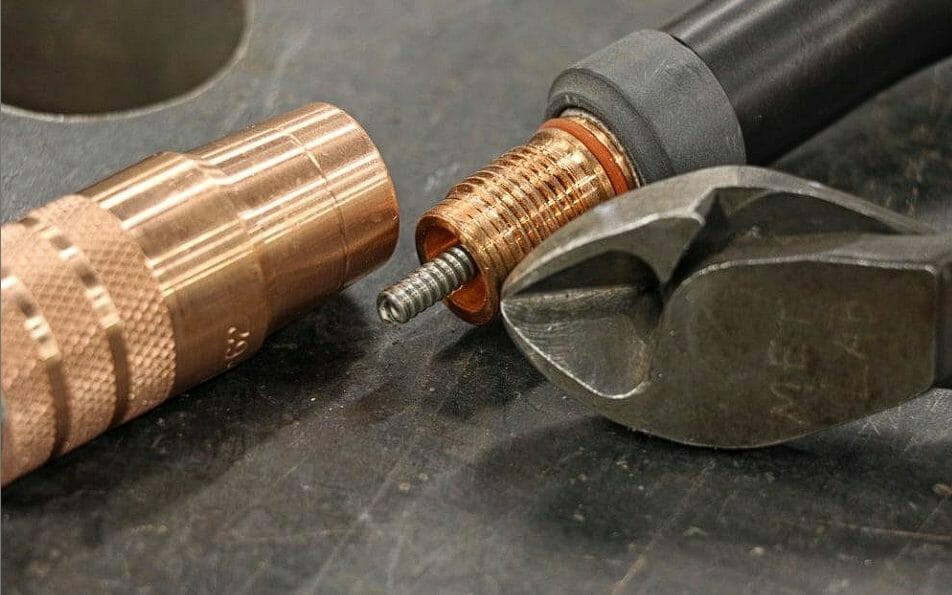

Troubleshooting Common Issues in MIG Welding Stainless Steel
MIG welding stainless steel requires precise settings and techniques to achieve satisfactory results. Even with the best practices, problems may arise during the process. Here are some of the common issues and solutions to help you troubleshoot.
Porosity
Porosity refers to the holes or cavities that appear on the surface or inside the weld bead. It occurs when there is an insufficient shielding gas coverage or when the welding speed is too slow. To prevent porosity, make sure the gas flow rate is adequate, adjust the wire feed speed to match the travel speed, and avoid pausing during the weld.
Cracking
Cracks are often caused by improper preparation or excessive heat input. To reduce the risk of cracking, clean the welding surface thoroughly, preheat the material if necessary, and use the correct welding technique based on the material thickness. Additionally, avoid over-welding or under-welding, as both can cause cracking.
Burn-Through
Burn-through occurs when the heat input is too high, and the welding wire penetrates the material completely. It can also happen when the material is too thin, and the welding technique is unsuitable. To prevent burn-through, reduce the amperage or voltage, increase the travel speed, and use a smaller wire diameter if the material is thin.
Incomplete Fusion
Incomplete fusion happens when the weld bead doesn’t fuse with the base material entirely. It can occur due to an insufficient heat input, incorrect welding technique or poor joint design. To avoid incomplete fusion, increase the heat input, adjust the wire feed speed if necessary, and select the right welding technique based on the material thickness and joint design.
By understanding and addressing these common issues, you can improve the quality and consistency of your MIG welds on stainless steel. Remember to adjust the settings according to the material and the welding technique you are using to achieve optimal results.
Safety Precautions for MIG Welding Stainless Steel
When it comes to MIG welding stainless steel, safety should always be a top priority. Here are some essential safety precautions to keep in mind:
- Protective gear: Wear personal protective equipment such as welding gloves, helmet, and jacket to prevent burns and eye damage from the UV light.
- Ventilation: Ensure proper ventilation to avoid inhaling toxic fumes created by the welding process.
- Fire prevention: Keep a fire extinguisher nearby and avoid welding around flammable materials to avoid accidents.
- Electric shock: Keep welding equipment dry and avoid touching it with wet hands to prevent electric shock.
- Training: Ensure proper training and certification before starting MIG welding projects to avoid potential risks and accidents.
Conclusion
By implementing these safety precautions, you can ensure a safe and secure working environment while MIG welding stainless steel. Remember to always prioritize safety and take the necessary precautions to avoid accidents and injuries.
Tips for Achieving Flawless MIG Welds on Stainless Steel
Now that you have a thorough understanding of MIG welding stainless steel settings, here are some additional tips to help you achieve flawless welds:
- Practice makes perfect: As with any skill, the more you practice, the better you will become. Take the time to weld on scrap material and experiment with different settings until you find the perfect combination for your project.
- Keep your work surface clean: Any debris or contaminants on the stainless steel surface can negatively impact the quality of your welds. Be sure to clean the area thoroughly and keep it free of any dust or debris.
- Use the right technique: The correct welding technique is essential for producing high-quality welds. Make sure you are using the proper gun angle, travel speed, and wire feed speed for your specific project.
- Pay attention to the arc: The arc should be smooth and steady throughout the welding process. If the arc starts to flicker or sputter, adjust your welding settings accordingly.
- Monitor the weld pool: Keep a close eye on the weld pool as you work. The size and shape of the weld pool can provide valuable feedback on the effectiveness of your welding technique and settings.
- Invest in high-quality equipment: Quality equipment can make a significant difference in the outcome of your welds. If possible, invest in a high-quality MIG welder and accessories to ensure optimal results.
By following these tips and applying the knowledge you’ve gained from this article, you’ll be well on your way to producing flawless MIG welds on stainless steel!
Conclusion
Mastering MIG welding stainless steel settings is crucial to achieving high-quality welds. By understanding the characteristics of stainless steel, selecting the right shielding gas and wire size, setting the correct voltage and amperage, adjusting the wire feed speed and other important settings, preparing the stainless steel, and following safety precautions, you can achieve flawless MIG welds on stainless steel.
Remember to troubleshoot common issues and implement expert tips for optimal results. Whether you are a beginner or seasoned welder, taking the time to learn and implement these techniques can make all the difference in the quality of your welds.
So, get out there and experiment with different settings and techniques until you find what works best for you. With practice and patience, you can become a skilled MIG welder capable of tackling any stainless steel project that comes your way.
