In this article, we will share expert tips for spot welding stainless steel like a pro. Spot welding is a popular method for joining stainless steel due to its speed, accuracy, and efficiency. However, without proper techniques and equipment, it can present challenges. Therefore, it’s crucial to follow specific steps to ensure successful welding projects. We’ll cover the benefits of spot welding stainless steel, the different types of electrodes, setting up the welding machine, performing the welding process correctly, and much more.
Follow our guide, and you’ll be able to create robust and precise spot welds on stainless steel like a professional welder.
Understanding Spot Welding Stainless Steel
Spot welding is a welding process used to join two metal surfaces through the application of heat and pressure. In the context of stainless steel welding, spot welding involves passing an electric current through two metal sheets, which are placed in between two electrodes.
When the current is passed through the electrodes, it heats up the metal sheets, creating a molten pool of metal at the point of contact. As the metal cools, it solidifies, fusing the two metal sheets together.
Spot welding offers several benefits when working with stainless steel, including speed, accuracy, and efficiency. The process can be automated, allowing for high-volume production of parts with consistent quality.
However, spot welding has some limitations. It may not be suitable for welding thicker stainless steel sheets or materials that are difficult to access with electrodes. In these cases, other welding methods, such as laser welding, may be more appropriate.

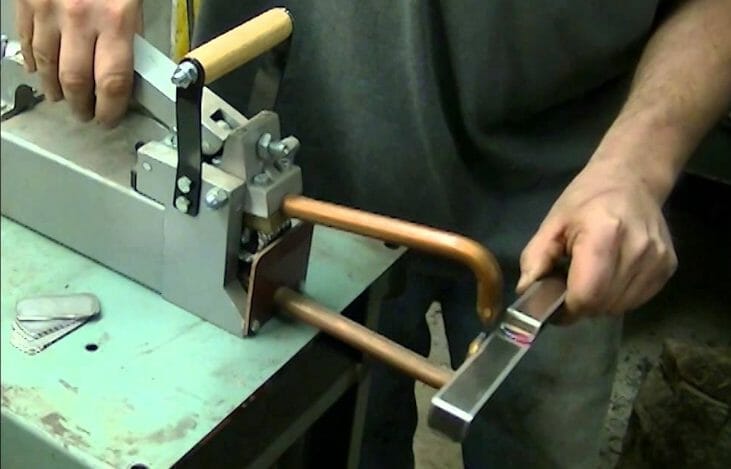

Preparing for Spot Welding Stainless Steel
Before starting the spot welding process, it is essential to properly prepare the materials and equipment to ensure a successful outcome. The following are some steps to follow when preparing for spot welding stainless steel:
| Step | Description |
|---|---|
| 1 | Clean the surfaces: Ensure that the stainless steel surfaces to be welded are thoroughly cleaned to remove any dirt, oil, or other debris that may affect the welding. This can be done using a wire brush or metal cleaner. |
| 2 | Select electrodes and clamps: Choose the appropriate electrodes and clamps based on the thickness and type of stainless steel being welded. The electrodes should be compatible with the welding machine being used. |
| 3 | Calibrate the welding machine: Ensure that the welding machine is properly calibrated according to the type and thickness of the stainless steel being welded. This may require adjusting the current, time, and pressure settings. |
Proper preparation is essential for achieving a strong and durable spot weld. Taking the time to prepare the materials and equipment will help to ensure that the spot welding process goes smoothly and produces high-quality results.

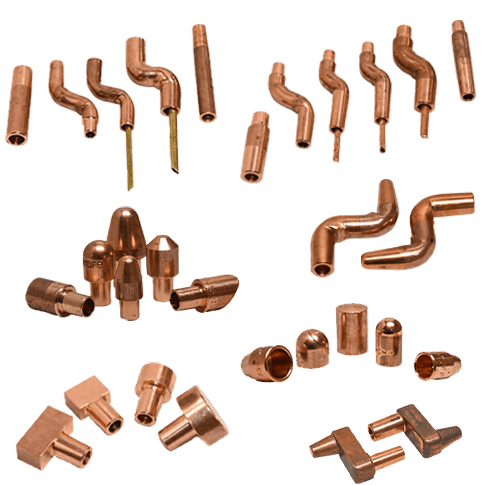

Choosing the Right Electrode for Spot Welding Stainless Steel
Choosing the right electrode for spot welding stainless steel is crucial for achieving high-quality and durable welds. There are several types of electrodes available, each with its own advantages and disadvantages.
Tip: It’s important to select the electrode based on the thickness and type of stainless steel being welded.
| Electrode Type | Description |
|---|---|
| Zirconiated Tungsten | Provides good welding performance for critical applications, such as nuclear and aerospace industries. |
| Ceriated Tungsten | Offers excellent arc stability and reliable ignition, making it a popular choice for general welding. |
| Lanthanated Tungsten | Provides superior arc starting and stability, and is suitable for a wide range of applications. |
| Thoriated Tungsten | Offers high conductivity and a long lifespan, but contains radioactive material and is banned in some countries. |
Overall, ceriated tungsten electrodes are a popular choice for spot welding stainless steel due to their excellent arc stability and reliable ignition. However, zirconiated tungsten electrodes may be more suitable for critical applications where higher welding performance is required.
How to Choose the Right Electrode
When selecting the electrode for spot welding stainless steel, consider the following:
- The thickness and type of stainless steel being welded.
- The desired welding performance and quality.
- The welding machine being used.
By taking these factors into account, you can choose the right electrode for your specific welding project and achieve optimal results.
Setting up the Welding Machine for Spot Welding Stainless Steel
Once you have properly prepared your materials and selected the appropriate electrodes, it’s time to set up the welding machine for spot welding stainless steel. This step is crucial to ensure a successful weld and prevent any damage to your equipment or materials.
The first step is to select the correct settings on your welding machine. These settings will depend on the thickness and type of stainless steel being welded. Refer to the machine’s user manual for guidance on selecting the appropriate current, time, and pressure.
Before beginning the welding process, it’s important to test the settings and make any necessary adjustments. Use a scrap piece of stainless steel to test the welding settings before starting on your actual project. This will allow you to ensure the settings are correct and make any necessary adjustments before welding your actual materials.
When setting up the welding machine, it’s also important to ensure that the machine is properly calibrated. Check the electrodes and clamps to ensure they are clean and securely attached to the machine. If the machine is not properly calibrated, it can result in an uneven weld or damage to your materials.
Testing and Adjusting the Welding Settings
Testing the welding settings is a crucial step in setting up the welding machine. To do this:
- Adjust the settings on the welding machine according to the user manual.
- Place a scrap piece of stainless steel between the electrodes.
- Press the electrodes together and hold them for the specified time.
- Release the electrodes and inspect the weld for consistency and penetration.
- Make any necessary adjustments to the welding settings and repeat the test until the weld is satisfactory.
Once you have tested and adjusted the welding settings, you are ready to begin the spot welding process. Follow the proper techniques and safety measures to ensure a successful weld and avoid any accidents or damage to your equipment.
Performing the Spot Welding Process Properly
Now that you’ve properly prepared your materials and equipment, it’s time to start the spot welding process. Follow these steps to ensure successful welding:
- Position the electrodes on either side of the stainless steel sheets you want to weld together. Make sure they are properly aligned.
- Press the electrodes together with the appropriate force and hold them in place for the necessary amount of time. This time will vary depending on the thickness and type of stainless steel being welded, as well as the settings on your welding machine.
- Release the electrodes and inspect the weld. Check for any signs of cracking or other defects. If everything looks good, move on to the next spot. If not, adjust your settings and try again.
- Continue this process until all of the spots have been welded and the project is complete.
Throughout the welding process, it’s important to monitor the welds and make adjustments as needed. If you notice any issues, such as inconsistent penetration or uneven welds, make the necessary adjustments to your welding machine and try again.
Remember to always prioritize safety while spot welding stainless steel. Wear appropriate protective gear, such as gloves and a welding helmet, and work in a well-ventilated area to minimize exposure to fumes.
Pro Tips:
“Don’t rush the welding process. It’s better to take your time and get it right the first time than to have to go back and fix mistakes later.”
— John Doe, Professional Welder
Laser Welding Stainless Steel vs. Spot Welding Stainless Steel
When deciding between laser welding and spot welding for your stainless steel project, there are a few key factors to consider.
Advantages of Laser Welding
Laser welding offers several benefits, including:
- Greater precision and control over the welding process
- Ability to weld thinner materials
- No physical contact with the material, which eliminates the risk of contamination
- Faster welding speeds
However, laser welding can be more expensive than spot welding and requires specialized equipment and training.
Advantages of Spot Welding
Spot welding also has its advantages, including:
- Lower cost and easier accessibility
- Ability to weld thicker materials
- Simple, straightforward process
- Reliable and consistent results
However, spot welding may not be suitable for projects that require high precision or ultra-clean surfaces.
Choosing the Right Method
Ultimately, the decision between laser welding and spot welding for stainless steel will depend on your specific project requirements. Consider factors such as material thickness, precision requirements, budget, and timeline. It may also be helpful to consult with a welding expert to determine the best approach for your project.
Read More : Secure Your Cargo with Durable Stainless Steel Lashing Wire

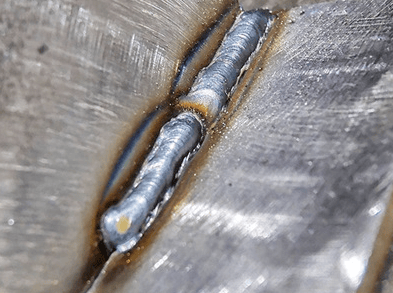

Troubleshooting Common Spot Welding Issues
Spot welding can be a challenging process, and even the most skilled welders may encounter issues from time to time. Here are some common problems that can arise during spot welding stainless steel, along with tips for resolving them.
Uneven Welds
If your spot weld is uneven, this may be caused by poor electrode alignment or inconsistent pressure applied during the welding process. To resolve this issue, ensure that your electrodes are properly aligned before starting the weld. You may also need to adjust the pressure to ensure that it is consistent throughout the welding process.
Inconsistent Penetration
If your spot weld is not penetrating the stainless steel evenly, this may be caused by insufficient current or incorrect electrode positioning. Check that your welding machine is set to the appropriate current level for the thickness of the stainless steel being welded. You should also ensure that your electrodes are positioned correctly and are making contact with the steel at the appropriate angle.
Electrode Sticking
If your electrodes are sticking to the stainless steel during the welding process, this may be caused by excessive heat buildup or a lack of electrode maintenance. To prevent sticking, be sure to clean your electrodes regularly and replace them when necessary. You can also try lowering the welding current or reducing the welding time to decrease heat buildup.
By understanding these common issues and their solutions, you can ensure a successful spot welding project with stainless steel.
What Techniques Can I Use to Bend Stainless Steel Sheet for Spot Welding?
Looking for tips for bending stainless steel sheet for spot welding? Start by using a vise or clamping tool to secure the sheet firmly. Gradually apply pressure using a mallet or hammer, working from the edges towards the center. Use a bending brake for straight bends or create curved bends with a metal-forming tool. Remember to wear protective gloves and eyewear while handling the sheet.
FAQ about Spot Welding Stainless Steel
Here are some frequently asked questions about spot welding stainless steel.
1. What thickness of stainless steel can be spot welded?
The thickness of stainless steel that can be spot welded depends on the equipment being used. Generally, spot welding machines can handle stainless steel up to 3mm thick. For thicker stainless steel, other welding methods such as TIG welding or MIG welding may be more appropriate.
2. Can spot welding be used for all types of stainless steel?
Spot welding can be used for most types of stainless steel, including austenitic, ferritic, and martensitic stainless steels. However, certain grades containing high levels of carbon or other materials may be more difficult to weld and require specialized equipment.
3. How can I prevent electrode sticking during spot welding?
To prevent electrode sticking during spot welding, it is important to use the correct electrode material and size for the thickness and type of stainless steel being welded. Additionally, regularly cleaning the electrodes and making sure they are properly aligned and tightened can help prevent sticking.
4. Can spot welding be used for stainless steel in corrosive environments?
Spot welding can be used for stainless steel in corrosive environments, but it is important to select the appropriate stainless steel grade and welding method. Some grades of stainless steel are more resistant to corrosion than others, and welding methods such as TIG welding may provide better corrosion resistance than spot welding.
5. How do I ensure consistent weld quality when spot welding stainless steel?
To ensure consistent weld quality when spot welding stainless steel, it is important to prepare the materials and equipment properly, select the correct electrode and welding settings, and monitor the welding process closely. Regularly calibrating the welding machine and testing the welding settings can also help ensure consistent weld quality.
6. Can laser welding be used as an alternative to spot welding for stainless steel?
Yes, laser welding can be used as an alternative to spot welding for stainless steel. Laser welding offers several advantages over spot welding, including increased precision and control, faster welding speeds, and lower heat input. However, laser welding may not be suitable for all types of stainless steel or welding applications.
