Welcome to our guide on stainless steel grades, specifically the comparison between stainless steel 201 and 304. Choosing the right stainless steel grade is crucial for achieving the desired performance and appearance of your project.
While both grades are popular choices for various applications, they have distinct differences that can impact their performance, cost, and maintenance requirements. In this article, we will provide an in-depth analysis of stainless steel grades 201 and 304, highlighting their key differences and uses. We will also briefly compare them to grade 430.
Key Takeaways
- Stainless steel grades 201, 304, and 430 have different compositions, properties, and applications
- Understanding the differences between these grades is important for making informed decisions in projects
- Grade 304 is generally preferred for its superior properties, while grade 201 is more cost-effective and suitable for certain applications
- Durability, maintenance, and cost are important factors to consider when choosing a stainless steel grade for your project
What is Stainless Steel?
Stainless steel is a type of alloy that contains iron as the base metal along with chromium, which provides properties such as corrosion resistance, durability, and strength. Other alloying elements such as nickel, molybdenum, and titanium can also be added to enhance specific properties.
Stainless steel was first discovered in the early 1900s and has since become a popular choice for a wide range of applications, including but not limited to construction, automotive, food processing, medical equipment, and aerospace.

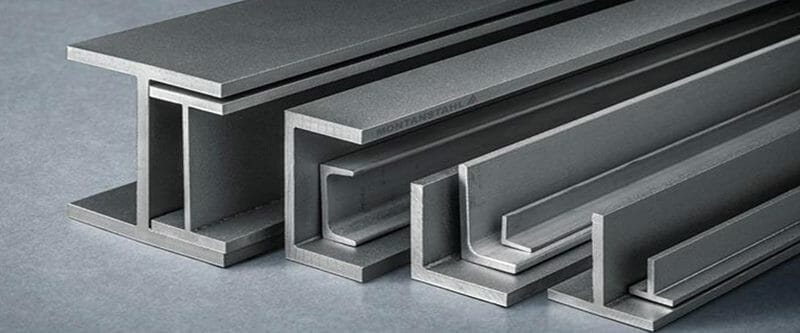

The Composition of Stainless Steel 201
Stainless steel grade 201 is an alloy that contains a mixture of elements, including nickel, chromium, and manganese. It was developed as a less expensive alternative to grade 304, with comparable properties and performance.
Grade 201 has a lower nickel content than grade 304, which makes it less expensive but also less corrosion-resistant. The manganese content in grade 201 helps to stabilize the austenitic structure, making it less likely to crack or deform under stress.
| Chemical Element | Percentage |
|---|---|
| Nickel (Ni) | 5.50-7.50% |
| Chromium (Cr) | 16.00-18.00% |
| Manganese (Mn) | ≤ 5.50% |
| Carbon (C) | ≤ 0.15% |
| Silicon (Si) | ≤ 1.00% |
| Sulfur (S) | ≤ 0.03% |
| Phosphorus (P) | ≤ 0.06% |
Grade 201 is suitable for a wide range of applications, including appliances, automotive parts, and cookware. It can also be used in environments that do not require high levels of corrosion resistance or strength.
Overall, the composition of stainless steel grade 201 makes it a cost-effective solution for projects that do not require the superior qualities of grade 304.

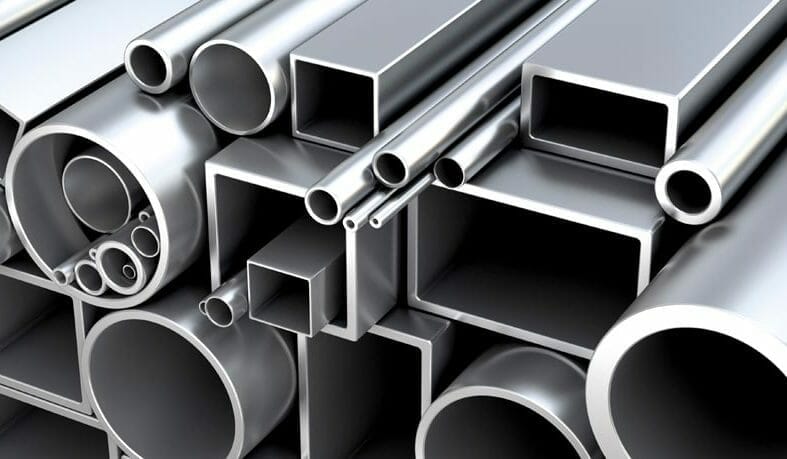

The Composition of Stainless Steel 304
Stainless steel grade 304 is a popular and versatile alloy that is widely used in many industries due to its exceptional combination of corrosion resistance, durability, and aesthetic appeal. It is composed of a high percentage of chromium (18-20%) and nickel (8-10.5%), as well as small amounts of carbon, manganese, silicon, and phosphorus.
The chromium content in grade 304 is responsible for its excellent corrosion resistance, making it suitable for use in harsh environments such as chemical processing plants, coastal areas, and offshore oil rigs. The nickel content provides enhanced ductility, toughness, and resistance to high and low temperatures, making it appropriate for use in cryogenic environments and in applications that require exposure to high heat, such as furnace parts and heat exchangers.
The carbon content in grade 304 is kept low (0.08% max) to prevent carbide precipitation, which can cause intergranular corrosion and compromise the alloy’s performance. The manganese and silicon content promote better formability and weldability. Phosphorus, which is present in small amounts, improves the alloy’s strength and machinability.
Grade 304 is an austenitic stainless steel, which means that it exhibits a face-centered cubic crystal structure at room temperature. This structure results in its characteristic high ductility and toughness, making it suitable for forming and shaping into various structures and components.
In summary, stainless steel grade 304 is an all-purpose alloy that offers exceptional corrosion resistance, durability, and aesthetic appeal. Its composition, which includes high amounts of chromium and nickel, as well as small amounts of carbon, manganese, silicon, and phosphorus, contributes to its superior performance and wide range of applications.
Comparing Key Differences between Stainless Steel 201 and 304
Stainless steel is a durable and versatile material that offers excellent resistance to corrosion, heat, and chemicals. When it comes to choosing the appropriate grade of stainless steel for a specific project, two of the most common options are grades 201 and 304. While they share some similarities, there are also key differences that affect their suitability for different applications.
One of the main differences between grades 201 and 304 is their corrosion resistance. Grade 201 has a lower level of chromium content, which makes it less resistant to corrosion and oxidation than grade 304. This means that grade 201 is more susceptible to rust and staining, especially in harsh environments. Grade 304, on the other hand, contains more chromium and has superior corrosion resistance, making it ideal for applications where hygiene, durability, and longevity are crucial.
Another factor to consider when comparing grades 201 and 304 is their strength. Grade 201 has a lower tensile strength than grade 304, which means it is more prone to deformation and damage under stress. Grade 304, on the other hand, has higher tensile strength and is more robust, making it suitable for high-stress applications like construction, transportation, and industrial equipment.
Appearance is also an important consideration when choosing between grades 201 and 304. Grade 201 has a dull, greyish finish and is not as reflective as grade 304, which has a bright, mirror-like appearance. The visual appeal of grade 304 makes it popular in architectural and decorative applications, where aesthetics are a top priority.
Cost is another factor to consider when comparing grades 201 and 304. Grade 201 is generally less expensive than grade 304, making it a viable option for projects with tighter budgets. However, it is important to consider the long-term costs of maintenance and replacement when choosing a grade of stainless steel.
In summary, while grades 201 and 304 are both stainless steel options, they have distinct differences that make them better suited for different applications. Understanding the differences in corrosion resistance, strength, appearance, and cost is crucial for making informed decisions in selecting the most appropriate grade of stainless steel for your project.
Applications of Stainless Steel 201
Stainless steel grade 201 has gained popularity in recent years due to its affordability and versatility. Its higher manganese content and lower nickel content make it less expensive than grade 304, but also less resistant to corrosion. Despite this, grade 201 can still be used in a wide range of applications where lower corrosion resistance is acceptable.
| Industry | Application |
|---|---|
| Construction | Building materials, facades, roofing, structural components |
| Kitchenware | Cookware, cutlery, sinks |
| Automotive | Exhaust systems, trims, decorative parts |
| Mining and processing | Conveyor belts, screens, filter systems |
Stainless steel grade 201 is also commonly used in railway and transportation industries for its high strength and durability. It can withstand harsh weather conditions, making it ideal for outdoor applications.
Overall, stainless steel grade 201 is a budget-friendly option that can be used in a variety of industries and applications. It is important to consider the level of corrosion resistance required for each project, but grade 201 can provide a cost-effective solution without compromising on quality.

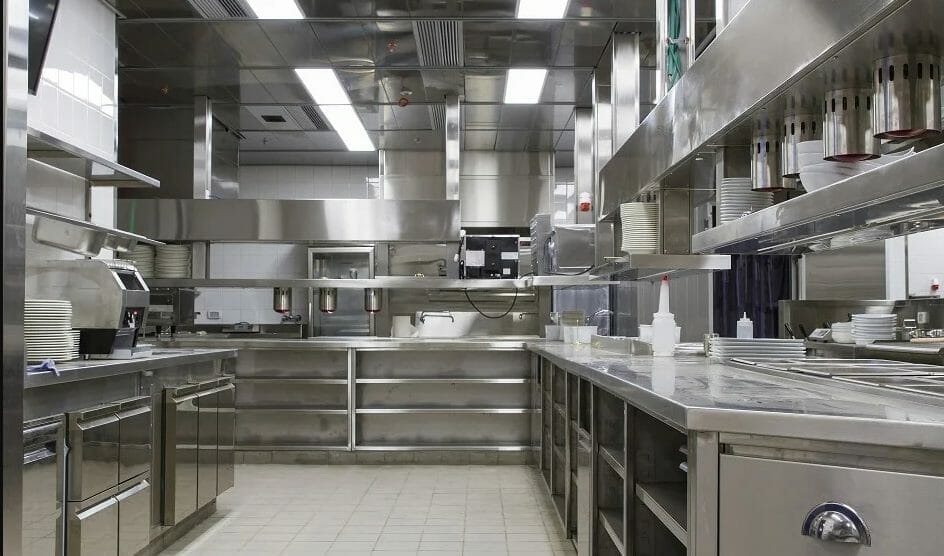

Applications of Stainless Steel 304
Stainless steel grade 304 is the most commonly used stainless steel and has a wide range of commercial and industrial applications. Its excellent corrosion resistance makes it ideal for use in harsh environments, such as marine and chemical processing plants. Additionally, it has a high strength-to-weight ratio, which makes it suitable for structural applications in construction and transportation.
Grade 304 is also widely used in the food and beverage industry, as it is hygienic and easy to clean. Its non-reactive surface prevents the transfer of flavors and contaminants, making it ideal for storage, processing, and packaging of food and beverages. It is also commonly used in medical equipment, such as surgical instruments and implants, due to its biocompatibility and resistance to corrosion and oxidation.
Examples of Applications of Stainless Steel 304:
| Industry/Application | Use of Stainless Steel 304 |
|---|---|
| Architecture/Construction | Structural components, cladding, handrails, sinks, and fixtures |
| Transportation | Automotive trim and exhaust systems, aircraft parts, and railway equipment |
| Food and Beverage | Storage tanks, processing equipment, and packaging materials |
| Medical | Surgical instruments, implants, and diagnostic equipment |
| Chemical Processing | Tanks, valves, and piping systems |
Overall, stainless steel grade 304 offers exceptional performance and versatility, making it a popular choice for a wide range of industries and applications.
Comparing Stainless Steel 201, 304, and 430
Stainless steel is available in a variety of grades, each with its specific properties and performance. In addition to grades 201 and 304, another popular stainless steel grade is 430. While grades 201 and 304 embody different characteristics, 430 is unique in its performance and composition.
| Grade | Composition | Applications |
|---|---|---|
| 201 | Low nickel and high manganese | Food equipment, sinks, cookware |
| 304 | 18% chromium and 8% nickel | Food and beverage, pharmaceuticals, construction, architecture |
| 430 | Low chromium and high carbon | Automotive trim, kitchen appliances, flue liners, chimney caps |
The table above illustrates the differences between these three grades of stainless steel, including their compositions and applications. While grades 201 and 304 are both suitable for food equipment and appliances, grade 430 has distinct uses in automotive and chimney applications.
Additionally, grade 430 has a lower price point than grades 201 and 304, making it a popular choice for cost-conscious projects where the corrosion resistance of grades 201 or 304 is not necessary. However, grade 430 is not suitable for outdoor use or exposure to corrosive environments because of its low chromium content.
Comparing Stainless Steel 201, 304, and 430
When comparing the three grades, 201, 304, and 430, it’s essential to consider their composition, performance, and suitability for specific applications. For instance, while grade 430 is less expensive, it may not be as suitable for outdoor environments as grades 201 and 304. Similarly, while grade 201 is often used for food equipment, grade 304 may be preferred in applications requiring higher corrosion resistance.
“Choosing the right grade of stainless steel is critical to ensuring the durability, longevity, and performance of a project. It’s crucial to assess the specific needs and requirements of a project before deciding on a particular grade.”
Ultimately, the choice between grades 201, 304, and 430 will depend on the specific needs and requirements of the project. By understanding the differences in composition, performance, applications, and cost, individuals can make informed decisions and select the most suitable stainless steel grade.
Read More : High-Quality 430 Stainless Steel Wire – Perfect Applications

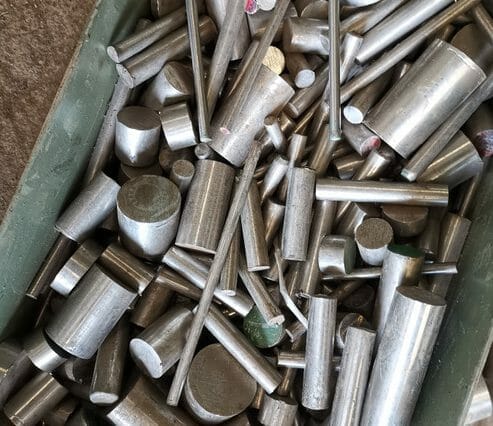

Durability and Maintenance
When it comes to durability, stainless steel is a reliable and long-lasting material. Both grades 201 and 304 offer excellent corrosion resistance, making them ideal for use in wet or humid environments, such as kitchens, bathrooms, and outdoor applications.
However, grade 304 is known for its superior corrosion resistance compared to grade 201. This means that grade 304 is better suited for harsher, more corrosive environments, such as chemical plants or marine applications.
In terms of maintenance, stainless steel is relatively easy to clean and maintain. Both grades 201 and 304 can be cleaned using mild soap and water or a stainless steel cleaner. However, it is important to avoid using abrasive cleaners or scrubbers that could scratch the surface and compromise the corrosion resistance.
| Durability | Maintenance | |
|---|---|---|
| Grade 201 | Good | Easy to clean with mild soaps and stainless steel cleaners |
| Grade 304 | Superior | Easy to clean with mild soaps and stainless steel cleaners |
Grade 430 differs from grades 201 and 304 in terms of its durability and maintenance requirements. While it is less expensive, it is also less corrosion-resistant and more prone to scratching or staining. Therefore, it may require more maintenance and replacement over time, especially in harsh environments.
Overall, the choice of stainless steel grade will depend on the specific application and environment. Consider the level of corrosion resistance needed, as well as the potential maintenance requirements, when selecting the appropriate grade for your project.
Cost Considerations
The cost of stainless steel is an important factor to consider when selecting a grade for a project. The price of stainless steel can vary greatly depending on factors such as composition, availability, and market demand.
Stainless steel 201: This grade is the most affordable of the three, making it a popular choice for applications that do not require the same level of corrosion resistance as 304 or the enhanced properties of 430.
Stainless steel 304: This grade is typically the most expensive of the three due to its superior properties, wide range of applications, and high demand. Its durability and resistance to corrosion make it well-suited for projects requiring long-term use in harsh environments.
Stainless steel 430: This grade falls in between 201 and 304 in terms of cost. It is often used in applications where moderate corrosion resistance is required and where cost is a primary concern.
When deciding on a stainless steel grade, it is important to consider not only the initial cost but also the long-term maintenance and durability of the material. While 201 may initially be a more cost-effective choice for some projects, grade 304’s superior properties and durability may ultimately prove to be a better investment in the long run.
Conclusion
When it comes to choosing the right stainless steel grade for your project, there are many considerations to be made. In this article, we’ve compared the key differences between stainless steel grades 201 and 304, as well as briefly touching on grade 430.
Stainless steel grade 201 offers good corrosion resistance, high strength, and excellent formability and weldability. It’s suitable for applications such as cookware, kitchen equipment, and automotive trim.
Stainless steel grade 304 is the most commonly used grade due to its excellent corrosion resistance, high-temperature resistance, and strength. It’s widely used in industries such as food processing, chemical processing, and construction.
Stainless steel grade 430, while less expensive than grades 201 and 304, has lower corrosion resistance and is not as strong. It’s commonly used in applications where appearance is less important, such as in automotive trim, architectural trim, and electrical appliances.
When considering durability and maintenance, stainless steel grades 201, 304, and 430 all require regular cleaning and proper care to maintain their appearance and functionality. The cost differences between the grades depend on factors such as composition, availability, and market demand.
Overall, understanding the differences between stainless steel grades is crucial for making informed decisions in projects. Whether you’re looking for good corrosion resistance, high strength, or cost-effectiveness, there’s a stainless steel grade that’s right for you.
What Are the Key Differences Between Stainless Steel 201/304 and 305/316?
When it comes to 305 and 316 stainless steel comparison, the key differences lie in their composition and properties. Stainless steel 201/304 is commonly used for general purposes, while 305/316 stainless steel is more suitable for corrosive environments and high-temperature applications. Additionally, 316 stainless steel has better corrosion resistance compared to 305 stainless steel, making it ideal for marine environments and medical equipment.
FAQ
Q: What are the key differences between stainless steel grades 201 and 304?
A: The key differences between stainless steel grades 201 and 304 include their composition, corrosion resistance, strength, appearance, and cost.
Q: What is stainless steel and what are its properties?
A: Stainless steel is a type of steel alloy that contains at least 10.5% chromium. It is known for its corrosion resistance, high strength, and aesthetic appeal.
Q: What is the composition of stainless steel grade 201?
A: Stainless steel grade 201 is primarily composed of chromium, nickel, and manganese. It has lower corrosion resistance compared to grade 304 but offers increased strength.
Q: What is the composition of stainless steel grade 304?
A: Stainless steel grade 304 is composed of chromium, nickel, and small amounts of carbon and manganese. It offers excellent corrosion resistance, high strength, and versatility.
Q: What are the main applications of stainless steel grade 201?
A: Stainless steel grade 201 is commonly used in kitchen appliances, automotive trim, and decorative applications due to its affordability and moderate corrosion resistance.
Q: What are the main applications of stainless steel grade 304?
A: Stainless steel grade 304 is widely used in food processing, pharmaceutical, and construction industries, among others, due to its excellent corrosion resistance and durability.
Q: How does stainless steel grade 430 compare to grades 201 and 304?
A: Stainless steel grade 430 has lower corrosion resistance and strength compared to grades 201 and 304. It is often used in decorative applications due to its lower cost.
Q: What are the durability and maintenance requirements for stainless steel grades 201, 304, and 430?
A: Stainless steel grades 201, 304, and 430 are all durable materials, but their maintenance requirements may vary. Regular cleaning and proper care can help maintain their appearance and functionality.
Q: How do the costs of stainless steel grades 201, 304, and 430 compare?
A: The cost of stainless steel grades 201, 304, and 430 can vary based on factors such as composition, availability, and market demand. Grade 201 is generally more affordable than grade 304, while grade 430 is often the least expensive option.
