Stainless steel mesh is an incredibly versatile and durable material that can be used in a wide range of applications, from filtration to construction. Choosing the right stainless steel mesh size for your specific needs is crucial to achieving optimal performance and longevity. In this article, we will explore the world of stainless steel mesh sizes, provide an overview of common and specialty sizes, guide you on how to choose the right size, and answer commonly asked questions.
Understanding Stainless Steel Mesh Sizes
Stainless steel mesh sizes refer to the number of openings or spaces per linear inch. This number is used to define the mesh size, with a lower number indicating larger openings and a higher number indicating smaller openings.
The mesh size is determined by two key factors: the wire diameter and the opening size. The wire diameter is the thickness of the wire used to make the mesh, while the opening size refers to the space between the wires.
The American Society for Testing and Materials (ASTM) has established standards for mesh sizes, known as ASTM E11. These standards provide a way to ensure consistency and accuracy in measuring mesh sizes.
Wire Diameter and Opening Size
The wire diameter and opening size are crucial in determining the mesh size. The wire diameter is typically measured in microns (μm) or thousandths of an inch (mil). The opening size is usually measured in inches or millimeters (mm).
As the wire diameter decreases, the opening size decreases, resulting in a smaller mesh size. Conversely, as the wire diameter increases, the opening size also increases, resulting in a larger mesh size.
It is important to note that mesh size alone does not determine the quality or effectiveness of the mesh. The wire diameter and opening size must also be considered in determining the mesh’s suitability for a specific application.
Did You Know? The accuracy of wire diameter and opening size measurements can be improved by using a microscope or a mesh gauge.
Common Stainless Steel Mesh Sizes
Stainless steel mesh is available in various sizes to suit different applications. Here are some of the most commonly used stainless steel mesh sizes:
| Mesh Size | Opening Size (inches) | Wire Diameter (inches) | Strands per Inch |
|---|---|---|---|
| 4 Mesh | 0.203 | 0.047 | 4 |
| 10 Mesh | 0.065 | 0.025 | 10 |
| 20 Mesh | 0.034 | 0.0165 | 20 |
| 40 Mesh | 0.015 | 0.010 | 40 |
| 60 Mesh | 0.0075 | 0.0075 | 60 |
| 100 Mesh | 0.0055 | 0.0045 | 100 |
| 120 Mesh | 0.004 | 0.0037 | 120 |
These mesh sizes are commonly used in various industries, including filtration, construction, and automotive. The 4 mesh size, for example, is suitable for heavy-duty screening, while the finer 100 mesh size is ideal for fine filtration applications.
When selecting stainless steel mesh sizes, it’s important to consider the application’s requirements and the specific conditions it will be subjected to. A finer mesh size may be necessary for applications requiring higher levels of filtration, while a larger mesh size may be more appropriate for architectural purposes or for allowing greater airflow.
Choosing the Right Stainless Steel Mesh Size
Choosing the right stainless steel mesh size involves considering several factors, including the desired filtration or screening requirements, visibility, airflow, and strength. Here are some tips to help you select the appropriate size:
- Determine the application: Consider the purpose of the stainless steel mesh. Will it be used for filtration, ventilation, or screening? Each application may require a different mesh size to achieve optimal results.
- Consider the material: The material being filtered or screened may require a specific mesh size to remove all impurities or particles effectively.
- Think about visibility: If visibility is important, select a mesh size that allows enough light to pass through while still achieving the desired level of screening or filtration.
- Factor in airflow: For ventilation or airflow applications, choose a mesh size that allows enough air to pass through as needed.
- Consider the strength: If the stainless steel mesh will undergo high levels of stress or pressure, select a mesh size that can withstand the necessary force.
It’s essential to choose the right stainless steel mesh size to ensure optimal performance and longevity. If you’re unsure which size to select, consult with a supplier or manufacturer who can provide guidance based on your specific needs.

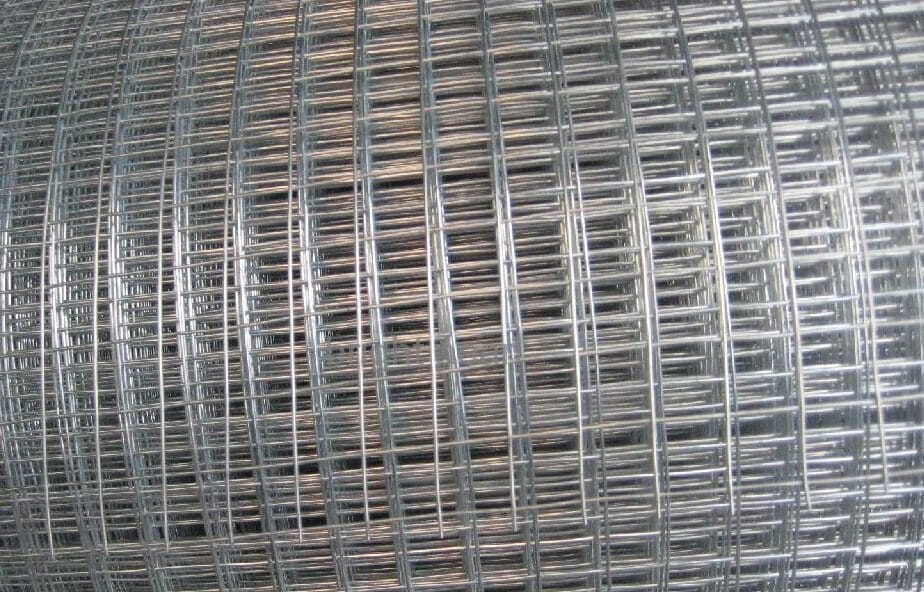

Specialty Stainless Steel Mesh Sizes
In addition to the common stainless steel mesh sizes discussed earlier, there are also specialty mesh sizes to cater to unique applications. These sizes are designed to meet specific filtration or screening requirements.
Ultra-fine Mesh
Ultra-fine stainless steel mesh is used when the smallest possible particle retention is required. It is commonly used in the pharmaceutical and food processing industries for filtering out fine particles that could negatively impact product quality. Ultra-fine mesh is also used in scientific and laboratory settings for precise measurements and experiments.
Larger Mesh Sizes
While smaller mesh sizes are typically used for filtration and screening, larger mesh sizes are often used for architectural and design purposes. Stainless steel mesh can be used as a decorative element in structures such as railings, partitions, and facades. Larger mesh sizes can also be used in industrial settings for ventilation and air flow.
Special Sizes
Some manufacturers offer custom stainless steel mesh sizes for specific applications. For example, mesh can be designed to fit unusual shapes or sizes for unique screening requirements. Special sizes can also be used in scientific and research applications where precise measurements are key.
Custom Stainless Steel Mesh Sizes
While standard stainless steel mesh sizes are suitable for many applications, there are cases where custom sizes are necessary. Luckily, many manufacturers and suppliers offer custom mesh size services to accommodate specific needs.
One benefit of custom sizes is that they allow for greater precision in filtration or screening requirements. Custom sizes can also be tailored to specific visibility, airflow, and strength needs.
However, it’s important to note that custom sizes may come with additional costs, as well as longer lead times for production and delivery. Additionally, some manufacturers may have limitations on what custom sizes they can produce.
If you require a custom stainless steel mesh size, it’s important to work with a reputable manufacturer or supplier who can provide guidance and expertise throughout the process. They can assist with determining your specific needs and limitations, ensuring you receive a custom size that meets your requirements.

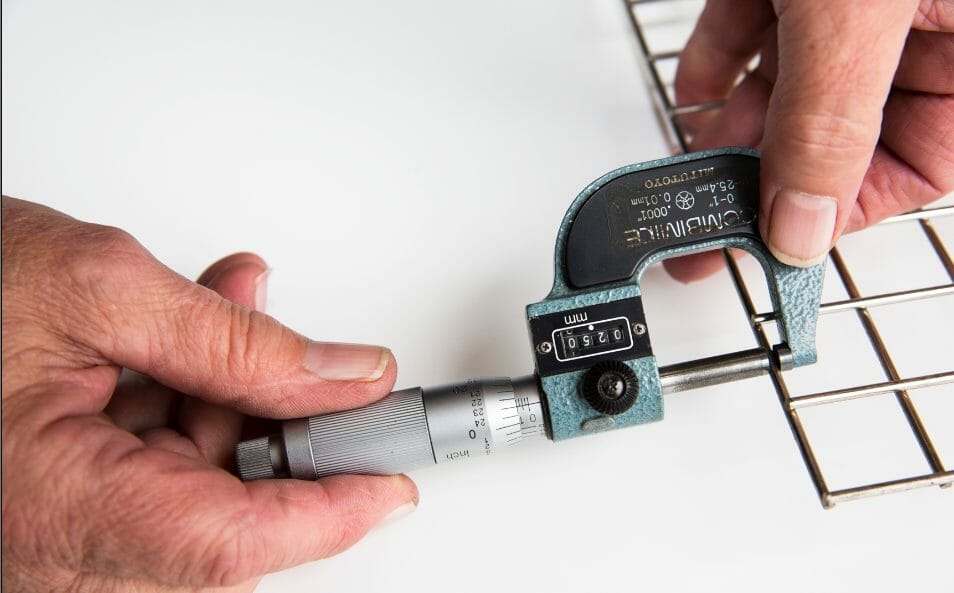

How to Measure Stainless Steel Mesh Sizes
Accurate measurement is key to choosing the right stainless steel mesh size for your needs. Here is a step-by-step guide to measuring mesh sizes:
- Obtain a mesh gauge tool designed for measuring stainless steel mesh sizes.
- Place the gauge tool directly on top of the mesh to be measured.
- Count the number of openings, or squares, in a linear inch of the mesh.
- Measure the wire diameter by using a micrometer or caliper to determine the thickness of the wire.
- Calculate the mesh size by dividing the wire diameter by the number of openings per linear inch.
Additionally, you can measure the opening size by measuring a single opening and calculating the average size of all the openings in the mesh. This method may be more appropriate for larger mesh sizes with fewer openings per inch.
It is important to note that measuring mesh sizes can be challenging due to the inherent variability in wire diameter and opening size. For the most accurate results, take multiple measurements and average them together.
Read More : Enhance Your Grill with Stainless Steel Mesh – Durable and Stylish

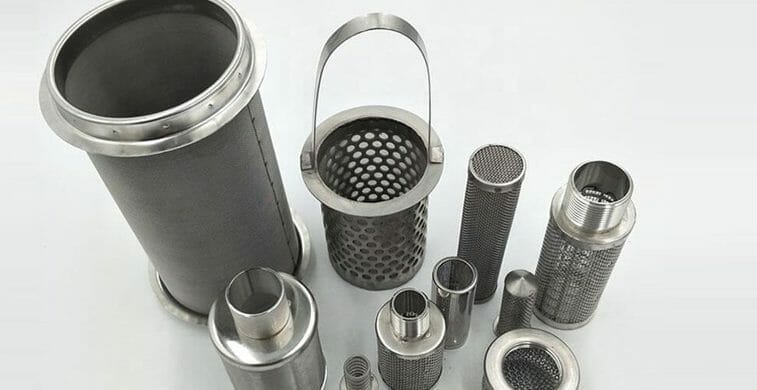

Common Applications for Stainless Steel Mesh
Stainless steel mesh is a versatile material that finds use across a broad spectrum of applications. Its durability and resistance to corrosion make it an excellent choice for filtration, construction, manufacturing, and food processing industries. Below are some common applications of stainless steel mesh:
| Industry | Application |
|---|---|
| Filtration | Stainless steel mesh is used to filter out impurities in liquids and gases. It finds use in water treatment plants, oil refineries, and chemical processing plants. |
| Construction | Stainless steel mesh is used in architecture for facades, sunscreens, and perforated panels. It also finds use in reinforcing concrete to make it more durable. |
| Manufacturing | Stainless steel mesh is used in the manufacturing of machinery, equipment, and tools. It is used to make screens, strainers, and separators. |
| Automotive | Stainless steel mesh is used in car grilles, exhaust systems, and air filters. It is also used for reinforcing tires and reducing road noise. |
| Food Processing | Stainless steel mesh is used in the food industry to make baskets, screens, and strainers. It is also used for conveyor belts and food drying racks. |
These industries benefit from the durability, strength, and corrosion resistance that stainless steel mesh provides. It is a versatile material that can be customized to meet specific needs and requirements.
What Stainless Steel Wire Sizes Are Suitable for Various Applications?
When it comes to choosing the right stainless steel wire sizes for different applications, it is crucial to prioritize high-quality stainless steel wire. Whether you need a small diameter wire for delicate crafts or a thicker one for industrial purposes, selecting the appropriate size ensures optimal performance and durability. From jewelry making to construction projects, the versatility of high-quality stainless steel wire allows it to meet various needs with resilience and reliability.
Frequently Asked Questions about Stainless Steel Mesh Sizes
Q: What is the smallest stainless steel mesh size available?
A: The smallest stainless steel mesh size available is typically 1/8 inch. However, there are some manufacturers who offer mesh with openings as small as 0.001 inches.
Q: Can stainless steel mesh be cut to a specific size?
A: Yes, stainless steel mesh can be cut to a specific size. It is recommended to use a cutting tool that will not leave rough edges that could damage the mesh. Alternatively, some suppliers offer custom cutting services that provide precise sizes and shapes.
Q: What is the most commonly used stainless steel mesh size?
A: The most commonly used stainless steel mesh sizes are 4 mesh, 10 mesh, 20 mesh, and 40 mesh. These sizes provide a good balance between filtration and airflow and are suitable for a wide range of applications.
Q: How do I know which stainless steel mesh size to use for my application?
A: The selection of the appropriate stainless steel mesh size depends on several factors such as the required filtration or screening requirements, visibility, airflow, and strength. It is recommended to consult with a supplier or manufacturer who can help determine the best size based on your specific needs.
Q: Is stainless steel mesh suitable for food processing applications?
A: Yes, stainless steel mesh is suitable for food processing applications due to its corrosion resistance and durability. It is commonly used for filtering and straining food products, such as cheese and juice, and in food packaging and processing equipment.
Q: Can stainless steel mesh be used for architectural purposes?
A: Yes, stainless steel mesh is often used for architectural purposes due to its aesthetic appeal and durability. It is commonly used as facade cladding, sunscreens, and balustrades in buildings and other structures.
Q: What are the benefits of using stainless steel mesh over other materials?
A: Stainless steel mesh offers several benefits over other materials such as high corrosion resistance, durability, and versatility. It can be used in a wide range of applications, from industrial filtration to architectural design, and provides long-lasting performance in harsh environments.
