When it comes to a piping system, safety should always be the top priority. That’s where stainless steel pipe pressure rating comes into play. This vital metric helps determine the maximum pressure that a piping system can handle, ensuring that it operates safely and efficiently. In this article, we’ll explore the importance of stainless steel pipe pressure ratings and provide expert tips for selecting the right rating to maximize safety and avoid costly damage. Let’s dive in!
What is Stainless Steel Pipe Pressure Rating?
Stainless steel pipe pressure rating is a measurement of the maximum pressure that a piping system made of stainless steel can handle without failing. This rating is crucial in ensuring the safety and reliability of the piping system.
The pressure rating is determined by various factors such as the material properties of the stainless steel, the thickness and diameter of the pipe, and the temperature and pressure of the fluid being transported through the system. The rating is typically expressed in pounds per square inch (psi) and can vary depending on the type of stainless steel and its intended use.
It is important to note that the pressure rating is not a one-size-fits-all measurement and may differ for different piping systems. Therefore, it is crucial to consult with experts when selecting the appropriate pressure rating for a specific application.

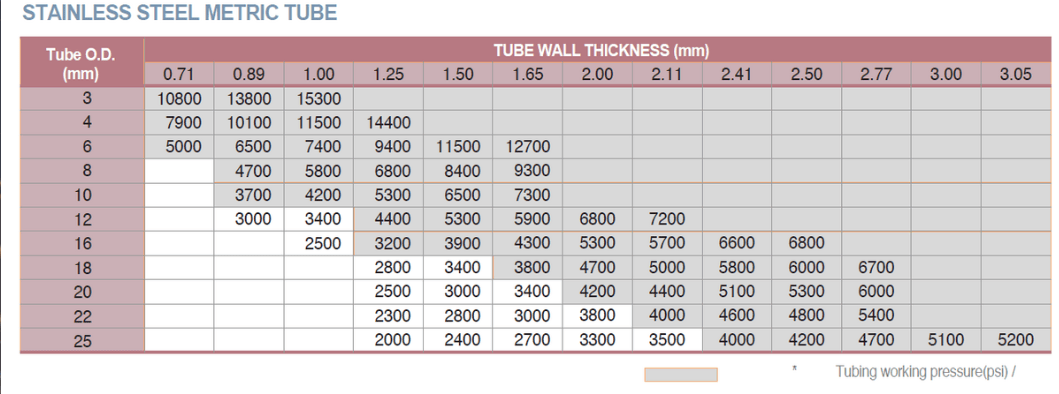

Types of Stainless Steel Pipe Pressure Ratings
There are different types of stainless steel pipe pressure ratings, and it’s important to understand the differences between them. In general, the rating is a measure of the maximum pressure that a piping system can withstand without failing or rupturing.
The different types of stainless steel pipe pressure ratings are:
| Type | Description |
|---|---|
| Pressure Class | This rating is based on the pressure that the piping system can handle at a specific temperature. It is often used for high-pressure applications and is expressed in pounds per square inch (psi). |
| Schedule | This rating is based on the thickness of the pipe walls and is often used for low-pressure applications. It is expressed as a schedule number, with higher numbers indicating thicker walls and a higher pressure rating. |
| Material Grade | This rating is based on the strength and corrosion resistance of the stainless steel material used in the piping system. A higher grade material will have a higher pressure rating. |
It’s important to choose the appropriate type of stainless steel pipe pressure rating for your specific application to ensure safety and compliance. Consult with experts to determine the best option for your needs.

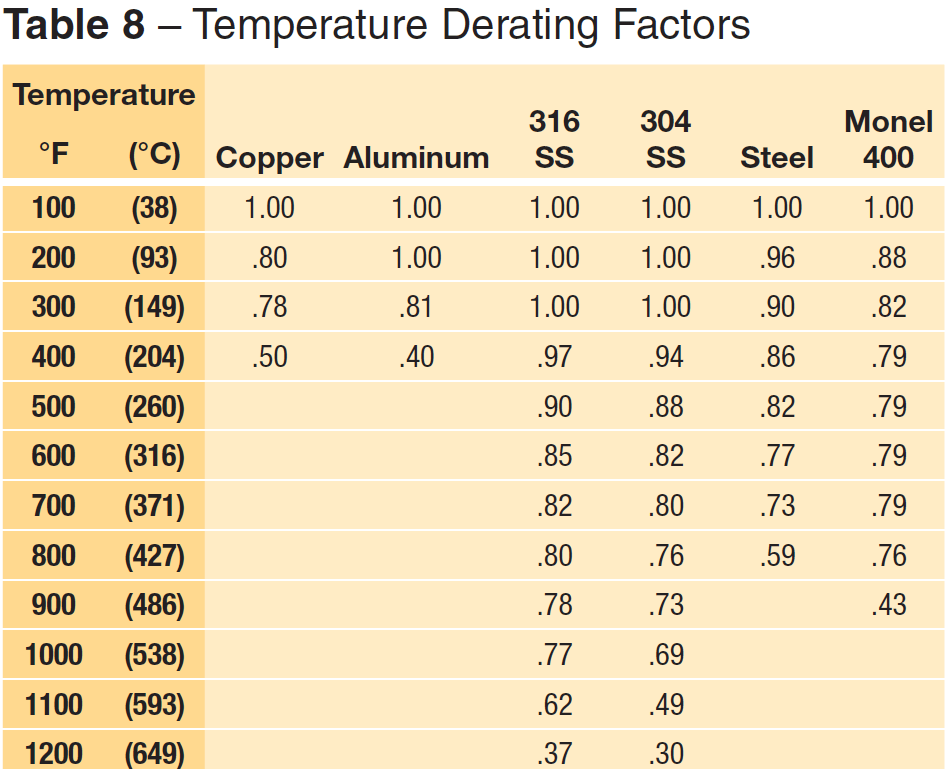

Factors that Affect Stainless Steel Pipe Pressure Rating
There are several factors that can affect the stainless steel pipe pressure rating, which determines the maximum pressure a piping system can handle. These factors must be taken into account when designing a piping system to ensure safety and efficiency. Below are some of the key factors:
| Factor | Description |
|---|---|
| Temperature | The temperature of the fluid transported through the piping system is a major factor that affects the pressure rating. Higher temperatures can cause the stainless steel to weaken and reduce the overall pressure rating. |
| Pipe Diameter | The diameter of the pipe has a direct impact on the pressure rating. Larger diameter pipes can handle higher pressures, while smaller pipes have lower pressure ratings. |
| Wall Thickness | The thickness of the pipe’s wall is another important factor that affects the pressure rating. Thicker walls can handle higher pressures, while thinner walls have lower pressure ratings. |
| Corrosion Resistance | Stainless steel is known for its excellent corrosion resistance, but certain environments or substances can still cause corrosion, which can weaken the pipe over time and reduce its pressure rating. |
| Quality of Welds | The quality of the welds used to join the stainless steel pipes together can impact the overall pressure rating. Poorly executed welds can create weak spots that lower the pressure rating or even cause leaks or ruptures. |
It is important to take these factors into consideration when selecting the appropriate stainless steel pipe pressure rating for a specific piping system. A qualified engineer or piping expert should be consulted to ensure that all of these factors are properly accounted for in the design and installation of the piping system.
Importance of Choosing the Right Stainless Steel Pipe Pressure Rating
Choosing the correct stainless steel pipe pressure rating is crucial for maintaining a safe and efficient piping system. When a piping system is operated under too much pressure, it can cause extensive damage to the system, leading to safety hazards and costly repairs.
On the other hand, if a piping system is designed to handle less pressure than it should, it may not be able to meet the demands of the application, leading to decreased productivity and potentially hazardous situations.
It is essential to choose the right stainless steel pipe pressure rating for your piping system to ensure safety and avoid expensive repairs. This is particularly important in industries such as oil and gas, where high-pressure systems are a common occurrence.
Consulting with Experts
It is important to consult with experts in the field of piping systems to determine the appropriate stainless steel pipe pressure rating for your specific application. Experts can help you identify the right rating based on a range of factors, including operating temperature, pipe diameter, wall thickness, and the type of material used for the pipes.
Expert consultation not only ensures safety and compliance, but it can also lead to the optimization of the piping system, which can lead to significant cost savings in the long run.
Overall, choosing the right stainless steel pipe pressure rating is critical for the safe and efficient operation of your piping system. Consult with experts in the field for guidance on selecting the appropriate rating and ensuring compliance with industry standards.

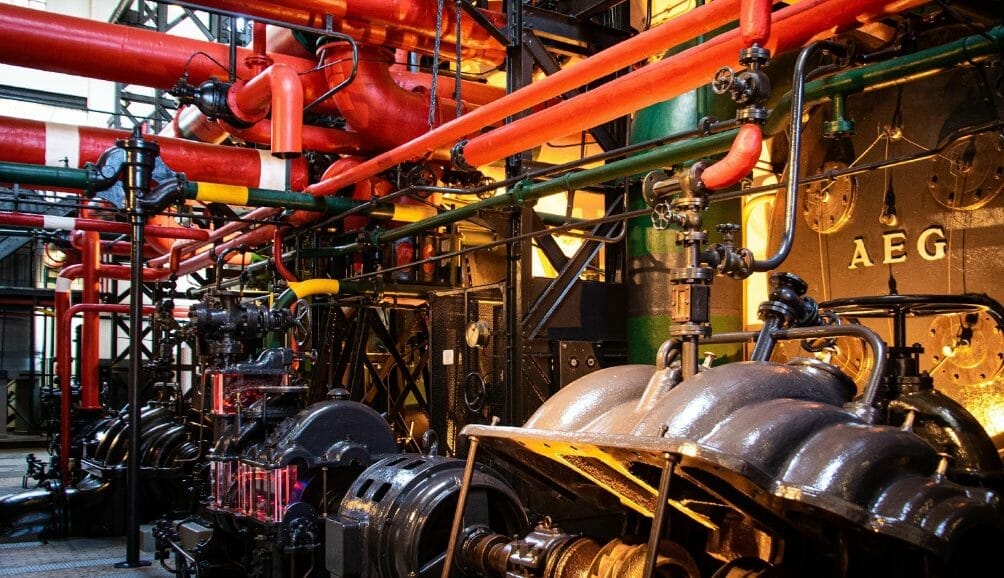

Tips for Choosing the Right Stainless Steel Pipe Pressure Rating
Choosing the right stainless steel pipe pressure rating is crucial to ensuring the safety and integrity of your piping system. Here are some tips to help you make the right decision:
- Consult with an expert: When selecting a stainless steel pipe pressure rating, it’s important to consult with an expert who has experience working with piping systems. They can help guide you in the right direction and make sure you’re choosing a rating that is appropriate for your specific needs.
- Consider the application: The application in which the piping system will be used will have a significant impact on the appropriate stainless steel pipe pressure rating. For example, a system used for high-temperature fluid transfer will require a different rating than a system used for low-pressure air flow.
- Take temperature into account: Temperature can have a significant impact on the pressure rating of the stainless steel pipe. Make sure to choose a rating that is appropriate for the maximum temperature the pipe will be exposed to.
- Take pipe diameter and wall thickness into account: The diameter and wall thickness of the stainless steel pipe can impact the pressure rating. Make sure to choose a rating that is appropriate for the size of your pipe.
- Don’t skimp on quality: It may be tempting to choose a lower pressure rating to save money, but this can be a dangerous decision. Always choose a rating that is appropriate for your needs and meets all safety standards.
Remember, selecting the appropriate stainless steel pipe pressure rating is crucial to ensuring the safety and integrity of your piping system. Don’t hesitate to consult with an expert and always choose a rating that meets all safety standards.

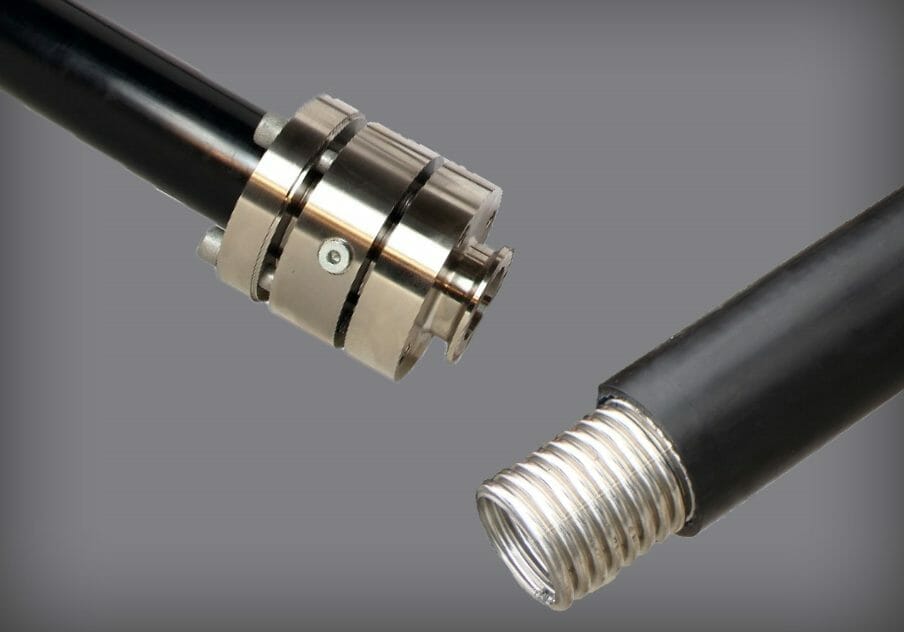

Benefits of Stainless Steel Double Containment Pipe
Stainless steel double containment pipe is an excellent option for those who want to ensure an additional layer of safety for their piping system. It consists of two concentric pipes, where the outer pipe contains the inner pipe, thus providing an extra shield against leaks or ruptures in the inner pipe.
The benefits of using stainless steel double containment pipe are numerous. Firstly, it provides a secondary barrier against leaks, which is particularly important in hazardous materials handling. In the event of a leak, the inner pipe will contain the substance, while the outer pipe will collect it, preventing further damage to the surrounding environment.
Secondly, double containment pipe reduces the risk of contamination from foreign materials, as there is no direct contact between the fluid and the external environment. This feature is critical in high-purity applications, where even the slightest impurity can cause severe damage.
Thirdly, double containment pipe is easy to maintain. The two pipes can be easily separated for inspection, repairs, or replacement. This feature reduces downtime, as maintenance can be carried out without interrupting the flow in the system.
Finally, double containment pipe is customizable to meet specific requirements. It can be designed with various materials, sizes, and shapes, depending on the application. The inner and outer pipes can be made of different materials, such as PTFE, PVC, or PP, to meet various chemical compatibility needs. Customization options extend to pipe routing, as double containment pipe can be bent or cut to fit specific spaces.
Overall, stainless steel double containment pipe is a reliable and effective solution for ensuring maximum safety in your piping system. It provides an additional layer of protection against leaks, reduces the risk of contamination, is easy to maintain, and can be customized to meet unique requirements.
Read More : Double Containment Stainless Steel Pipes – Safe Solutions
Installation and Maintenance of Stainless Steel Pipe Pressure Rating
Proper installation and maintenance of a piping system with a stainless steel pipe pressure rating are essential to ensure its safety and longevity. Below are some best practices to follow:
1. Regular Inspections
Regular inspections are crucial to identify any potential issues or leaks in the piping system. It is recommended to conduct at least annual inspections and more frequently in high-risk environments. During the inspection, check for signs of corrosion, leaks, or damage, and make necessary repairs immediately.
2. Proper Installation Techniques
Proper installation of the piping system is critical to its performance and safety. Ensure that the pipes are correctly aligned, supported, and anchored to prevent movement due to pressure or other external factors. Follow the manufacturer’s instructions and use appropriate materials and tools to avoid damaging the pipes or fittings.
3. Preventative Maintenance
Preventative maintenance can help extend the piping system’s lifespan and avoid costly repairs or replacements. Regularly flush the system to remove any debris or contaminant buildup that can cause corrosion or blockages. Use appropriate cleaning agents and follow the manufacturer’s recommendations.
Note: Always consult with a qualified expert for any installation or maintenance work on a piping system with a stainless steel pipe pressure rating.
How Does Using Stainless Steel Sprinkler Pipes Improve Fire Safety?
Using efficient fire protection sprinkler pipes made of stainless steel is a crucial measure to enhance fire safety. These pipes have remarkable durability and resistance to extreme temperatures, preventing them from bursting or corroding. Their versatility allows them to be used in various settings, ensuring a reliable and efficient fire suppression system. These pipes also possess low thermal conductivity, reducing heat transfer and increasing their effectiveness in containing fires.
Frequently Asked Questions (FAQ)
Q: How do I determine the correct stainless steel pipe pressure rating for my piping system?
A: The correct stainless steel pipe pressure rating is determined by several factors, including the temperature and pressure of the fluid being transported, the diameter and wall thickness of the pipe, and the type of fitting being used. It is important to consult with an expert to ensure the proper rating is selected for your specific system.
Q: What should I do if a stainless steel pipe ruptures or is damaged?
A: If a stainless steel pipe ruptures or is damaged, it is important to shut off the flow of the fluid and assess the extent of the damage. A professional should be contacted to make any necessary repairs or replacements.
Q: Can I use stainless steel double containment pipe for high-pressure applications?
A: Yes, stainless steel double containment pipe can be used for high-pressure applications. This type of pipe provides an extra layer of safety in the event of a leak or rupture, making it ideal for high-pressure systems.
Q: How often should a piping system with a stainless steel pipe pressure rating be inspected?
A: A piping system with a stainless steel pipe pressure rating should be inspected regularly to ensure it is functioning properly and to identify any potential issues. The frequency of inspections will depend on the specific system and its usage, but it is recommended to have inspections at least once every 1-2 years.
Q: Is it necessary to use a specific type of stainless steel for a piping system?
A: Yes, it is important to use the correct type of stainless steel for a piping system to ensure proper performance and longevity. The most commonly used types of stainless steel for piping systems are 304 and 316, which offer excellent resistance to corrosion and high temperatures.
Q: What is the best way to maintain a piping system with a stainless steel pipe pressure rating?
A: Proper installation and maintenance are key to ensuring the longevity and safety of a piping system with a stainless steel pipe pressure rating. Regular inspections, proper installation techniques, and preventative maintenance can help prevent issues before they occur.
