If you’re working on a project that requires stainless steel pipes, it’s crucial to understand the weight of these pipes. The weight of a stainless steel pipe can significantly impact its installation, transportation, and overall structural integrity. In this guide, we’ll provide you with easy-to-follow calculation tips and helpful information on what factors affect the weight of stainless steel pipes.
Key Takeaways:
- Knowing the weight of a stainless steel pipe is crucial in various applications.
- Factors that affect the weight of a pipe include its diameter, wall thickness, and length.
- Calculating the weight of stainless steel pipes involves a specific formula that takes into account the density of stainless steel and the dimensions of the pipe.
Understanding Stainless Steel Pipe Weight
Stainless steel pipes are commonly used in various industries and projects due to their durability and resistance to corrosion. However, it is crucial to understand the weight of these pipes to ensure their safe and efficient use.
The weight of stainless steel pipes can be affected by several factors, including the diameter, wall thickness, and length of the pipe. Additionally, different grades of stainless steel may have varying densities, further influencing the weight of the pipe.
Factors Affecting Weight
One of the key factors that affect the weight of stainless steel pipes is the diameter. Generally, the larger the diameter, the heavier the pipe. The wall thickness also plays a significant role, as thicker walls mean more material and, therefore, a heavier pipe. Another factor is the length of the pipe, as longer pipes will have more material and thus a higher weight.
It is important to consider these factors when calculating the weight of a stainless steel pipe, as the weight will impact the structural integrity, transportation, and installation of the pipe.
Calculation Formula for Stainless Steel Pipe Weight
Calculating the weight of a stainless steel pipe requires a simple formula that takes into account the diameter, wall thickness, and length of the pipe. The density of stainless steel is also a critical factor in the calculation. The formula for calculating the weight of a stainless steel pipe is as follows:
Weight (kg) = (OD – THK) × THK × 0.02466 × L
Where OD is the outer diameter of the pipe, THK is the thickness of the pipe, and L is the length of the pipe. The constant value 0.02466 represents the density of stainless steel in kg/mm3.
Let us take a simple example to understand the calculation of stainless steel pipe weight. Consider a stainless steel pipe with an outer diameter of 10 cm, a wall thickness of 1 cm, and a length of 5 meters. The weight of the pipe can be calculated as follows:
Weight (kg) = (10 – 1) × 1 × 0.02466 × 500
Therefore, the weight of the pipe is 117 kg.
Stainless Steel Pipe Weight Chart
It can be challenging to calculate the weight of stainless steel pipes, especially when considering variations in diameter, wall thickness, and length. To simplify this task, we have provided a comprehensive weight chart for various sizes and schedules of stainless steel pipes. As a result, you can determine the weight of your desired pipe with ease.
| Size (inches) | Schedule | Weight per Foot (lbs) | Weight per Meter (kg) |
|---|---|---|---|
| 1/8 | 10 | 0.14 | 0.20 |
| 1/4 | 10 | 0.40 | 0.60 |
| 3/8 | 10 | 0.67 | 1.00 |
| 1/2 | 10 | 0.85 | 1.27 |
| 3/4 | 10 | 1.30 | 1.94 |
| 1 | 10 | 1.68 | 2.50 |
| 1 1/4 | 10 | 2.27 | 3.38 |
| 1 1/2 | 10 | 2.72 | 4.05 |
| 2 | 10 | 3.68 | 5.48 |
| 2 1/2 | 10 | 5.03 | 7.49 |
| 3 | 10 | 6.56 | 9.78 |
| 3 1/2 | 10 | 8.12 | 12.08 |
| 4 | 10 | 9.74 | 14.50 |
| 5 | 10 | 13.02 | 19.38 |
| 6 | 10 | 16.40 | 24.41 |
Use this chart as a reference for your stainless steel pipe weight calculations. Keep in mind that additional fittings, coatings, or insulation can affect the overall weight of the pipe.
Factors Affecting Stainless Steel Pipe Weight
When calculating the weight of a stainless steel pipe, it’s important to consider various factors that might affect its weight. Here are some potential factors:
- Additional fittings, such as elbows, tees, or flanges, can add weight to the overall system and must be accounted for in the weight calculation.
- Insulation, typically used to maintain temperature in the pipe, can increase the weight of the pipe and should be included in the weight calculation.
- Special coatings, such as corrosion-resistant coatings, may add weight to the pipe and should be factored in when calculating the weight of the pipe.
It’s crucial to consider all these factors while calculating the weight of stainless steel pipes to ensure that the actual weight matches the predicted weight. Failure to account for these factors can lead to problems such as improper pipe support, structural failure, or even safety hazards.
Stainless Steel Pipe Weight Calculation Tips
Calculating the weight of stainless steel pipes can be a daunting task, especially when dealing with large quantities. However, with some practical tips and tricks, you can streamline the process and ensure accuracy. Here are some helpful tips to keep in mind:
- Use a weight calculator: Various online weight calculators can help you quickly determine the weight of your stainless steel pipe. These calculators usually require you to input the dimensions and grade of your pipe.
- Consider the density: The weight of stainless steel varies depending on the grade, with some being heavier than others. Be sure to use the correct density value for the type of stainless steel you are using when calculating the weight of the pipe.
- Account for extra fittings: If your pipe includes additional fittings such as couplings or adapters, be sure to include their weight in your calculation.
- Measure accurately: Ensure that you take accurate measurements of the dimensions of your pipe, including the diameter, wall thickness, and length. Small errors in measurement can lead to significant weight discrepancies.
- Double-check your calculation: Always double-check your calculation to avoid errors. One small mistake can lead to significant problems down the line.
Remember, accurately calculating the weight of your stainless steel pipe is crucial to ensure its safety and functionality. Don’t hesitate to seek expert advice if you’re unsure about any aspect of your calculation.
Importance of Stainless Steel Pipe Weight in Construction
When it comes to construction projects that involve stainless steel pipes, their weight is a crucial factor to consider. The weight of a pipe affects its structural integrity, transportation, and installation. Furthermore, an oversize or undersized pipe can create safety hazards on the job site.
The weight of a stainless steel pipe determines how it behaves under load, which is an essential design consideration. Incorrect weight calculations can lead to pipes that are too weak or too heavy, compromising the safety and stability of the entire structure.
Transporting and lifting heavy pipes can also pose a safety risk to workers. Improper handling can lead to injuries or damage to the pipes, resulting in unnecessary expenses and project delays.
Overall, the weight of a stainless steel pipe is a crucial consideration in any construction project. It’s essential to keep it in mind from the initial design phase to the installation and maintenance stages to ensure that the project is safe, stable, and successful.
Stainless Steel Pipe Pressure Rating
While understanding the weight of stainless steel pipes is crucial, it’s also essential to be aware of the pressure rating of these pipes to ensure their safe and efficient use in your project.
The pressure rating of stainless steel pipes is the maximum allowable pressure that the pipe can handle without any risk of bursting or deformation. This rating varies depending on the pipe’s diameter, wall thickness, and material grade. The pressure rating is typically measured in pounds per square inch (psi) or bar.
It’s important to note that the pressure rating of a stainless steel pipe is not directly related to its weight. However, a pipe’s weight can indirectly impact its pressure rating. A heavier pipe may require additional support, which can affect the maximum allowable pressure it can handle.
Various pressure rating standards exist for stainless steel pipes, including the American National Standards Institute (ANSI) and the American Society of Mechanical Engineers (ASME). Ensure that you understand the pressure rating standards applicable to your project and select pipes that meet or exceed those standards.
Read More : Maximizing Safety with Stainless Steel Pipe Pressure Rating!
Choosing the Right Stainless Steel Pipe Weight
Choosing the right weight for your stainless steel pipe is crucial to ensure optimal performance and safety. There are several factors to consider when selecting a pipe weight, including:
- The intended application of the pipe
- The load requirements of the project
- Industry standards and regulations
It is important to balance weight considerations with strength requirements to ensure the pipe can withstand the intended load without compromising safety. Consider consulting with a professional engineer or manufacturer to determine the appropriate weight for your specific project.
Keep in mind that choosing a weight that is too light may result in structural failure, while choosing a weight that is too heavy may increase transportation and installation costs.
Additionally, it is important to select a weight that meets pressure rating standards for the intended application. Be sure to consult with industry regulations and guidelines to ensure compliance.
By taking these factors into account when choosing a stainless steel pipe weight, you can ensure optimal performance, safety, and longevity for your project.

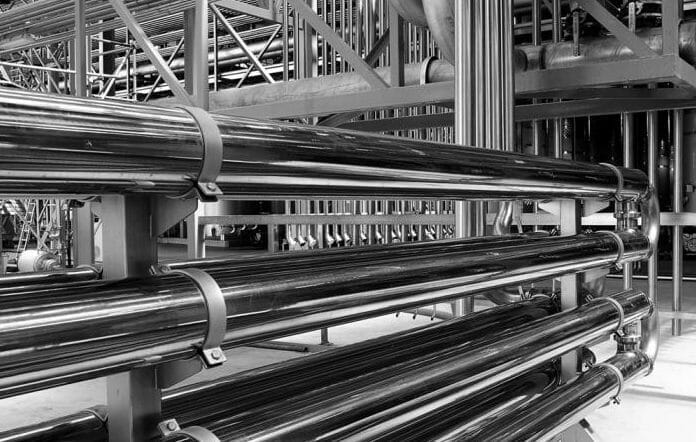

Installation and Handling of Stainless Steel Pipes
Proper installation and handling of stainless steel pipes are crucial to ensure their longevity and structural integrity. This is particularly important considering the weight of the pipes, which can make transportation, lifting, and installation challenging.
Here are some tips to handle stainless steel pipes safely:
- Use appropriate lifting equipment, such as cranes or hoists, to move the pipes around. Ensure the equipment is capable of handling the weight of the pipes.
- Protect the pipes from damage during transportation and handling by wrapping them with blankets or padding.
- Avoid dragging or rolling the pipes, as this may damage the surface or cause them to deform. Instead, lift them to move them around.
- Inspect the pipes thoroughly before installation to identify any damage or defects. Do not install damaged pipes, as this may compromise their structural integrity.
- Ensure proper alignment during installation by using support structures or jigs to hold the pipes in place.
- Use appropriate tools and techniques during welding and other joining processes to prevent heat damage or distortion.
- Check the connections and joints carefully after installation to ensure they are secure and leak-free.
By following these tips, you can handle stainless steel pipes safely and ensure their optimal performance over time.

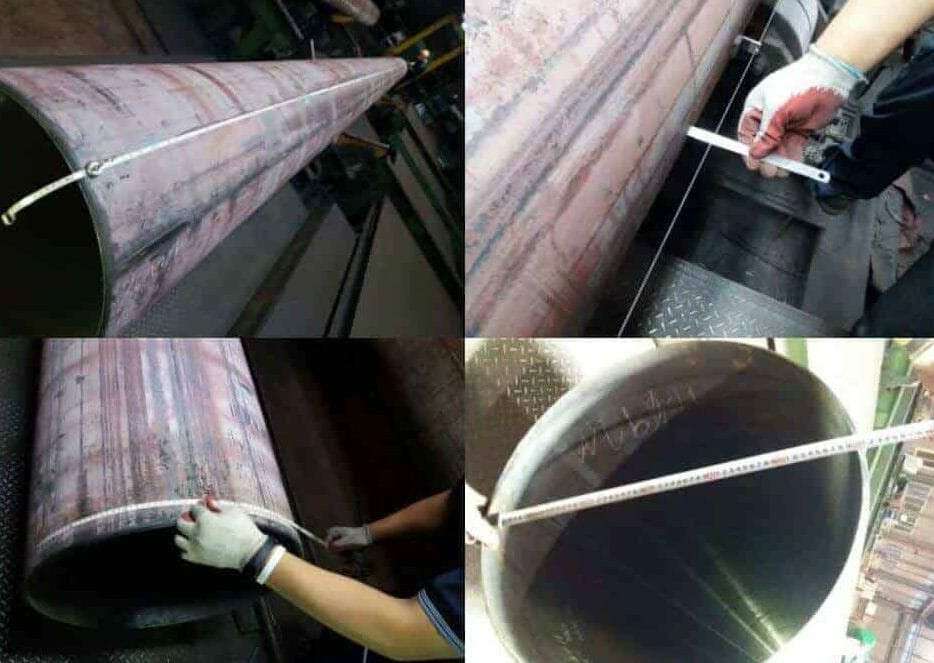

Maintenance and Inspection of Stainless Steel Pipes
Regular maintenance and inspection are crucial for ensuring the longevity and safety of stainless steel pipes. Due to their weight and structural significance, any issues with the pipes can have serious consequences.
Weight fluctuations can be an indication of potential problems, so it’s important to monitor the weight of the pipes over time. It’s also recommended to perform regular visual inspections and non-destructive testing to detect any corrosion, leaks, or other issues.
When conducting maintenance, be sure to use appropriate tools and equipment to avoid damage to the pipes. Avoid using harsh chemicals or abrasive materials that can scratch or corrode the surface of the pipes.
In addition to regular maintenance, it’s important to inspect the pipes after any significant changes, such as modifications or relocation. This ensures that the pipes remain in good condition and continue to function properly.
Conclusion
Understanding and calculating the weight of stainless steel pipes is crucial for any construction project. By following the tips and techniques provided in this guide, readers can ensure they are selecting and handling pipes that are safe, efficient, and appropriate for their specific needs. Remember to consider factors that can affect weight, such as additional fittings or coatings, and always prioritize safety when transporting and installing these pipes.
Regular maintenance and inspection of stainless steel pipes is also essential for their longevity and reliability. By addressing weight fluctuations or signs of damage promptly, readers can prevent potential hazards and ensure their pipes continue to perform optimally.
Apply These Tips Today
We hope this guide has provided valuable insights into understanding and calculating the weight of stainless steel pipes. Don’t hesitate to apply these tips and techniques to your next project for optimal results. If you have any questions or comments, please feel free to reach out to our team for further guidance.
How Does Friction Stir Welding Affect the Weight of Stainless Steel Pipe?
Friction stir welding stainless steel has a significant impact on the weight of a stainless steel pipe. This innovative welding technique allows for a stronger and more efficient bond, resulting in reduced thickness and weight of the welded joint. By eliminating the need for additional material or reinforcements, friction stir welding minimizes the overall weight of the pipe while maintaining its structural integrity.
How Do I Calculate the Weight of a Stainless Steel Pipe?
To calculate the weight of a stainless steel pipe, determine the stainless steel pipe weight per foot. Measure the length of the pipe in feet and multiply it by the weight per foot. This value will give you an approximate weight for the stainless steel pipe.
FAQ
Q: What is the importance of understanding the weight of stainless steel pipes?
A: Understanding the weight of stainless steel pipes is crucial for various applications. It helps determine the structural integrity, transportation requirements, and installation considerations.
Q: How can I calculate the weight of a stainless steel pipe?
A: To calculate the weight of a stainless steel pipe, you can use the formula: Weight = (π/4) x (Diameter^2 – Inside Diameter^2) x Length x Density of Stainless Steel.
Q: Are there any weight charts available for stainless steel pipes?
A: Yes, there is a comprehensive weight chart available for different sizes and schedules of stainless steel pipes. It provides the weight per foot or meter for easy reference.
Q: What factors can affect the weight of stainless steel pipes?
A: Various factors can influence the weight of stainless steel pipes, including additional fittings, insulation, and special coatings. These factors should be taken into account when calculating the overall weight.
Q: Do you have any tips for accurately calculating the weight of stainless steel pipes?
A: Yes, we have some calculation tips to ensure accuracy. Avoid common errors, follow the calculation formula correctly, and consider using shortcuts or techniques that simplify the process.
Q: How does the weight of stainless steel pipes impact construction projects?
A: The weight of stainless steel pipes affects the structural integrity, transportation, and installation in construction projects. It is essential to consider the weight to ensure safety and reliability.
Q: What is the pressure rating of stainless steel pipes?
A: The pressure rating of stainless steel pipes refers to their ability to withstand pressure in different applications. It is necessary to understand the pressure rating in relation to the weight of the pipe.
Q: How do I choose the right stainless steel pipe weight for my needs?
A: Choosing the right stainless steel pipe weight involves considering factors such as the intended application, load requirements, and industry standards. It is crucial to balance weight and strength considerations.
Q: Are there any installation and handling tips for stainless steel pipes?
A: Yes, we have some installation and handling tips to ensure the safe use of stainless steel pipes. This includes proper transportation, lifting equipment, and techniques to prevent damage or injury.
Q: How important is maintenance and inspection for stainless steel pipes?
A: Regular maintenance and inspection of stainless steel pipes are vital. Weight fluctuations can indicate potential issues, and addressing them promptly ensures the longevity and performance of the pipes.
