As a welder, mastering your craft is essential to achieving flawless results. One crucial aspect of welding stainless steel is understanding the importance of selecting the right settings. Choosing the correct welding settings for stainless steel is critical to producing strong, durable welds that are free from defects.
However, understanding stainless steel welding settings can be challenging, especially when welding thin stainless steel. Different grades of stainless steel require different settings to achieve optimal results.
Key Takeaways:
- Mastering stainless steel welding settings is crucial to achieving flawless results.
- Choosing the correct welding settings for stainless steel is critical to producing strong, durable welds that are free from defects.
- Understanding stainless steel welding settings can be challenging, especially when welding thin stainless steel.
Understanding Stainless Steel Welding
Stainless steel possesses unique characteristics that make it challenging to weld. Its high thermal conductivity and low thermal expansion can cause warping and distortion of welded parts. Additionally, the material’s low thermal conductivity can lead to uneven heating and cooling during welding, increasing the risk of cracking.
To overcome these challenges, choosing the right welding settings is crucial. The settings must be carefully adjusted to balance the heat input and control the cooling rate to achieve a proper weld.
When welding thin stainless steel, the challenges are even greater. Thin stainless steel tends to warp and distort more easily than thicker materials because it dissipates heat more rapidly. The welder must use lower amperage settings and maintain proper travel speed to control the heat input carefully and reduce the risk of burn-through.
Choosing the Right Stainless Steel Welding Settings
The key factors that influence the selection of welding settings for stainless steel welding include material thickness, joint design, type of stainless steel, and welding technique. The voltage, amperage, wire feed speed, and shielding gas must be adjusted according to these factors to achieve optimal results.
Get the voltage setting right. The voltage setting determines the weld’s penetration depth, which affects the strength of the weld. Lower voltage settings produce shallower welds, while higher voltage settings produce deeper welds.
Adjust the amperage to control heat input. The amperage setting directly affects the amount of heat input during welding. Too little heat input leads to incomplete melting, while too much heat input can cause burn-through or other heat-related defects.
Select the appropriate wire feed speed. The wire feed speed determines the amount of filler metal deposited in the weld and affects the weld’s size and shape. Adjust the wire feed speed to match the joint’s width and thickness.
Choose the right shielding gas. The shielding gas prevents atmospheric contamination of the weld pool and affects the weld’s appearance and strength. Argon is commonly used for TIG welding, while mixtures of argon and CO2 are used for MIG welding.
Key Factors to Consider
When it comes to stainless steel welding settings, there are several key factors that influence the decision-making process. Understanding these factors is crucial for achieving successful welds. Here are the main things to consider:
- Material thickness: The thickness of the stainless steel will affect the choice of settings. Thicker materials require higher amperage, while thinner materials need lower amperage to avoid burning through the metal.
- Joint design: Different joint designs require different welding techniques and settings. For instance, butt joints require higher amperage than lap joints.
- Type of stainless steel: Various grades of stainless steel have different metallurgical properties, making them respond differently to welding settings. Knowing the type of stainless steel being welded is essential for selecting the right settings.
- Welding technique: Different welding techniques, such as MIG, TIG, and Stick welding, have their unique settings. Choosing the right technique and settings ensures optimal welding results.
Material Thickness
The thickness of the stainless steel is one of the essential factors when determining the welding settings. A general rule of thumb is that thicker materials require higher amperage, while thinner materials need lower amperage. However, welding thin stainless steel can be challenging due to the risk of burning through the metal. Therefore, it is crucial to adjust the settings accordingly to avoid damaging the material.
Joint Design
The joint design also affects the welding settings. For instance, butt joints require higher amperage than lap joints. A butt joint joins two pieces of metal edge-to-edge, while a lap joint overlaps two metal pieces. Lap joints are easier to weld and require lower amperage than butt joints.
Type of Stainless Steel
The type of stainless steel being welded is another critical factor in selecting the right welding settings. The most common types are 304, 316, and 430. Each has its unique metallurgical properties, making them respond differently to welding settings. For example, 316 stainless steel requires lower amperage than 304 stainless steel due to its lower thermal conductivity.
Welding Technique
The welding technique used also determines the welding settings. MIG, TIG, and Stick welding have their unique settings. MIG welding uses a wire feed that is continuously fed through a gun, while TIG welding uses a tungsten electrode. Stick welding, on the other hand, uses a consumable electrode. Knowing which welding technique to use and how to adjust the settings ensures the best results for each application.
Types of Stainless Steel Welding Settings
Setting the correct welding parameters is essential for achieving high-quality welds on stainless steel. There are several types of welding settings that need to be considered, including voltage, amperage, wire feed speed, and shielding gas. Each setting plays a critical role in the welding process and must be adjusted to ensure optimal results.
| Setting | Role | Adjustment |
|---|---|---|
| Voltage | Controls the heat input into the weld. | Lower voltage for thinner material, higher voltage for thicker material. |
| Amperage | Determines the size of the welding arc. | Higher amperage for thicker material, lower amperage for thinner material. |
| Wire feed speed | Controls the rate at which the filler metal is added to the weld puddle. | Adjust based on the thickness of the material and the desired weld bead size. |
| Shielding gas | Protects the welding area from atmospheric contamination. | Select a gas appropriate for the type of stainless steel being welded and the desired weld properties. |
It’s important to understand how each setting affects the welding process and how they can be fine-tuned to achieve the best results. The right settings will depend on various factors, including the material thickness, joint design, type of stainless steel, and welding technique used. With a deeper understanding of each setting, welders can make adjustments to optimize the settings and produce high-quality welds.
Setting Recommendations for Different Stainless Steel Grades
Choosing the right stainless steel welding settings is crucial for achieving strong, durable welds. The type of stainless steel being welded plays a major role in determining the optimal settings for voltage, amperage, wire feed speed, and shielding gas. Here are some recommendations for welding different grades of stainless steel:
| Stainless Steel Grade | Voltage | Amperage | Wire Feed Speed | Shielding Gas |
|---|---|---|---|---|
| 304 | 18-20 | 75-85 | 300-350 | Argon/CO2 or Argon/Helium Mix |
| 316 | 18-20 | 90-100 | 350-400 | Argon/CO2 or Argon/Helium Mix |
| 430 | 18-20 | 50-60 | 200-250 | Argon/CO2 or Argon/Helium Mix |
It’s important to note that these are just general guidelines, and adjustments may need to be made based on the specific welding conditions and desired results. When in doubt, consult with a knowledgeable welding expert to ensure optimal settings for your project.

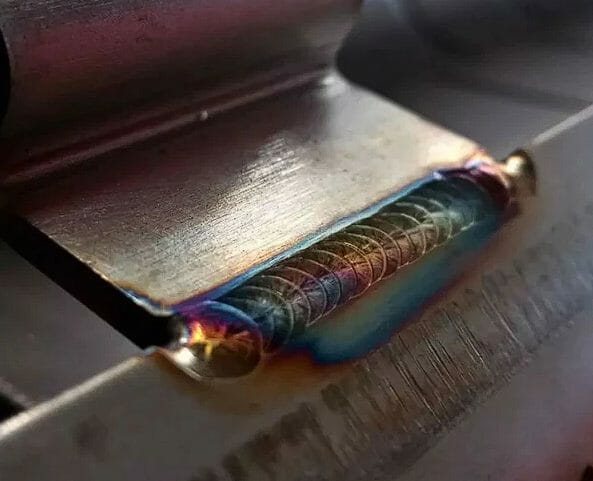

Adjusting Settings for Thin Stainless Steel
Welding thin stainless steel presents unique challenges due to the material’s tendency to distort, warp, or even burn through when exposed to excessive heat. Adjusting the welding settings is critical to achieve successful welds on thin stainless steel. Here are some recommendations:
Voltage
When welding thin stainless steel, voltage should be set lower than for thicker material. A voltage range of 16 to 18 volts is suitable for most thin stainless steel applications. Lower voltage settings help reduce the heat input and minimize distortion or burn through. However, keep in mind that the voltage should not be too low to avoid producing a weak weld or creating defects in the weld bead.
Amperage
Optimal amperage settings for thin stainless steel are generally between 60 and 100 amps. Higher amperage settings are not recommended as they can cause excessive heat input and lead to burn through or warping. However, too low amperage can result in a weak weld. Therefore, it’s crucial to find the right balance when adjusting the amperage settings.
Wire Feed Speed
Wire feed speed should be adjusted based on the welding technique and the joint design. A high wire feed speed can help increase deposition rate and minimize heat input. A slow wire feed speed can result in a cold weld and create defects in the weld bead. It is recommended to use a wire feed speed range of 40 to 100 inches per minute for thin stainless steel.
When adjusting the welding settings for thin stainless steel, it’s essential to have a steady hand and a smooth technique. It’s also advisable to practice on scrap metal to fine-tune the settings before working on the actual project.
Tips for Fine-Tuning Welding Settings
Mastering stainless steel welding settings takes time, practice, and patience. Here are some additional tips for fine-tuning your settings:
- Start with the recommended settings: Always begin with the recommended settings provided by the manufacturer for the particular type of stainless steel you are welding. These settings serve as a good starting point and can be adjusted based on your specific welding scenario.
- Make small adjustments: When fine-tuning your settings, make small adjustments to avoid overcompensating and causing more issues. Small adjustments will help you understand how each change affects the weld pool and result in more precise settings.
- Practice, practice, practice: The more you weld, the more you will understand how the settings affect the welding process. Take note of the impact of any adjustments and make sure to practice on scrap metal before welding on a project.
Remember, every welding scenario is unique, and settings may need to be adjusted accordingly. Practicing and fine-tuning your settings will result in better welds and a better understanding of the welding process.
Troubleshooting Welding Issues
Even with careful consideration of all the key factors and selecting the appropriate stainless steel welding settings, issues can still arise. It’s essential to be able to identify and correct any problems as quickly as possible to avoid making mistakes that could compromise the integrity of the weld.
The most common issues that can occur when welding stainless steel include porosity, lack of fusion, and excessive spatter.
| Issue | Cause | Solution |
|---|---|---|
| Porosity | Air contamination, incorrect gas flow, or dirty materials | Clean and degrease the materials, increase shielding gas flow, and ensure proper gas mixtures are used. |
| Lack of Fusion | Insufficient heat input or incorrect joint preparation | Increase heat input, ensure proper joint preparation, or alter the welding technique. |
| Excessive Spatter | Incorrect voltage or wire feed speed | Adjust the voltage and wire feed speed according to the materials being welded, reduce the travel speed, and clean the wire before using. |
If these issues persist despite making the necessary adjustments, it may be necessary to seek advice from an experienced welder or to practice welding on scrap materials before attempting the final weld.
Remember, proper stainless steel welding settings are essential for achieving successful and long-lasting welds. By understanding the key factors, adjusting the settings accordingly, and troubleshooting any issues that arise, you can master the craft of stainless steel welding and achieve flawless results every time.
Ensuring Weld Quality and Durability
Setting the correct parameters for welding stainless steel is crucial for achieving strong, durable and long-lasting welds. However, just setting the parameters is not enough. Regular inspection and testing are necessary to ensure that the welds are of high quality and meet the required standards.
One of the critical factors to consider when ensuring the quality of a weld is porosity. Porosity is the presence of small bubbles or voids inside the weld, which can weaken the strength of the finished weld. If porosity occurs, it may be due to incorrect settings, insufficient shielding gas, or contaminated weld surfaces. Proper inspection and testing can help identify the cause of porosity and allow for corrective measures to be taken.
Another issue that can affect the quality and durability of a weld is a lack of fusion. If the weld does not penetrate the base material enough, it can create a weak point that can break under load or stress. This issue can arise because of incorrect settings, poor joint preparation, or improper technique. However, by adjusting the settings, making sure the joint is properly cleaned and inspected, and employing the right welding technique, this issue can be resolved.
Excessive spatter during welding is another issue that can impact weld quality and durability. Spatter is the expulsion of molten metal from the weld, which can create a rough, uneven surface finish and weaken the weld. It can be caused by various factors, including incorrect settings, weld wire quality, and welding technique. Fine-tuning the settings, using high-quality wire and employing proper welding techniques can help reduce spatter and ensure a smooth, consistent weld.
Proper inspection and testing are necessary to ensure that the finished weld meets the required standards for strength, durability, and appearance. Various methods can be used to inspect the integrity of the weld, such as visual inspection, dye penetration testing, and X-ray testing. The right method depends on the requirements of the specific welding project.
Ensuring weld quality and durability requires attention to detail and a commitment to using the right welding settings, techniques, and materials. By doing so, the end result will be strong, durable and long-lasting welds.
Conclusion
In conclusion, mastering stainless steel welding settings is crucial for achieving flawless welding results. With a comprehensive understanding of the key factors that influence the settings and the types of settings available, you can adjust the settings for optimal results based on the grade of stainless steel and joint design.
Whether you are welding thin stainless steel or troubleshooting common issues, continuous learning and practice are key to fine-tuning your welding skills. By following the recommendations provided in this guide and regularly inspecting and testing your welds, you can ensure the quality and durability of your work.
Remember, setting the correct parameters for stainless steel welding is a critical aspect of your craft, so take the time to master these skills and continuously improve your techniques. With perseverance and dedication, you can become a master of stainless steel welding settings and achieve flawless welding results every time.
Read More : Master MIG Welding Stainless Steel Settings: Guided Tour
What Are the Best Welding Techniques for Stainless Steel Exhaust?
To weld stainless steel exhaust proficiently, there are several top-notch techniques to consider. TIG (Tungsten Inert Gas) welding offers precise control and a clean finish, but it requires advanced skills. MIG (Metal Inert Gas) welding is faster and more versatile, suitable for thicker materials. Additionally, using a gas mix of helium and argon ensures optimal results. Ultimately, choosing the right technique depends on the specific requirements of the stainless steel exhaust project.
FAQ
Q: What are stainless steel welding settings?
A: Stainless steel welding settings refer to the specific parameters and adjustments that need to be made when welding stainless steel. These settings include voltage, amperage, wire feed speed, and shielding gas selection.
Q: Why are stainless steel welding settings important?
A: Stainless steel welding settings are important because they directly affect the quality and durability of the welds. Choosing the right settings ensures proper fusion, prevents defects such as porosity, and ensures the longevity of the weld.
Q: How do different factors influence stainless steel welding settings?
A: Several factors influence stainless steel welding settings, including material thickness, joint design, type of stainless steel, and welding technique. Each factor affects the choice of settings and requires careful consideration for optimal results.
Q: How can I adjust welding settings for thin stainless steel?
A: Welding thin stainless steel requires specific adjustments to the welding settings. Lower voltages, lower amperages, and slower wire feed speeds are typically recommended to prevent burn-through and achieve successful welds on thin stainless steel.
A: If you encounter welding issues such as porosity, lack of fusion, or excessive spatter, it is likely due to incorrect settings. To troubleshoot these issues, you can adjust the voltage, amperage, or wire feed speed to find the optimal settings that address the specific problem.
Q: How do I ensure weld quality and durability through proper welding settings?
A: Setting the correct parameters for welding stainless steel is crucial to ensure weld quality and durability. By selecting the appropriate settings, you can achieve proper fusion, minimize defects, and ensure the welds can withstand the intended applications.
