Welcome to our expert guide on tig welding copper to stainless steel. While this process can be challenging, with proper technique and preparation, it is possible to achieve a successful weld. In this section, we will provide an overview of the main challenges and considerations involved in tig welding copper to stainless steel, and highlight the importance of proper technique and preparation.
Keep reading to learn more about the properties of copper and stainless steel, the necessary steps for preparing the metals for welding, and how to choose the right filler metal for the job. We will also cover the tig welding equipment that is needed for this process and provide a step-by-step guide for achieving a successful weld. Lastly, we will address some common problems and provide solutions for overcoming them, and answer some frequently asked questions about tig welding copper to stainless steel.
Understanding Copper and Stainless Steel Properties
Before diving into the process of tig welding copper to stainless steel, it’s important to understand the properties of these two metals and how they can affect the welding process.
| Metal | Melting Point (°C) | Electrical Conductivity (MS/m) | Thermal Conductivity (W/mK) |
|---|---|---|---|
| Copper | 1084 | 58 | 401 |
| Stainless Steel | 1510-1570 | 1.45 | 14.4 |
As shown in the table, copper has a lower melting point than stainless steel, which can make it difficult to achieve a proper weld without the copper melting too much. Additionally, copper has higher electrical and thermal conductivity than stainless steel, which can create hot spots during the welding process.
On the other hand, stainless steel has a higher melting point and lower electrical and thermal conductivity, which means that it requires more heat to weld and may be more prone to cracking or warping.
Factors to Consider
When welding copper to stainless steel, it’s important to consider factors such as the thickness of the metals, the type of welding process being used, and the specific requirements of the weld. The thickness of the metals can impact the amount of heat needed to achieve a proper weld, while the type of welding process can affect the speed and accuracy of the weld.
Overall, understanding the properties and characteristics of copper and stainless steel is essential to achieving a successful tig weld between these two metals.

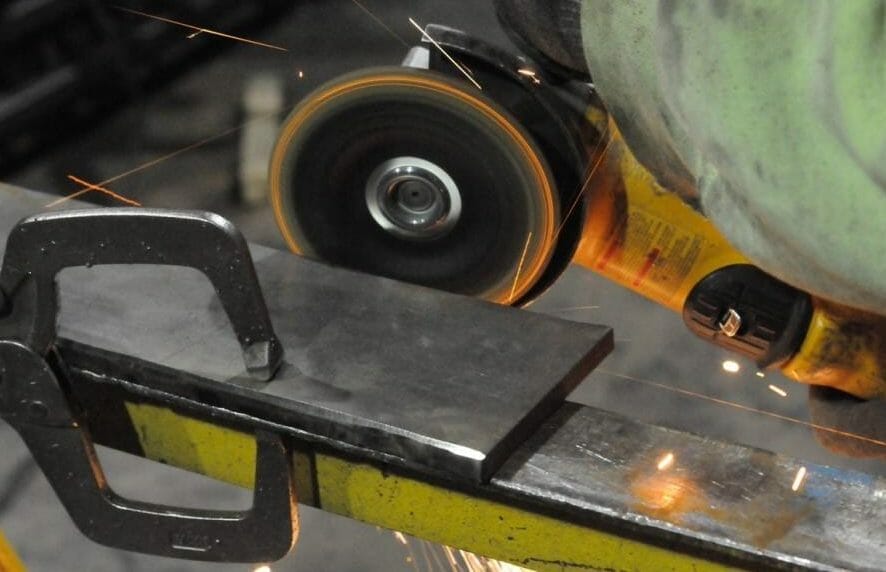

Preparing the Metals for Welding
Before beginning the tig welding process, it is essential to properly prepare the copper and stainless steel metals. Failure to take the necessary steps for preparation can result in a weak weld or even complete failure.
The following steps should be taken to prepare the metals for welding:
- Clean and degrease the surfaces: Use a suitable solvent or degreaser to remove any oil, grease or other contaminants that may be present on the metal surfaces. This will help ensure that the metals are clean and free of any substances that could interfere with the welding process.
- Remove any oxidation or contamination: Use a wire brush or other suitable tool to remove any oxidation or contamination that may be present on the metal surfaces. This will help ensure that the welding process is not affected by any impurities or other unwanted substances.
- Properly align the metals for welding: Make sure that the copper and stainless steel metals are properly aligned for welding. This will help ensure that the welding parameters are correct and that the weld is strong and durable.
Using a Joint Design
One of the most important aspects of preparing the metals for welding is ensuring that the joint design is suitable for the welding process. The joint design will depend on the specific application and the properties of the metals being used.
Some joint designs that may be suitable for tig welding copper to stainless steel include lap joints, butt joints, and T-joints. In general, the joint should be designed to provide adequate support for the weld and to ensure that the welding parameters are appropriate for the specific metals being used.
Protective Measures
It is also important to take protective measures to prevent oxidation or contamination during the welding process. This can be achieved by using suitable welding techniques, such as back-purging or using a purge chamber, to prevent contact between the metals and atmospheric oxygen or other contaminants.
Additionally, it is important to ensure that the filler metal is of high quality and suitable for the specific metals being welded. Using a filler metal that is not appropriate for the metals being welded can result in a weak or defective weld.
Choosing the Right Filler Metal
Choosing the right filler metal is essential for a successful copper to stainless steel tig weld. The filler metal should have similar properties to both metals being welded, including melting point and thermal conductivity. If the filler metal does not match the properties of both metals, the weld may be weak or fail entirely.
Common filler metals used for welding copper to stainless steel include ER309L, ERNiCu-7, and ERCuSi-A. ER309L is a low-carbon stainless steel filler metal, which works well for welding dissimilar metals, such as copper and stainless steel. ERNiCu-7 is a nickel-copper filler metal that is ideal for welding copper to stainless steel because it has the same thermal conductivity as copper. ERCuSi-A is a silicon-bronze filler metal that works well for welding thin copper sheet metal to stainless steel.
When choosing a filler metal, it is important to consider the intended use of the welded joint. If the joint will be exposed to corrosive environments, choosing a filler metal with higher corrosion resistance is essential. Additionally, the thickness of the metals being welded should be taken into account when selecting a filler metal. Thicker metals require a filler metal with more heat input to achieve a successful weld.

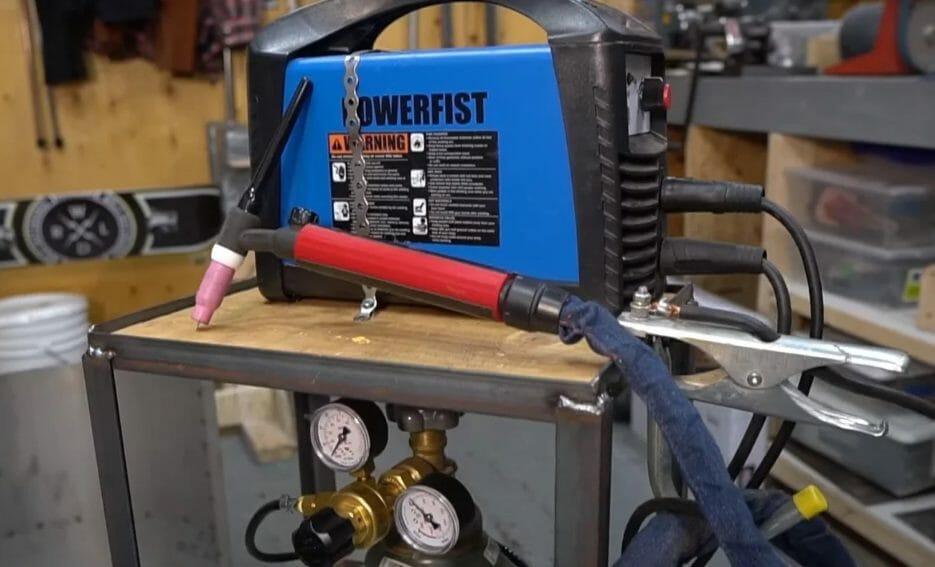

Setting Up the Tig Welding Equipment
Before starting the welding process, it’s important to ensure that you have the right equipment and settings. Here are the key steps to setting up your tig welding equipment:
- Select the appropriate tungsten electrode: When welding copper to stainless steel, a thoriated tungsten electrode is typically the best choice, as it can withstand the high heat levels required for this process.
- Choose the right amperage and voltage settings: The amperage and voltage settings will depend on the thickness of the metals being welded and the type of filler metal being used. It’s important to consult the instruction manual for your welding machine to determine the appropriate settings for your specific application.
- Ensure gas flow rates are correct: The gas flow rate should be set to between 15 and 20 cubic feet per hour (cfh) for most applications. However, this may need to be adjusted depending on the thickness of the metals being welded.
By following these steps, you can ensure that your tig welding equipment is set up properly and ready to use for welding copper to stainless steel. It’s important to double-check your settings before starting the welding process to avoid any potential issues or mistakes.
Techniques for Tig Welding Copper to Stainless Steel
Before starting the welding process, it is crucial to clean and prepare the copper and stainless steel surfaces properly to ensure a successful weld. Once the metals are prepared, it’s time to start welding. Follow these steps for tig welding copper to stainless steel:
- Choose the Right Tungsten Electrode: For welding copper to stainless steel, use a 2% thoriated tungsten electrode as it offers excellent arc stability and better weld quality. Ensure that the tungsten electrode is sharp, and the electrode diameter is appropriate for the thickness of the metals being welded.
- Select the Correct Amperage and Voltage Setting: Since copper and stainless steel have different melting points, it is essential to adjust the amperage and voltage settings of the welding machine accordingly. Select lower amperage and voltage settings to prevent overheating or melting of the copper metal.
- Use Pulse Welding: Pulse welding is suitable for tig welding copper to stainless steel as it helps control the heat input and reduces the risk of overheating. Pulse welding also helps in achieving a more precise weld with better control over the weld pool.
- Ensure Proper Shielding Gas Flow: The shielding gas flow rate must be adequate to prevent oxidation and contamination of the weld pool. Use a mixture of argon and helium gases for copper to stainless steel welding, and ensure that the gas flow rate is set correctly.
- Weld in Short Runs: Welding in short runs reduces the risk of overheating and warping of the metals. Pause between the weld runs to allow the metals to cool down before welding the next run.
- Monitor the Weld Pool: Keep an eye on the weld pool during the welding process to avoid overheating or underheating of the weld. Ensure that the weld pool is not too small or too large, as this can affect the quality of the weld.
Following the above techniques will help you achieve a successful tig weld of copper to stainless steel. It is essential to practice these techniques and be patient with the process to achieve the desired results.
Passivation of Stainless Steel Welds
Passivation is a critical step in the tig welding process, as it helps to ensure that the stainless steel weld is protected from corrosion and contamination. The passivation process involves using a chemical treatment to remove any surface contaminants from the weld and restore the passive layer of chromium oxide that is essential for protecting the metal from corrosion.
Passivating a stainless steel weld involves the following steps:
| Step | Description |
|---|---|
| 1 | Remove any surface contaminants, such as oil or grease, using an appropriate cleaning solution. |
| 2 | Rinse the weld thoroughly with water to remove any residue from the cleaning solution. |
| 3 | Apply a passivating solution, such as citric acid, to the weld surface. |
| 4 | Allow the solution to sit on the surface for the recommended amount of time, typically 30 minutes to an hour. |
| 5 | Rinse the weld thoroughly with water to remove the passivating solution. |
It is important to note that passivation should always be performed after the welding process, as it is not effective in preventing contamination during welding. Additionally, it is recommended that passivation be performed by a professional or experienced welder, as improper passivation can result in damage to the weld or the metal.
Read More : Protecting Your Stainless Steel Welds: Guide to Passivation
Common Problems and Solutions
While tig welding copper to stainless steel can be a challenging process, there are several common problems that can arise that can be overcome with the right techniques and solutions. Here are some of the most frequent issues:
| Problem | Solution |
|---|---|
| Porosity | Ensure that the base metals are clean and free of any contaminants, and adjust the gas flow rates to ensure adequate coverage. Using a filler metal with a lower melting point can also help to prevent porosity. |
| Lack of Fusion | Ensure that the base metals are properly aligned and that the joint is tight. Adjust the amperage and voltage settings as needed, and use pulse welding if necessary. Using a filler metal with a higher nickel content can also help to promote fusion. |
| Cracking | Use a shorter arc length and lower heat input to prevent overheating, and ensure that the metals are properly preheated before welding. Using a filler metal with a lower carbon content can also help to reduce the risk of cracking. |
If you encounter other problems during the tig welding process, be sure to consult with an experienced professional to determine the best solution.
FAQ
Q: What is the best filler metal to use when tig welding copper to stainless steel?
A: The best filler metal to use for this process depends on the specific properties of the metals being welded and the requirements of the weld. It’s important to choose a filler metal with a melting point between that of copper and stainless steel, and to consider factors such as electrical conductivity and thermal expansion. Consult with a welding expert or refer to technical data sheets for specific recommendations.
Q: Can tig welding copper to stainless steel be used for other metals?
A: While tig welding copper to stainless steel is a unique process with specific considerations, similar techniques can be used for welding other dissimilar metals. The key is to understand the properties of the metals being welded and to select appropriate filler metals and welding techniques. Consult with a welding expert or refer to technical data sheets for specific recommendations.
Q: How do I prevent porosity in my weld?
A: Porosity in a weld can be caused by gas trapped in the weld or by contamination from dirt or grease. To prevent porosity, make sure to clean and degrease the metals before welding, and use appropriate gas flow rates and shielding gases. It’s also important to ensure that the welding equipment is set up correctly and that the welding technique is appropriate for the metals being welded.
