When it comes to welding stainless steel, choosing the right welding gas is crucial for achieving optimal results. Tri-mix welding gas, a blend of argon, helium, and carbon dioxide, is a popular choice for TIG welding stainless steel due to its ability to improve weld quality and penetration while reducing spatter. In this expert guide, we will explore the benefits of using tri-mix welding gas for stainless steel and provide practical tips for selecting the appropriate gas blend for your welding project.
Key Takeaways:
- Tri-mix welding gas is a blend of argon, helium, and carbon dioxide commonly used for TIG welding stainless steel.
- This gas blend improves weld quality and penetration while reducing spatter.
- Selecting the right tri-mix gas blend for your welding project depends on factors such as base metal composition, joint configuration, and desired weld properties.
Why Tri-Mix Welding Gas is Essential for Stainless Steel
Welding stainless steel can be a challenging task due to its unique properties, which include high thermal conductivity, low thermal expansion, and relatively low melting point. These characteristics make it more prone to warping, distortion, and cracking during the welding process.
Using the right type of welding gas can help address these challenges and improve the quality and durability of the weld. Tri-mix welding gas, which is a blend of three gases, is considered essential for welding stainless steel.
“Tri-mix gas offers superior welding performance and can help overcome many of the challenges associated with welding stainless steel. The three gases that make up tri-mix gas blend together to create a highly stable arc, which results in a smooth and consistent weld.”
This type of gas is particularly useful for TIG welding stainless steel due to its ability to produce a stable arc with low levels of spatter and high penetration. The three gases that make up tri-mix gas include argon, helium, and carbon dioxide. The ratio of gases used can vary depending on the specific stainless steel grade and thickness being welded.
In the next section, we will provide a more detailed breakdown of the composition of tri-mix welding gas and its benefits for stainless steel welding projects.
Understanding Tri-Mix Welding Gas Composition
Tri-mix welding gas is a blend of three gases that are typically used for TIG welding stainless steel. These gases are argon, helium, and carbon dioxide (CO2).
The right blend of these gases can significantly improve the quality of the weld, and the blend ratio is essential in determining the welding properties such as the weld penetration and bead profile.
Depending on the specific stainless steel grade and thickness being welded, different gas blends are necessary to achieve optimal results.
| Gas Blend | Argon % | Helium % | CO2 % |
|---|---|---|---|
| 90/7.5/2.5 | 90 | 7.5 | 2.5 |
| 98/2 | 98 | 2 | 0 |
| 75/25 | 75 | 25 | 0 |
The 90/7.5/2.5 blend is suitable for welding thicker stainless steel plates and is known for its excellent penetration. The 98/2 blend is best for thin stainless steel sheets, while the 75/25 blend is ideal for general-purpose welding applications.
Additionally, the gases used in these blends can be further modified with small amounts of oxygen or nitrogen to achieve specific welding properties.
“Understanding the composition of tri-mix welding gas is crucial in achieving high-quality welds and preventing costly rework. Choosing the right gas blend is essential to optimize welding parameters and ensure a successful outcome.”

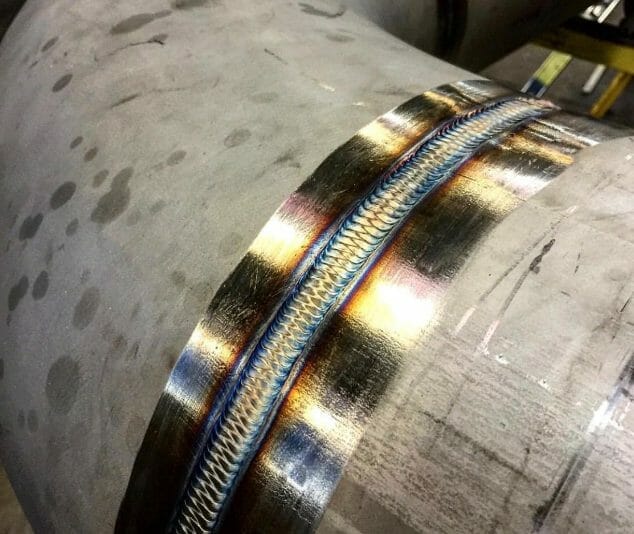

Advantages of Using Tri-Mix Gas for TIG Welding Stainless Steel
When it comes to TIG welding stainless steel, using tri-mix gas can offer a range of advantages over other gas blends. Here are some of the key benefits:
| Advantage | Description |
|---|---|
| Improved Weld Quality | Tri-mix gas blends, with their specific combination of gases and percentages, produce a stable arc and excellent weld pool control. This reduces the risk of defects such as porosity, cracking, or lack of fusion, resulting in higher quality welds. |
| Reduced Spatter | The controlled arc and stable weld pool also minimize spatter, which can be a common problem when welding stainless steel. This not only results in a neater weld appearance but also saves time and effort on post-weld cleaning. |
| Increased Penetration | Tri-mix gas blends, especially those with higher helium content, provide deeper penetration than other gas blends. This makes them particularly useful for welding thicker sections of stainless steel. The increased penetration also means that less heat is required, reducing the risk of distortion or warping. |
Overall, using tri-mix gas for TIG welding stainless steel can help achieve more consistent, high-quality welds with reduced spatter and increased penetration.
Choosing the Right Tri-Mix Welding Gas for Your Stainless Steel Project
Choosing the right tri-mix welding gas for your stainless steel project is essential for achieving the desired results. It is important to consider factors such as the base metal composition, joint configuration, and required weld properties when selecting a gas blend.
The most common tri-mix gas blends for TIG welding stainless steel are 90/7.5/2.5 and 98/2/0.5. The former is suitable for welding thin to medium stainless steel sections while the latter is better suited for thick sections.
For welding duplex stainless steels, a gas blend with higher argon content such as 95/5 is recommended to achieve better penetration.
When welding with pulse TIG, a gas blend with higher helium content such as 90/8/2 is preferable to achieve higher travel speeds and better penetration.
It is important to consult with a welding gas supplier or a technical expert to choose the right gas blend for your specific project.
Handling and Storage of Tri-Mix Welding Gas
When it comes to handling and storing tri-mix welding gas, safety should always be the top priority. Proper procedures must be followed to prevent leaks, spills, and other accidents.
Here are some best practices for handling and storing tri-mix gas:
| Task | Procedure |
|---|---|
| Transporting | Always use a cart or hand truck to move gas cylinders. Never drag or roll them. |
| Storage | Store gas cylinders in a cool, dry, well-ventilated area away from combustible materials and sources of heat or ignition. Cylinders should be secured in an upright position at all times. |
| Handling | Always wear appropriate personal protective equipment (PPE) when handling gas cylinders, including safety glasses, gloves, and a respirator if necessary. Never attempt to repair or modify gas cylinders. Always use the proper regulator and fittings to connect the cylinder to the welding equipment. |
| Usage | Ensure that the gas flow rates and pressure settings are set according to the manufacturer’s recommendations. Always use a leak detection solution to check for gas leaks before starting any welding work. |
By following these guidelines, you can help ensure that your tri-mix welding gas is stored and handled safely, as well as maintaining its quality for optimal welding performance.
Tips for Welding Stainless Steel with Tri-Mix Gas
Here are some tips and techniques for achieving optimal results when welding stainless steel with tri-mix gas:
- Ensure the gas flow rate is set correctly to avoid porosity and ensure proper shielding
- Choose the appropriate electrode for the stainless steel grade and thickness being welded
- Use the proper welding parameters, including amperage, voltage, and travel speed, for the thickness of the material being welded
- Control heat input to avoid overheating and warping of the material
- Prevent contamination from oils, grease, or other substances by thoroughly cleaning the joint area prior to welding
By following these tips, you can ensure high-quality, defect-free welds that meet the requirements of your project.
Common Challenges and Troubleshooting with Tri-Mix Welding Gas
As with any welding process, using tri-mix welding gas for stainless steel can present its share of challenges. Here are some common issues that welders may encounter and tips for troubleshooting:
Porosity
Porosity, the presence of small cavities or voids in the weld, can occur when using tri-mix gas. This can be caused by a variety of factors, including contaminated base metal, inadequate gas flow, or incorrect welding parameters. To minimize porosity, ensure that the base metal is clean and free of any oils or contaminants, adjust the gas flow rate, and adjust welding parameters such as voltage and amperage.
Weld Discoloration
Weld discoloration, often characterized by a blue or brown hue, can occur when welding stainless steel with tri-mix gas. This can be caused by excessive heat input or inadequate shielding gas coverage. To prevent weld discoloration, use proper welding techniques such as controlling heat input, increasing travel speed, and ensuring adequate shielding gas coverage around the entire welding area.
Inadequate Penetration
Inadequate penetration, a lack of fusion between the base metal and weld metal, can occur when using tri-mix gas. This can be caused by using the wrong electrode, incorrect welding parameters, or insufficient gas flow. To increase penetration, use an electrode that is specifically designed for stainless steel welding, adjust welding parameters such as voltage and amperage, and ensure proper gas flow rate.
By following these troubleshooting tips, welders can overcome common challenges when using tri-mix welding gas for stainless steel. With patience and practice, welders can achieve high-quality welds that meet the demands of even the most demanding stainless steel projects.

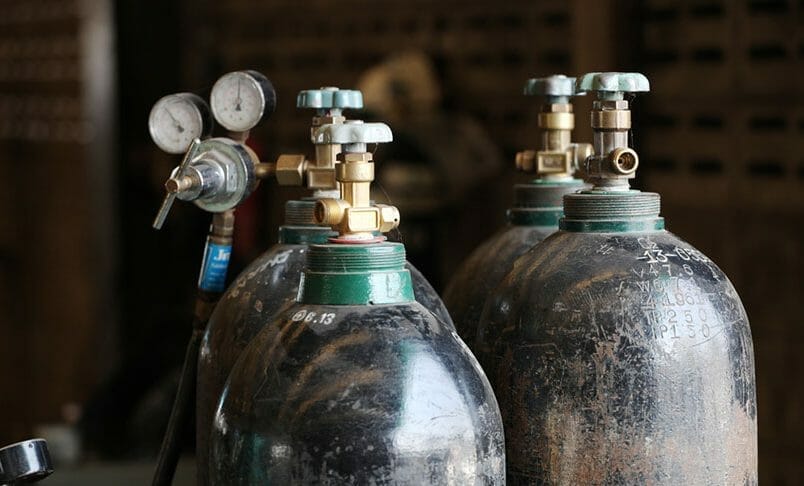

Enhancing Welding Productivity with Tri-Mix Welding Gas
Using tri-mix welding gas can significantly enhance welding productivity for stainless steel projects. By reducing rework and increasing deposition rates, your project can be completed faster, saving time and money. Additionally, the ability to achieve higher travel speeds can help you meet tight project deadlines.
One of the key advantages of using tri-mix gas is that it can help prevent porosity in the weld, which can lead to defects and rework. The gas mixture also generates less spatter, which reduces post-weld cleaning and grinding time.
Another way to increase welding productivity is to optimize gas flow rates. Different stainless steel grades and thicknesses require different flow rate settings, which can be determined through testing and experimentation. In general, lower flow rates can be used for thinner material, while higher flow rates may be required for thicker material or to help prevent oxidation.
The choice of electrode can also greatly impact welding productivity. For example, using a smaller diameter electrode can help achieve faster travel speeds and a higher deposition rate. However, be sure to select an electrode that is compatible with your chosen tri-mix gas blend.
Finally, it’s important to optimize other welding parameters, such as amperage and arc length, to achieve the desired welding outcome. By experimenting with these settings and using the right tri-mix welding gas, you can improve your welding productivity and quality.
Conclusion
Tri-mix welding gas is a crucial component for achieving high-quality welds when working with stainless steel. This gas blend offers unique advantages that make it essential for TIG welding stainless steel, including improved weld quality, reduced spatter, and increased penetration.
Understanding the composition of tri-mix welding gas is key to choosing the right blend for your stainless steel project. It’s important to consider factors such as base metal composition, joint configuration, and desired weld properties when making your selection.
Proper handling and storage of tri-mix welding gas are also critical for safety and maintaining gas quality. Be sure to follow best practices when storing, transporting, and using cylinders to avoid potential hazards.
When welding stainless steel with tri-mix gas, there are several tips and techniques that can help ensure optimal results. Proper gas flow rates, electrode selection, and welding parameters are all important factors to consider.
While using tri-mix welding gas can enhance productivity and reduce rework time, it’s important to be aware of common challenges and troubleshooting techniques. Be prepared to address issues like porosity, weld discoloration, and inadequate penetration to achieve the best results.
In conclusion, tri-mix welding gas is an essential component for achieving high-quality welds when working with stainless steel. By understanding its composition, proper handling and storage, and practical welding techniques, you can create strong, durable welds that meet your project’s requirements.
Read More : What Gas to Use for TIG Welding Stainless Steel: Your Guide
What Welding Gas Should I Use When Stick Welding Stainless Steel?
When stick welding stainless steel, it is essential to choose the right welding gas for optimal results. Argon-based mixtures, such as 98% argon and 2% oxygen, are commonly recommended. These gases create stable arc conditions and improve weld penetration and control. Proper gas selection ensures the successful completion of stick welding stainless steel projects.
FAQ
Q: What is tri-mix welding gas?
A: Tri-mix welding gas is a mixture of gases used in the TIG welding process for stainless steel. It typically consists of helium, argon, and carbon dioxide in specific proportions.
Q: Why is tri-mix welding gas essential for stainless steel?
A: Tri-mix welding gas is essential for stainless steel because it helps overcome the challenges associated with welding this material. It provides improved weld quality, reduced spatter, and increased penetration.
Q: What gases make up tri-mix welding gas?
A: Tri-mix welding gas is typically composed of helium, argon, and carbon dioxide. The specific percentages of each gas may vary depending on the application and stainless steel grade.
Q: What are the advantages of using tri-mix gas for TIG welding stainless steel?
A: Using tri-mix gas for TIG welding stainless steel offers several advantages. It results in improved weld quality, reduced spatter, and increased penetration, leading to stronger and more durable welds.
Q: How do I choose the right tri-mix welding gas for my stainless steel project?
A: Choosing the right tri-mix welding gas for your stainless steel project requires considering factors such as the base metal composition, joint configuration, and desired weld properties. Consult with a welding expert or refer to the gas manufacturer’s recommendations for guidance.
Q: How should I handle and store tri-mix welding gas?
A: Proper handling and storage of tri-mix welding gas is essential for safety and maintaining gas quality. Follow best practices such as storing cylinders in a well-ventilated area, securing them upright, and avoiding exposure to heat or direct sunlight.
Q: What are some tips for welding stainless steel with tri-mix gas?
A: When welding stainless steel with tri-mix gas, ensure proper gas flow rates, select appropriate electrodes, and adjust welding parameters accordingly. Experiment with different settings and techniques to achieve optimal results.
Q: What are common challenges and troubleshooting techniques with tri-mix welding gas?
A: Common challenges when using tri-mix welding gas for stainless steel welding include porosity, weld discoloration, and inadequate penetration. Troubleshooting techniques may involve adjusting gas flow rates, cleaning the base metal, or modifying welding parameters.
Q: How can tri-mix welding gas enhance welding productivity for stainless steel?
A: Tri-mix welding gas can enhance welding productivity for stainless steel projects by reducing rework, allowing for faster travel speeds, and enabling higher deposition rates. This leads to increased efficiency and time savings.
Q: What is the importance of using tri-mix welding gas for stainless steel?
A: Using tri-mix welding gas is important for achieving optimal results in stainless steel welding projects. It ensures improved weld quality, reduces issues like spatter and porosity, and enhances productivity, ultimately leading to stronger and more reliable welds.
