Welding mild steel to stainless can be a challenging task, especially if you’re new to the craft. However, with the right knowledge and techniques, you can successfully join these two dissimilar metals. This comprehensive guide will provide you with expert tips and step-by-step instructions to ensure a strong and enduring weld.
Key Takeaways
- Understanding the differences between mild steel and stainless steel is crucial before starting the welding process.
- Proper cleaning and preparation of metals are essential for a successful weld.
- Choosing the right welding method and filler material is important for optimal results.
- Setting up your welding equipment correctly creates a stable and controlled welding environment.
- Ensuring weld quality and strength is paramount in any welding project.
Understanding the Differences between Mild Steel and Stainless Steel
If you’re planning to weld mild steel to stainless, it’s important to understand the differences between these two metals. While mild steel is a carbon-based alloy that is strong and durable, it tends to corrode quickly and can rust easily. Stainless steel, on the other hand, contains a high percentage of chromium and has excellent resistance to corrosion and rusting. This makes it ideal for applications where hygiene and aesthetic appeal are paramount.
When it comes to welding mild steel to stainless steel, the differences between the two metals can pose some challenges. For instance, mild steel has a lower melting point than stainless steel, so the welding process must be carefully managed to avoid overheating and burn-through. Additionally, mild steel and stainless steel have different coefficients of thermal expansion, which can cause distortion and cracking during welding.
However, despite these challenges, it is possible to successfully weld mild steel to stainless steel with the right techniques and equipment. By choosing the appropriate welding method and filler material, properly prepping the surfaces, and controlling heat input, you can achieve a strong and durable weld that will stand the test of time.
Preparation is Key: Cleaning and Prepping the Metals
Proper preparation is essential in achieving a successful weld when joining mild steel to stainless. The metals must be cleaned and prepped adequately to assure optimal welding conditions. The following steps outline the cleaning and prepping procedure:
- Cleaning the Metals: Clean the metals to remove rust, dirt, oil, and other impurities that can affect the welding process. This can be done through grinding, wire brushing, or using a solvent to clean the surface.
- Preparing the Metals: Once the metals are clean, grind the surface around the weld area for a smooth and clean surface. Prepping the metals will assure that the welds will hold and create a strong bond.
- Degreasing the Metals: The metals should be free from oil and other contaminants. If the metal has oil or grease left on the surface, it can cause porosity and weaken the weld.
- Surface Finishing: Finishing the surface should be done after the cleaning and prepping process. The surface should be smooth for the welding process to proceed smoothly.
Following these steps will ensure that your metals are ready for welding, and the welding process will be successful.
Selecting the Right Welding Method and Filler Material
When it comes to welding mild steel to stainless, selecting the right welding method and filler material is crucial to achieving a strong and durable weld. Here are some of the most common options:
Tungsten Inert Gas (TIG) Welding
TIG welding is a popular choice for welding mild steel to stainless. It uses a tungsten electrode to create an arc that melts the metals, while a filler material is added manually. TIG welding offers better control over heat input and produces clean welds with minimal spatter.
Metal Inert Gas (MIG) Welding
MIG welding is another commonly used method for welding mild steel to stainless. It uses a wire electrode that’s fed through a spool, and is combined with a shielding gas to protect the weld from atmospheric contamination. MIG welding is relatively fast and easy, and can be used for both thin and thick metals.
Stick Welding (Shielded Metal Arc Welding)
Stick welding is a traditional welding method that involves using a stick-shaped electrode coated in flux to create an arc. The flux melts and forms a protective shield around the weld, preventing atmospheric contamination. Stick welding can be used for thicker metals and is a good option for outdoor welding, but it can be challenging to control the heat input and produce clean welds.
When selecting a filler material, it’s important to choose one that’s compatible with both the mild steel and stainless steel being welded. Some common filler materials include:
- ER308L: a popular choice for welding 304 stainless steel to mild steel
- ER312: recommended for welding dissimilar metals, such as stainless to mild steel or stainless to cast iron
- ER309L: used for welding similar materials, such as stainless to stainless or mild steel to mild steel
It’s important to consult with a welding expert or refer to the filler material’s documentation to ensure it’s the right choice for your specific application.

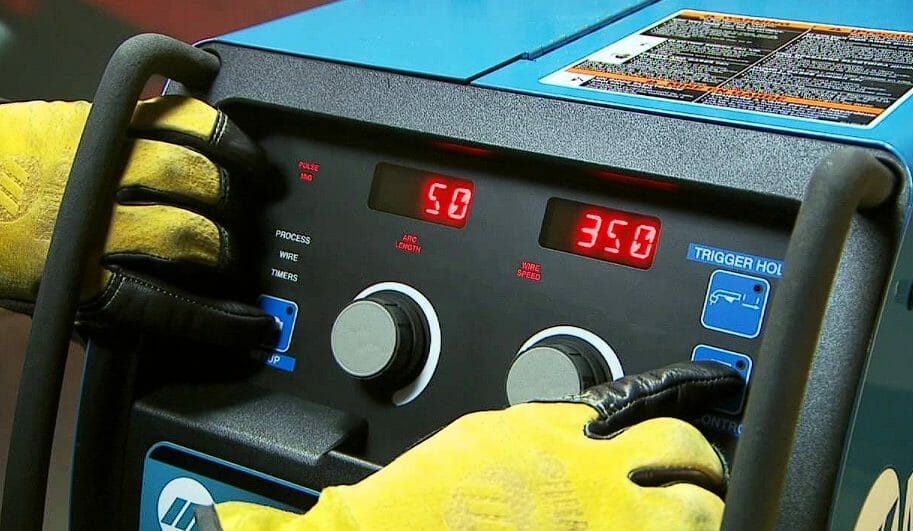

Setting Up Your Welding Equipment
Before you start welding mild steel to stainless, it’s important to have your equipment set up properly. The right setup will help you achieve a stable and controlled welding environment, and ultimately improve the quality of your weld.
Choosing Your Welding Machine
The first step in setting up your welding equipment is selecting the right welding machine. TIG welding is a popular method for welding mild steel to stainless, and it requires a TIG welding machine. Alternatively, MIG welding or stick welding can also be used, depending on the specific requirements of your project.
Adjusting Voltage and Amperage Settings
Once you’ve chosen your welding machine, you’ll need to adjust the voltage and amperage settings to suit your welding task. This will depend on the thickness of the metals you’re welding, as well as the welding method you’ve chosen. Be sure to consult the manufacturer’s instructions and use a welding chart to ensure you set the correct settings.
Grounding Your Welding Equipment
Proper grounding is an essential part of setting up your welding equipment. This ensures that the electrical circuit is complete and the welding machine can function effectively. To ground your welding equipment, attach the ground clamp to a clean metal surface near the welding area.
Using Adequate Electrical Power
Finally, ensure that your welding equipment is hooked up to an adequate power supply. This will depend on the specific requirements of your welding machine, so check the manufacturer’s instructions and use a power calculator to determine the appropriate power source.

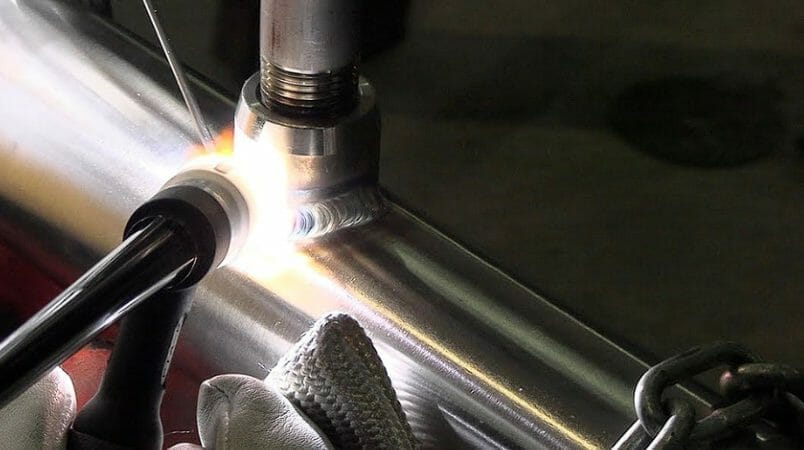

Welding Mild Steel to Stainless: Step-by-Step Process
Now that you have cleaned and prepped both mild steel and stainless steel, selected the right welding method and filler material, and set up your welding equipment, it’s time to dive into the welding process itself. Follow these step-by-step guidelines for a successful weld.
Tack welding and creating proper joint
Begin by tack welding the pieces together to ensure proper alignment. Once the tack welds are in place, create a proper joint by grinding the edges to form a bevel. The bevel should be sharp and clean to ensure a strong weld.
Managing heat input and controlling welding bead
When welding mild steel to stainless, it’s important to manage heat input to prevent warping and distortion. Start welding at a lower amperage, gradually increasing to the required level, and then reduce the amperage again as you near the end. This will help prevent the base metals from overheating. Additionally, controlling the welding bead is essential for a clean and strong weld. Move the torch or gun at a consistent speed, maintaining a uniform welding bead.
Proper penetration and fusion
Proper penetration and fusion are essential for a strong weld. Ensure that the weld penetrates both pieces of metal and is deep enough to create fusion between them. Use a filler material that is suitable for both mild steel and stainless steel to ensure proper fusion and strength.
Weld cleanup and inspection
After the weld is complete, allow it to cool and then clean up any slag or debris. Inspect the weld for uniformity and strength, and make any necessary repairs. Once you are satisfied with the weld quality, you can move on to the next step of your project.
Following these step-by-step guidelines will help you achieve a successful weld when welding mild steel to stainless. Remember to be patient, take your time, and prioritize weld quality and strength.

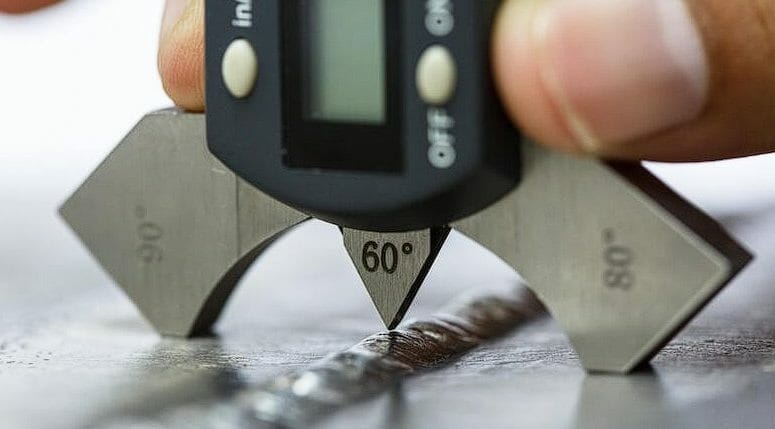

Ensuring Weld Quality and Strength
When it comes to welding, quality and strength are paramount. To make sure your weld is up to standard, there are several factors to consider.
First, proper penetration is essential. This means that the weld should reach the base metal, ensuring the two metals are firmly joined together. If there is inadequate penetration, the weld may not be strong enough to withstand stress and strain.
Secondly, fusion is also crucial. This refers to the bonding of the two metals at the molecular level. Without proper fusion, the weld may have defects, making it vulnerable to cracking and breaking.
Lastly, weld reinforcement is necessary to ensure proper strength. Reinforcement involves adding extra material to the weld, making it thicker and stronger. This is particularly important for welds that are subjected to heavy loads and stresses.
After completing your weld, it’s important to inspect and test it to ensure it meets the required standards. You can use visual inspection, x-rays, or ultrasonic testing to check for defects such as porosity, cracking, or lack of fusion.
By prioritizing weld quality and strength, you can ensure that your welds are strong and reliable, providing lasting results.
Can You Weld Aluminum to Stainless Steel?
While it’s possible to weld aluminum to stainless steel, it’s not recommended due to the significant differences in their physical and chemical properties. Aluminum has a lower melting point than stainless steel, and it tends to fuse poorly with stainless steel during welding. The two metals also have different coefficients of thermal expansion, which can lead to cracking and distortion during the welding process.
However, if you must weld aluminum to stainless steel, there are a few techniques to consider. One approach involves using a dissimilar metal filler rod, such as aluminum bronze, to create a strong bond between the two metals. Another method is to use a specialized welding technique called friction welding, which utilizes friction and pressure to join the two metals without melting them.
Regardless of the method you choose, it’s essential to take extra precautions when welding aluminum to stainless steel. This includes ensuring proper surface preparation, controlling heat input, and carefully monitoring the welding process to avoid cracking and distortion.
Conclusion
Welding mild steel to stainless can seem like a daunting task, but with the right knowledge and techniques, you can achieve excellent results. Understanding the differences between the two metals is key, as is properly prepping the surfaces and selecting the right welding method and filler material. By following a step-by-step process and prioritizing weld quality and strength, you can create strong and durable welds.
Remember to conduct thorough inspections and tests to ensure your weld meets the required standards. Additionally, while it’s not advisable to weld aluminum to stainless steel, we hope this guide has provided you with valuable insights into the world of welding. Happy welding!
Read More : Exploring Welding : Can Stainless Steel Welded Mild Steel?
Can I Use the Same Welding Techniques to Weld Aluminum to Stainless Steel?
When it comes to welding aluminum to stainless steel, it is important to follow a precise welding aluminum to stainless steel guide. Due to their different physical properties, such as melting points, using the same welding techniques may not yield desired results. Therefore, it is crucial to understand the specific techniques required for achieving a successful weld between these two distinct materials.
What Are the Best Techniques for Welding Stainless Steel to Mild Steel?
Friction stir welding stainless steel guide: When it comes to joining stainless steel to mild steel, several techniques stand out. One of them is friction stir welding, a solid-state joining process that offers several advantages. By utilizing a rotating tool to generate frictional heat, the process creates a strong bond between the two materials without the need for filler metal. This technique is particularly beneficial due to its ability to minimize distortion and offer excellent mechanical properties in the resulting weld.
FAQ
Q: Can I weld mild steel to stainless steel?
A: Yes, it is possible to weld mild steel to stainless steel. However, it requires the correct techniques and knowledge to achieve a successful weld.
Q: What are the differences between mild steel and stainless steel?
A: Mild steel and stainless steel have distinct properties. Mild steel is less resistant to corrosion and has lower strength compared to stainless steel, which is more corrosion-resistant and has higher strength.
Q: How do I clean and prep the metals before welding?
A: Properly cleaning and prepping the surfaces is essential. This includes removing rust and impurities, surface grinding, and degreasing to ensure a clean and weld-ready surface.
Q: What welding method and filler material should I use?
A: The choice of welding method and filler material depends on the specific project. Options include TIG welding, MIG welding, and stick welding, and the right filler material should be selected for a strong and durable weld.
Q: How do I set up my welding equipment?
A: Setting up your welding equipment involves selecting the right machine, adjusting voltage and amperage settings, and ensuring proper grounding to create a stable welding environment.
Q: What is the step-by-step process for welding mild steel to stainless?
A: We will provide a detailed guide that covers tack welding, creating a proper joint, managing heat input, and controlling the welding bead, among other essential aspects of the welding process.
Q: How can I ensure the quality and strength of my weld?
A: Key factors to consider include proper penetration, fusion, and weld reinforcement. We will also provide tips for inspecting and testing your weld to ensure it meets required standards.
Q: Can I weld aluminum to stainless steel?
A: Welding aluminum to stainless steel is not recommended due to the challenges involved in joining these dissimilar metals.
