Welding 2205 duplex stainless steel requires a unique set of skills, knowledge, and expertise to produce high-quality welds. In this article, we have gathered insights from industry experts to provide you with the ultimate guide on mastering the art of welding 2205 duplex stainless steel.
But first, let’s understand the difference between 2205 stainless steel and 316 stainless steel. While 316 stainless steel is a popular choice for its excellent corrosion resistance properties, 2205 stainless steel offers superior strength and durability, making it a preferred option for industries requiring high-performance materials.
Key Takeaways:
- Welding 2205 duplex stainless steel requires expertise and knowledge to produce high-quality welds.
- 2205 stainless steel offers superior strength and durability compared to 316 stainless steel.
Understanding 2205 Duplex Stainless Steel
Before diving into the specifics of welding 2205 duplex stainless steel, it is essential to understand what this material is and its properties.
| Chemical Composition | Mechanical Properties |
|---|---|
| The chemical composition of 2205 duplex stainless steel consists of: | The mechanical properties of 2205 duplex stainless steel include: |
|
|
2205 duplex stainless steel was developed in the 1970s as a solution to the corrosion issues faced by traditional austenitic stainless steels.
Due to its high strength, superior corrosion resistance, and exceptional ductility, 2205 duplex stainless steel is widely used in various applications, such as:
- Chemical processing equipment
- Marine industries
- Oil and gas exploration and production
- Architecture and construction
Now that we have a basic understanding of 2205 duplex stainless steel, we can move on to discussing the welding techniques suitable for this material.
Welding Techniques for 2205 Duplex Stainless Steel

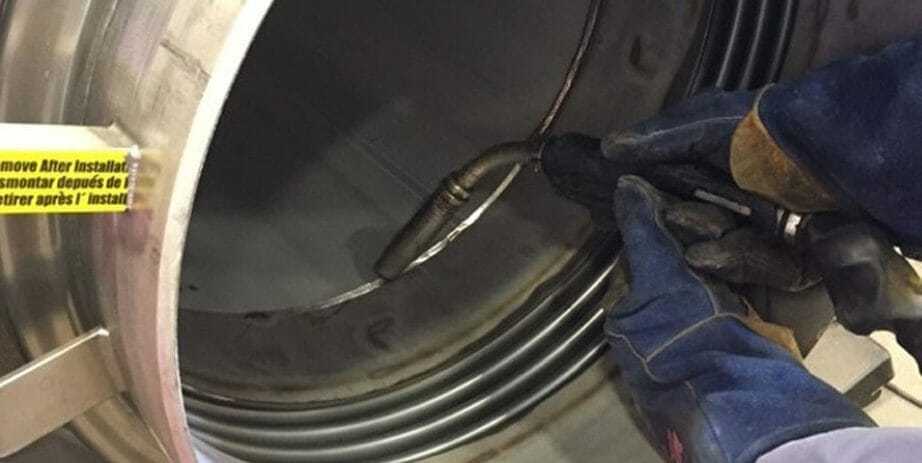

When it comes to welding 2205 duplex stainless steel, there are several techniques available. The most popular ones include TIG welding, MIG welding, and stick welding. However, choosing the right technique depends on the specific welding application, material thickness, and the joint type.
Tungsten Inert Gas (TIG) Welding: TIG welding is a commonly used technique for welding 2205 duplex stainless steel. This method uses a non-consumable tungsten electrode and an inert gas, such as argon or helium, to create the weld. It results in a clean and precise weld with minimal spatter, making it ideal for thin and delicate materials.
Metal Inert Gas (MIG) Welding: MIG welding is another popular technique that involves using a wire electrode to feed the welding material. It uses an inert gas, such as argon or helium, to shield the arc and prevent oxidation. MIG welding is suitable for thicker materials and produces high-quality welds.
Stick Welding: Stick welding, also known as Shielded Metal Arc Welding (SMAW), is a technique that involves using a consumable electrode coated in flux. The flux creates a protective gas shield to protect the weld from contamination and oxidation. Stick welding is best suited for outdoor and rough environments and can be used for thicker materials.
Regardless of the welding technique used, it is crucial to select the right welding consumables for 2205 duplex stainless steel. High-quality filler metals, such as the AWS A5.4 E2209-16 electrodes, should be used for optimal results.
Table 1: Pros and Cons of Welding Techniques for 2205 Duplex Stainless Steel
| Welding Technique | Pros | Cons |
|---|---|---|
| TIG Welding | Clean, precise welds with minimal spatter. Ideal for thin and delicate materials. | Slower than other techniques. Requires more skill and experience. |
| MIG Welding | Suitable for thicker materials. High-quality welds with consistent results. | Produces more spatter than TIG welding. More expensive equipment needed. |
| Stick Welding | Suitable for rough and outdoor environments. Can be used for thicker materials. | Produces rougher welds compared to TIG and MIG welding. More time consuming. |
By following the appropriate welding technique and using the correct welding consumables, you can ensure the best results when welding 2205 duplex stainless steel.
Pre-Welding Preparation for 2205 Duplex Stainless Steel
Prior to welding 2205 duplex stainless steel, it is crucial to perform proper pre-welding preparation to ensure optimal weld quality and prevent defects. Here are some essential steps to follow:
| Step | Description |
|---|---|
| Clean the surface | 2205 duplex stainless steel should be free of any dirt, oil, grease, or other contaminants that could affect the weld quality. Use solvents or degreasers to clean the surface before welding. |
| Remove contaminants | Aside from dirt and oil, other contaminants such as rust, scale, and oxide layers must be removed to have a clean base metal for welding. You can use wire brushes, grinders, or other techniques to remove these contaminants. |
| Preheat the material | Preheating the 2205 duplex stainless steel before welding can help reduce the thermal shock and decrease the risk of weld cracking. Consult with the welding procedure specification (WPS) to determine the recommended preheating temperature. |
Remember, proper pre-welding preparation is essential for successful welding of 2205 duplex stainless steel. Skipping any of these steps can lead to weld defects and poor weld quality.
Welding Consumables
Choosing the correct welding consumables is also an important step in the pre-welding preparation process. Welding consumables should match the base metal in terms of chemical composition and mechanical properties to produce the desired weld quality.
For 2205 duplex stainless steel, consider using filler metals with a higher content of nickel, molybdenum, and nitrogen. These elements help improve the corrosion resistance and mechanical strength of the weld.
Welding Parameters and Heat Input for 2205 Duplex Stainless Steel
Welding 2205 duplex stainless steel requires careful consideration of the welding parameters and heat input to ensure a successful weld. The factors that affect the welding process include current, voltage, travel speed, and interpass temperature.
Optimal Welding Parameters
The optimal welding parameters for the 2205 duplex stainless steel depend on the welding process used. In general, the recommended current range for TIG welding is 60-100 amps, while the voltage range is 10-14 volts. For MIG welding, the current range is 180-220 amps, while the voltage range is 25-29 volts. Stick welding requires a current range of 70-90 amps with a voltage range of 20-25 volts.
Heat Input
The heat input for welding 2205 duplex stainless steel is crucial to ensure the weld quality. The interpass temperature should be maintained between 150°C and 250°C to prevent cracking. The heat input should be controlled to avoid exceeding the maximum interpass temperature and to ensure good fusion between the base materials.
Additional Considerations
Other factors that should be considered when welding 2205 duplex stainless steel include the type of welding consumable used, the thickness of the material, and the welding position. For instance, thicker materials require higher heat input, and welding overhead positions require lower heat input to prevent dripping of the molten metal.
It is important to note that the welding parameters and heat input for 2205 duplex stainless steel may vary depending on the specific application and welding conditions. Therefore, it is crucial to consult with experts and conduct proper testing to determine the optimal settings for each welding project.
Post-Welding Treatment and Inspection for 2205 Duplex Stainless Steel
After welding 2205 duplex stainless steel, it is essential to conduct post-weld treatments and inspections to ensure the quality of the weld. The following are some of the recommended techniques:
| Method | Description |
|---|---|
| Passivation | This process involves immersing the welded material into a nitric acid solution to remove any free iron on the surface. This helps to enhance the material’s corrosion resistance properties. |
| Pickling | Involves immersing the welded material into a mixture of nitric and hydrofluoric acid to remove any discoloration or oxide scale caused by the welding process. |
| Non-destructive testing | Techniques such as radiography, ultrasonic inspection, and magnetic particle inspection can be used to detect any defects that might have occurred during the welding process. |
It is recommended to avoid using chlorinated cleaning agents as they can lead to pitting corrosion of the welded material.
Post-welding inspections are crucial to identifying any defects that might have occurred during the welding process. These inspections can help to detect issues such as porosity, lack of fusion, and cracks that might have appeared in the weld. It is recommended to conduct these inspections using non-destructive testing techniques.
Challenges and Troubleshooting in Welding 2205 Duplex Stainless Steel
Welding 2205 duplex stainless steel presents certain challenges that can be overcome with the right techniques. Here are some common issues encountered when welding 2205 duplex stainless steel and strategies for troubleshooting:
Distortion
Distortion can occur due to high thermal expansion and contraction rates of 2205 duplex stainless steel. To minimize distortion, use a lower heat input and weld in shorter intervals. It is also helpful to clamp the workpiece securely to a large, stable surface before welding.
Weld Cracking
Weld cracking can be a concern when welding 2205 duplex stainless steel due to the high cooling rate. To avoid this issue, use a low welding speed and avoid over-welding. Additionally, use proper pre-weld and post-weld heat treatments to ensure uniform cooling and stress relief.
Heat Affected Zone (HAZ) Concerns
The HAZ can experience reduced toughness and corrosion resistance due to the high heat input during welding. To mitigate this, use a lower heat input and proper preheat and interpass temperatures. It is also important to use low sulfur filler metals and avoid high-stress configurations.
“By using proper techniques to overcome these challenges, welders can achieve high-quality welds on 2205 duplex stainless steel.”
Advantages of Welding 2205 Duplex Stainless Steel over 316 Stainless Steel
When it comes to welding, 2205 duplex stainless steel offers several advantages over 316 stainless steel. Here are some of the key benefits:
| Advantage | 2205 Duplex Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Superior due to its higher chromium, molybdenum, and nitrogen content, making it ideal for corrosive environments | Less corrosion resistant, making it more prone to rust and pitting |
| Strength | Higher yield strength and tensile strength than 316 stainless steel, making it more durable and able to handle higher stress and pressure | Lower yield and tensile strength compared to 2205 duplex stainless steel |
| Cost-Effectiveness | More cost-effective due to its longer lifespan, reduced maintenance, and increased durability compared to 316 stainless steel | More expensive due to its higher nickel and chromium content |
Overall, welding 2205 duplex stainless steel provides superior performance and durability in applications where corrosion, strength, and cost-effectiveness are crucial.
Read More : 2205 Stainless Steel vs 316: Comparing Key Differences
Applications of Welding 2205 Duplex Stainless Steel
Welding 2205 duplex stainless steel has a wide range of applications in various industries due to its unique properties.

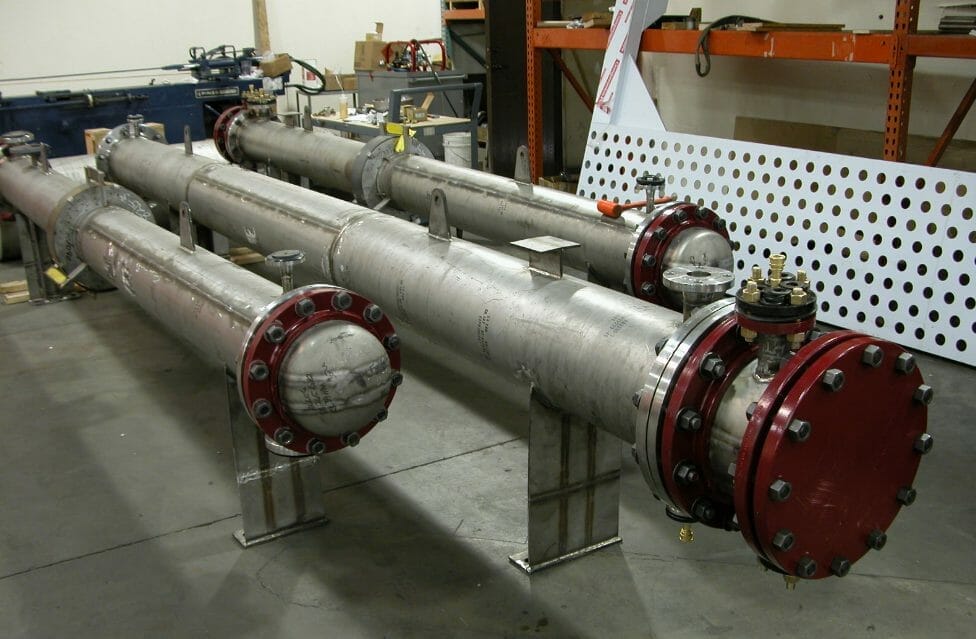

In the oil and gas industry, 2205 duplex stainless steel is used for pipeline systems, offshore platforms, and subsea equipment due to its excellent resistance to corrosion and high strength.
Additionally, in chemical processing plants, this material is used for the construction of tanks, vessels, and heat exchangers due to its high resistance to acidic and corrosive environments.
In the marine industry, 2205 duplex stainless steel is used for shipbuilding, offshore structures, and other marine equipment due to its high strength, resistance to corrosion, and low maintenance requirements.
Moreover, in architecture, 2205 duplex stainless steel is used for the construction of buildings, bridges, and other structures due to its aesthetic appeal, durability, and resistance to corrosion in harsh environments.
Clearly, the applications of welding 2205 duplex stainless steel are diverse and widespread, making it an essential material for a variety of industries.
Best Practices for Welding 2205 Duplex Stainless Steel
Now that you have a thorough understanding of welding 2205 duplex stainless steel, it’s important to follow some best practices to ensure successful welds. Below are some expert tips and tricks:
- Cleanliness is key: Ensure that the surface is thoroughly cleaned and free of contaminants before welding. This will prevent contamination of the weld and reduce the risk of defects.
- Preheat: Preheating can help reduce the risk of cracking, distortion, and reduced corrosion resistance.
- Use the right consumables: Select the appropriate welding consumables based on the material and welding technique.
- Optimize your settings: Optimize welding parameters such as current, voltage, travel speed, and interpass temperature for optimal results.
- Post-weld treatment: Passivation and pickling can help restore the corrosion resistance of the weld after welding. Non-destructive testing can also be used to inspect the quality of the weld.
Remember, the key to successful welding is practice and experience. Continuously refine your technique and learn from your mistakes to become an expert in welding 2205 duplex stainless steel.
Conclusion
Mastering the art of welding 2205 Duplex Stainless Steel can greatly benefit professionals in a variety of industries, from oil and gas to architecture. By following the expert tips and tricks shared in this article, such as selecting the appropriate welding consumables, pre-welding preparations, optimal welding parameters, and post-welding treatments and inspections, you can achieve top-notch welding results.
Remember the advantages of welding 2205 Duplex Stainless Steel over 316 Stainless Steel, such as its superior strength, corrosion resistance, and cost-effectiveness.
Regardless of your welding technique of choice, be sure to address challenges and troubleshoot issues that may arise, such as distortion, weld cracking, and heat affected zone (HAZ) concerns.
By applying the best practices highlighted throughout this article, you can elevate your welding skills to the next level and achieve success in welding 2205 Duplex Stainless Steel. We wish you all the best in your endeavors.
