Welding 309 stainless steel to carbon steel may seem daunting at first, as these two metals have different properties and characteristics. However, with the right techniques and materials, successful welds can be achieved. In this comprehensive guide, we will provide expert tips and techniques to help you achieve strong and durable welds when joining 309 stainless steel to carbon steel.
Key Takeaways
- Proper preparation of the joint is crucial for successful welding.
- Choosing the right welding process and filler metal is important for achieving strong welds.
- Safety should always be a top priority when performing any welding operation.
- Obtaining the AWS stainless steel welding certification can enhance your credibility as a welder.
Understanding the Materials: 309 Stainless Steel and Carbon Steel
Before embarking on the welding process, it is crucial to have a good understanding of the two primary metals used – 309 stainless steel and carbon steel.
The Properties of 309 Stainless Steel
309 stainless steel is a chromium-nickel austenitic alloy commonly used in high temperature applications. It is highly corrosion-resistant and possesses excellent weldability, making it a popular material for welding dissimilar metals.
When welding 309 stainless steel, it is important to note that the material may be susceptible to cracking, particularly in thicker sections. Proper preheating and post-weld heat treatment can help prevent these issues.
The Properties of Carbon Steel
Carbon steel is an alloy made up of primarily iron and carbon. It is strong, durable, and versatile, making it a popular choice in numerous industries. Carbon steel is also relatively inexpensive compared to other materials, making it a cost-effective option.
However, carbon steel is vulnerable to corrosion and rust, especially when exposed to environmental factors such as moisture. This makes it crucial to protect the material during storage and transportation to prevent surface contamination.
Differences between 309 Stainless Steel and Carbon Steel
The primary difference between 309 stainless steel and carbon steel lies in their composition. 309 stainless steel contains more nickel and chromium than carbon steel, which provides greater corrosion resistance and strength.
In addition, when welding these two metals together, it is important to consider their expansion coefficients. Carbon steel has a higher coefficient of thermal expansion than 309 stainless steel, which can result in warping and distortion if not properly addressed with proper joint design and welding technique.
Summary
Understanding the properties and differences between 309 stainless steel and carbon steel is essential for achieving a strong and durable weld. By taking these factors into consideration, you can ensure a successful welding process and produce a high-quality joint.

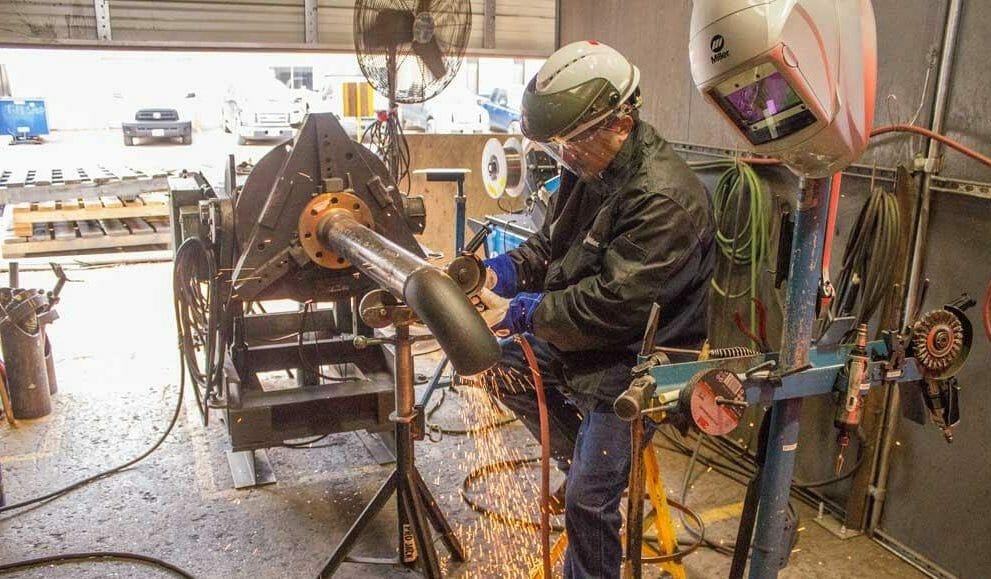

Preparing the Joint: Cleaning and Fit-up
Before beginning the welding process, it is important to prepare the joint by cleaning and ensuring proper fit-up. These steps are crucial for achieving a strong and durable weld when joining 309 stainless steel to carbon steel.
The first step in preparing the joint is to clean the surfaces of both metals that will be joined. This can be accomplished by using a wire brush, sandpaper, or a grinder to remove any contaminants such as rust, oil, or paint. Be sure to remove any surface coatings on the metals that may interfere with the welding process.
Next, it is important to ensure proper fit-up between the 309 stainless steel and carbon steel. The joint should be designed to allow for proper penetration of the weld, and the metals should be aligned properly to prevent gaps or misalignment.
Depending on the specific welding process being used, certain joint designs may be more suitable than others. For example, a butt joint may be appropriate for some processes, while a lap joint or a fillet joint may be more suitable for others.
By taking the time to properly clean and fit-up the joint, you can ensure that the welding process will be successful and that the resulting weld will be strong and durable.

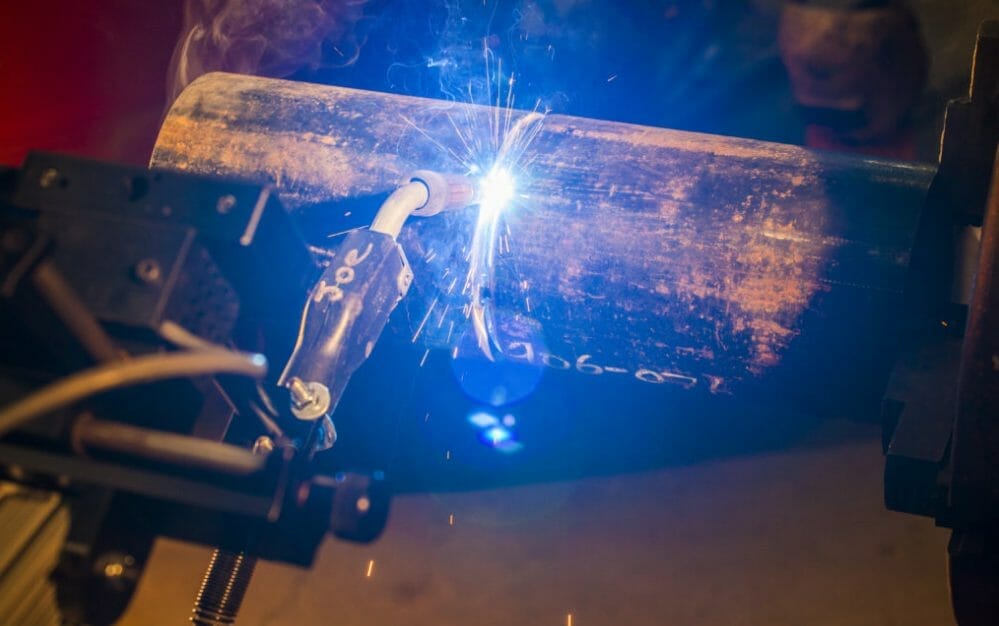

Selecting the Right Welding Process
Choosing the appropriate welding process can make all the difference when welding 309 stainless steel to carbon steel. Each welding process has unique advantages and limitations, so it’s essential to consider the specific application and requirements of the joint.
Gas Tungsten Arc Welding (GTAW)
Also known as Tungsten Inert Gas (TIG) welding, this process can produce high-quality welds with excellent cosmetic appearance. GTAW is ideal for thin sections and intricate joints, and it allows for precise control of heat input. However, it can be time-consuming and requires a high level of skill and experience.
| Advantages | Disadvantages |
|---|---|
| – High-quality welds | – Time-consuming |
| – Excellent cosmetic appearance | – High level of skill required |
| – Precise heat control |
Gas Metal Arc Welding (GMAW)
Also known as Metal Inert Gas (MIG) welding, this process is popular for its speed and ease of use. GMAW can be used for a wide range of materials and joint designs, and it offers high deposition rates. However, it produces a less precise weld than GTAW and may not be suitable for thin sections or intricate joints.
| Advantages | Disadvantages |
|---|---|
| – Fast and easy to use | – Less precise weld than GTAW |
| – High deposition rates | – May not be suitable for thin sections or intricate joints |
| – Suitable for a wide range of materials and joint designs |
Shielded Metal Arc Welding (SMAW)
Also known as Stick welding, this process is commonly used for heavy and thick sections and outdoor welding. SMAW is relatively easy to use and does not require expensive equipment. However, it produces a less precise weld than GTAW and has a lower deposition rate.
| Advantages | Disadvantages |
|---|---|
| – Suitable for heavy and thick sections and outdoor welding | – Less precise weld than GTAW |
| – Relatively easy to use | – Lower deposition rate |
| – Does not require expensive equipment |
By taking into account the advantages and disadvantages of each welding process, you can select the right one for your specific application and achieve a successful weld when joining 309 stainless steel to carbon steel.
Choosing the Correct Filler Metal
When welding 309 stainless steel to carbon steel, the choice of filler metal is crucial for achieving a strong and durable weld. The filler metal must have the appropriate mechanical properties to match both the base metals and the specific welding process being used.
Typically, a filler metal with a higher nickel content, such as 309L or 309LSi, is recommended for welding 309 stainless steel to carbon steel. These fillers provide a strong and ductile weld, with good resistance to cracking and corrosion.
For TIG welding, a filler metal with a diameter of 1.0mm or less is best suited for this application. This ensures better control of the heat input and penetration, resulting in a high-quality weld. For MIG welding, a filler metal with a diameter of 0.9mm is recommended for better mechanical strength.
It is important to ensure that the filler metal is compatible with the welding process being used. For example, if using the Gas Tungsten Arc Welding (GTAW) process, make sure to use a filler metal that is suitable for GTAW. Similarly, if using the Gas Metal Arc Welding (GMAW) process, use a filler metal that is compatible with GMAW.

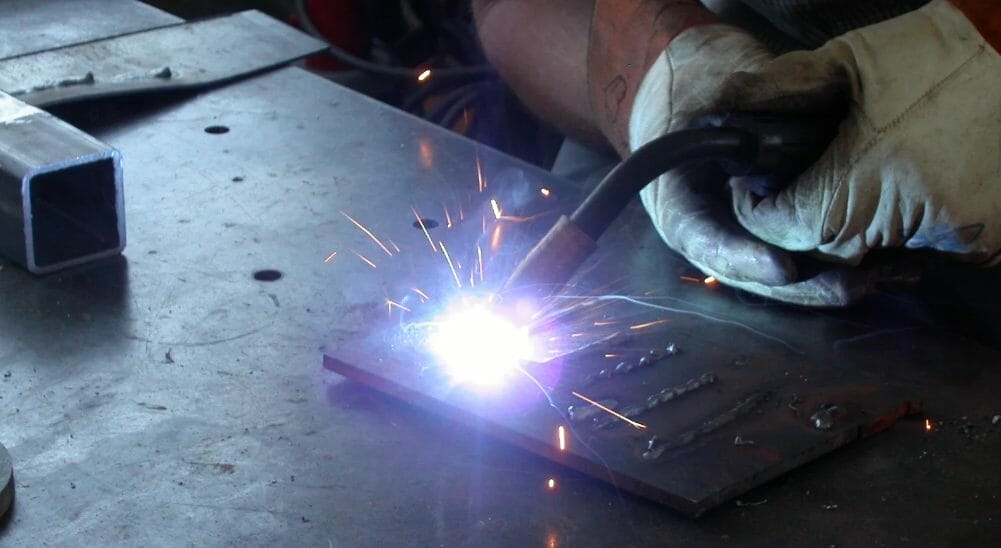

Welding Techniques and Tips
When welding 309 stainless steel to carbon steel, it is crucial to use the right techniques to ensure a strong and aesthetically pleasing weld. Here are some expert tips to help you achieve success:
- Use the right welding process: TIG, MIG, and Stick welding are all suitable for welding 309 stainless steel to carbon steel. Consider the thickness of the materials and the type of joint being used to determine the most appropriate process.
- Avoid overheating: Overheating can cause distortion of the materials and weaken the joint. Use the lowest possible heat setting to achieve a successful weld.
- Keep a steady hand: Use a stable and comfortable position to ensure a steady hand. Unsteady hands can lead to inconsistent welds and a weaker joint.
- Choose the right filler metal: Consult with an expert to determine the appropriate filler metal for your specific application. The wrong filler metal can lead to poor weld quality and a weaker joint.
- Clean the surfaces: Properly cleaning the surfaces is crucial for a successful weld. Remove all grease, oil, and other contaminants before starting the welding process.
- Ensure proper fit-up: Proper fit-up is essential for a strong and durable weld. Ensure that the materials are properly aligned and that the joint is tight before starting the welding process.
Remember, taking the time to properly prepare, select the right materials, and use the correct techniques can make all the difference in achieving strong and durable welds when joining 309 stainless steel to carbon steel.
Safety Considerations
Welding 309 stainless steel to carbon steel can pose certain safety risks. It is vital to follow safety guidelines to prevent accidents and injuries. Here are some essential safety considerations to keep in mind:
- Wear protective clothing and equipment, including welding helmets, goggles, gloves, and leather boots.
- Ensure proper ventilation in the welding area to prevent exposure to fumes and gases.
- Avoid welding in confined spaces without proper ventilation.
- Use caution when handling hot materials and equipment.
- Keep a fire extinguisher nearby in case of emergencies.
Following these safety precautions can help ensure a safe and successful welding operation.
Welding Challenges and Troubleshooting
Welding 309 stainless steel to carbon steel can present certain challenges. Here are some common welding issues that may arise and troubleshooting tips to overcome these challenges and achieve a high-quality weld:
Weld Porosity
Porosity is one of the most common welding defects. It occurs when gas gets trapped in the weld pool and solidifies, leaving pores or cavities in the weld. To prevent weld porosity:
- Use clean base metals and filler metals.
- Make sure your welding area is free from dirt, dust, and debris.
- Choose the appropriate welding parameters and techniques for your application.
- Use a shielding gas with the right mixture and flow rate.
Cracking
Cracking happens when the weld metal or heat-affected zone (HAZ) cools too quickly and contracts, causing stress that leads to cracking. To prevent cracking:
- Preheat the joint before welding to minimize thermal stress.
- Use a low-hydrogen filler metal.
- Control the cooling rate by using a slow cooling process or post-weld heat treatment.
- Avoid over-welding and excessive welding speed.
Distortion
Distortion occurs when the welding process causes the base metal to warp or bend due to uneven heating and cooling. To prevent distortion:
- Minimize the size of the heat-affected zone by using a smaller weld pool and shorter welding time.
- Use proper clamping and fixturing to hold the joint in place.
- Weld from the center of the joint outwards.
By understanding and addressing these common welding challenges, you can improve your welding skills and achieve high-quality welds when joining 309 stainless steel to carbon steel.
AWS Stainless Steel Welding Certification
Obtaining the AWS stainless steel welding certification can enhance your credibility as a welder. The American Welding Society offers a certification program that provides validation of your skills and expertise in welding stainless steel to carbon steel.
The certification process involves a written exam and a practical exam. The written exam covers welding fundamentals, welding codes and standards, safety, and welding processes. The practical exam assesses your welding skills in the field, including welding techniques, selection of materials, and adherence to safety procedures.
The significance of the AWS stainless steel welding certification lies in its recognition within the welding industry. Employers, customers, and peers recognize the value of this certification, which can open up new career opportunities and demonstrate your commitment to excellence in your craft.
To qualify for the certification exam, you must have a high school diploma or equivalent, complete a welding training program, and have a minimum of two years of welding experience. Once you pass the exam, you will receive a certificate that is valid for three years. To maintain your certification, you must complete continuing education courses and pass a recertification exam every three years.
Read More : Get Your AWS Stainless Steel Welding Certification Today
Conclusion
Welding 309 stainless steel to carbon steel can be challenging but with the right techniques, materials, and safety considerations, it can be achieved successfully. It is crucial to have a good understanding of the properties and characteristics of the materials being used, as well as selecting the most appropriate welding process and filler metal.
Proper preparation of the joint, including cleaning the surfaces and ensuring proper fit-up, is also essential. Mastering the right welding techniques and following the tips outlined above can help achieve a strong and aesthetically pleasing weld.
As with any welding operation, safety should always be a top priority. Protective equipment, adequate ventilation, and proper handling of materials are crucial to prevent accidents and ensure the health and well-being of the welder.
Obtaining the AWS stainless steel welding certification can enhance your credibility as a welder and open up new opportunities in the welding industry.
By following the guidelines and tips outlined in this comprehensive guide, you can achieve successful welds and ensure the durability and integrity of the joint.
