Are you planning on tackling a stainless steel welding project? It’s important to find the right welding rod to ensure a strong and reliable weld. With so many options available on the market, it can be overwhelming to choose the best one for your specific project needs.
Understanding Stainless Steel Welding
Stainless steel welding is a process used to join two or more pieces of stainless steel together. This process is different from welding other types of metal due to the unique properties of stainless steel.
One of the most significant characteristics of stainless steel is its corrosion resistance. Stainless steel is an alloy made from a combination of iron, carbon, and chromium. The chromium element helps to create a protective oxide layer on the surface of the steel, which is highly resistant to corrosion.
However, this same protective layer can cause problems during welding. When heated, the oxide layer can become contaminated, leading to weak and unreliable welds. This is why specialized welding rods are necessary when welding stainless steel.
The Challenges of Stainless Steel Welding
Stainless steel welding can be challenging, even for experienced welders. One of the main difficulties is managing the heat input during welding. Because stainless steel has a low thermal conductivity, it can quickly become overheated if not correctly controlled. This can lead to warping, distortion, and even cracking of the material.
Another challenge is achieving the correct oxidation level during welding. As mentioned previously, the oxide layer on stainless steel can be problematic during welding. Welders must strive to manage this layer’s level to avoid problems with the final weld.
Finally, selecting the correct welding rod is critical for achieving quality welds on stainless steel. Using the wrong rod can lead to weakened joints and lower corrosion resistance.

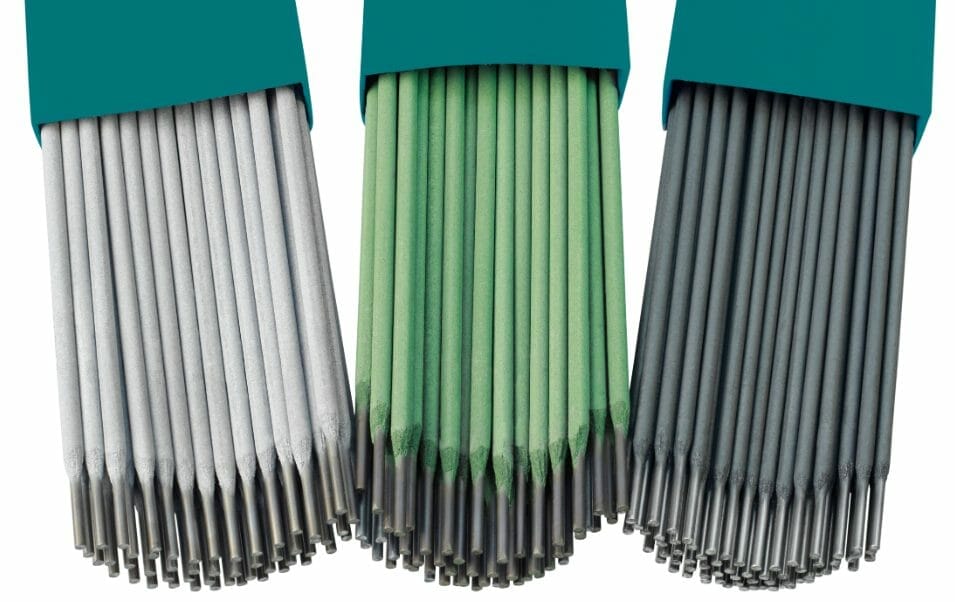

Types of Welding Rods for Stainless Steel
Choosing the right welding rod is crucial for completing a strong and reliable weld on stainless steel. There are several types of welding rods available, each with their specific usage and benefits. Below are some of the most commonly used welding rods for stainless steel:
| Type of Welding Rod | Description |
|---|---|
| ER308L | This is the most commonly used welding rod for stainless steel. It is well-suited for welding AISI 304, 304L, and 308 stainless steel types. It provides good resistance against corrosion and heat, making it perfect for welding thin sheets or plates. |
| ER309L | This welding rod is best for welding dissimilar stainless steels or for joining stainless steel to carbon or low-alloy steel. It offers excellent resistance to corrosion and high temperatures and is recommended for welding AISI 309 stainless steel. |
| ER316L | This is another popular welding rod for stainless steel and is best for welding types 316 and 316L stainless steel. It provides excellent resistance to corrosion, making it suitable for high-temperature applications. |
In addition to these, there are other specialized welding rods available for specific types of stainless steel or unique applications. Some examples include ER312 welding rods for welding dissimilar metals and ER410 welding rods for welding martensitic stainless steels.
When to Use Which Welding Rods
The choice of welding rod will depend on the type of stainless steel being welded, the required strength of the weld, the specific welding technique used, and the environmental conditions the weld will be exposed to. It’s essential to consult with a professional or refer to the manufacturer’s guidelines before selecting a welding rod to ensure optimal results.
Using the wrong welding rod could result in weak weld joints, corrosion, or even cracking, so it’s crucial to choose the right one for the job.
Choosing the Right Welding Rod
Choosing the right welding rod for your stainless steel project is crucial for achieving strong and reliable welds. Here are some important factors to consider:
- Type of Stainless Steel: There are multiple types of stainless steel, each with different compositions and properties. Be sure to choose a welding rod that is compatible with the specific type of stainless steel you are working with.
- Thickness of the Material: The thickness of the material you are welding will also affect your choice of welding rod. Thicker materials require rods with higher amperage and heavier flux coatings.
- Desired Weld Characteristics: Consider the characteristics you want in your final weld, such as strength, appearance, and corrosion resistance. Different welding rods offer different results in these areas.
It is also important to note that using the wrong welding rod can result in weak welds, porosity, and other defects. Always consult the manufacturer’s recommendations and use a welding rod that is specifically designed for stainless steel.
Flux Core Welding for Stainless Steel
Flux core welding is an alternative technique to traditional welding rods that can be used for stainless steel. This process involves using a hollow wire filled with flux to shield the weld from the air and prevent oxidation.
One advantage of flux core welding is that it can provide deeper penetration than traditional welding rods, making it suitable for thicker materials. It can also be used in outdoor environments where wind or other factors may negatively affect the weld.
However, flux core welding also has some limitations. The flux can leave behind a residue that needs to be cleaned after welding, and it may not produce as clean and attractive welds as traditional welding rods.
If you choose to use flux core welding for your stainless steel project, make sure to use a wire specifically designed for stainless steel. This will provide the necessary corrosion resistance and strength for your weld.
Tips for Welding Stainless Steel
Welding stainless steel can present some unique challenges, but with proper technique and preparation, you can achieve strong, clean welds. Here are some tips to help you get started:
Pre-Weld Preparation
Before you begin welding, make sure the stainless steel surface is clean and free of any contaminants. Use a wire brush or grinder to remove any rust, paint, or oil from the surface. Also, be sure to properly clamp the material to prevent warping during the welding process.
Heat Control
Stainless steel has a low thermal conductivity, which means more heat is required to achieve a proper weld. It’s important to monitor the heat to prevent overheating and ensure the weld is consistent. Use a lower amperage and move the weld quickly to reduce heat buildup.
Post-Weld Cleaning
After welding, be sure to clean the weld area with a wire brush or grinder to remove any slag or debris. You may also want to passivate the surface to prevent corrosion by using a pickling paste or citric acid solution.
Choose the Right Gas
When MIG welding stainless steel, it’s important to use the right shielding gas. Argon is typically the best option, although a mix of argon and helium may be used for thicker materials. Be sure to check the manufacturer’s recommendations for the specific welding rod you’re using.
Watch for Distortion
Because stainless steel has a low thermal conductivity, it can be prone to distortion during the welding process. To minimize distortion, use a lower amperage and work in short runs, allowing the material to cool between welds. You can also use a heat sink or backer bar to help dissipate heat and prevent warping.
Consider TIG Welding
TIG welding is a good option for welding thin gauge stainless steel. It allows for precise control of the heat and produces high-quality welds with minimal distortion. However, it requires more skill and experience than MIG welding.
Read More : Choose the Right Gas for TIG Welding Stainless Steel
Recommended Brands of Welding Rods for Stainless Steel
Choosing the right welding rod for stainless steel can be challenging. Fortunately, many reputable brands offer high-quality welding rods that are specifically designed to work with stainless steel. Here are some of the top brands:
| Brand | Popular Products |
|---|---|
| Blue Demon | ER316L, E308L, E309L |
| WeldingCity | ER308L, ER309L, ER316L |
| Forney | ER308L, E316L, E309L |
| Harris | ER308L, ER316L |
Blue Demon is a popular brand among professional welders, known for its high-quality welding rods that produce clean and strong welds. WeldingCity offers a wide range of welding rods at affordable prices, making it a great option for DIYers. Forney is a trusted brand that offers high-quality welding rods at a reasonable price. Harris is known for its reliable welding rods that produce consistent results.
Where to Buy Welding Rods for Stainless Steel
If you’re looking for welding rods for your stainless steel project, you have several options for where to purchase them. Here are some recommended locations:
- Specialized Welding Supply Stores: These stores will have a wide selection of welding rods that are specifically designed for working with stainless steel. They may also have knowledgeable staff who can help you choose the right rod for your project.
- Online Retailers: Online retailers such as Amazon, eBay, and WeldingCity offer a variety of welding rods for stainless steel. Be sure to confirm the seller is reputable and that the product meets your requirements before purchasing.
- Hardware Stores: While not as specialized as welding supply stores, hardware stores may carry some welding rods for stainless steel. However, their selection may be limited and they may not offer as much expertise as specialized stores.
No matter where you purchase your welding rods, be sure to confirm that they are compatible with your welding machine and that they meet the requirements for your specific project.
Which Welding Rod Should I Use to Weld Stainless Steel to Carbon Steel?
When it comes to welding stainless to carbon steel, choosing the appropriate welding rod is crucial for a strong and reliable bond. Generally, using a filler rod with a nickel-based coating, known as an ER309L welding rod, is recommended for this type of welding. The ER309L rod helps create a balanced composition while preventing cracking or weakening of the joint, ensuring a successful fusion between stainless steel and carbon steel.
Frequently Asked Questions about Welding Rods for Stainless Steel
If you’re new to welding stainless steel, it’s natural to have questions about the process and the equipment you need. Here are some of the most frequently asked questions about welding rods for stainless steel:
Q: How should I store welding rods for stainless steel?
You should keep your welding rods in a dry place, protected from moisture and humidity. Ideally, they should be stored in a sealed container to prevent contamination. It’s also a good idea to label your container with the type, size, and date of purchase of each rod, so you can keep track of your inventory and avoid using expired rods.
Q: Can I use the same welding rod for different types of stainless steel?
No, you should use a welding rod that is specifically designed for the type of stainless steel you’re working with. There are different grades of stainless steel, each with its own composition and properties, so the welding rod you choose should match the grade of the base metal.
Q: Can I use a welding rod for stainless steel on other metals?
No, welding rods for stainless steel are not suitable for welding other metals, such as carbon steel or aluminum. Each type of metal requires a different type of welding rod, so it’s important to use the right rod for the job.
Q: How do I know which welding rod to choose for my project?
Choosing the right welding rod depends on several factors, such as the type and thickness of the metal, the desired welding characteristics, and your welding machine settings. Consult the manufacturer’s recommendations and seek advice from experienced welders or welding supply store personnel to ensure you choose the right welding rod for your project.
Q: What are some common welding issues I might encounter when welding stainless steel?
Some common welding issues when working with stainless steel include distortion, porosity, and cracking. To avoid these issues, make sure to clean and prepare the base metal properly, avoid overheating the metal, and use the right welding technique and settings.
Q: Can I use flux-core welding for stainless steel?
Yes, flux-core welding can be used for stainless steel, but it has some limitations compared to traditional welding rods. Flux-core welding may produce more spatter and require more cleanup, and it may not be suitable for welding thinner metals or in a windy environment. Consult the manufacturer’s recommendations and seek advice from experienced welders to determine if flux-core welding is the right choice for your project.
