Welding thin stainless steel requires special techniques and skills. It is crucial for professionals in the industry to master this skill, especially with the increasing demand for high-quality stainless steel products. AWS stainless steel welding certification is also becoming more crucial for professionals who want to excel in this field.
Key Takeaways:
- Welding thin stainless steel requires special techniques and skills.
- Professionals in the industry need to master this skill to meet the demand for high-quality stainless steel products.
- Obtaining AWS stainless steel welding certification can help professionals excel in this field.
Understanding Thin Stainless Steel
Welding thin stainless steel requires special techniques as it is defined as having a thickness below 0.1875 inches (4.76 mm). The challenges of welding thin stainless steel include its tendency to warp, distort, and burn-through. To master this art, it is essential to understand the properties and characteristics of the material.
Stainless steel is a versatile material known for its high resistance to corrosion, toughness, and durability. However, when it comes to welding thin stainless steel, these properties can make it a challenging material to work with. The high thermal conductivity of stainless steel means that heat dissipates quickly, requiring precise control of the welding process to avoid overheating or underheating.
Furthermore, the low thermal expansion coefficient of stainless steel makes it prone to warping and distortion during welding. Therefore, it is crucial to have a solid understanding of the material and the welding processes used to join it.

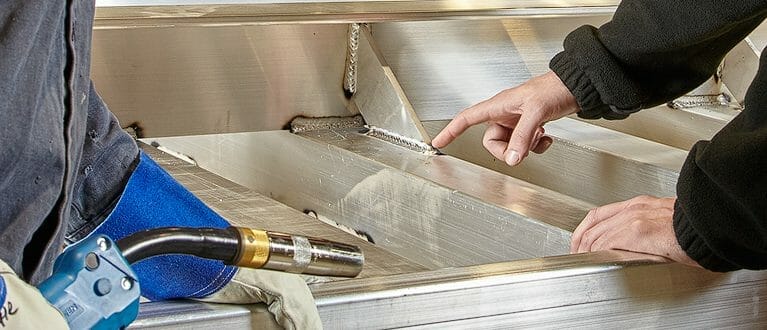

Choosing the Right Welding Process
When it comes to welding thin stainless steel, choosing the right welding process is crucial for achieving strong and durable welds. The two most popular welding processes for thin stainless steel are TIG welding and laser welding.
| Welding Process | Advantages | Disadvantages |
|---|---|---|
| TIG welding |
|
|
| Laser welding |
|
|
Aside from these two processes, there are other options available, such as MIG welding or plasma welding, but they may not be as suitable for welding thin stainless steel.
Ultimately, the choice of welding process will depend on factors such as the material thickness, the joint design, the required welding speed and precision, and the availability of equipment and trained personnel.
Preparing the Stainless Steel Surface
Proper preparation of the stainless steel surface is crucial when welding thin stainless steel. Any contaminants on the surface can result in poor-quality welds or even weld failure. Therefore, it’s important to take the necessary steps to ensure the surface is clean and free from any impurities.
Firstly, the surface should be cleaned to remove any dirt, debris, or rust with a stainless steel wire brush. Use a degreaser and a lint-free cloth to remove any oil or grease on the surface. Ensure that the surface is completely dry before proceeding with welding.
Next, it’s important to ensure that the fit-up is correct for the joint being welded. The edges of the metal should be properly aligned and held in place with clamps or a jig. Be sure to remove any gaps between the metals as they can lead to weld failures or distortion.
Before welding, any existing oxides or scale should be removed from the surface by grinding or sandblasting. This will ensure that the base metal is clean and ready for welding. During welding, it is important to use the correct shielding gas to prevent contamination of the weld pool and ensure a clean weld.
By following these preparation steps, you can ensure a high-quality and durable weld for your thin stainless steel project.
Tack Welding Thin Stainless Steel
Tack welding is an essential step in welding thin stainless steel, as it helps to ensure proper alignment and fit-up before the final weld. The spacing and angle of the tack welds are crucial to maintaining accuracy and preventing distortion.
It’s important to avoid creating too many tack welds, as this can cause warping due to excessive heat input. As a general rule, tack welds should be placed no closer than one inch apart and should be staggered to distribute heat.
When tack welding thin stainless steel, it’s recommended to start at one end of the joint and work your way to the other end, ensuring that the fit-up remains consistent throughout. You can also use clamps or magnets to hold the pieces in place during tack welding.
One technique for creating strong and accurate tack welds is to use a backstep method, where you weld a short section at the end of the joint and then move back to the previous tack weld. This technique helps to prevent burn-through and ensures that each weld is properly fused.
Overall, proper tack welding is crucial to achieving a successful final weld when working with thin stainless steel.

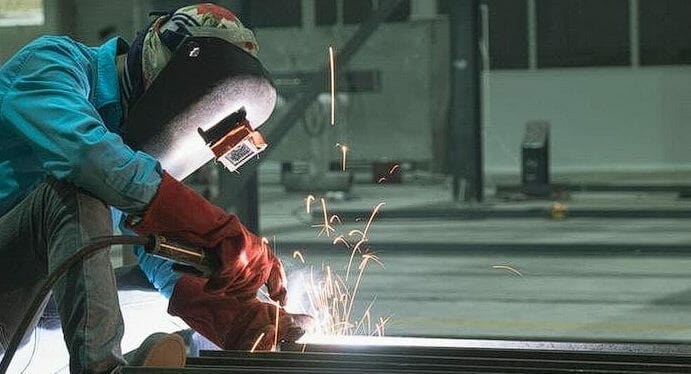

Welding Techniques for Thin Stainless Steel
When it comes to welding thin stainless steel, there are several techniques that are well-suited to this challenging task. Choosing the right technique and approach is key to achieving strong, quality welds without causing damage or distortion to the metal.
Pulse Welding: One technique that is particularly useful for thin stainless steel is pulse welding. This involves alternating low and high current levels to create a series of small welds with minimal heat input. This helps to avoid warping and distortion in the metal, while still creating strong, reliable joins.
Backstepping: Another technique that can be effective for thin stainless steel is backstepping. This involves welding a short section of the joint and then moving backwards to the previous section to add another short weld. This approach helps to prevent overheating and distortion, while still achieving a strong overall bond.
TIG Welding: TIG welding is also a popular option for thin stainless steel, as it allows for precise control over the weld and minimizes the amount of heat input. This is particularly useful for thin materials that are susceptible to warping or other distortion during welding.
Laser Welding: For certain applications, laser welding may be a useful option for thin stainless steel, as it can create very precise welds with minimal heat input. However, this technique may not be cost-effective or practical for all situations.
Ultimately, the best approach will depend on the specific requirements of the job and the skills and expertise of the welder. By understanding the unique challenges of welding thin stainless steel and exploring the available techniques, professionals can master this demanding skill and achieve high-quality results that are reliable and long-lasting.

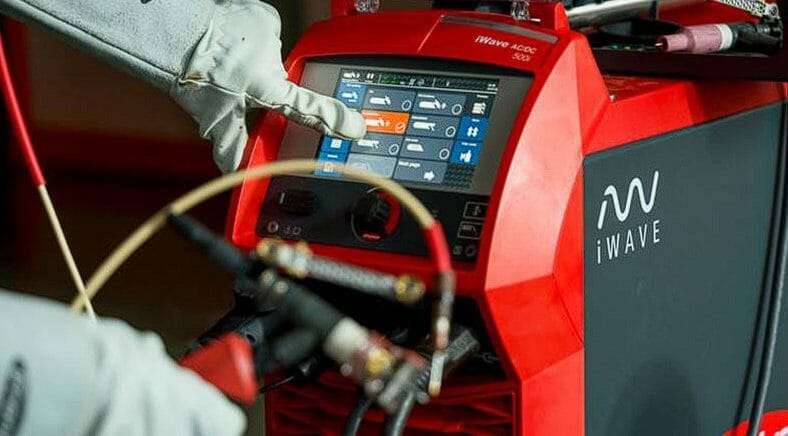

Welding Parameters and Settings
When welding thin stainless steel, it is crucial to determine the correct welding parameters and settings in order to achieve a strong and precise weld. The following are important considerations:
| Parameter | Effect |
|---|---|
| Current | Affects the heat input and penetration depth of the weld. Lower current can reduce the risk of burn-through, while higher current can increase penetration. |
| Voltage | Determines the arc length and affects the heat input and quality of the weld. Higher voltage can lead to faster travel speeds, while lower voltage can improve weld appearance. |
| Travel Speed | Affects the heat input and bead shape. Faster travel speeds can reduce distortion, while slower speeds can increase penetration and fusion. |
| Gas Type and Flow Rate | Shielding gas is crucial for preventing contamination and ensuring a strong weld. Typically, a mixture of argon and helium is used, with a flow rate of 20-30 cubic feet per hour. |
It is important to note that these parameters can vary depending on the specific welding process and the thickness of the stainless steel being welded. It may be necessary to adjust the settings and perform test welds in order to achieve optimal results.

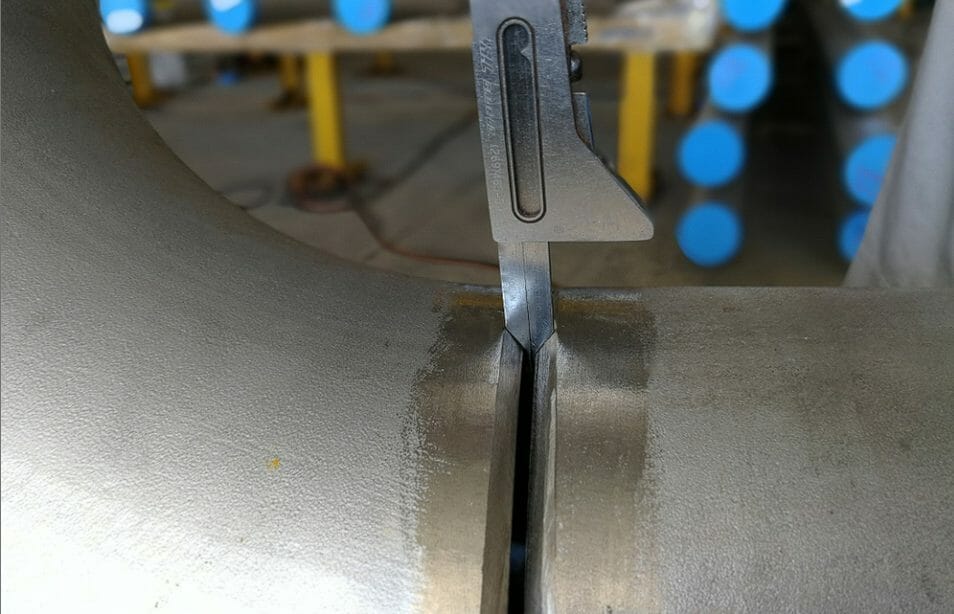

Joint Design and Preparation
When welding thin stainless steel, joint design and preparation are crucial steps to ensure a successful weld. The type of joint chosen will depend on the application and the thickness of the material being welded. Common joint designs for thin stainless steel include lap joints, T-joints, and butt joints. Lap joints are the most commonly used joint for thin materials and are created by overlapping the edges of the two pieces of metal. T-joints are used when the pieces are perpendicular to each other, and butt joints are used when the pieces are aligned end-to-end.
Before welding, it is important to ensure that the joint surfaces are clean and free of any contaminants that could lead to poor weld quality or even weld failure. This can be achieved through mechanical means such as grinding or sanding, or through the use of chemical solvents. After cleaning, it is essential to ensure the pieces are properly aligned and fit together tightly. This can be achieved through the use of clamps or other alignment tools.
The thickness of the material being welded will also impact the joint preparation. For thin stainless steel, it is often necessary to bevel the joint edges to ensure complete penetration of the weld. This is typically achieved through the use of a grinder or other cutting tool.
Troubleshooting and Common Issues
While welding thin stainless steel can be a rewarding and satisfying task, there are some common issues that welders may face during the process. Being aware of these issues and having troubleshooting skills can help to ensure a successful welding project.
Burn-Through
Burn-through is a common issue when welding thin stainless steel, especially when using an incorrect welding technique or high heat input. To prevent burn-through, use an appropriate welding process, such as TIG or pulse welding, and control heat input by adjusting the amperage and arc length.
Warping
Warping, or distortion of the workpiece, can occur when welding thin stainless steel due to rapid heating and cooling of the material. To prevent warping, use a clamping device to hold the workpiece in place and reduce the heat input by using a lower amperage or shorter arc length.
Lack of Fusion
Lack of fusion can occur when the welding parameters are not properly adjusted, or when the edge preparation is inadequate. To avoid this issue, ensure proper joint preparation and fit-up, adjust the welding parameters as needed, and use a technique suitable for thin stainless steel, such as backstepping or pulse welding.
Porosity
Porosity, or the presence of gas pockets in the weld, can occur when the welding environment is contaminated or the shielding gas is not properly flowing. To prevent porosity, ensure a clean welding environment, use a high-quality shielding gas, and check the flow rate and gas mixture.
Cracking
Cracking can occur in the weld or the heat-affected zone when the material is overheated or there is a lack of ductility. To prevent cracking, use a suitable welding process, adjust the parameters as needed, and avoid excessive heat input or rapid cooling.
By being aware of these common issues and knowing how to troubleshoot them, welders can ensure a successful welding project when working with thin stainless steel.
AWS Stainless Steel Welding Certification
Obtaining AWS stainless steel welding certification is crucial for professionals in the industry to demonstrate their mastery of welding thin stainless steel. This certification is recognized worldwide and signifies a high level of expertise in welding stainless steel, including the ability to perform welding on thin stainless steel.
To become certified, individuals must meet the minimum requirements set forth by AWS, which include passing a written exam and a hands-on welding test. The welding test involves welding a specific type of joint using a specific welding process and must meet certain requirements for quality and accuracy.
Once certified, individuals are recognized as experts in the field of stainless steel welding and are highly sought after for their skills and knowledge. Additionally, certification can lead to higher pay, better job opportunities, and increased credibility in the industry.
If you are looking to master the art of welding thin stainless steel, obtaining AWS stainless steel welding certification is a crucial step in your career development.
Read More : Get Your AWS Stainless Steel Welding Certification Today
Conclusion
Welding thin stainless steel can be a challenging task, but mastering this skill is essential for professionals in the industry. By understanding the properties and challenges of welding thin stainless steel, choosing the right welding process, preparing the surface properly, and using the correct welding techniques and parameters, you can overcome common issues and create strong, accurate welds.
Remember that practice makes perfect, and continuous learning is key to becoming a skilled welder. Obtaining AWS stainless steel welding certification can also help you advance in your career and demonstrate your expertise in the field.
Whether you’re just starting out or have years of experience, keep these tips in mind and continue to hone your skills. With dedication and persistence, you can master the art of welding thin stainless steel.
Can Bending Stainless Steel Sheet Be Done with Welding Techniques?
Bending stainless steel sheet requires precise techniques. In this bending stainless steel sheet tutorial, welding techniques can be used effectively. These techniques involve heat application to the sheet, which allows it to be molded into the desired shape. With proper care and expertise, stainless steel sheets can be bent using welding techniques.
What Are the Best Techniques for Welding Thin Stainless Steel?
When it comes to stainless steel welding, thin materials pose a unique challenge. To achieve optimal results, it is crucial to follow the right stainless steel welding settings expert advice. This includes selecting the appropriate filler wire, adjusting the heat input, and using a welding technique that minimizes distortion. Taking these factors into account will ensure you obtain strong and aesthetically pleasing welds on thin stainless steel.
FAQ
Q: What qualifies as thin stainless steel?
A: Thin stainless steel typically refers to stainless steel sheets or plates with a thickness of 3/16 inch or less.
Q: Why does welding thin stainless steel require special techniques?
A: Welding thin stainless steel poses challenges such as heat distortion and burn-through. Special techniques are required to ensure proper heat control and prevent damage.
Q: What are some suitable welding processes for thin stainless steel?
A: TIG welding and laser welding are often used for welding thin stainless steel due to their precision and low heat input.
Q: How should I prepare the stainless steel surface before welding?
A: Proper surface preparation involves cleaning the stainless steel, removing contaminants, and ensuring a proper fit-up for optimal welding results.
Q: What is tack welding and how do I do it for thin stainless steel?
A: Tack welding involves creating temporary welds to hold the pieces of stainless steel together during the final welding process. Proper spacing, angles, and techniques should be used for strong and accurate tack welds.
Q: Are there specific welding techniques for thin stainless steel?
A: Yes, techniques like pulse welding or backstepping can be used for welding thin stainless steel. These techniques help control heat input and minimize distortion.
Q: How do I determine the optimal welding parameters and settings for thin stainless steel?
A: The optimal welding parameters and settings depend on factors such as current, voltage, and travel speed. It is important to experiment and adjust these settings to achieve the desired results.
Q: What joint designs are suitable for welding thin stainless steel?
A: Lap joints and butt joints are commonly used for welding thin stainless steel. Proper joint preparation and fit-up are crucial for strong and reliable welds.
Q: What are some common issues when welding thin stainless steel?
A: Common issues include burn-through, warping, and lack of fusion. Troubleshooting tips and solutions can help address these problems.
Q: How important is AWS stainless steel welding certification?
A: AWS stainless steel welding certification is highly important for professionals in the industry. It confirms their expertise and opens up more opportunities for career advancement.
