What You Need to Weld Stainless Steel: Essential Tools and Equipment

What You Need to Weld Stainless Steel Essential Tools and Equipment

Welcome to our guide on welding stainless steel! Whether you’re a seasoned welder or just starting out, it’s important to use the right tools and equipment to ensure a successful and durable weld. In this section, we’ll go over the essential tools and equipment you’ll need to weld stainless steel, as well as why it’s important to use the correct ones. Let’s get started!

Welding Machine

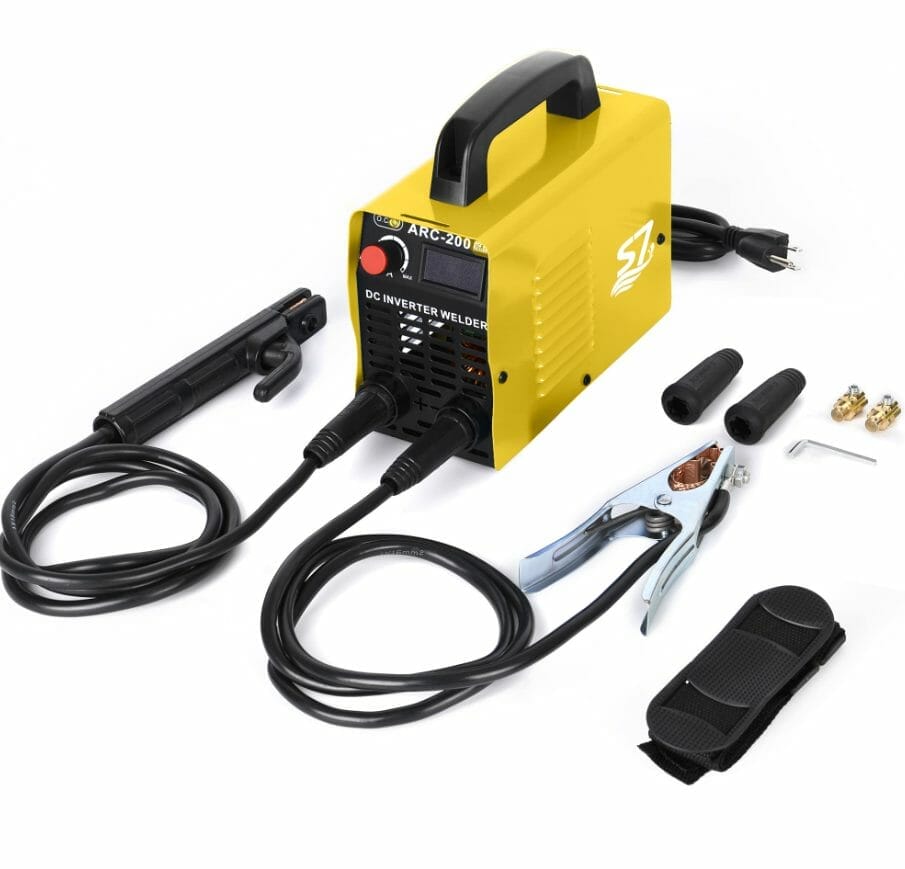

Welding Machine

The welding machine is a critical tool for welding stainless steel. It is important to choose a machine that is suitable for your welding needs as well as the type of stainless steel you will be welding. There are several types of welding machines available:

Type of Welding MachineDescription
TIG (Tungsten Inert Gas)TIG welding machines use a non-consumable tungsten electrode to produce the weld. They are suitable for welding thin stainless steel sheets and produce high-quality welds.
MIG (Metal Inert Gas)MIG welding machines use a consumable wire electrode to produce the weld. They are suitable for welding thicker stainless steel and are faster than TIG welders.
Stick WeldingStick welding machines use a consumable electrode coated in flux to produce the weld. They are suitable for welding thicker stainless steel and are often used for outdoor welding jobs.

When choosing a welding machine, consider the thickness of the stainless steel you will be welding, the welding position, the desired welding speed, and your budget. It is also important to choose a machine that is easy to use and has the necessary safety features.

Electrodes and Filler Materials

When welding stainless steel, using the right electrodes and filler materials is essential for creating strong and durable welds.

Electrodes and Filler Materials

There are various types of electrodes specifically designed for stainless steel welding, including:

Electrode TypeDescription
E308LThis electrode is ideal for welding stainless steel with low carbon content. It is also suitable for joining stainless steel to mild steel.
E309LThis electrode is designed for welding stainless steel to dissimilar metals, such as carbon steel, low alloy steel, and cast iron.
E316LThis electrode is suitable for welding stainless steel with high carbon content. It provides excellent resistance to corrosion and cracking.

Filler materials are used to fill gaps between the joint and strengthen the weld. The most common filler materials used for stainless steel welding are:

  • ER308L
  • ER309L
  • ER316L

It is important to choose the appropriate electrodes and filler materials based on the type of stainless steel being welded and the welding technique being used. Always consult the manufacturer’s recommendations and follow the specifications closely to ensure a high-quality weld.

Shielding Gas

When welding stainless steel, it’s crucial to protect the weld from contamination and oxidation. This is where shielding gas comes in. Shielding gas creates a protective atmosphere around the weld, preventing external gases from affecting the weld quality.

Shielding Gas

The most commonly used shielding gas for stainless steel welding is a mixture of 90% helium and 7.5% argon, with the remaining 2.5% being carbon dioxide. This gas blend provides the ideal balance of heat transfer and gas coverage to produce high-quality welds. Other gas blends, such as 98% argon and 2% oxygen, can also be used for certain applications.

When using shielding gas, it’s important to ensure proper gas flow and coverage. The gas flow rate should be adjusted to the diameter of the welding wire and the welding amperage. Too low of a gas flow rate can lead to inadequate coverage, while too high of a gas flow rate can cause turbulence and affect the weld quality.

Welding Consumables

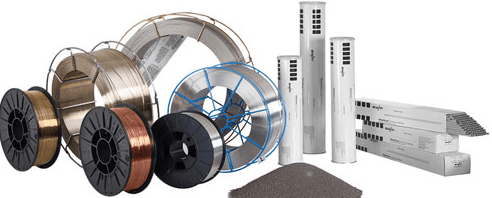

Welding Consumables

Aside from the essential tools and equipment like welding machines, electrodes, and shielding gases, there are other consumables required for a successful stainless steel welding project. These include:

  • Anti-spatter spray: This can help prevent spatter from sticking to the welding gun, reducing the need for cleaning and maintenance.
  • Cleaning agents: Before welding, it is crucial to remove all contaminants from the surface of the stainless steel. Specialized cleaning agents can help dissolve oils, grease, and other debris that can negatively affect the quality of the weld.
  • Wire brushes: After cleaning the surface of the stainless steel, it is important to use a wire brush to remove any remaining debris or loose material.

Using these welding consumables can help ensure a clean and high-quality weld. Be sure to choose consumables that are specifically designed for stainless steel welding.

Personal Protective Equipment (PPE)

Welding stainless steel can be a hazardous job if proper safety measures are not taken. As a welder, it is crucial to protect yourself from potential hazards by wearing the appropriate personal protective equipment (PPE).

Personal Protective Equipment (PPE)

Eye and Face Protection

When welding, the bright light and sparks that are produced can cause damage to the eyes, leading to long-term problems. It is essential to wear safety glasses or a welding helmet with a proper filter to prevent damage to your eyes. The helmet should also cover your face and neck to prevent burns from sparks and radiant heat.

Gloves and Clothing

Stainless steel welding produces heat and sparks, which can cause burns on the hands and other exposed skin. Welding gloves made from heat-resistant materials will protect your hands while welding. Wearing flame-resistant clothing will also help protect against burns and other hazards.

Respiratory Protection

The welding process creates fumes and gases that can be harmful to the respiratory system. To avoid the risk of serious health problems, it is recommended to wear a respirator or an air-purifying respirator. Ensure that the respirator is approved for welding fumes and fits properly to prevent inhalation of toxic fumes.

By using the appropriate PPE, you can protect yourself from potential hazards and ensure your safety while welding stainless steel.

Welding Technique

Welding Technique

Welding stainless steel requires a different technique compared to other metals due to its unique properties. Here are some tips to ensure a strong and durable weld:

  1. Preheat the material: Stainless steel has a high thermal conductivity, which means it can dissipate heat quickly, causing distortion or cracks. To prevent this, preheat the material before welding to maintain a consistent temperature throughout the process.
  2. Control the heat input: Use a lower amperage setting and a slower travel speed to avoid overheating the material. Excessive heat can lead to weak welds and distortion.
  3. Clean the material: Make sure the material is free from oils, grease, and other contaminants that can affect the quality of the weld. Use a wire brush or grinding wheel to remove any rust or scale on the surface.
  4. Use the right electrode: Select an electrode that is specifically designed for stainless steel welding. For TIG welding, use a pure tungsten electrode or one that contains a small amount of thorium or cerium. For MIG welding, use a filler wire that matches the base metal.
  5. Keep the weld pool small: Stainless steel has a low thermal expansion coefficient, which means it expands and contracts less than other metals. Keep the weld pool small to avoid excessive heat input and reduce the risk of cracking or distortion.
  6. Avoid undercutting: Undercutting is a common issue that occurs when the weld penetrates too deeply into the base material, leaving a groove or depression. To prevent undercutting, hold the electrode at a 90-degree angle to the workpiece and maintain a consistent travel speed.

By following these tips, you can create clean, strong, and durable welds on stainless steel.

Preparation and Cleaning

Preparation and Cleaning

Proper preparation and cleaning are essential to achieving high-quality welds when working with stainless steel. Failure to properly clean the metal can lead to contamination and flaws in the finished product. Here are some steps to follow:

  1. Remove oils and grease: Before welding, it is important to remove any oils or grease that may be present on the metal surface. Failure to do so can cause the weld to become contaminated and weaken the bond.
  2. Clean the surface: After removing any oils or grease, the surface of the metal should be cleaned thoroughly to remove any remaining contaminants. This can be done using a wire brush or chemical cleaning solution.
  3. Use a stainless steel brush: When cleaning the metal surface, be sure to use a stainless steel wire brush to avoid contamination from other metals.
  4. Preheat the metal: Preheating the metal before welding can help remove any remaining moisture and further reduce the risk of contamination.

By taking the time to properly prepare and clean the metal surface, you can help ensure a strong and durable weld that will stand the test of time.

Welding Positions

When welding stainless steel, different positions may need to be considered. These include flat, vertical, horizontal, and overhead positions. Each position presents unique challenges and requires specific welding techniques.

Flat welding is the most common position and is relatively easy to weld. The welder can move the torch in a straight line, making it easier to maintain a consistent weld bead.

In contrast, vertical welding requires a combination of techniques and requires the welder to control the weld puddle and maintain a consistent arc length. Horizontal welding involves moving the torch in a side-to-side motion while maintaining a consistent angle and speed.

Overhead welding is the most challenging position and requires the welder to maintain a constant speed and use a push technique to avoid gravity from pulling the molten metal downwards.

Welding Defects and Troubleshooting

Although welding stainless steel can produce strong and durable welds, there are common defects that can occur, such as porosity, cracking, and distortion. If not addressed properly, these defects can compromise the quality of the weld and affect its performance. Here are some troubleshooting tips to help minimize and address these issues:

DefectCauseTroubleshooting Tips
PorosityGas trapped in the weld poolUse proper shielding gas and ensure adequate flow. Clean the base metal of any contaminants before welding. Adjust heat input to prevent overheating.
CrackingExcessive heat input or poor joint fit-upPreheat the base metal to reduce the cooling rate. Use a lower heat input and a slower welding speed. Properly fit-up joints and minimize gaps between the pieces being welded.
DistortionUneven heating and cooling of the base metalMinimize heat input and use a slower welding speed. Use clamps or fixtures to hold the pieces being welded in place. Use a backing strip to distribute heat evenly.

It’s important to note that proper preparation and technique can help prevent these defects from occurring in the first place. Additionally, following proper safety protocols and using the right tools and equipment can also contribute to the success of your stainless steel welding endeavors.

Safety Tips and Precautions

Welding stainless steel involves several potential hazards that must be considered for safe operation. Follow these safety tips and precautions to prevent accidents and ensure a successful welding project:

  • Always wear proper personal protective equipment (PPE), including a welding helmet, safety glasses, gloves, and protective clothing.
  • Ensure proper ventilation in the work area to prevent the accumulation of harmful gases and fumes. Use respiratory protection if necessary.
  • Remove any flammable materials from the work area and keep a fire extinguisher nearby in case of an emergency.
  • Inspect all equipment before use, and perform regular maintenance to ensure optimal performance.
  • Practice proper handling and storage of welding consumables to prevent contamination.
  • Never touch the electrode, workpiece, or any metal parts of the welding equipment with bare skin while in operation.

By following these safety guidelines, you can minimize the risk of injury and ensure that your welding project is completed successfully.

Read More : Welding Titanium to Stainless Steel | Pro Tips & Techniques

Is Stamping Stainless Steel a Necessary Step in the Welding Process?

Stamping stainless steel basics is an essential step in the welding process. It involves the use of a stamping tool to create precise shapes and contours in the metal before welding. This helps in achieving accurate positioning and alignment of the components, ensuring a strong and seamless weld joint. By stamping stainless steel, welders can improve the overall quality and efficiency of the welding process.

Frequently Asked Questions (FAQs)

Q: Can stainless steel be spot welded?

Yes, stainless steel can be spot welded. However, it requires special equipment and techniques due to the material’s unique properties. It is recommended to use a high-quality welding machine and suitable electrodes and filler materials for the job.

Q: What are the common challenges when spot welding stainless steel?

Some common challenges when spot welding stainless steel include material thickness and conductivity, the risk of burn-through or warping, and the need for proper shielding gas to prevent contamination and oxidation. It is important to follow proper preparation and cleaning techniques before welding and to maintain the right heat input during the process.
