How to Set Up a TIG Welder for Stainless Steel: Easy Guide

How to Set Up a TIG Welder for Stainless Steel Easy Guide

Are you looking to perfect your TIG welding skills on stainless steel? Look no further! With the right equipment, gas, and technique, you can achieve flawless welds on this durable material. In this article, we will provide you with a step-by-step guide on setting up a TIG welder specifically for stainless steel welding.

Whether you are a seasoned welder or just starting with TIG welding, this article will help you get started on the right foot. We will cover everything from selecting the appropriate equipment to adjusting machine settings and troubleshooting common issues.

Key Takeaways

  • Setting up a TIG welder for stainless steel involves choosing the right equipment, gas, and technique.
  • The unique characteristics of stainless steel make TIG welding the preferred method for this material.
  • Essential equipment for TIG welding stainless steel includes TIG welders, tungsten electrodes, filler metals, welding helmets, and other necessary safety gear.
  • Argon is the preferred shielding gas for TIG welding stainless steel.
  • Proper machine setup, cleaning the metal surface, and selecting the appropriate tungsten electrode are essential preparations before starting the TIG welding process on stainless steel.
  • Adjusting machine settings such as amperage, balance control, pulse settings, and post-flow time is critical to achieving optimal stainless steel welding.
  • Techniques such as torch angle, filler rod control, and proper heat distribution are crucial for successful TIG welding on stainless steel.
  • Common issues such as inadequate penetration, porosity, and tungsten contamination can be addressed with proper troubleshooting techniques.

Understanding TIG Welding for Stainless Steel

Before diving into the specifics of setting up a TIG welder for stainless steel, it is important to understand the basics of TIG welding and why it is the preferred method for welding stainless steel.

TIG welding, also known as Gas Tungsten Arc Welding (GTAW), uses a tungsten electrode to produce a weld. Unlike other welding methods, TIG welding does not involve any filler metal in the initial stages of the welding process, making it ideal for welding thin materials.

Stainless steel is a unique material that requires special attention when it comes to welding. Its high resistance to corrosion, heat, and wear makes it a popular choice in various industries, from food processing to aerospace.

However, due to its unique properties, stainless steel welding requires a high degree of precision and control. TIG welding is the ideal method for welding stainless steel because it allows for precise control over the heat input and welding parameters, resulting in high-quality welds with minimal distortion.

Equipment Needed for TIG Welding Stainless Steel

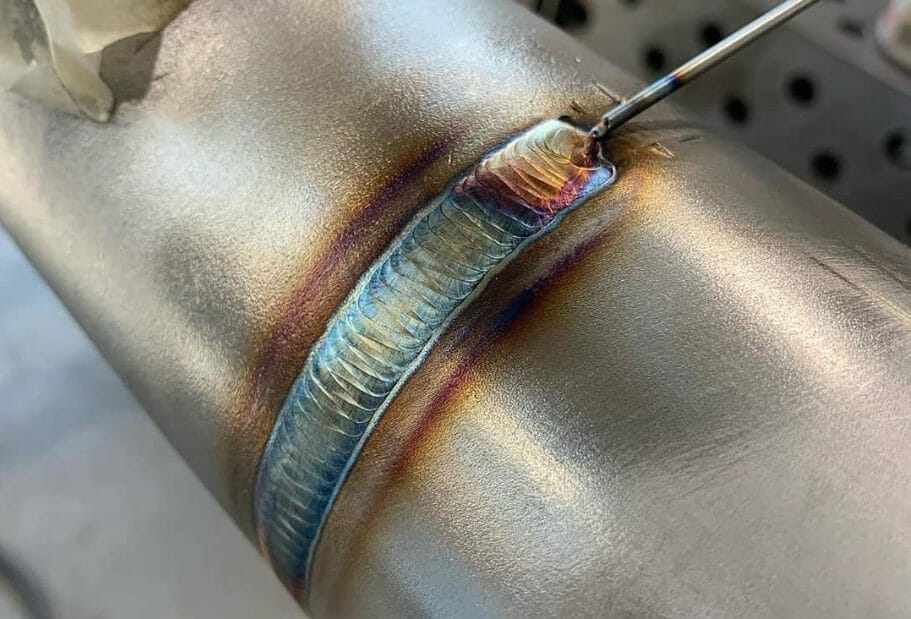

Equipment Needed for TIG Welding Stainless Steel

To TIG weld stainless steel, you will need specialized equipment that differs from what is necessary for other welding types. Here is a breakdown of the essential gear required:

TIG WelderA TIG welder is a specialized machine that provides the necessary control over the welding process. It allows you to adjust amperage, welding speed, and heat input while using a foot pedal to activate the arc. For stainless steel welding, it’s essential to have a TIG welder that can deliver sufficient power, preferably at least 200 amps.
Tungsten ElectrodesTungsten electrodes are used to start and maintain the arc in TIG welding. For stainless steel welding, a pure tungsten electrode is not recommended, as it can contaminate the weld. Instead, you should use thoriated tungsten or a tungsten alloy with cerium or lanthanum.
Filler MetalsFiller metals are used to join two pieces of metal in TIG welding. For stainless steel, you should use filler metals that match the base metal. Common filler metals for stainless steel include ER308L and ER316L.
Welding HelmetA welding helmet is necessary to protect your eyes and face from the bright light generated during TIG welding. For stainless steel welding, it’s best to use a helmet with auto-darkening technology to enhance visibility and accuracy.
Safety GearWelding can produce hazardous fumes and debris, so it’s crucial to wear appropriate personal protective equipment (PPE) to avoid injury. For TIG welding stainless steel, you should wear a welding apron, gloves, and safety glasses. A respirator is also recommended, especially if you’re working in an enclosed area.

Having all the necessary equipment is an essential first step in TIG welding stainless steel. With the right gear in place, you’ll be able to create clean and precise welds that will last for years to come.

Selecting the Right Gas for TIG Welding Stainless Steel

Choosing the appropriate shielding gas is crucial when it comes to achieving high-quality TIG welds on stainless steel. Argon is the most commonly used gas for TIG welding and is a popular choice due to its effectiveness with stainless steel. It provides a stable arc with minimal spatter and a clean weld appearance.

Gas purity also plays a significant role in the welding process. Impurities can cause various issues, such as porosity, contamination, and poor weld quality. When selecting a shielding gas, ensure it has a purity level of at least 99.996%.

Preparing the TIG Welder for Stainless Steel Welding

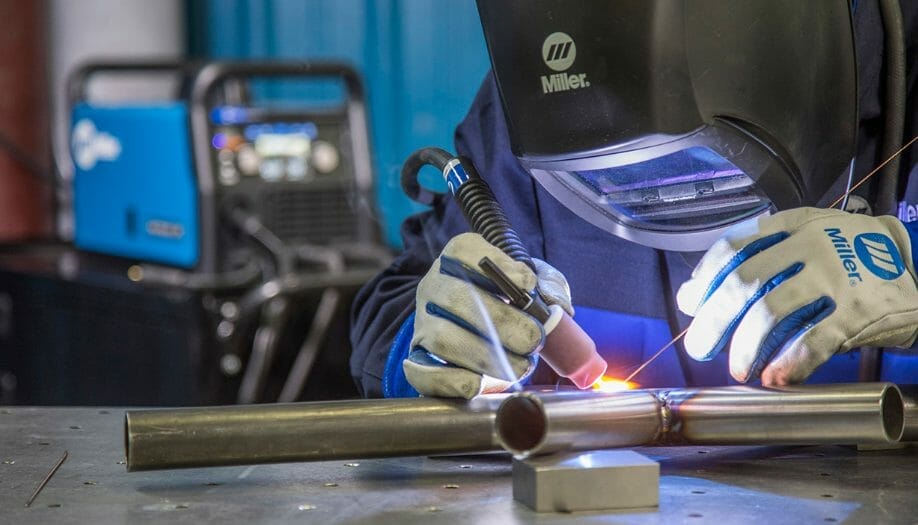

Preparing the TIG Welder for Stainless Steel Welding

Before starting the welding process, it is essential to properly prepare the TIG welder. Here are some important steps to follow:

  • Machine Setup: Ensure all cables and connections are secure. Double-check the gas and power supply before turning on the machine.
  • Cleaning the Metal Surface: Use a clean cloth or grinder to remove any surface contaminants that may affect the welding process, such as rust, paint, or oil.
  • Selecting the Appropriate Tungsten Electrode: Use a tungsten electrode appropriate for the thickness of the stainless steel. For thinner steel, a smaller electrode will be required, while thicker steel will require a larger electrode.

Once the above steps have been completed, the TIG welder is ready for use. However, it is important to remember that welding stainless steel requires a higher level of precision and care than other materials, so take your time and ensure that all settings and preparations are correct before beginning the welding process.

Adjusting Machine Settings for Stainless Steel Welding

Once you have prepared the TIG welder for stainless steel welding, it’s time to adjust the machine settings to achieve optimal results. The settings you choose will depend on the thickness of the metal you’re welding, the type of joint, and the welding position.

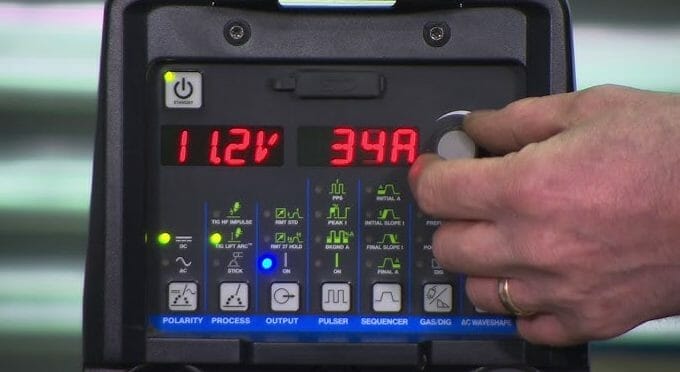

Adjusting Machine Settings for Stainless Steel Welding


Amperage is the most critical setting to get right when TIG welding stainless steel. Too little amperage will result in a weak and incomplete weld, while too much amperage can cause the metal to warp or even burn through. As a general rule, you should use around 1 amp per thousandths of an inch of material thickness.

Balance Control

Balance control adjusts the cleaning and penetration effects of the welding arc. It’s essential to get this setting right when welding stainless steel. A balance of around 70-90% should be used for welding on stainless steel.

Pulse Settings

Pulse settings allow you to control the frequency, amplitude, and time-on and time-off for the welding current. These settings are beneficial when welding thin materials. The pulse setting varies from one machine to another, so you should consult your welder’s manual to find the appropriate values to use.

Post-Flow Time

Post-flow time controls the time that shielding gas is applied after the weld. It’s essential to use the correct post-flow time to prevent corrosion of the weld and ensure a clean, professional finish. A post-flow time of 5-10 seconds should be used for welding stainless steel.

By adjusting the TIG welder machine settings, you can achieve optimal results when welding stainless steel. Take your time to experiment with different settings, and don’t be afraid to adjust them as necessary to get the desired outcome. With practice, you’ll be able to master this process and achieve professional results every time.

Techniques for TIG Welding Stainless Steel

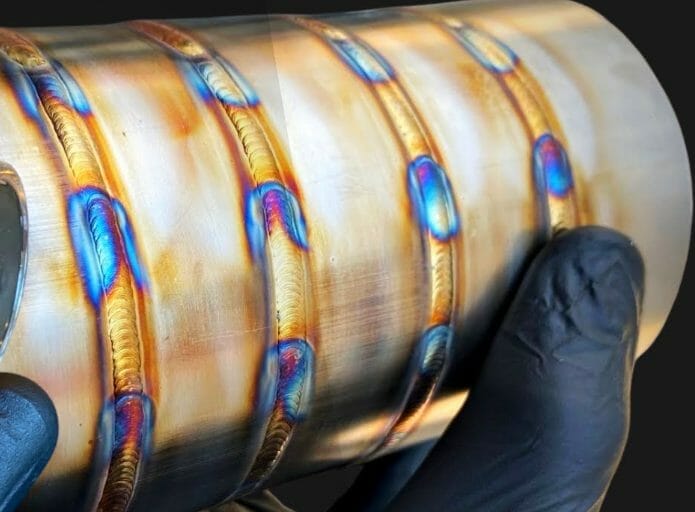

Techniques for TIG Welding Stainless Steel

Now that you have set up your TIG welder for stainless steel and prepared the metal surface, it’s time to focus on the actual welding techniques. Follow these tips to achieve high-quality TIG welds on stainless steel:

  • Torch Angle: Maintain a 15-20 degree torch angle to prevent the tungsten from touching the workpiece. This can result in tungsten contamination and poor weld quality.
  • Filler Rod Control: Use the appropriate filler rod size to match your base metal. Ensure a consistent and steady feed of the filler rod to maintain a stable arc and prevent the formation of voids.
  • Heat Distribution: Use a back-and-forth motion to distribute heat evenly across the workpiece. This technique helps prevent overheating and distortion of the metal.
  • Puddle Control: Keep the puddle small to prevent it from becoming too hot. This technique will help improve the weld quality and reduce the likelihood of imperfections.

Remember, TIG welding requires a high level of skill and precision. Take it slow, practice, and don’t hesitate to seek guidance from a professional.

Another important aspect to keep in mind while TIG welding stainless steel is to maintain a consistent and stable arc throughout the welding process. This can be achieved by keeping the tungsten electrode sharp and clean. If the tungsten electrode becomes contaminated, replace it before resuming welding.

In addition, pay attention to the color of the weld pool. A shiny silver color indicates a properly heated and fused weld. If the color is dull or has a bluish tint, the weld may be weak and prone to failure.

With these techniques and best practices in mind, you can achieve flawless TIG welds on stainless steel and take your welding skills to the next level.

Troubleshooting Common Issues in TIG Welding Stainless Steel

While TIG welding stainless steel can produce excellent results, it’s not uncommon to experience problems during the process. Here are some common issues and how to troubleshoot them.

Inadequate penetration

If your TIG welds on stainless steel are not penetrating enough, the heat input is likely too low. To fix this, increase the amperage or slow down your travel speed. You can also try using a larger diameter filler rod to increase heat input.


Porosity, or the presence of small holes in your weld, can occur if your shielding gas is contaminated or if the metal surface isn’t clean. Check your gas purity and make sure you’re using the correct gas for your stainless steel grade. It’s also important to clean the metal surface thoroughly before welding.

Tungsten contamination

If you notice discoloration or contamination of your tungsten electrode, it’s likely due to improper handling or using the wrong type of tungsten. Make sure to always wear gloves when handling tungsten, as oils and dirt from your skin can cause contamination. Additionally, use the correct type of tungsten for your material and make sure it’s sharp.


Stainless steel is known to warp easily during welding due to its high thermal conductivity. To prevent warping, try using a lower amperage and reducing the overall heat input. You can also use a back purge to help cool the weld and prevent warping.

By understanding and addressing these common issues, you’ll be able to achieve flawless TIG welds on stainless steel. Remember that practice and patience are key to improving your welding skills.


TIG welding is a highly precise welding process that requires careful preparation and technique, particularly when working with stainless steel. By following the steps outlined in this guide, you can set up your TIG welder for stainless steel welding and achieve high-quality results.

Remember to carefully select your equipment and gas, clean the metal surface, and adjust your machine settings accordingly. Additionally, it’s crucial to practice proper technique, such as controlling your filler rod and maintaining consistent heat distribution.

If you experience common issues such as porosity or inadequate penetration, don’t be discouraged. TIG welding can be challenging even for experienced welders, but with patience and practice, you can improve your skills.

Keep Practicing!

The more you practice TIG welding on stainless steel, the more comfortable you’ll become with the process. Don’t be afraid to seek guidance from experienced welders or take classes to improve your skills. With time and dedication, you can become a skilled TIG welder capable of producing flawless stainless steel welds.

Read More : Mastering stainless steel TIG welding settingscoba

What Are the Applications of UHMW Plastics in TIG Welding for Stainless Steel?

Uhmw plastics applications and benefits are widely seen in TIG welding for stainless steel. These specialized plastics act as a shielding material, protecting the welding area from contamination and ensuring optimal weld quality. With their exceptional resistance to heat and chemicals, UHMW plastics offer durability and longevity, enhancing the overall performance and efficiency of TIG welding processes in stainless steel fabrication.

What Are the Steps to Set Up a TIG Welder for Welding Stainless Steel?

To set up a TIG welder for welding stainless steel, consider these essential tips for welding stainless to steel. First, ensure you have the correct filler material designed for stainless steel. Next, clean the stainless steel surface thoroughly to remove any contaminants. Set the TIG welder to DC mode and adjust the amperage as per your welding requirements. Take the necessary safety precautions and practice proper technique to achieve optimal results.


Q: What equipment do I need for TIG welding stainless steel?

A: You will need a TIG welder, tungsten electrodes, filler metals, welding helmets, and other necessary safety gear.

Q: What gas should I use for TIG welding stainless steel?

A: The recommended shielding gas for TIG welding stainless steel is argon.

Q: How do I prepare my TIG welder for stainless steel welding?

A: Before starting the TIG welding process on stainless steel, ensure that your machine is properly set up, the metal surface is clean, and the appropriate tungsten electrode is selected.

Q: How do I adjust the machine settings for stainless steel welding?

A: To achieve optimal stainless steel welding, adjust the amperage, balance control, pulse settings, and post-flow time on your TIG welder.

Q: What techniques should I use for TIG welding stainless steel?

A: Successful TIG welding on stainless steel requires proper torch angle, filler rod control, and ensuring proper heat distribution.

Q: What should I do if I encounter common issues while TIG welding stainless steel?

A: If you experience problems such as inadequate penetration, porosity, or tungsten contamination, refer to our troubleshooting tips for solutions.
