Are you looking to improve your MIG welding skills on 304 stainless steel? Look no further. In this article, we will provide expert tips and techniques for achieving high-quality welds on 304 stainless steel. From understanding the material properties to selecting the right equipment and perfecting your technique, we will guide you through every step of the process. Let’s get started!
Key Takeaways:
- Proper preparation is key to achieving high-quality MIG welds on 304 stainless steel.
- Choosing the right equipment, machine settings, and wire and gas selection is essential for success.
- Mastering your welding technique, including gun angle, travel speed, and weld bead appearance, will result in optimal weld quality.
- Post-weld cleaning and finishing are important for both maintaining appearance and preventing corrosion.
- Always prioritize safety, including proper ventilation and personal protective equipment.
Understanding the Properties of 304 Stainless Steel
304 stainless steel is a versatile and widely used alloy due to its excellent corrosion resistance, high-temperature strength, and durability. It is composed of primarily iron, along with 18% chromium and 8% nickel.
One of the most significant features of 304 stainless steel is its ability to resist corrosion caused by exposure to a variety of substances, including acids, chemicals, and saltwater. This property makes it a popular choice for industrial and marine applications. Furthermore, 304 stainless steel is also known for its high-temperature resistance, allowing it to maintain its strength and structural integrity in extreme heat conditions.
Mechanical Properties of 304 Stainless Steel
| Property | Value |
|---|---|
| Tensile strength | 75,000 psi (515 MPa) |
| Yield strength | 30,000 psi (205 MPa) |
| Modulus of elasticity | 28.0 x 10^6 psi (193 GPa) |
| Hardness (Rockwell B) | 82 |
The above mechanical properties are essential considerations when welding 304 stainless steel. Understanding the material’s strength and durability will aid in the selection of appropriate welding techniques, wire, and equipment. It is also crucial to maintain the integrity of the stainless steel material during welding to avoid compromising the mechanical properties of the finished product.
Preparation: Cleanliness and Material Handling
Before starting any MIG welding on 304 stainless steel, it is essential to ensure that the material is clean of any contaminants. Unlike other types of welding, MIG welding requires a cleaner work surface to achieve the best results.
To clean the stainless steel, use a cleaning solution specifically designed for stainless steel to remove any dirt, oil, or grease. Alternatively, you can use a wire brush or abrasive pad to scrub the material’s surface until it is clean. Be sure to follow the manufacturer’s instructions for the cleaning solution and use gloves to prevent oil and dirt from transferring onto the surface.
After cleaning, handle the stainless steel with care. Use gloves or clean rags to prevent any oils or dirt from transferring onto the material. If the material is not clean and properly handled, it can result in poor weld quality.
Remember: Cleanliness is key to achieving successful MIG welding on 304 stainless steel.
Selecting the Right MIG Welding Equipment
Choosing the right MIG welding equipment is crucial for achieving successful welds on 304 stainless steel. In this section, we will guide you through the essential factors to consider when selecting your equipment.
Machine Settings
The first consideration is the machine settings. Make sure your MIG welding machine is capable of welding 304 stainless steel and has the appropriate settings. Adjust the voltage, wire feed speed, and amperage to suit your welding needs. It’s recommended to use a lower voltage setting with a higher wire feed speed to achieve a smooth weld.
Wire Selection
Choosing the right wire is also essential. Use a 308L or 309L wire to match the composition of the 304 stainless steel material. These wires have a low carbon content, which reduces the possibility of carbide precipitation and ensures high corrosion resistance.
Gas Selection
Selecting the right shielding gas is another critical factor. Use a gas blend of 98% argon and 2% carbon dioxide for optimal results. This mixture provides excellent penetration and reduces the risk of porosity in the weld.
Wire Diameter
The wire diameter you choose will depend on the thickness of the material you are welding. For thinner material, select a wire with a smaller diameter to avoid overheating and burn-through. For thicker material, use a larger diameter wire to achieve proper penetration.
By carefully considering these factors when selecting your MIG welding equipment, you can ensure that you have the right tools to achieve high-quality welds on 304 stainless steel.
Setting Up the MIG Welding Machine
Before beginning the welding process, it is crucial to ensure that the MIG welding machine is configured correctly for welding 304 stainless steel. Follow these steps:
- Set the voltage to the recommended level, typically between 21 and 24 volts.
- Adjust the wire feed speed to a level that provides a smooth and steady wire feed. The recommended speed is often between 150 and 260 inches per minute (ipm).
- Choose the correct size of wire for the material thickness. For 304 stainless steel, a wire diameter of 0.030 to 0.035 inches is typically used.
- Ensure that the contact tip, nozzle, and diffuser are clean and free of debris to prevent contamination of the weld.
- Select the appropriate shielding gas, usually a mix of 90% helium and 10% argon, to protect the weld from atmospheric contamination.
- Set the flow rate of the shielding gas to the recommended level, typically between 20 and 25 cubic feet per hour (cfh).
Once the machine is set up, perform a few test welds to ensure that the settings are correct and the weld quality is acceptable.
Technique: Achieving Proper Welding Techniques
To master MIG welding 304 stainless steel, it’s essential to understand the proper welding techniques. Below are some tips to help you achieve successful welds:
| Tip | Description |
|---|---|
| Gun Angle | Hold the MIG gun at a 5-15 degree angle in the direction of travel. This technique will help to penetrate the base metal and create a strong weld. |
| Travel Speed | Always maintain a consistent travel speed. Moving too quickly may result in a weld with insufficient penetration. Moving too slowly can deform the weld bead and result in irregularities. |
| Weld Bead Appearance | Pay close attention to the appearance of the weld bead. It should be smooth, uniform, and have adequate penetration. If the bead appears too high or too low, adjust the voltage and wire feed speed accordingly. |
By using these techniques, you’ll be well on your way to mastering MIG welding on 304 stainless steel. As with any skill, practice makes perfect, so don’t be afraid to experiment and refine your technique over time.
Troubleshooting Common Welding Issues
As with any welding process, MIG welding 304 stainless steel can encounter issues that may compromise the quality of the welds. Here are some common problems to watch out for and tips on how to resolve them.
Burn-through
Burn-through is a common issue when welding thin stainless steel sheets. To prevent this, reduce the amperage level and/or decrease the welding speed. If the material is still too thin, consider reinforcing it with a backing plate.
Porosity
Porosity, or the presence of small holes in the weld, can be caused by various factors, including dirty welding surfaces, improper gas flow, and welding with too high of a voltage. To prevent porosity, ensure that the welding surfaces are clean, use adequate shielding gas flow, and adjust the voltage to the appropriate level.
Distortion
Distortion occurs when the heat of the welding process causes the metal to warp or bend. To minimize this issue, use a lower amperage level and/or a shorter welding time. Clamp the material to a flat surface or use a jig to maintain its shape during the welding process.
Uneven Welds
Uneven welds occur when the heat is not evenly distributed across the material. To address this issue, make sure that the welding gun is held at a 90-degree angle relative to the material, and keep it at a consistent distance from the surface. Adjust the weld speed and heat as necessary to ensure even coverage.
By taking these precautions and troubleshooting tips into account, you can achieve high-quality welds when working with 304 stainless steel.

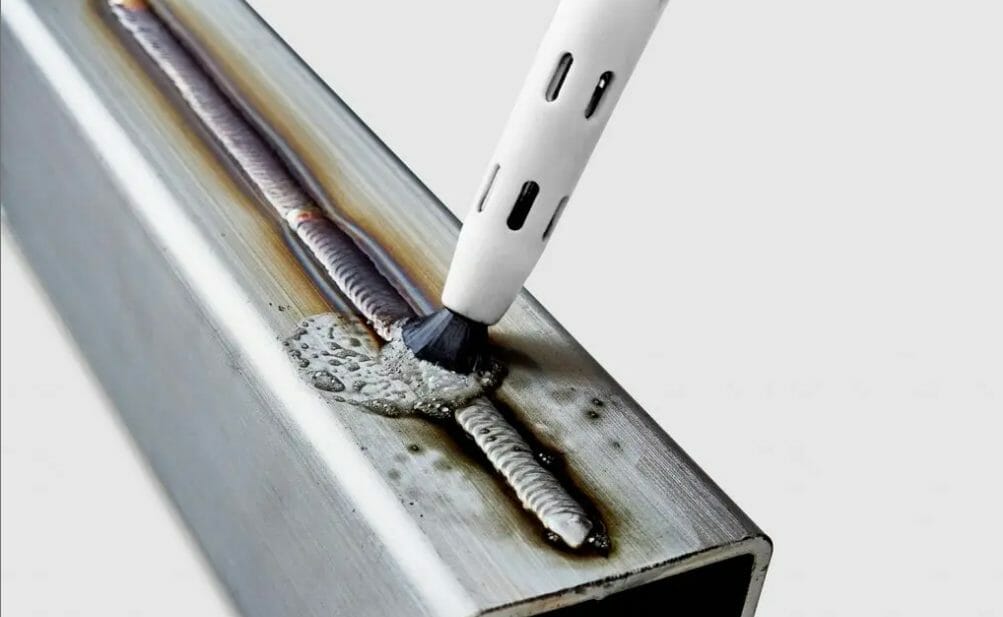

Post-Welding: Cleaning and Finishing
Once the welding process is complete, proper cleaning and finishing techniques are essential to achieve optimal results.
To eliminate heat discoloration on the stainless steel surface, use a stainless steel cleaner and a nylon abrasive pad. Be sure to follow the cleaner manufacturer’s instructions, and avoid using steel wool or wire brushes, which can leave behind tiny metal particles that can cause rusting later on.
Passivation is another important step in post-weld cleaning. This process removes any free iron from the stainless steel’s surface, protecting it from rust and corrosion. Passivation can be accomplished by using a chemical solution or by applying a paste of citric acid and water with a non-abrasive pad.
To achieve a visually appealing finish, consider using a polishing wheel or a hand-held abrasive pad to smooth out any rough weld beads. Be sure to follow the stainless steel’s grain lines during the polishing process to maintain a consistent appearance.
Remember, thorough post-weld cleaning and finishing techniques will not only enhance the appearance of your welds, but also improve their durability over time.
Safety Precautions for MIG Welding 304 Stainless Steel
Undertaking MIG welding on 304 stainless steel requires strict adherence to safety measures to prevent harm to oneself and others. Below are vital safety precautions to follow:
Personal Protective Equipment (PPE)
Always wear the appropriate PPE, including gloves, safety glasses, welding helmet, and flame-resistant clothing. Ensure that the PPE is in good condition and fits well to prevent exposure to harmful radiation and burns.
Ventilation
Good ventilation is crucial in the welding environment to prevent respiratory issues due to the fumes and gases produced during welding. Ensure that the work area has adequate ventilation and, if possible, use a fume hood or ventilation fan.
Workplace Precautions
Keep the welding area free of flammable materials and ensure that there are no combustible materials within the immediate vicinity. Always have a fire extinguisher nearby and know how to use it. Additionally, ensure that other workers in the vicinity are aware of the welding activity and are not at risk of exposure to radiation or flying debris.
By following these safety precautions, MIG welding on 304 stainless steel can be performed safely and efficiently, mitigating any potential risks or hazards.

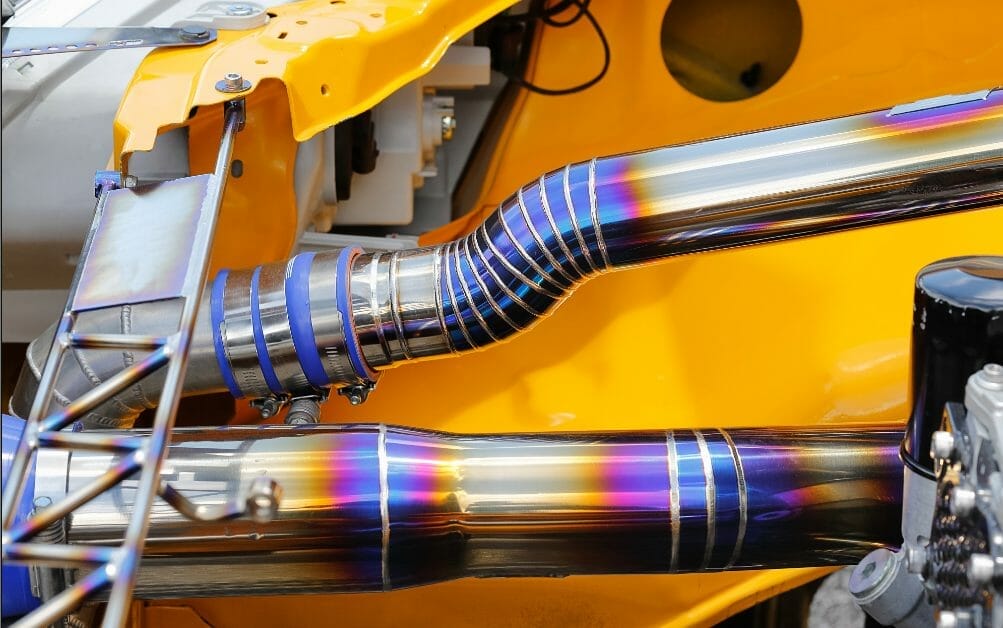

Advantages and Applications of MIG Welding 304 Stainless Steel
MIG welding of 304 stainless steel offers several advantages over other welding techniques. It is a fast, efficient, and versatile welding method that produces high-quality welds with minimal cleanup. MIG welding also allows welders to work with a broad range of stainless steel materials, including thin and thick gauge materials.
One of the main benefits of MIG welding is its ability to produce continuous welds. This method is ideal for welding long sections of pipe, tubing, or structural components, where continuous welding is essential to maintain structural integrity. With MIG welding, the welder can adjust the wire feed speed, voltage, and amperage to produce the desired weld penetration and bead appearance, making it a versatile welding technique.
MIG welding of 304 stainless steel is widely used in various industries, including automotive, aerospace, food processing, and medical equipment manufacturing. Its excellent corrosion resistance, durability, and aesthetic appeal make it a popular choice for creating intricate and complex designs in these industries. For instance, MIG welding is commonly used in creating exhaust systems for automobiles, decorative railings in buildings, and surgical equipment in the medical field.
In summary, MIG welding of 304 stainless steel offers a fast, efficient, and versatile welding method that produces high-quality welds. Its ability to produce continuous welds and work with a broad range of materials has made it a popular choice in various industries, including automotive, aerospace, food processing, and medical equipment manufacturing.
Conclusion
Mastering MIG welding on 304 stainless steel requires a combination of knowledge, technique, and equipment. By understanding the properties of the material and following proper preparation, setup, and welding techniques, you can achieve successful and long-lasting welds.
Remember to always prioritize safety by wearing the appropriate personal protective equipment and ensuring proper ventilation in the workspace.
Whether you’re welding for personal or professional purposes, the versatility and durability of 304 stainless steel make it an excellent choice for a wide range of applications.
Keep Practicing!
Practice makes perfect, and welding is no exception. Learning to weld takes time and effort, but with patience and perseverance, you can master MIG welding on 304 stainless steel.
So, keep practicing your techniques and experimenting with different settings and equipment until you achieve the results you desire.
Thank you for reading this guide, and we wish you the best of luck in your welding endeavors!
Read More : Stainless Steel Gasless MIG Wire: Your Welding Solution
What is the Best Technique for MIG Welding Stainless Steel Tube & Pipe?
When it comes to welding stainless steel tube and pipe, the best technique is utilizing the expertise of welded stainless steel tube and pipefitters. Their specialized knowledge allows for precise and efficient welds, ensuring strong and durable connections. Trusting the skill of these professionals guarantees optimal performance and longevity for your stainless steel projects.
FAQ
Q: What is MIG welding?
A: MIG welding, or Metal Inert Gas welding, is a welding process that uses an electric arc and a wire electrode to join metal pieces together. It is commonly used in various industries due to its versatility and efficiency.
Q: Can you MIG weld 304 stainless steel?
A: Yes, MIG welding can be used on 304 stainless steel. However, it requires specific techniques and equipment to achieve quality welds.
Q: Why is cleanliness important in MIG welding 304 stainless steel?
A: Cleanliness is crucial in MIG welding 304 stainless steel because any contaminants or impurities can affect the quality of the weld. Proper cleaning methods and material handling are necessary to ensure optimal results.
Q: What is the best MIG welding equipment for welding 304 stainless steel?
A: Selecting the right MIG welding equipment for welding 304 stainless steel involves considering factors such as machine settings, wire selection, and gas choices. It is important to choose equipment that suits the specific requirements of the job.
Q: How do you set up a MIG welding machine for welding 304 stainless steel?
A: Setting up a MIG welding machine for welding 304 stainless steel involves configuring parameters such as voltage, wire feed speed, and shielding gas flow rates. Following the manufacturer’s guidelines and making adjustments based on the specific material thickness is essential.
Q: What are some tips for achieving proper welding techniques on 304 stainless steel?
A: Achieving proper welding techniques on 304 stainless steel involves considering aspects such as gun angle, travel speed, and weld bead appearance. It is important to practice and refine these techniques to obtain high-quality welds.
Q: What are some common welding issues when working with 304 stainless steel and how do you troubleshoot them?
A: Common welding issues when working with 304 stainless steel include burn-through, porosity, and distortion. Troubleshooting these issues involves adjusting parameters, addressing material cleanliness, and using appropriate welding techniques.
Q: What is the importance of post-weld cleaning and finishing for 304 stainless steel welds?
A: Post-weld cleaning and finishing are important for 304 stainless steel welds to remove heat discoloration, passivate the material, and achieve an aesthetically pleasing finish. These steps help enhance the corrosion resistance and visual appearance of the welds.
Q: What safety precautions should be taken when MIG welding 304 stainless steel?
A: When MIG welding 304 stainless steel, it is important to wear proper personal protective equipment (PPE), ensure proper ventilation, and follow workplace safety precautions. This helps protect against potential hazards and create a secure welding environment.
Q: What are the advantages of MIG welding 304 stainless steel?
A: MIG welding offers advantages such as high welding speed, good weld quality, and ease of use when working with 304 stainless steel. It is widely used in various applications, including automotive, aerospace, and food processing industries.
Q: Why is mastering MIG welding on 304 stainless steel important?
A: Mastering MIG welding on 304 stainless steel is important because it allows for the production of high-quality welds with optimal strength and corrosion resistance. Proper techniques and knowledge of the material properties are essential for achieving successful welds.
