Welding stainless steel to carbon steel can be a challenging process that requires careful preparation and expert technique. However, it is an important skill for many industries, as it allows for the creation of strong and durable metal structures that combine the benefits of both stainless steel and carbon steel.
In this article, we will provide tips and techniques for successfully welding stainless steel to carbon steel, as well as discuss the key differences between these two metals and the various welding processes that can be used. Whether you are an experienced welder or just starting out, this guide will help you achieve a strong and reliable weld that meets the needs of any project.
Understanding the Differences Between Stainless Steel and Carbon Steel
Before attempting to weld stainless steel to carbon steel, it’s important to understand the key differences between the two materials. While both are widely used in a variety of applications, they have unique characteristics that impact the welding process.
Stainless steel is a highly corrosion-resistant alloy that contains at least 10.5% chromium by mass. It is known for its strength, durability, and aesthetic appeal. Carbon steel, on the other hand, is an alloy that contains varying levels of carbon, depending on the grade. It is known for its high tensile strength and low cost.
| Property | Stainless Steel | Carbon Steel |
|---|---|---|
| Corrosion resistance | High | Low to medium |
| Tensile strength | High | High |
| Ductility | Low | Medium |
| Cost | High | Low |
Because of its high corrosion resistance, stainless steel is often used in applications where it will be exposed to harsh environments or chemicals. Carbon steel, on the other hand, is often used in structural applications where strength and cost are more important than corrosion resistance.
When welding stainless steel to carbon steel, it’s important to keep these differences in mind. Stainless steel has a lower thermal conductivity than carbon steel, which can make it more difficult to weld. It also has a lower coefficient of expansion, which means that it will expand and contract less than carbon steel during welding and cooling. This can lead to distortion or warping if the two materials are not properly prepared or if the right welding process is not used.
Preparing for the Welding Process
Before welding stainless steel to carbon steel, it is important to properly prepare the surfaces to ensure a strong and successful weld. Here are some tips to help you prepare:
Clean both surfaces: Use a wire brush or grinder to remove any rust, paint, or other contaminants from the surfaces. Make sure the surfaces are completely clean and free of any oil or grease.
Bevel the edges: When welding two dissimilar metals, it is important to bevel the edges of the steel before welding. This will allow for better penetration of the weld and help prevent cracks and other defects. The bevel angles and widths will depend on the thickness and type of metal you are welding.
Use a filler metal: When welding stainless steel to carbon steel, it is necessary to use a filler metal that is compatible with both metals. Consult with a welding expert to determine the appropriate filler metal for your project.
Practice: Before welding on your actual project, practice on some scrap pieces of metal to get a feel for the process and ensure that you are comfortable with the settings on your welding machine.
Protect your eyes and skin: Welding produces bright light and harmful UV radiation that can damage your eyes and skin. Make sure to wear a welding helmet and protective clothing to protect yourself from these hazards.

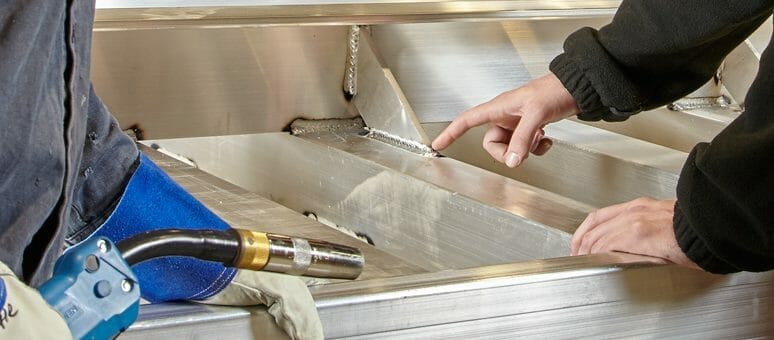

Selecting the Right Welding Process
When it comes to welding stainless steel to carbon steel, there are a few different welding processes that can be used. Here are some of the most common:
| Welding Process | Advantages | Disadvantages |
|---|---|---|
| Gas Tungsten Arc Welding (GTAW) | Produces a high-quality weld with precise control, suitable for thin materials. | Slower process, requires a high level of skill and experience. |
| Gas Metal Arc Welding (GMAW) | Fast and efficient process, suitable for thicker materials. | Produces more spatter than other processes, may require post-weld cleaning. |
| Shielded Metal Arc Welding (SMAW) | Easy and versatile process, suitable for outdoor work. | Not suitable for thinner materials, produces slag that must be removed. |
When selecting a welding process, consider the thickness of the materials being welded, the desired speed of the process, and the skill level of the welder.
Gas Tungsten Arc Welding (GTAW)
Also known as TIG welding, gas tungsten arc welding is a precision welding process that uses a tungsten electrode and a shielding gas to produce a high-quality weld. This process is suitable for thin materials and requires a high level of skill and experience to execute properly.
Gas Metal Arc Welding (GMAW)
Also known as MIG welding, gas metal arc welding is a fast and efficient welding process that uses a wire feed to join the metals and a shielding gas to protect the weld from oxidation. This process is suitable for thicker materials and produces more spatter than other processes, which may require post-weld cleaning.
Shielded Metal Arc Welding (SMAW)
Also known as stick welding, shielded metal arc welding is an easy and versatile process that uses a stick electrode to join the metals and a flux to protect the weld from oxidation. This process is suitable for outdoor work and can be used on a variety of material thicknesses, but produces slag that must be removed.
Ultimately, the best welding process for joining stainless steel to carbon steel will depend on the specific application and the expertise of the welder. Consider the advantages and disadvantages of each process before making a selection.
Read More : Protecting Your Stainless Steel Welds: Guide to Passivation
Choosing the Right Filler Metal
Choosing the right filler metal is crucial to achieving a strong weld when joining stainless steel and carbon steel. Filler metal acts as a bridge between the two metals, ensuring a secure bond, and also helps to balance out the different melting points of each metal.
When selecting a filler metal, it’s important to consider the type of stainless steel and carbon steel being welded together, as well as the intended use of the finished product. Here are a few tips to guide your filler metal selection:
- Match the filler metal to the base metal as closely as possible. Look for filler metals that have a similar composition to the metals being welded together.
- Consider the intended use of the finished product. If the welded product will be exposed to high temperatures or corrosive environments, select a filler metal that can withstand those conditions.
- Avoid using filler metals that contain high amounts of carbon, as this can cause cracking in the finished weld.
Some common filler metal options for welding stainless steel to carbon steel include:
| Filler Metal | Composition | Uses |
|---|---|---|
| ER309L | 20% chromium, 12% nickel | Joining stainless steel to mild or low alloy steel, for use in high-temperature applications |
| ER309LSi | 22% chromium, 12% nickel | Joining stainless steel to mild or low alloy steel, for use in high-temperature applications. Contains silicon, which helps to create a smoother, more stable weld. |
| ER309LMo | 23% chromium, 13% nickel, 2.5% molybdenum | Joining stainless steel to mild or low alloy steel, for use in high-temperature and corrosive environments. |
Ultimately, the filler metal selection will depend on the specific application and welding requirements. Be sure to consult with a welding expert or refer to the manufacturer’s recommendations for guidance on filler metal selection.

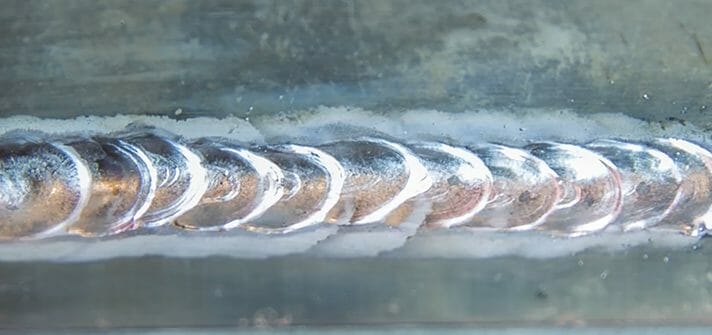

Tips for Achieving a Strong Weld
Welding stainless steel to carbon steel can be a challenging process, but with the right techniques, it’s possible to create a strong, durable weld. Here are some tips to help you achieve a successful weld:
- Clean and prepare the surfaces: Before welding, it’s essential to clean and prepare the surfaces of the stainless steel and carbon steel. This helps to remove any contaminants that could weaken the weld. Use a wire brush or grinder to remove rust, paint, and other debris, and then clean the surface with acetone or another suitable cleaning agent.
- Choose the right welding process: There are several different welding processes that can be used to join stainless steel and carbon steel, such as TIG and MIG welding. Each has its advantages and disadvantages, so choose the right process for your application.
- Select the correct filler metal: Choosing the right filler metal is crucial for achieving a strong weld. The filler metal should be compatible with both the stainless steel and carbon steel, and match the strength of the base metals. Talk to a welding supply store or consult a welding expert for guidance on selecting the right filler metal.
- Control heat input: Too much heat can cause distortion, warping, and other issues that weaken the weld. Use the correct welding technique to control the heat input and maintain a stable arc.
- Use proper welding technique: The right welding technique is critical for achieving a strong weld. For example, when TIG welding, use a narrow torch angle and weave the torch slightly to distribute the heat evenly. For MIG welding, use the correct wire size and gas mix to achieve a clean, strong weld.
- Inspect the weld: After welding, inspect the weld for any defects, such as cracks or porosity. Use non-destructive testing methods, such as visual inspection, to check the quality of the weld.
Remember, practice makes perfect! Welding stainless steel to carbon steel can be challenging, but with practice and perseverance, you can master the technique and create strong, durable welds.
Common Mistakes to Avoid
While welding stainless steel to carbon steel may seem straightforward, there are some common mistakes that welders make that can compromise the strength and integrity of the weld. Here are some tips for avoiding these mistakes:
Not Properly Cleaning the Surfaces
Before welding, it is essential to properly clean the surfaces of both the stainless steel and carbon steel. Failure to do so can result in contamination of the weld, leading to porosity and weak spots. Use a wire brush or grinder to remove any rust, paint, or other debris, and then wipe the surfaces down with acetone or another cleaning solution.
Not Selecting the Right Filler Metal
The filler metal used in welding stainless steel to carbon steel must be carefully selected to ensure good adhesion and strength. Using the wrong filler metal can cause cracking, corrosion, or other problems. Consult with a welding expert or refer to welding guidelines for recommendations on the best filler metal for your specific project.
Not Using the Right Welding Process
There are several welding processes that can be used to join stainless steel and carbon steel, but not all of them are suitable for every project. Choosing the wrong process can result in a weak or defective weld. Consider factors such as the thickness and type of metal, the required strength of the weld, and any structural or aesthetic requirements when selecting a welding process.
Not Properly Preheating the Materials
Preheating the stainless steel and carbon steel materials before welding can help prevent cracking and improve weld quality. Failure to preheat can result in a weak or brittle weld. The preheat temperature will depend on factors such as material thickness and the specific welding process being used. Consult with a welding expert or refer to welding guidelines for specific preheat requirements.
Not Monitoring the Welding Parameters
Welding parameters such as heat input, current, and wire speed must be carefully monitored during the welding process to ensure proper penetration and adhesion. Failure to monitor these parameters can result in a weak or defective weld. Use a welding machine with an auto-adjust feature or refer to welding guidelines for specific parameter settings.
Conclusion
By avoiding these common mistakes and following the recommended welding techniques, you can achieve a strong and durable weld when joining stainless steel and carbon steel. Always consult with a welding expert or refer to welding guidelines if you are unsure about any aspect of the welding process.
AWS Stainless Steel Welding Certification
If you’re serious about welding stainless steel to carbon steel, you should consider getting certified by the American Welding Society (AWS). The AWS offers a Stainless Steel Welding Certification program that tests welders’ skills in welding stainless steel to carbon steel, as well as other materials.
The certification program has different levels, depending on the complexity of the welding tasks involved. The most basic level is the Certified Welder (CW) certification, which tests welding skills in general. The next level is the Certified Welding Fabricator (CWF) certification, which focuses on welding fabrication skills. The highest level is the Certified Welding Inspector (CWI) certification, which tests welding skills as well as knowledge of welding codes and standards.
To become certified, you’ll need to pass a written exam as well as a hands-on welding test. The hands-on test involves welding stainless steel to carbon steel using the shielded metal arc welding (SMAW) process.
The certification process can be rigorous, but it’s worth it if you want to demonstrate your skills and knowledge to potential employers or clients. Having a certification can also give you a competitive edge in the job market.
To learn more about the AWS Stainless Steel Welding Certification program, visit the AWS website or contact your local AWS chapter.
Can Copper Coated Stainless Steel be Welded to Carbon Steel?
Yes, copper coated stainless steel can be welded to carbon steel. The benefits of copper coated stainless steel include improved corrosion resistance and enhanced conductivity. This combination allows for the joining of two dissimilar metals, unlocking a wider range of applications and ensuring a strong, durable bond.
Frequently Asked Questions
If you’re planning to weld stainless steel to carbon steel, you may have some questions about the process. Below, we’ve answered some of the most common questions we receive.
Can you weld stainless steel to carbon steel?
Yes, it is possible to weld stainless steel to carbon steel. However, it requires careful preparation and the use of the appropriate welding process and filler metal.
What welding process should I use to join stainless steel to carbon steel?
The welding process you use will depend on the specific application and the thickness of the materials being welded. Some of the most common processes include TIG welding, MIG welding, and stick welding.
What filler metal should I use for welding stainless steel to carbon steel?
The filler metal you choose will depend on the specific grade of stainless steel and carbon steel you are welding, as well as the welding process being used. Consult with a welding expert or refer to the manufacturer’s guidelines for specific recommendations.
Do I need to clean the surfaces of the metals before welding?
Yes, it is important to properly clean and prepare the surfaces of the stainless steel and carbon steel before welding. This helps to ensure a strong bond and prevent contamination that can compromise the weld.
How do I avoid common mistakes when welding stainless steel to carbon steel?
Some common mistakes when welding stainless steel to carbon steel include failing to properly clean the surfaces before welding, using the wrong welding process or filler metal, and not controlling the heat input. To avoid these mistakes, follow best practices for welding stainless steel to carbon steel, such as those outlined in this article.
Do I need to be certified to weld stainless steel to carbon steel?
While certification is not required, it can demonstrate your expertise in welding stainless steel to carbon steel and make you more competitive in the job market. The American Welding Society (AWS) offers certification programs for welding professionals, including those who specialize in welding stainless steel to carbon steel.
How can I learn more about welding stainless steel to carbon steel?
There are many resources available to help you learn more about welding stainless steel to carbon steel, including welding textbooks and online resources. You can also consult with a welding expert or take a welding course to gain hands-on experience.
