Are you looking to elevate your welding skills and achieve the perfect finish on your stainless steel exhaust project? Whether you are a beginner or an experienced welder, our comprehensive guide will provide expert guidance on the process of welding stainless steel exhaust. From understanding the properties of stainless steel to selecting the right tools and equipment, preparing the exhaust, and troubleshooting common welding issues, we have got you covered.
Key Takeaways
- Understanding the properties and characteristics of stainless steel exhaust is crucial before starting the welding process.
- Choosing the right tools and equipment, including welding machines, electrodes, filler metals, and protective gear, is essential for successful welding.
- Proper preparation, including cleaning and removal of existing coatings, is key to achieving a strong and aesthetically pleasing weld.
- Different welding techniques, such as TIG and MIG welding, can be used for stainless steel exhausts, and troubleshooting tips can help overcome common welding issues.
- Post-welding finishing and protection, such as cleaning, smoothing weld beads, and applying protective coatings, are necessary for the longevity and aesthetic appeal of the stainless steel exhaust.
- Proper maintenance and care, including recommended cleaning methods and inspection routines, are essential to keep your stainless steel exhaust in top condition.
Understanding Stainless Steel Exhaust
If you’re looking to weld stainless steel exhaust, it’s essential to understand the properties and characteristics of this metal alloy. Stainless steel is a low-carbon steel that contains at least 10.5% chromium, which makes it highly resistant to corrosion. This resistance to both oxidation and corrosion is why stainless steel is so commonly used in exhaust systems.
There are several grades of stainless steel, each with varying levels of corrosion resistance depending on the amount of chromium present. The most common grades of stainless steel used in exhaust systems are 304 and 409, with 304 being the higher quality and more expensive option. Understanding the type of stainless steel you are working with is crucial for selecting the right welding techniques and equipment.
When welding stainless steel exhaust, it’s important to note that this alloy has a lower thermal conductivity than other metals like aluminum and copper. This means that stainless steel takes longer to heat up and cool down, which requires a more precise and slower welding process to avoid warping or distortion of the exhaust pipe.
Corrosion Resistance of Stainless Steel
The chromium in stainless steel reacts with oxygen to form a thin, protective layer of chromium oxide on the surface of the metal. This layer prevents further corrosion of the metal and is why stainless steel is resistant to rust and other forms of corrosion. However, if the protective layer is damaged, the metal underneath is vulnerable to corrosion. When welding stainless steel exhaust, it’s important to avoid damaging the protective layer as much as possible to maintain the corrosion resistance of the material.

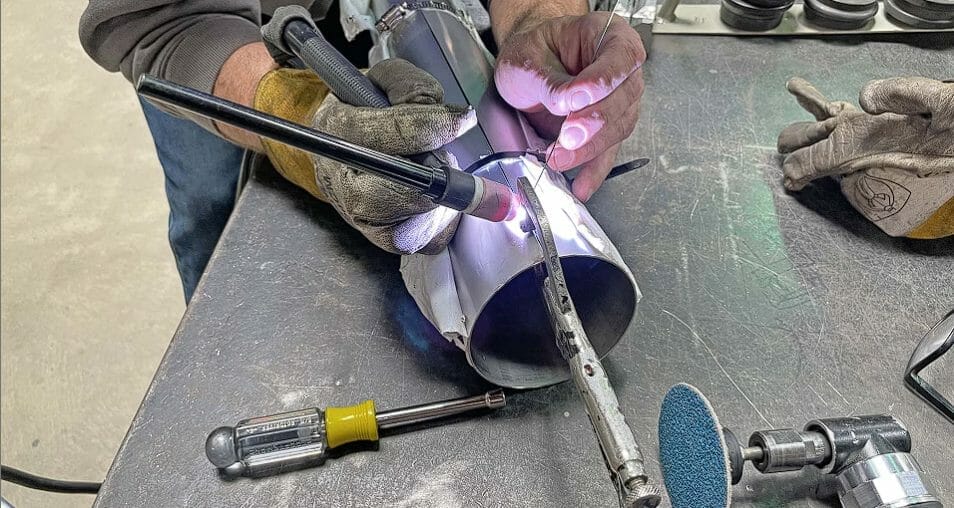

Selecting the Right Tools and Equipment
Welding stainless steel exhaust requires the appropriate tools and equipment to ensure a successful outcome. Here are some essential items you should have:
| Welding Machine | A TIG or MIG welding machine is suitable for welding stainless steel exhaust. TIG welding offers better precision and control, while MIG welding is faster and easier to learn. |
|---|---|
| Electrodes | Thoriated tungsten electrodes are recommended for TIG welding, while an AWS ER308L electrode is a popular choice for MIG welding stainless steel exhaust. |
| Filler Metals | For TIG welding, a 308L stainless steel filler rod is commonly used. For MIG welding, a wire with a diameter of 0.035 inches is suitable. |
| Protective Gear | Wearing proper protective gear is crucial when welding stainless steel exhaust. This includes a welding helmet with a shade 10-13 lens, welding gloves, a long-sleeved shirt, and pants made of thick, flame-resistant material, and safety glasses. |
One important factor to consider is proper ventilation in your workspace. Welding fumes produced during the process can be harmful to your health, so it is recommended to have adequate ventilation or wear a respirator mask during welding.
Other Tools to Consider
In addition to the essential equipment listed above, you may also want to consider investing in the following tools:
- A tungsten grinder to sharpen tungsten electrodes for TIG welding
- A wire brush for cleaning the surface of the stainless steel exhaust before welding
- A magnetic welding jig to hold parts in place during welding
- A stainless steel wire brush for cleaning welds after welding
Overall, selecting the right tools and equipment is essential for successful welding of stainless steel exhaust. Make sure to invest in quality equipment and follow safety precautions to ensure a safe and efficient welding process.
Preparing the Stainless Steel Exhaust
Before beginning the welding process, it’s essential to prepare the stainless steel exhaust properly. Proper preparation will ensure a stronger weld and a cleaner finish. Here are the necessary steps for preparing the stainless steel exhaust:
- Clean the area: Make sure the area you’re going to work on is clean and free of debris. Use a wire brush or sandpaper to remove any rust, paint, or other residue. This is especially important when working on an old exhaust system.
- Remove existing coatings: If your stainless steel exhaust has an existing coating, such as paint or powder coating, it needs to be removed before welding. Use a chemical solvent or abrasive blasting to remove the coating.
- Ensure proper fitment: Verify that the exhaust parts fit correctly before welding. If parts don’t fit well, adjust them as necessary. If gaps are present, use clamps to hold the parts together securely.
Note:
It’s critical to remove any existing coatings before welding, as these coatings can release toxic fumes when heated. Always wear proper protective gear, like gloves and a respirator, when handling chemicals or abrasive blasting before welding.
Welding Techniques for Stainless Steel Exhaust
Welding stainless steel exhaust can be a challenging process, but mastering the right techniques can result in strong and aesthetically pleasing welds. Here are some common welding techniques used for stainless steel exhaust:
TIG Welding
TIG welding, also known as Tungsten Inert Gas welding, is a popular technique for welding stainless steel exhaust. This method requires a high level of skill, but it creates precise, clean welds with no distortion. TIG welding is ideal for thin materials and can be used for both fusion and filler welding.
MIG Welding
MIG welding, or Metal Inert Gas welding, is another popular technique for welding stainless steel exhaust. This method is faster than TIG welding and is ideal for thicker materials. However, it can be more challenging to achieve a clean and precise weld with MIG welding.
Whether you choose TIG welding or MIG welding, make sure to follow these tips for successful welding:
- Ensure proper fit-up of the pieces to be welded
- Use the correct welding wire for the specific grade of stainless steel being used
- Control the heat input to avoid distortion and warping
- Use the correct amount of filler metal to achieve strong welds
By following these tips and practicing your welding skills, you can achieve professional-grade welds on your stainless steel exhaust project.
Troubleshooting Common Welding Issues
Despite the best efforts and technical know-how, welding stainless steel exhaust can sometimes present challenges. Here are some of the most common welding issues and tips on how to troubleshoot them:
Distortion
Distortion often results from the high heat involved in welding. To avoid this, control the heat input and reduce the number of passes. Use clamps to hold the stainless steel exhaust securely in position and minimize movement during welding. If distortion still occurs, apply a heat sink around the area to be welded to dissipate heat and reduce the risk of warping.
Porosity
Porosity results from the entrapment of gases in the weld pool. To prevent this, clean the stainless steel exhaust thoroughly and ensure that the filler metal is free of any impurities. Increase the shielding gas flow rate to displace any air and vapor from the welding zone and use the correct welding technique to avoid trapping gases.
Improper Penetration
Improper penetration often results from incorrect welding parameters. Avoid extremely high or low heat input and maintain the correct travel speed and angle of the welding torch. Use the correct filler metal diameter, amperage, and voltage to achieve the right penetration depth.
“Controlling the heat input appropriately can prevent distortion in stainless steel exhaust.”
By understanding these common welding issues and tips on how to troubleshoot them, you will be better equipped to overcome any challenges that may arise during the welding process.
Post-Welding Finishing and Protection
After the welding process is complete, it’s essential to give attention to post-welding finishing and protection. This step ensures the longevity and aesthetic appeal of the stainless steel exhaust. Here are some essential techniques:
Cleaning
Cleaning the welded area is crucial to ensure that there are no contaminants on the surface. Contaminants can lead to corrosion and weaken the weld. Use a stainless steel wire brush to remove any debris or contaminants, and then clean the surface with acetone or another suitable cleaning solution.
Smoothing Weld Beads
Smoothing weld beads can improve the appearance of the exhaust and prevent debris from getting trapped in the rough surface. Use a flap disc to smooth out the weld bead and blend it with the surrounding metal. Be careful not to remove too much material, as this can weaken the weld.
Applying Protective Coatings
Applying a protective coating can help to prevent corrosion and ensure longevity. One of the most popular coatings for stainless steel exhausts is ceramic coating. It provides excellent heat resistance and can improve the performance of the exhaust system. Another option is to use high-temperature paint specifically designed for exhaust systems.
Applying a protective coating should be done after the surface has been cleaned and smoothed. Follow the manufacturer’s instructions for the coating to ensure proper application and effectiveness.
Additional Tips and Best Practices
As you hone your skills in welding stainless steel exhaust, here are some additional tips and best practices to keep in mind:
- Joint preparation is key: Proper joint preparation is crucial to ensure successful welding. Be sure to carefully clean and remove any residue or debris from the joint area before welding.
- Master heat control: Stainless steel is a material that can warp and distort easily if not welded at the proper temperature. Practice controlling the heat and moving quickly to minimize distortion.
- Experiment with different filler metals: Different filler metals can produce different results in terms of color, strength, and corrosion resistance. Don’t be afraid to experiment with different filler metals to find the best fit for your project.
- Pay attention to the weld beads: Weld beads should be uniform and smooth, indicating proper penetration and a strong weld. Take time to inspect and adjust as necessary to achieve the desired result.
“The more you practice, the better you’ll get. Don’t be afraid to make mistakes and learn from them!” – Experienced Welder
3” Stainless Steel Exhaust Pipe Kit
If you’re looking to upgrade your vehicle’s exhaust system, a 3” stainless steel exhaust pipe kit is an excellent choice. This kit includes all the necessary components for a complete exhaust system upgrade, including pipes, mufflers, and hangers.
The 3” diameter of the pipes allows for increased exhaust flow, resulting in improved horsepower and performance. With a stainless steel construction, the kit offers enhanced durability and resistance to corrosion, ensuring long-lasting performance and a sleek aesthetic appeal.
Additionally, the kit is designed for easy installation, with pre-welded hangers and flanges that make it a hassle-free DIY project. Once installed, the 3” stainless steel exhaust kit will not only enhance the performance of your vehicle but also give it a unique and attractive exhaust note.
Read More : Upgrade Your Ride: 3” Stainless Steel Exhaust Pipe Kit

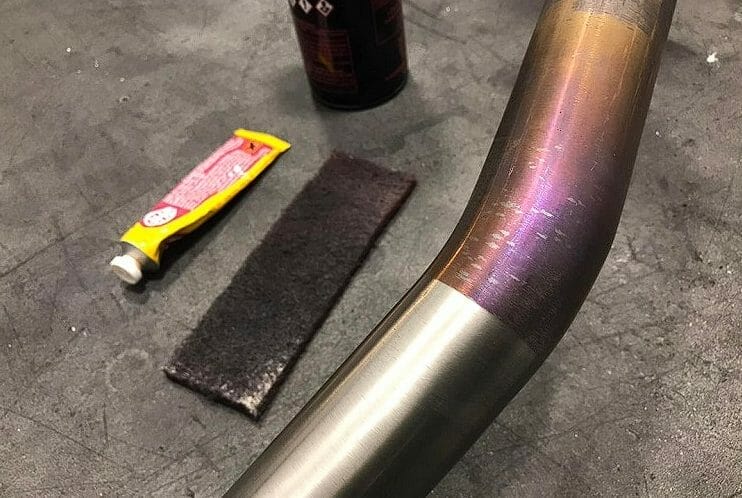

Maintenance and Care for Stainless Steel Exhaust
Proper maintenance and care are crucial to keep your stainless steel exhaust in top condition and avoid costly repairs. Here are some tips for maintaining and caring for your stainless steel exhaust:
- Clean your exhaust regularly with a mild detergent and water to remove dirt, grime, and other contaminants that can lead to corrosion. Avoid using harsh chemicals or abrasive sponges that can scratch the surface of the exhaust.
- Perform regular inspections of your exhaust system, looking for signs of damage, cracks, or leaks. Catching problems early can prevent further damage and costly repairs.
- Keep your exhaust system dry to prevent rust and corrosion. If your vehicle is stored outside, consider a waterproof cover to protect it from the elements.
- Protect your exhaust system with a high-temperature coating or sealant to prevent rust and corrosion. This can also improve the appearance of your exhaust.
- Finally, avoid driving on rough terrain or over speed bumps, as this can cause damage to your exhaust system.
By following these maintenance and care tips, you can ensure the longevity and performance of your stainless steel exhaust system.
Conclusion
Welding stainless steel exhaust requires knowledge, skill, and expertise to achieve the perfect finish. By following the expert guidance in this comprehensive guide, you can elevate your welding skills and create an aesthetically pleasing and long-lasting exhaust system for your vehicle.
From understanding the properties of stainless steel exhaust to selecting the right tools and equipment, preparing the exhaust, and using the right welding techniques, this guide provides step-by-step instructions and tips to help you achieve professional results.
Takeaway Tips
Remember, for successful welding, always maintain proper ventilation in your workspace and choose the right tools and equipment. Proper preparation is key, so be sure to clean and prepare the stainless steel exhaust properly before welding.
When welding, use techniques such as TIG or MIG welding, and troubleshoot any issues such as distortion or porosity. After the welding process, give attention to post-welding finishing and protection, cleaning, smoothing weld beads, and applying protective coatings.
Lastly, proper maintenance and care will ensure the longevity and performance of your stainless steel exhaust system.
Mastering the art of welding stainless steel exhaust takes time and practice, but with these expert tips and best practices, you can achieve professional results and elevate your welding skills.
So, go ahead and weld that stainless steel exhaust with confidence!
What Are the Benefits of Using Tungsten Tips for Welding Stainless Steel Exhaust?
Tungsten tips offer numerous advantages when it comes to tig welding stainless steel techniques, ensuring efficient and quality exhaust welding. These tips boast excellent heat resistance and durability, resulting in extended lifespan and reduced downtime. The tungsten tip’s ability to withstand high temperatures and its non-consumable nature make it an ideal choice for stainless steel welding projects, providing precise and reliable welds.
FAQ
Q: Do I need any special equipment for welding stainless steel exhaust?
A: Yes, you will need specific tools and equipment suitable for welding stainless steel. This includes a welding machine, electrodes, filler metals, and protective gear.
Q: What welding technique is best for stainless steel exhaust?
A: TIG (Tungsten Inert Gas) welding and MIG (Metal Inert Gas) welding are commonly used for stainless steel exhaust. Both techniques can provide strong and aesthetically pleasing welds.
Q: How can I troubleshoot common welding issues?
A: Common welding issues like distortion, porosity, and improper penetration can be addressed by adjusting heat control, ensuring proper joint preparation, and using the correct welding technique.
Q: How should I finish and protect my stainless steel exhaust after welding?
A: After welding, it is essential to clean and smooth weld beads. Applying protective coatings can also help prevent corrosion and ensure the longevity and aesthetic appeal of the stainless steel exhaust.
Q: Can I use a 3” stainless steel exhaust pipe kit for my vehicle?
A: Yes, using a 3” stainless steel exhaust pipe kit can provide several benefits, including improved performance and enhanced aesthetics for your vehicle’s exhaust system.
Q: How do I maintain and care for my stainless steel exhaust?
A: Proper maintenance includes regular cleaning, inspection routines, and taking steps to prevent corrosion. Following these practices will help ensure the longevity and performance of your stainless steel exhaust.
